Commercial
Insulated
Pin Terminals

Filter
1175-473-0310
1175-473-0310
1175-473-0310
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Gold - - PTFE Black YES
1175-491-0416
1175-491-0416
1175-491-0416
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Electro-Tin - - PTFE Blue YES
1175-514-0512
1175-514-0512
1175-514-0512
0.457" - - PRESS LOCK 1/8 0.189 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO
1175-701-08818
1175-701-08818
1175-701-08818
0.443" - - PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO
1175-712-0314
1175-712-0314
1175-712-0314
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO
1175-722-04410
1175-722-04410
1175-722-04410
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES

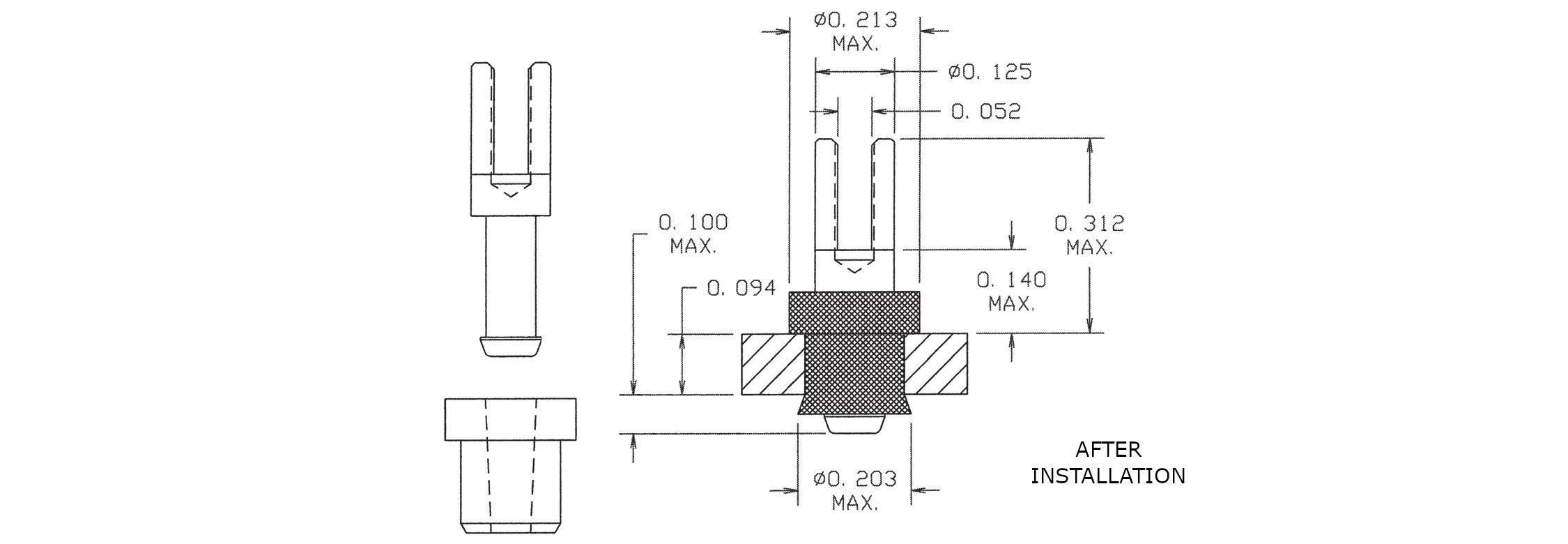

1175-733-0516
1175-733-0516
1175-733-0516
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO
1175-751-0112
1175-751-0112
1175-751-0112
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Red NO
1175-762-0318
1175-762-0318
1175-762-0318
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Gold - - PTFE Gray NO
1175-821-04414
1175-821-04414
1175-821-04414
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Yellow NO
1175-841-08810
1175-841-08810
1175-841-08810
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Black NO
1175-872-0116
1175-872-0116
1175-872-0116
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Silver - - PTFE Blue YES
1177-02-0412
1177-02-0412
1177-02-0412
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Electro-Tin - - PTFE Red NO

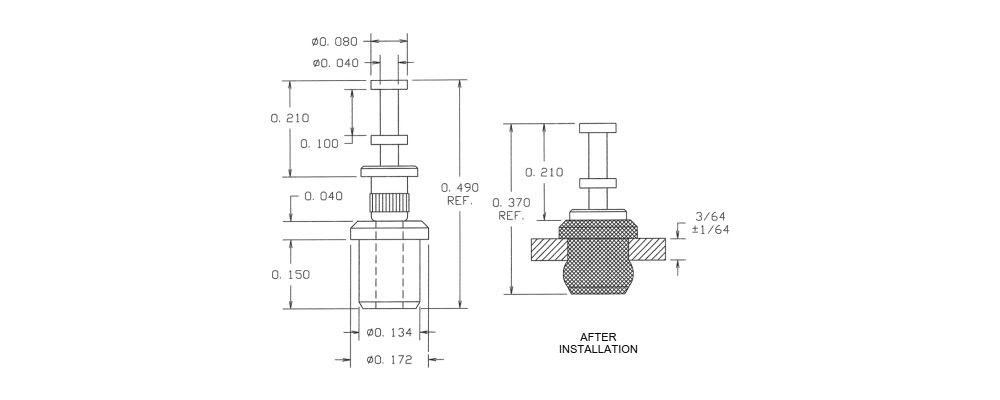

1177-11-04418
1177-11-04418
1177-11-04418
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Gray NO

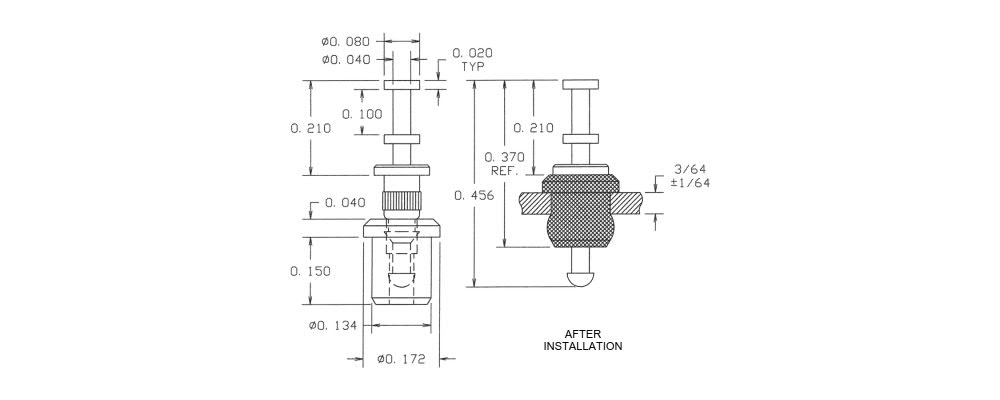

1177-31-08814
1177-31-08814
1177-31-08814
0.456" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO

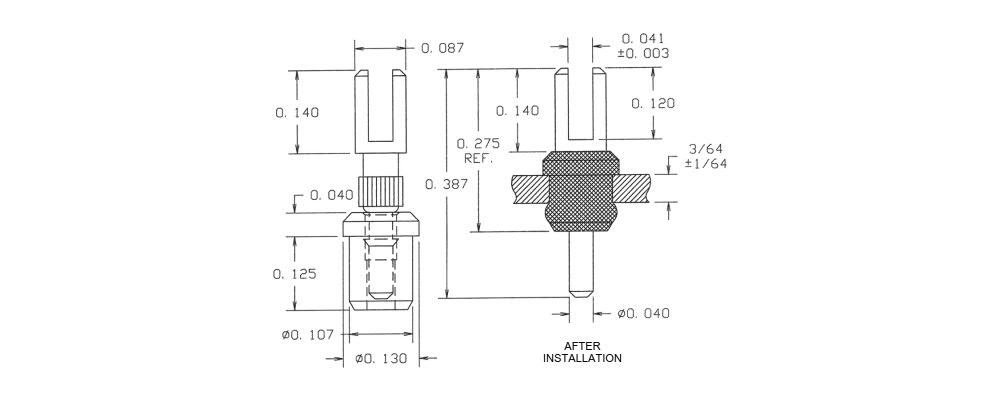

1177-41-0310
1177-41-0310
1177-41-0310
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Gold - - PTFE Black YES
1177-52-0416
1177-52-0416
1177-52-0416
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Electro-Tin - - PTFE Blue YES
1177-56-0512
1177-56-0512
1177-56-0512
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Electro Solder - - PTFE Red NO

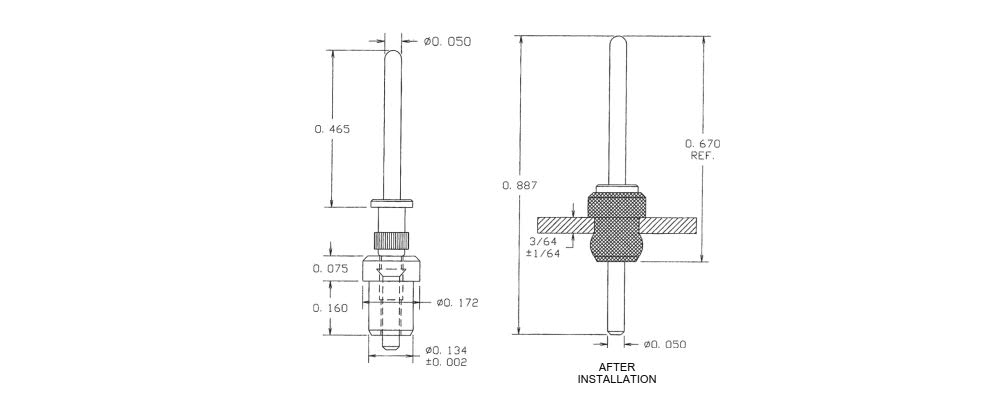

1177-60-08818
1177-60-08818
1177-60-08818
0.887" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1178R-03-0314
1178R-03-0314
1178R-03-0314
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Gold - - PTFE Yellow NO
