Commercial
Insulated
Pin Terminals

Filter
1121-01-08819
1121-01-08819
1121-01-08819
0.350" 0.040 Turret/Tip Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE White NO
1121-06-0315
1121-06-0315
1121-06-0315
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Green YES
1121-11-04411
1121-11-04411
1121-11-04411
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Brown NO
1121-15-0517
1121-15-0517
1121-15-0517
0.740" 0.050 Turret/Tip Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Violet NO
1121-20-0113
1121-20-0113
1121-20-0113
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Silver - - PTFE Orange NO
1121-24-0319
1121-24-0319
1121-24-0319
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Gold - - PTFE White YES
1121-30-04415
1121-30-04415
1121-30-04415
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Green YES
1121-51-08811
1121-51-08811
1121-51-08811

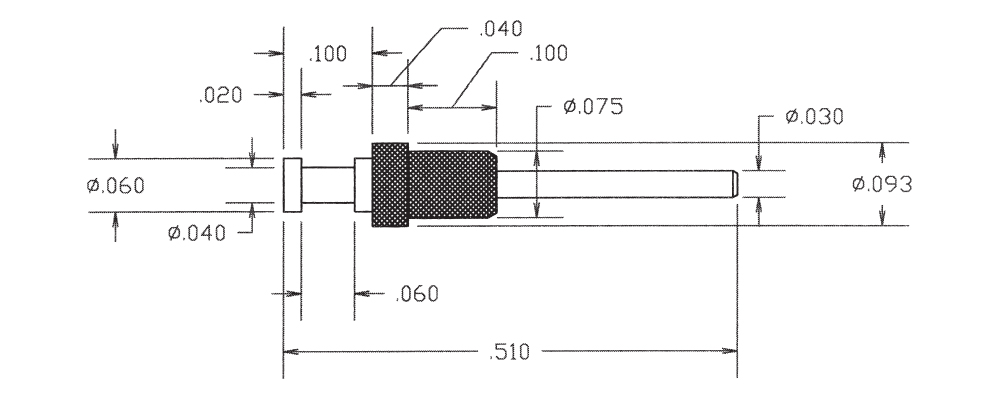

0.510" 0.030 TURRET/PIN Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Brown NO
1121R-06-0117
1121R-06-0117
1121R-06-0117
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE Violet YES
1121R-50-0413
1121R-50-0413
1121R-50-0413
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1123-03-04419
1123-03-04419
1123-03-04419
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE White YES
1123-07-08815
1123-07-08815
1123-07-08815
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1123-72-0311
1123-72-0311
1123-72-0311
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Gold - - PTFE Brown NO
1123R-05-0417
1123R-05-0417
1123R-05-0417
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE Violet YES
1123R-62-0513
1123R-62-0513
1123R-62-0513
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Orange NO
1125-34-08819
1125-34-08819
1125-34-08819
0.788" - - 6-32 Nut 1/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE White NO
1125-40-0315
1125-40-0315
1125-40-0315
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Gold Electro-Tin Brass PTFE Green YES
1125-44-04411
1125-44-04411
1125-44-04411
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Brown NO
1125-48-0517
1125-48-0517
1125-48-0517
0.388" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass PTFE Violet NO
1125-53-0113
1125-53-0113
1125-53-0113
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Silver Electro-Tin Brass PTFE Orange NO
