Commercial
Insulated
Pin Terminals

Filter
1110-66-0319
1110-66-0319
1110-66-0319
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1110-70-04415
1110-70-04415
1110-70-04415
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin - - PTFE Green YES
1110-75-08811
1110-75-08811
1110-75-08811
0.343" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1110-93-0117
1110-93-0117
1110-93-0117
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Violet YES
1111-02-0413
1111-02-0413
1111-02-0413
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Electro-Tin - - PTFE Orange NO
1111-10-04419
1111-10-04419
1111-10-04419
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE White YES
1111-14S-08815
1111-14S-08815
1111-14S-08815
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1111-20-0311
1111-20-0311
1111-20-0311
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Brown NO
1111-24-0417
1111-24-0417
1111-24-0417
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Violet YES
1111-33-0513
1111-33-0513
1111-33-0513
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.166 Brass Electro Solder - - PTFE Orange NO

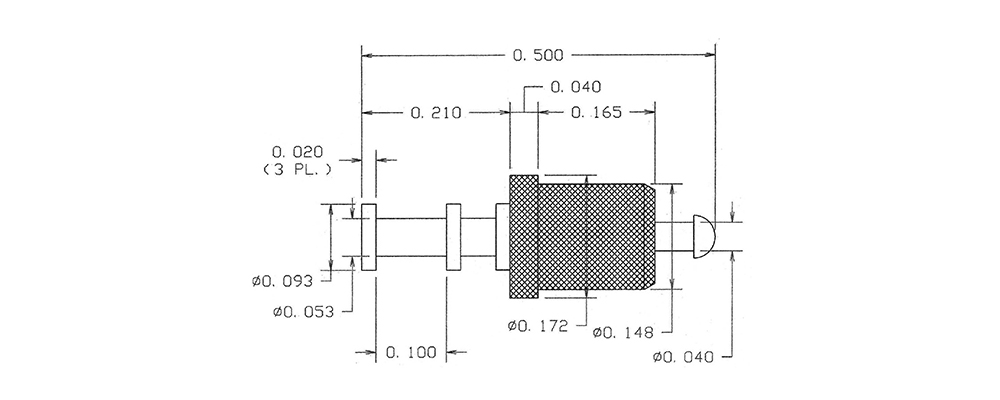

1111-37-08819
1111-37-08819
1111-37-08819
0.500" 0.053 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE White NO
1111-44-0315
1111-44-0315
1111-44-0315
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Gold - - PTFE Green YES
1111-50-04411
1111-50-04411
1111-50-04411
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Brown NO

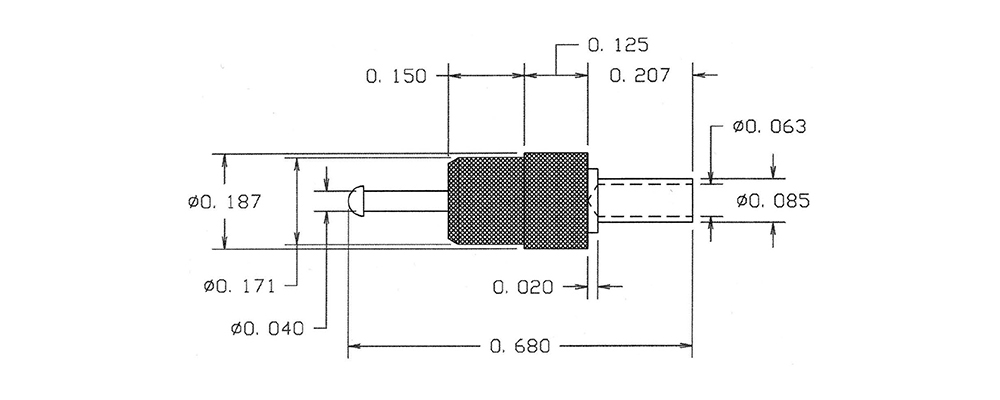

1111-57-0517
1111-57-0517
1111-57-0517
0.680" 0.040 - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Violet NO
1111R-09-0113
1111R-09-0113
1111R-09-0113
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO
1111R-14-0319
1111R-14-0319
1111R-14-0319
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE White YES
1112-06-04415
1112-06-04415
1112-06-04415
0.233" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Green YES

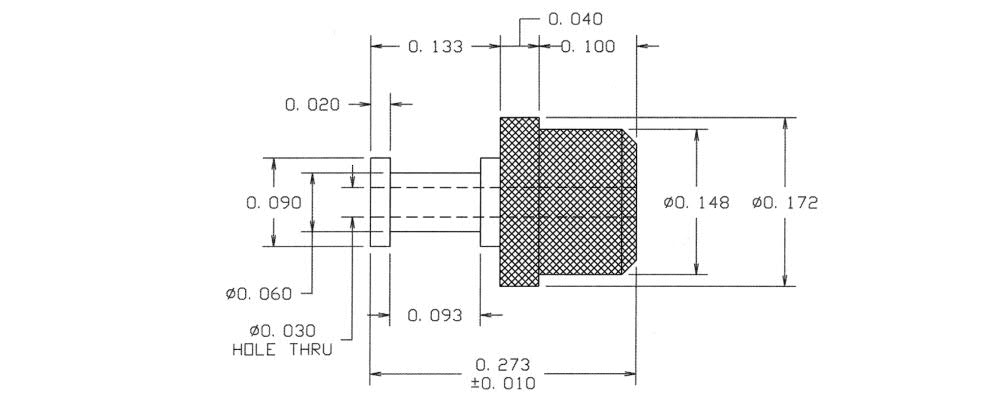

1112-13-08811
1112-13-08811
1112-13-08811
0.273" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1112-65-0117
1112-65-0117
1112-65-0117
0.155" - - Press Fit 1/32 0.058 Brass Silver - - PTFE Violet YES

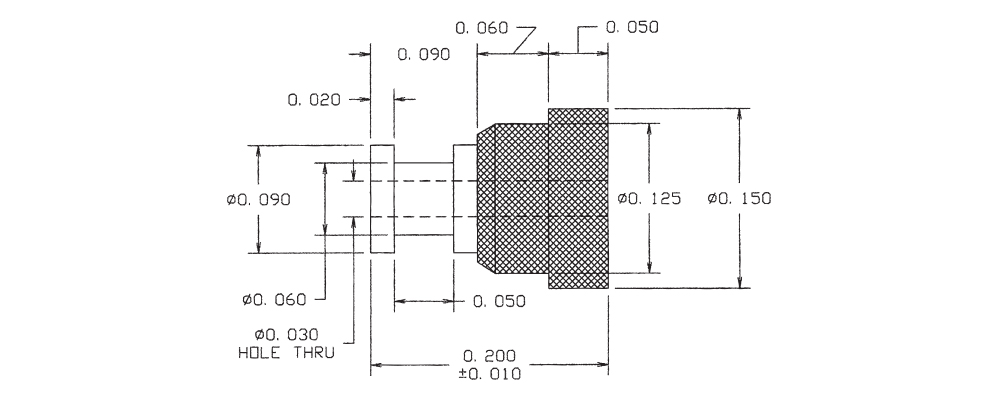

1112R-05-0413
1112R-05-0413
1112R-05-0413
0.200" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Orange NO
