Commercial
Insulated
Pin Terminals

Filter
1112R-61-04419
1112R-61-04419
1112R-61-04419
0.200" - - Press Fit 1/32 0.086 Brass Bright Tin - - PTFE White YES

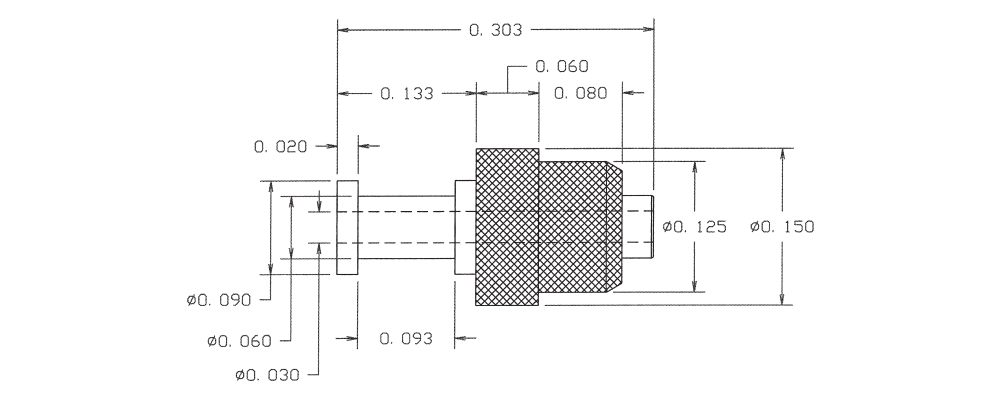

1113-02-08815
1113-02-08815
1113-02-08815
0.303" - - Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Green NO
1113-57-0311
1113-57-0311
1113-57-0311
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Gold - - PTFE Brown NO
1114-03-0417
1114-03-0417
1114-03-0417
0.215" 0.040 - Press Fit 1/64 0.086 Brass Electro-Tin - - PTFE Violet YES
1114-07-0513
1114-07-0513
1114-07-0513
0.405" 0.040 - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Orange NO

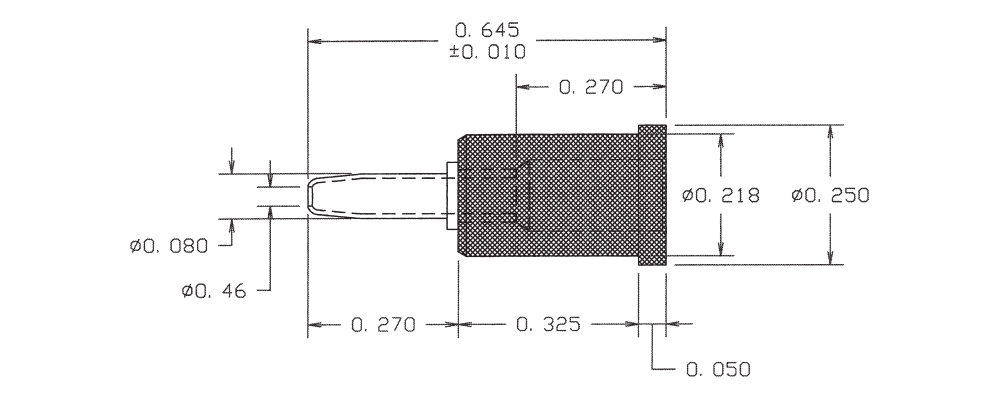

1114-30-08819
1114-30-08819
1114-30-08819
0.645" 0.080 - Press Fit 9/32 0.205 Brass Bright Tin-Lead - - PTFE White NO
1114-74-0315
1114-74-0315
1114-74-0315
0.367" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1114R-12-04411
1114R-12-04411
1114R-12-04411
0.247" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Brown NO
1114R-19-0517
1114R-19-0517
1114R-19-0517
0.310" 0.085 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Violet NO
1114R-80-0113
1114R-80-0113
1114R-80-0113
0.380" 0.055 - Press Fit 1/32 0.136 Brass Silver - - PTFE Orange NO
1115-06-0319
1115-06-0319
1115-06-0319
0.367" 0.040 - Press Fit 1/16 0.187 Brass Gold - - PTFE White YES
1115-50-04415
1115-50-04415
1115-50-04415
0.353" - - Press Fit 3/32 0.187 Brass Bright Tin - - PTFE Green YES
1115-54-08811
1115-54-08811
1115-54-08811
0.500" - Turret/Turret Press Fit 3/32 0.187 Brass Bright Tin-Lead - - PTFE Brown NO
1116-26-0117
1116-26-0117
1116-26-0117
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1117-15-0413
1117-15-0413
1117-15-0413
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Electro-Tin Nickel Brass PTFE Orange NO
1117-19-04419
1117-19-04419
1117-19-04419
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Bright Tin Nickel Brass PTFE White YES

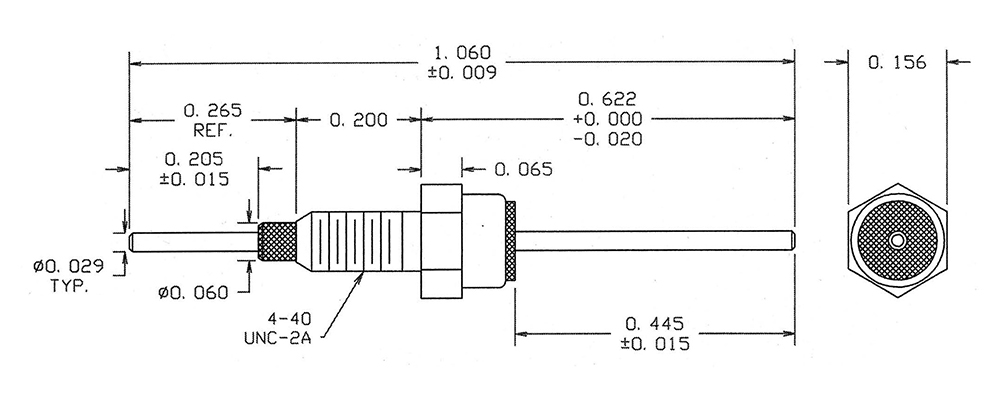

1117-53-08815
1117-53-08815
1117-53-08815
1.060" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Nickel Brass PTFE Green NO
1118-32-0311
1118-32-0311
1118-32-0311
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Gold - - PTFE Brown NO
1119-22-0417
1119-22-0417
1119-22-0417
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Electro-Tin - - PTFE Violet YES
1119-32-0513
1119-32-0513
1119-32-0513
0.836" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Orange NO
