Commercial
Insulated
Pin Terminals

Filter
1157-01-0310
1157-01-0310
1157-01-0310
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Black YES
1157-06-0416
1157-06-0416
1157-06-0416
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Electro-Tin - - PTFE Blue YES
1157R-04-0512
1157R-04-0512
1157R-04-0512
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Red NO
1160-05-08818
1160-05-08818
1160-05-08818
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1167-20-0314
1167-20-0314
1167-20-0314
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Yellow YES
1167-67-04410
1167-67-04410
1167-67-04410
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Black YES
1169-08-0516
1169-08-0516
1169-08-0516
0.499" - - 2-56 Nut 1/32 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Blue NO
1169-37-0112
1169-37-0112
1169-37-0112
0.750" - - 4-40 Nut 1/8 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Red YES

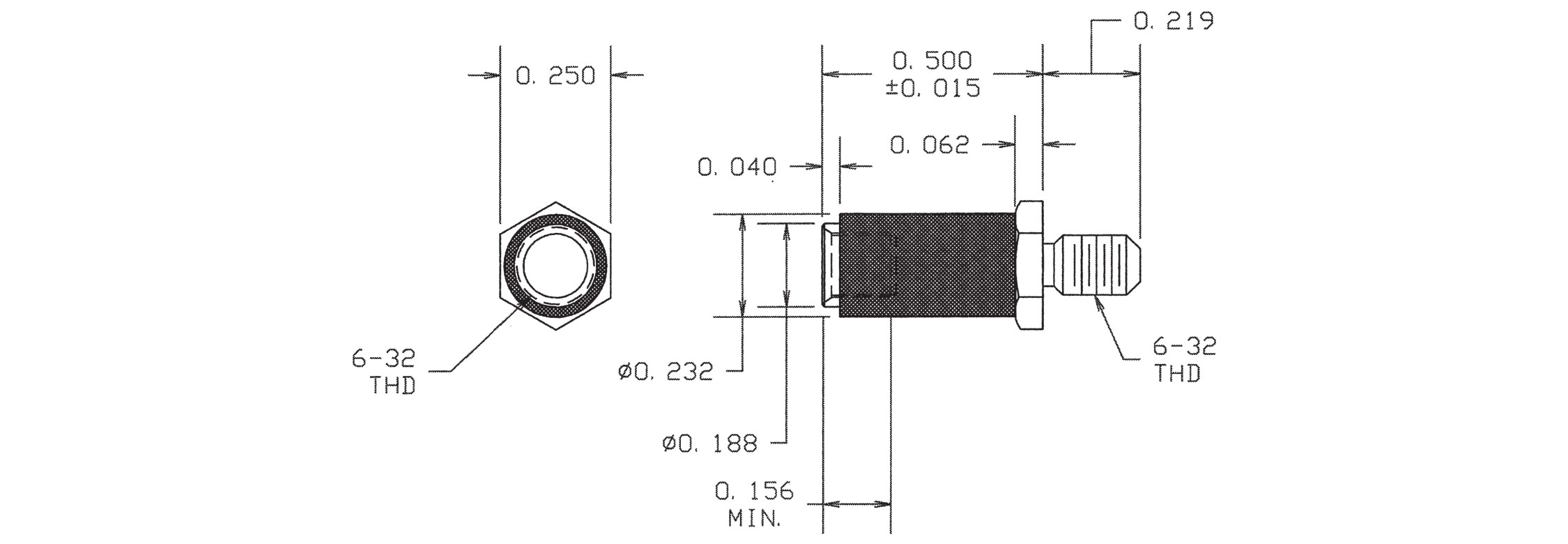

1170-02-07518
1170-02-07518
1170-02-07518
0.719" - - 6-32 Nut 3/32 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Gray YES
1170-22-0314
1170-22-0314
1170-22-0314
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Yellow YES
1175-012-04410
1175-012-04410
1175-012-04410
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES

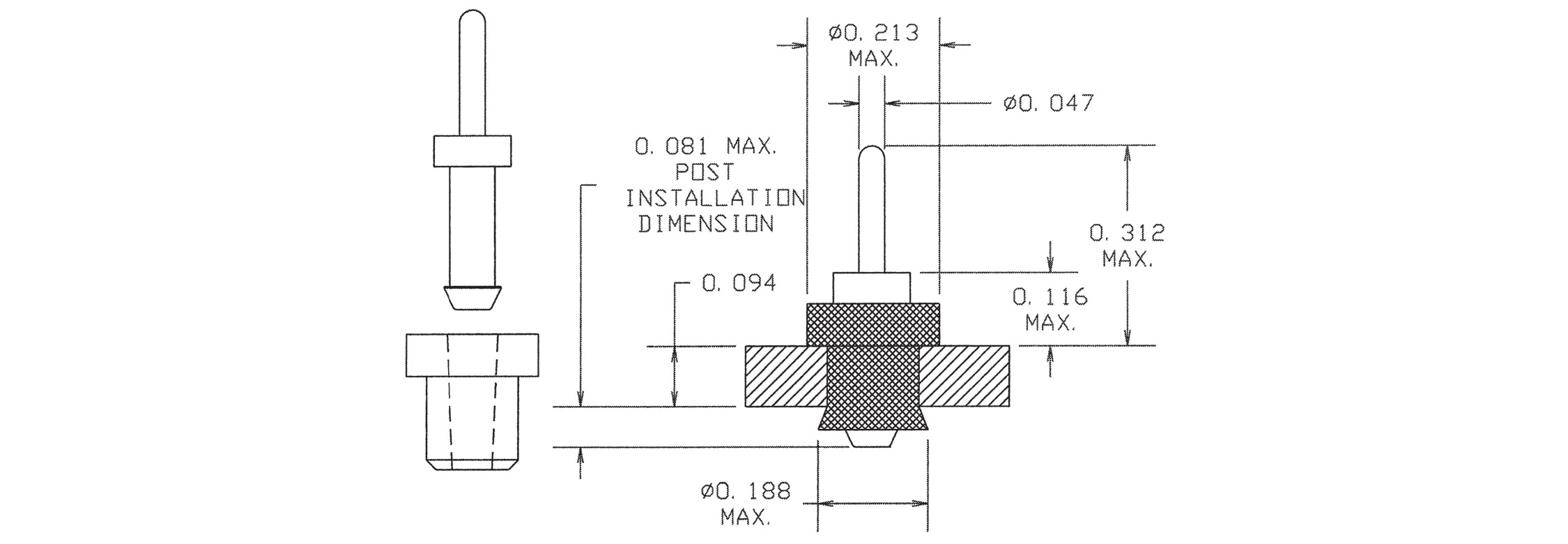

1175-023-0516
1175-023-0516
1175-023-0516
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO
1175-351-0112
1175-351-0112
1175-351-0112
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Red NO
1175-372-0318
1175-372-0318
1175-372-0318
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Gold - - PTFE Gray NO

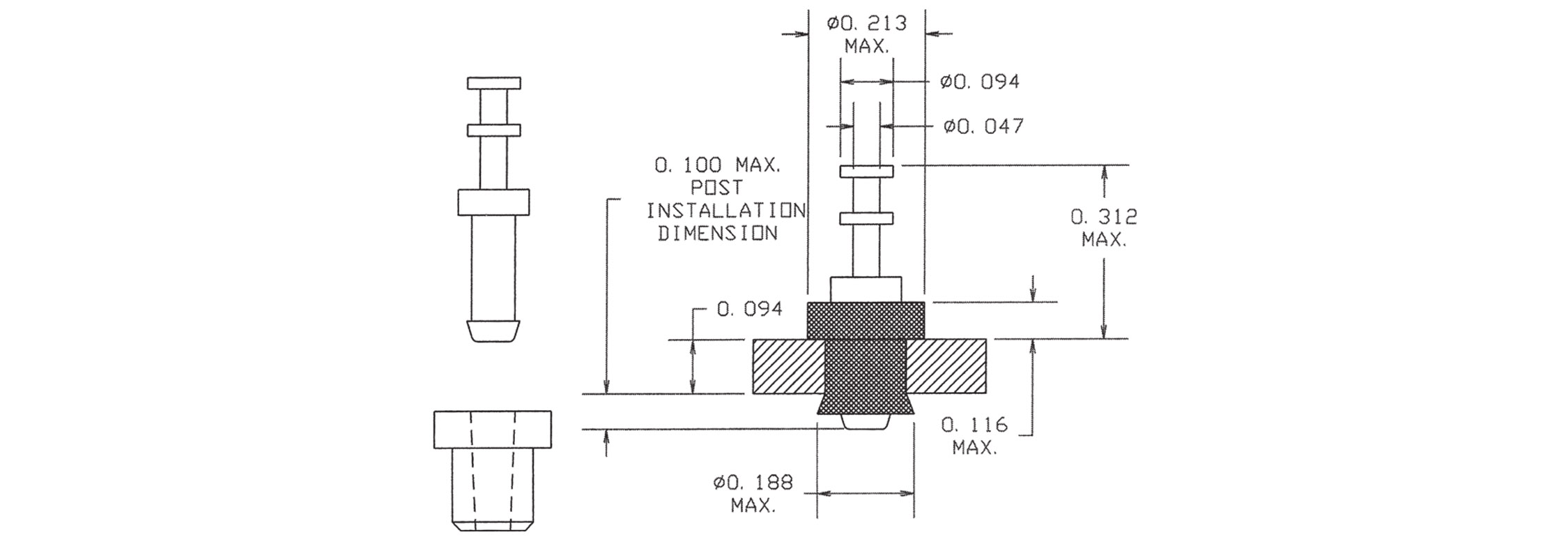

1175-403-04414
1175-403-04414
1175-403-04414
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Yellow NO
1175-413-08810
1175-413-08810
1175-413-08810
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Black NO
1175-424-0116
1175-424-0116
1175-424-0116
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Silver - - PTFE Blue YES
1175-434-0412
1175-434-0412
1175-434-0412
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Red NO
1175-444-04418
1175-444-04418
1175-444-04418
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Gray NO
1175-461-08814
1175-461-08814
1175-461-08814
0.361" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO
