Commercial
Insulated
Pin Terminals

Filter

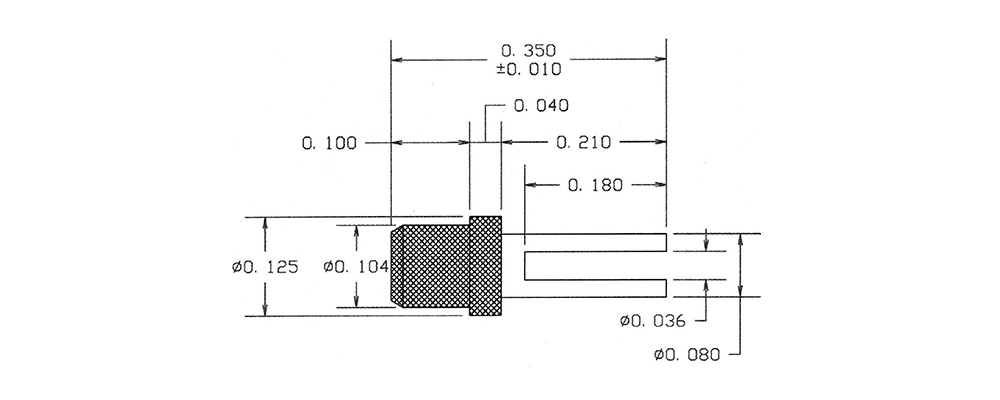

1106-50-08819
1106-50-08819
1106-50-08819
0.350" - - Press Fit 1/16 0.091 Brass Bright Tin-Lead - - PTFE White NO
1106R-23-0315
1106R-23-0315
1106R-23-0315
0.375" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES
1106R-50-04411
1106R-50-04411
1106R-50-04411
0.350" - - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Brown NO
1107-02-0517
1107-02-0517
1107-02-0517
0.560" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Violet NO
1107-08-0113
1107-08-0113
1107-08-0113
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Orange NO
1108-01-0319
1108-01-0319
1108-01-0319
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE White YES
1108-05-04415
1108-05-04415
1108-05-04415
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Green YES
1108-30-08811
1108-30-08811
1108-30-08811
0.819" - Turret/Turret Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1110-06-0117
1110-06-0117
1110-06-0117
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Violet YES
1110-10-0413
1110-10-0413
1110-10-0413
0.453" 0.030 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Orange NO
1110-15-04419
1110-15-04419
1110-15-04419
0.431" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES
1110-19-08815
1110-19-08815
1110-19-08815
0.619" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1110-24-0311
1110-24-0311
1110-24-0311
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Brown NO
1110-28-0417
1110-28-0417
1110-28-0417
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1110-32-0513
1110-32-0513
1110-32-0513
0.710" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Orange NO

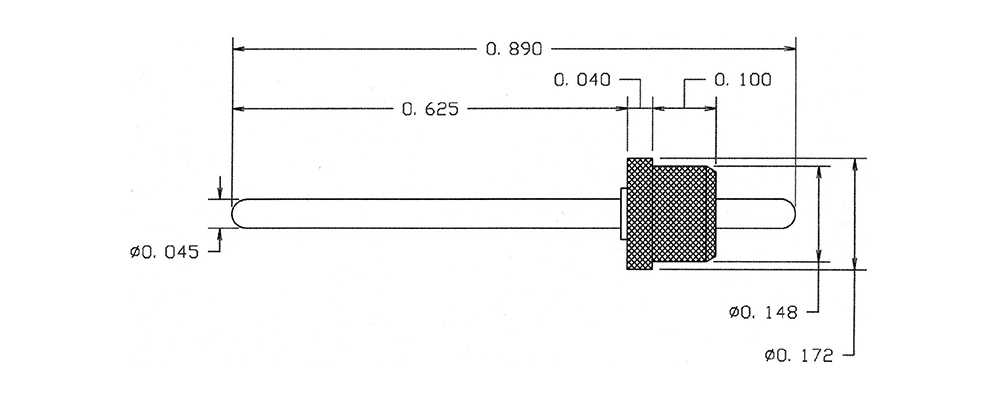

1110-37-08819
1110-37-08819
1110-37-08819
0.890" 0.045 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1110-44-0315
1110-44-0315
1110-44-0315
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Gold - - PTFE Green YES
1110-48-04411
1110-48-04411
1110-48-04411
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Brown NO
1110-53-0517
1110-53-0517
1110-53-0517
0.437" 0.050 TURRET/PIN Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Violet NO
1110-61-0113
1110-61-0113
1110-61-0113
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Orange NO
