Commercial
Insulated
Pin Terminals

Filter

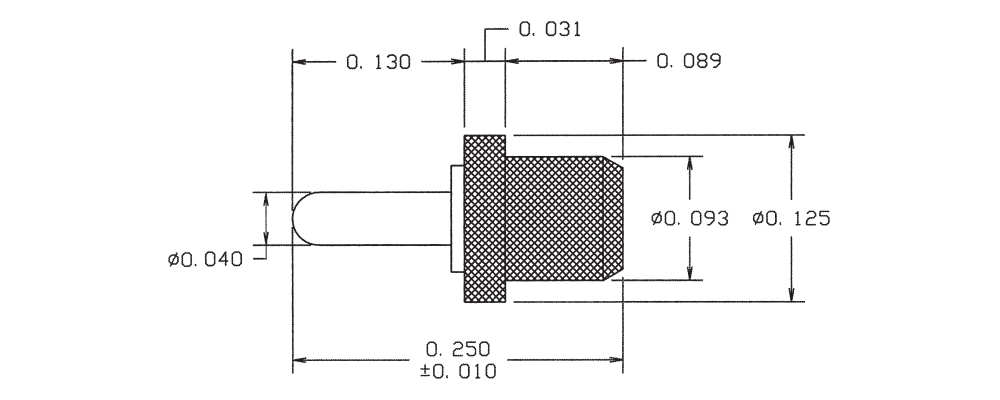

1100-04-0416
1100-04-0416
1100-04-0416
0.250" 0.040 - Press Fit 3/64 0.086 Brass Electro-Tin - - PTFE Blue YES
1114-24-0412
1114-24-0412
1114-24-0412
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO

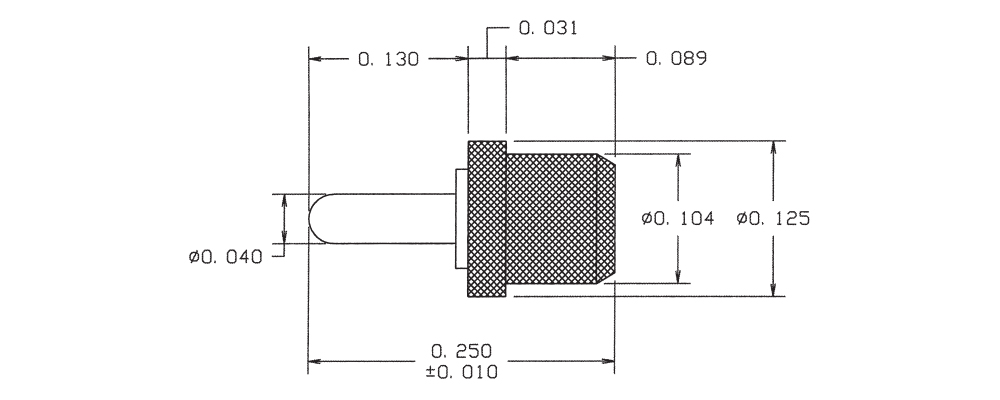

1100-08-0512
1100-08-0512
1100-08-0512
0.250" 0.040 - Press Fit 3/64 0.091 Brass Electro Solder - - PTFE Red NO

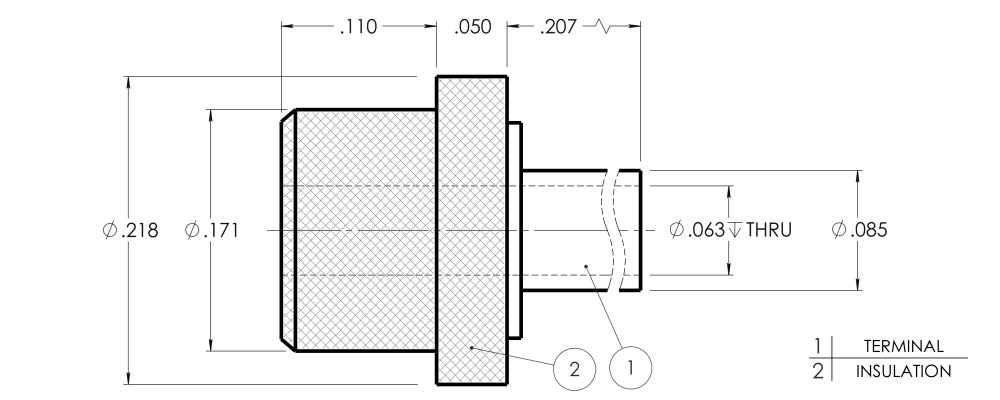

1114-27-04418
1114-27-04418
1114-27-04418
0.367" 0.085 - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Gray NO

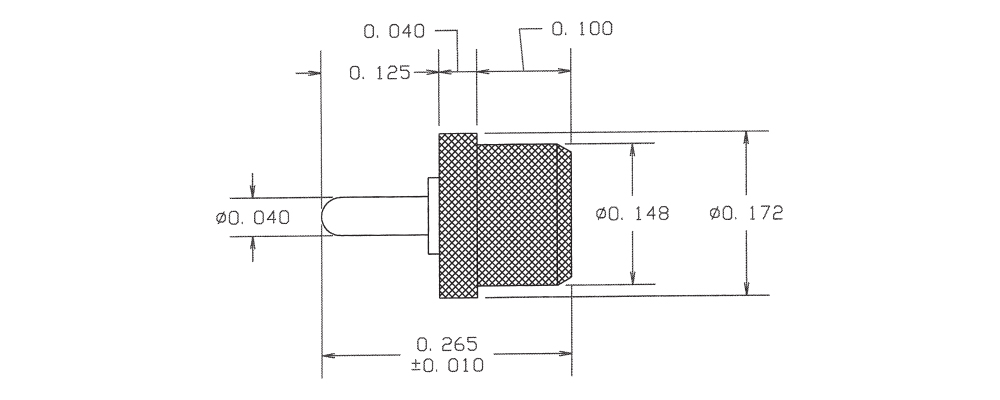

1100-13-08818
1100-13-08818
1100-13-08818
0.265" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1121-08-08814
1121-08-08814
1121-08-08814
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO

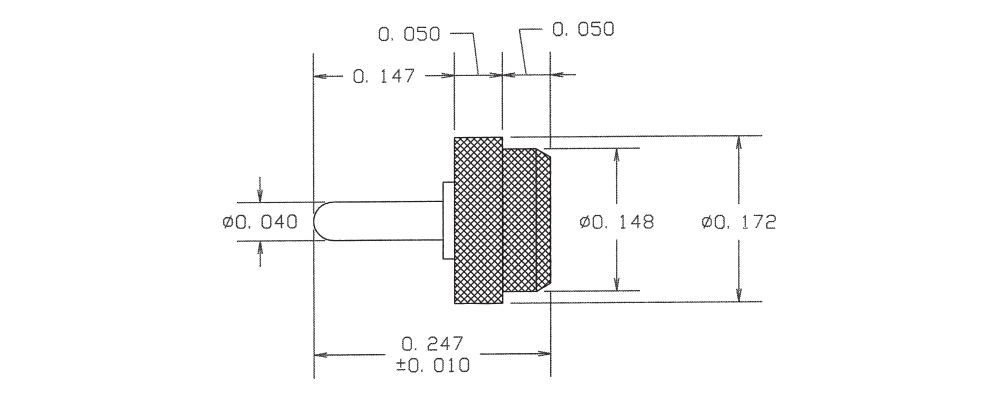

1100-18-0314
1100-18-0314
1100-18-0314
0.247" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Yellow NO

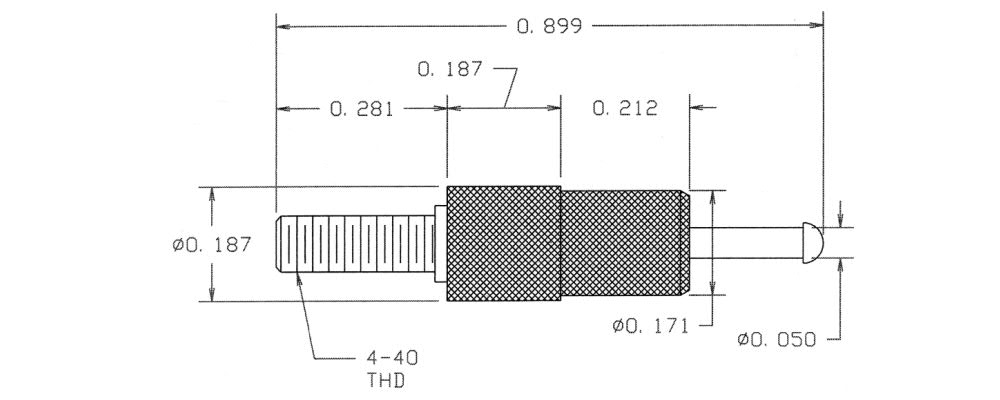

1124-10-0310
1124-10-0310
1124-10-0310
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Black YES

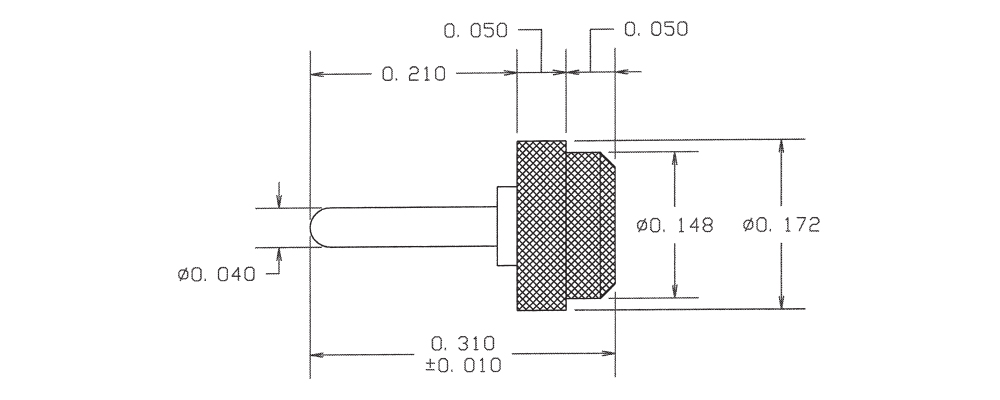

1100-22-04410
1100-22-04410
1100-22-04410
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Black YES
1125-80-0416
1125-80-0416
1125-80-0416
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass PTFE Blue YES

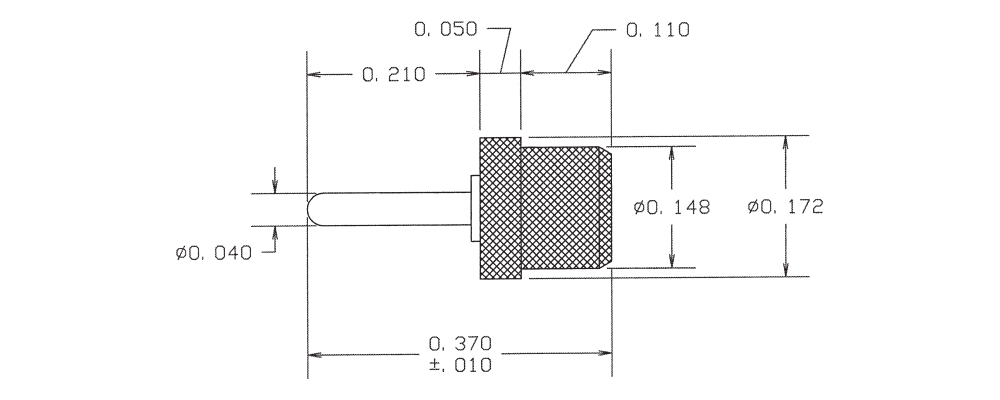

1100-32-0516
1100-32-0516
1100-32-0516
0.370" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO
1110-54-0512
1110-54-0512
1110-54-0512
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Red NO

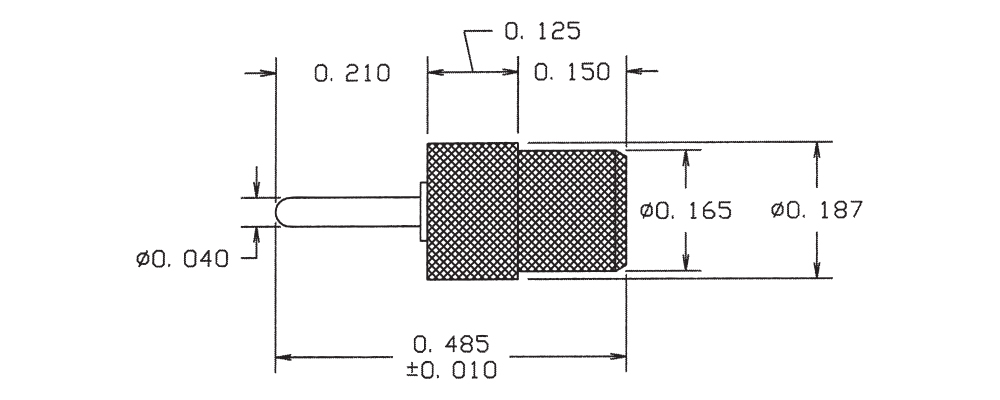

1100-43-0112
1100-43-0112
1100-43-0112
0.485" 0.040 - Press Fit 1/8 0.152 Brass Silver - - PTFE Red NO
1100-48-0318
1100-48-0318
1100-48-0318
0.600" 0.062 - Press Fit 1/8 0.167 Brass Gold - - PTFE Gray NO
1100-73-04414
1100-73-04414
1100-73-04414
0.580" 0.063 - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Yellow NO

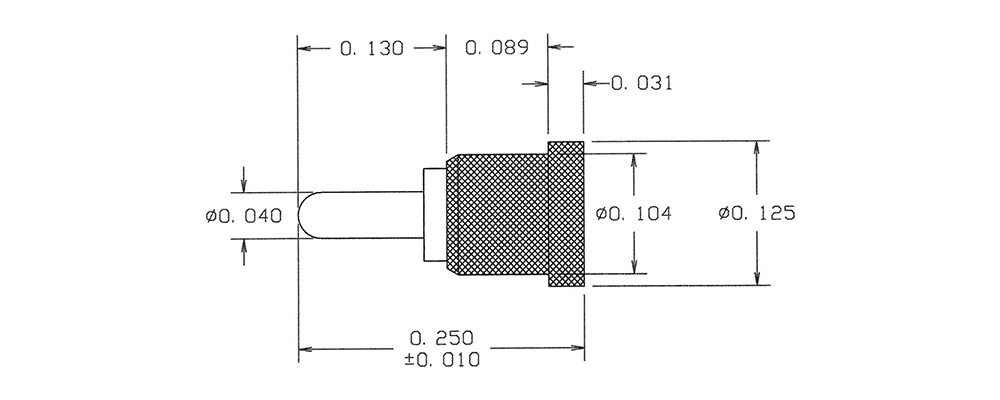

1100R-08-08810
1100R-08-08810
1100R-08-08810
0.250" 0.040 - Press Fit 1/16 0.091 Brass Bright Tin-Lead - - PTFE Black NO
1100R-17-0116
1100R-17-0116
1100R-17-0116
0.305" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES

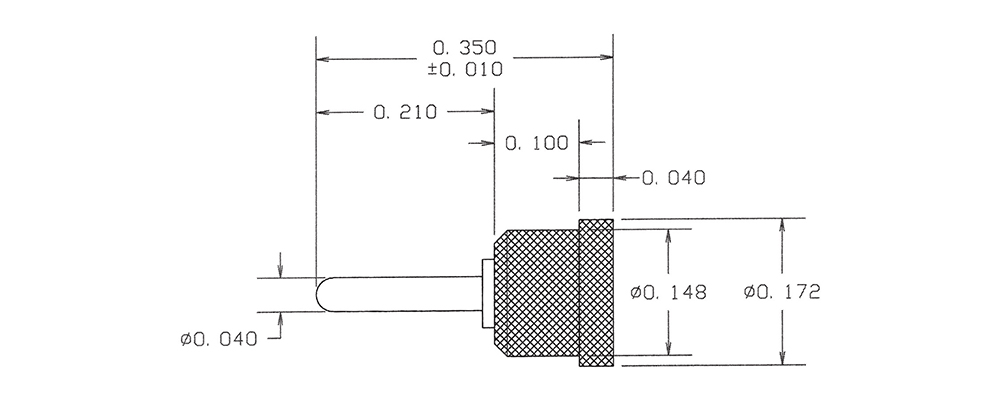

1100R-28-0412
1100R-28-0412
1100R-28-0412
0.350" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO

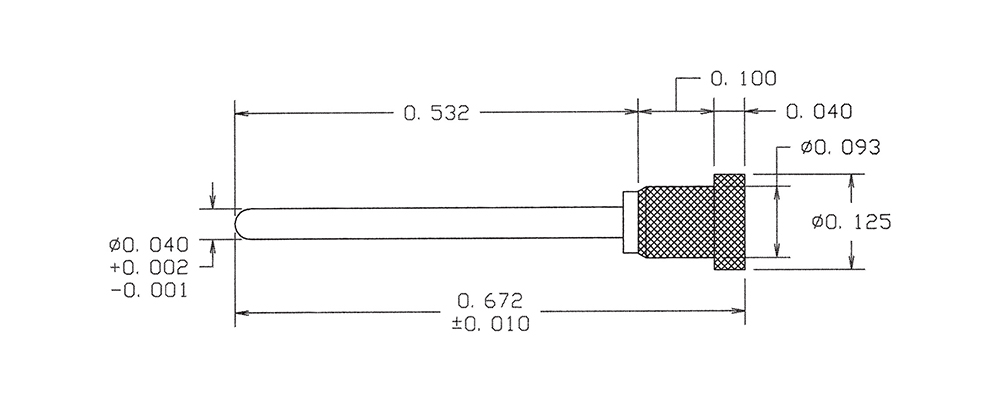

1100R-63-04418
1100R-63-04418
1100R-63-04418
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Gray NO

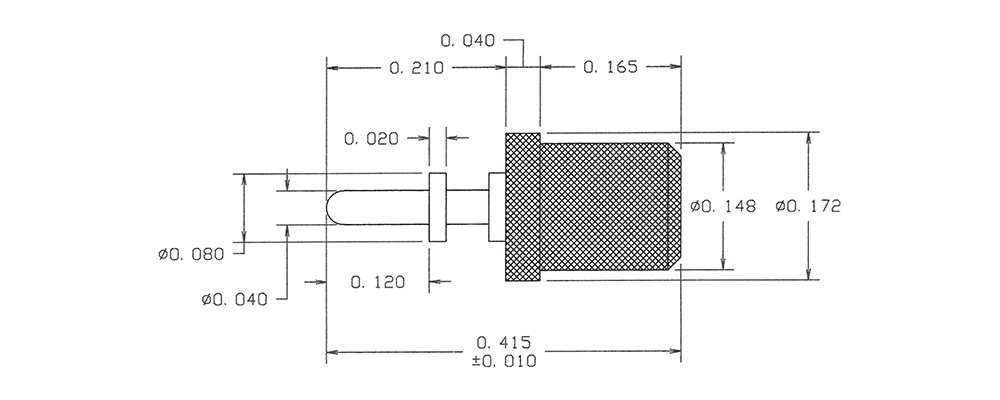

1101-04-08814
1101-04-08814
1101-04-08814
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
