Commercial
Insulated
Pin Terminals

Filter
1102R-18-04410
1102R-18-04410
1102R-18-04410
0.500" - - Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Black YES

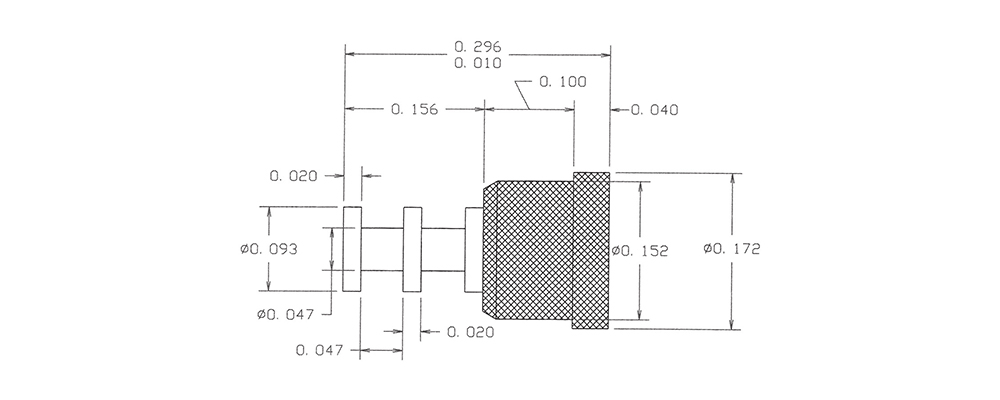

1102R-26-0516
1102R-26-0516
1102R-26-0516
0.296" - - Press Fit 1/16 0.140 Brass Electro Solder - - PTFE Blue NO
1102R-74-0112
1102R-74-0112
1102R-74-0112
0.375" - - Press Fit 3/32 0.172 Brass Silver - - PTFE Red NO
1102R-92-0318
1102R-92-0318
1102R-92-0318
0.460" - - Press Fit 3/32 0.172 Brass Gold - - PTFE Gray NO

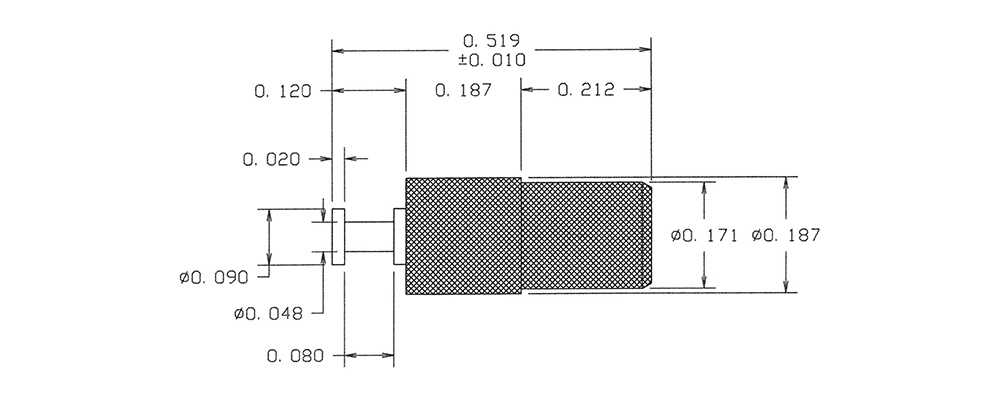

1103-07-04414
1103-07-04414
1103-07-04414
0.519" - - Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Yellow NO

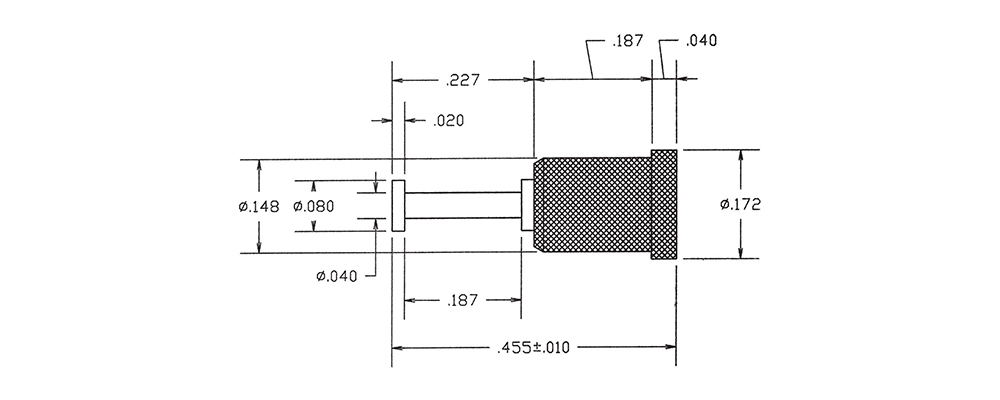

1103R-05-08810
1103R-05-08810
1103R-05-08810
0.455" - - Press Fit 5/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1104-04-0116
1104-04-0116
1104-04-0116
0.392" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES
1105-01-0412
1105-01-0412
1105-01-0412
1.187" - Double Turret/Double Turret Press Fit Up to 5/16 0.205 Brass Electro-Tin - - PTFE Red NO
1106-02-04418
1106-02-04418
1106-02-04418
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Gray NO
1106-06-08814
1106-06-08814
1106-06-08814
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Yellow NO
1106-11-0310
1106-11-0310
1106-11-0310
0.703" - - Press Fit 1/16 0.158 Brass Gold - - PTFE Black YES
1106-15-0416
1106-15-0416
1106-15-0416
1.190" - - Press Fit 5/32 0.158 Brass Electro-Tin - - PTFE Blue YES
1106-19-0512
1106-19-0512
1106-19-0512
1.190" - - Press Fit 5/32 0.205 Brass Electro Solder - - PTFE Red NO

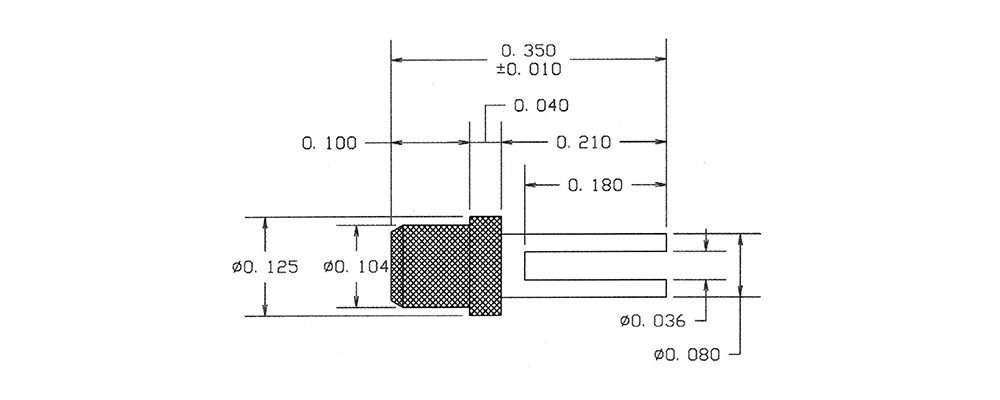

1106-50-08818
1106-50-08818
1106-50-08818
0.350" - - Press Fit 1/16 0.091 Brass Bright Tin-Lead - - PTFE Gray NO
1106R-23-0314
1106R-23-0314
1106R-23-0314
0.375" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Yellow NO
1106R-50-04410
1106R-50-04410
1106R-50-04410
0.350" - - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Black YES

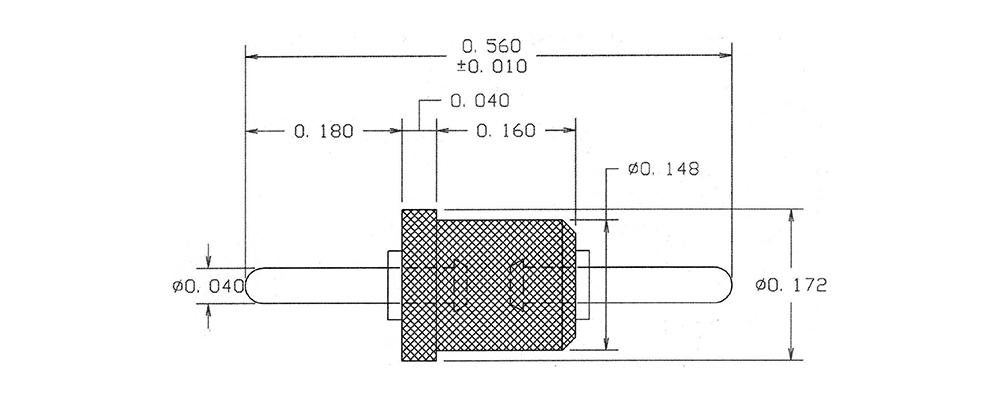

1107-02-0516
1107-02-0516
1107-02-0516
0.560" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Blue NO
1107-08-0112
1107-08-0112
1107-08-0112
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Red NO
1108-01-0318
1108-01-0318
1108-01-0318
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE Gray NO
1108-05-04414
1108-05-04414
1108-05-04414
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Yellow NO
