Commercial
Insulated
Pin Terminals

Filter
1111-20-0310
1111-20-0310
1111-20-0310
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Black YES
1111-24-0416
1111-24-0416
1111-24-0416
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Blue YES
1111-33-0512
1111-33-0512
1111-33-0512
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.166 Brass Electro Solder - - PTFE Red NO

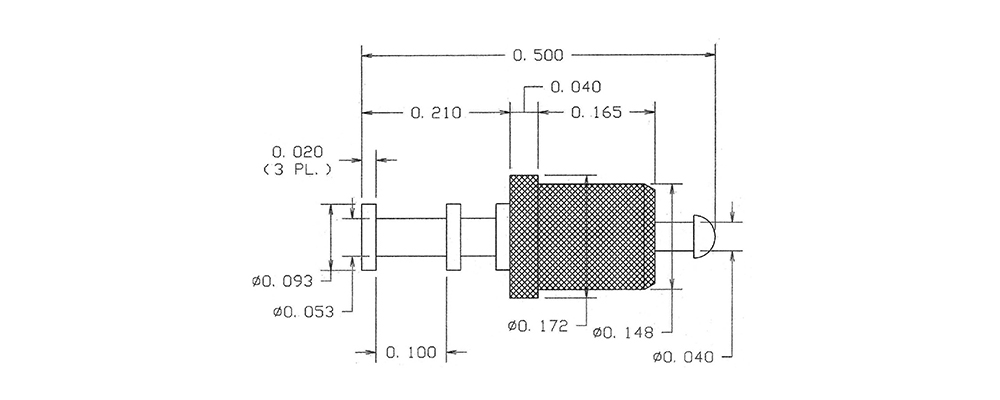

1111-37-08818
1111-37-08818
1111-37-08818
0.500" 0.053 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1111-44-0314
1111-44-0314
1111-44-0314
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Gold - - PTFE Yellow NO
1111-50-04410
1111-50-04410
1111-50-04410
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Black YES

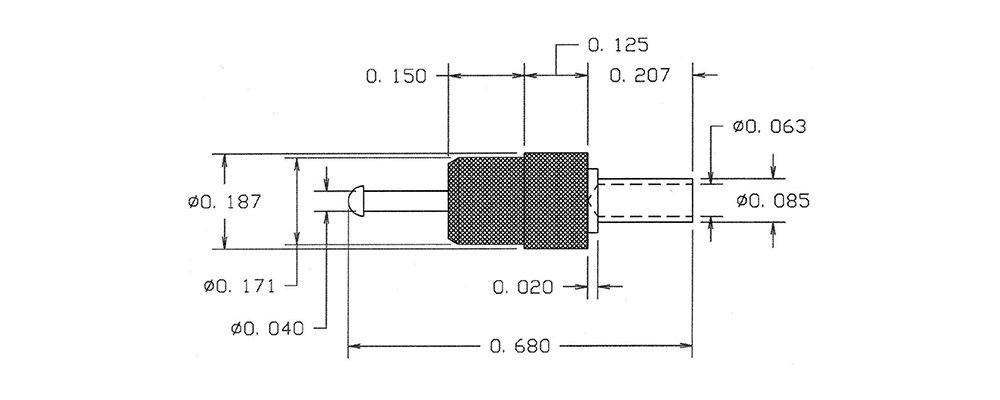

1111-57-0516
1111-57-0516
1111-57-0516
0.680" 0.040 - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Blue NO
1111R-09-0112
1111R-09-0112
1111R-09-0112
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Red NO
1111R-14-0318
1111R-14-0318
1111R-14-0318
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Gray NO
1112-06-04414
1112-06-04414
1112-06-04414
0.233" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Yellow NO

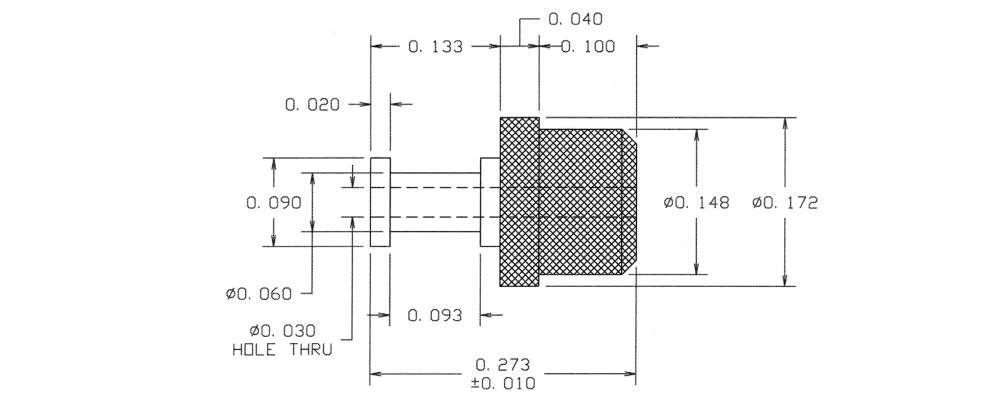

1112-13-08810
1112-13-08810
1112-13-08810
0.273" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1112-65-0116
1112-65-0116
1112-65-0116
0.155" - - Press Fit 1/32 0.058 Brass Silver - - PTFE Blue YES
1112R-05-0412
1112R-05-0412
1112R-05-0412
0.200" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Red NO
1112R-61-04418
1112R-61-04418
1112R-61-04418
0.200" - - Press Fit 1/32 0.086 Brass Bright Tin - - PTFE Gray NO
1113-02-08814
1113-02-08814
1113-02-08814
0.303" - - Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Yellow NO
1113-57-0310
1113-57-0310
1113-57-0310
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Gold - - PTFE Black YES
1114-03-0416
1114-03-0416
1114-03-0416
0.215" 0.040 - Press Fit 1/64 0.086 Brass Electro-Tin - - PTFE Blue YES

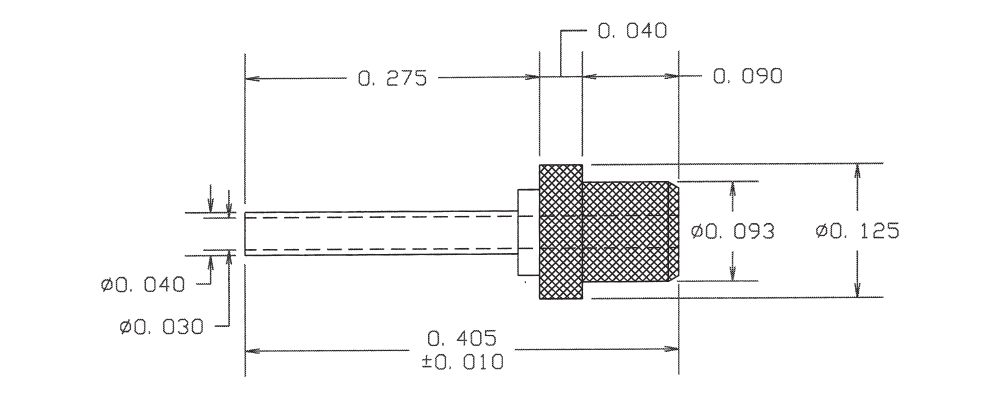

1114-07-0512
1114-07-0512
1114-07-0512
0.405" 0.040 - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Red NO
1114-30-08818
1114-30-08818
1114-30-08818
0.645" 0.080 - Press Fit 9/32 0.205 Brass Bright Tin-Lead - - PTFE Gray NO
1114-74-0314
1114-74-0314
1114-74-0314
0.367" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO
