Commercial
Insulated
Pin Terminals

Filter
1152-29-0511
1152-29-0511
1152-29-0511
0.460" 0.040 - Press Fit 1/16 0.204 Brass Electro Solder - - PTFE Brown NO

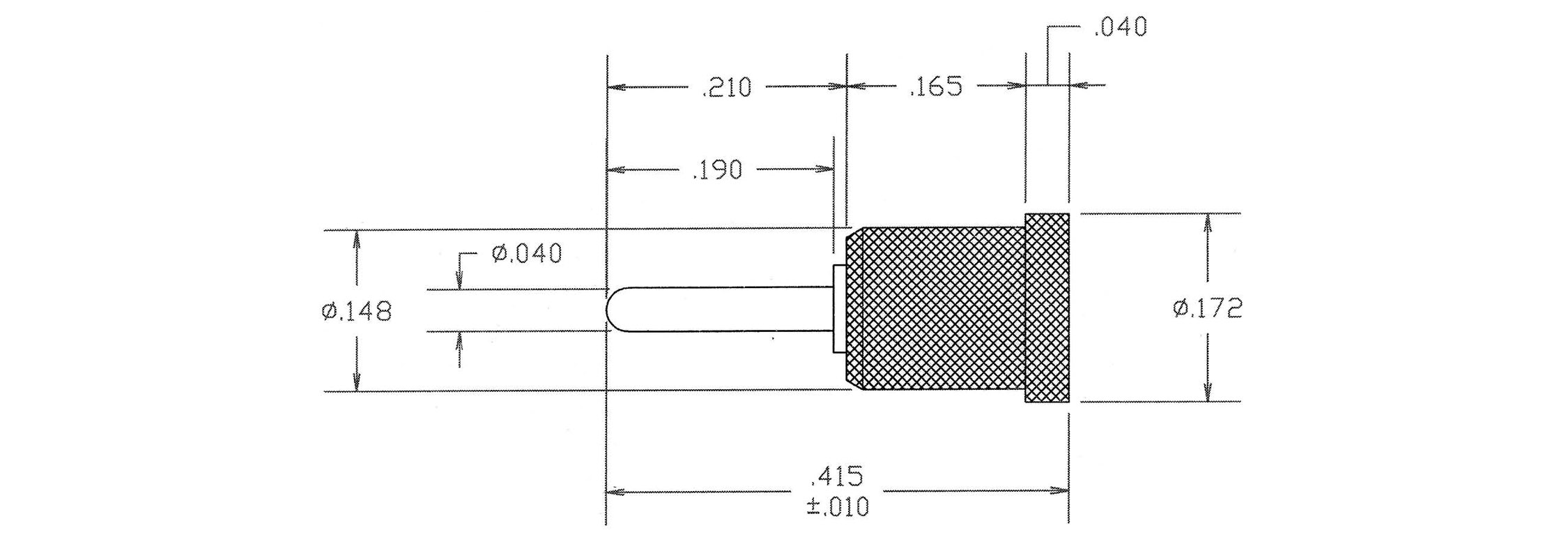

1152R-03-08817
1152R-03-08817
1152R-03-08817
0.415" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1153-06-0313
1153-06-0313
1153-06-0313
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Orange NO
1153-31-0419
1153-31-0419
1153-31-0419
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE White YES
1154-08-0515
1154-08-0515
1154-08-0515
0.540" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Green NO
1154-44-0111
1154-44-0111
1154-44-0111
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Brown NO
1155-01-0317
1155-01-0317
1155-01-0317
0.427" - - Press Fit Up to 3/16 0.204 Brass Gold - - PTFE Violet YES
1155-07-04413
1155-07-04413
1155-07-04413
0.347" - - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Orange NO

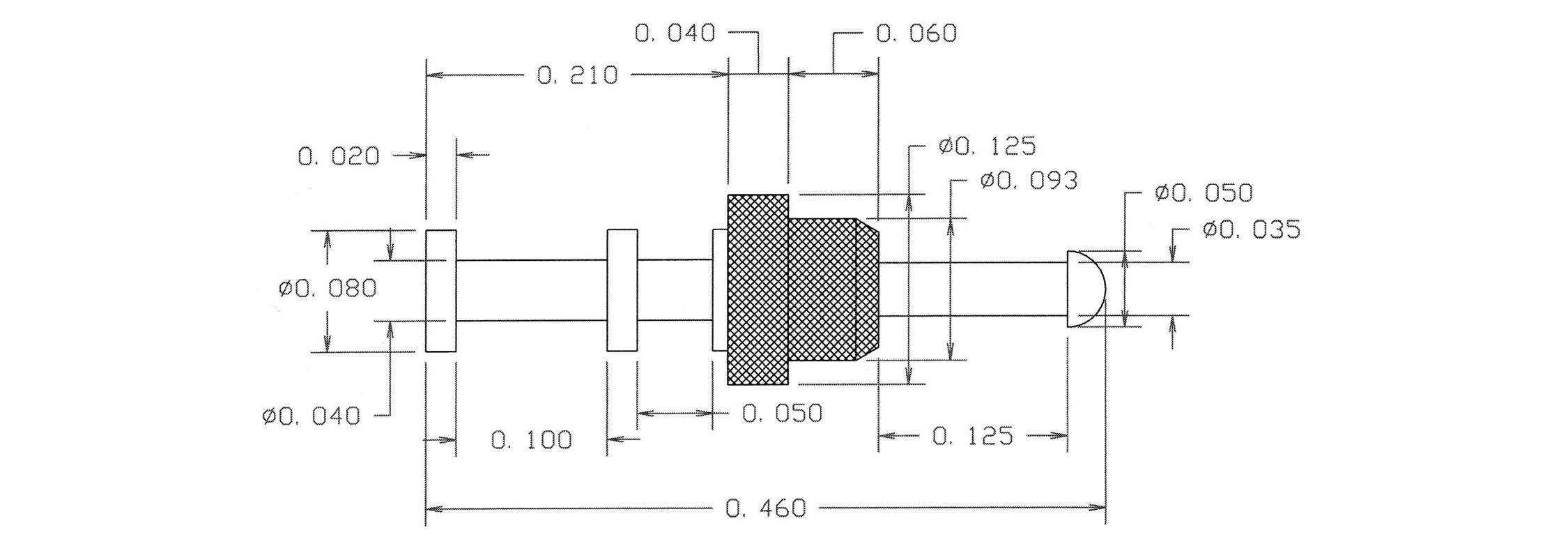

1156-01-0519
1156-01-0519
1156-01-0519
0.460" - DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro Solder - - PTFE White NO
1156-07-0115
1156-07-0115
1156-07-0115
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES
1156-14-0411
1156-14-0411
1156-14-0411
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Brown NO
1156-18-04417
1156-18-04417
1156-18-04417
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Violet YES
1156-26-08813
1156-26-08813
1156-26-08813
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1157-01-0119
1157-01-0119
1157-01-0119
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1157-06-0415
1157-06-0415
1157-06-0415
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Electro-Tin - - PTFE Green YES

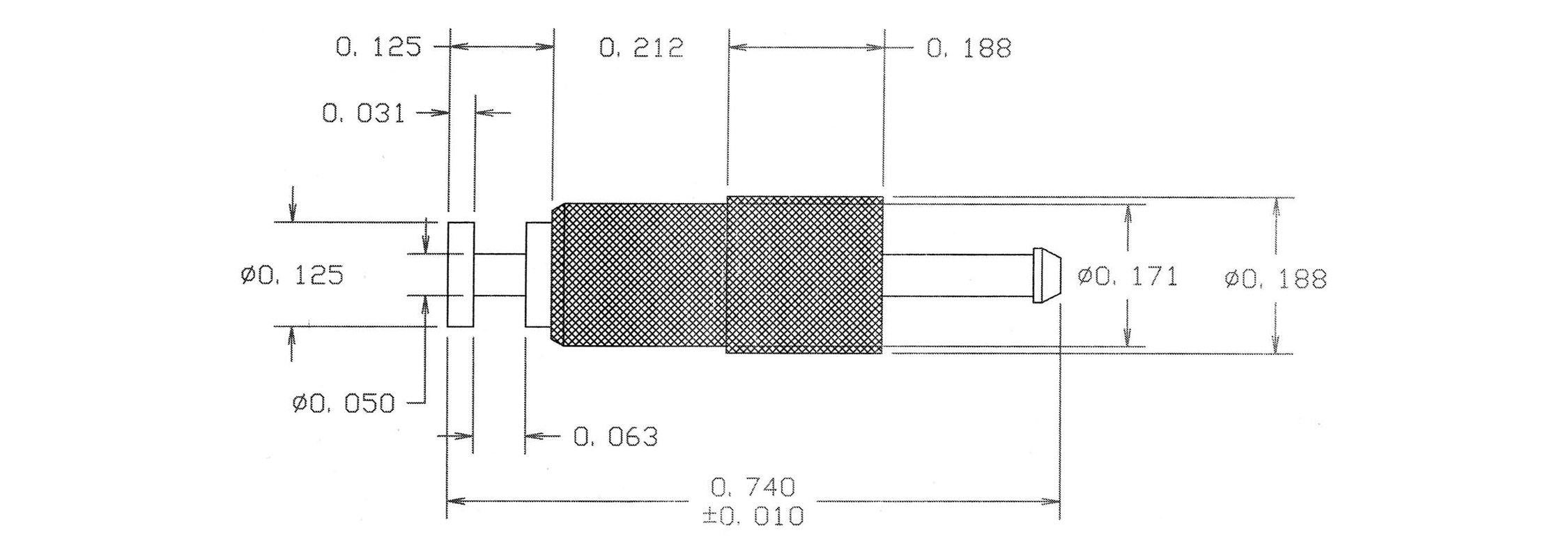

1157R-04-0511
1157R-04-0511
1157R-04-0511
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Brown NO

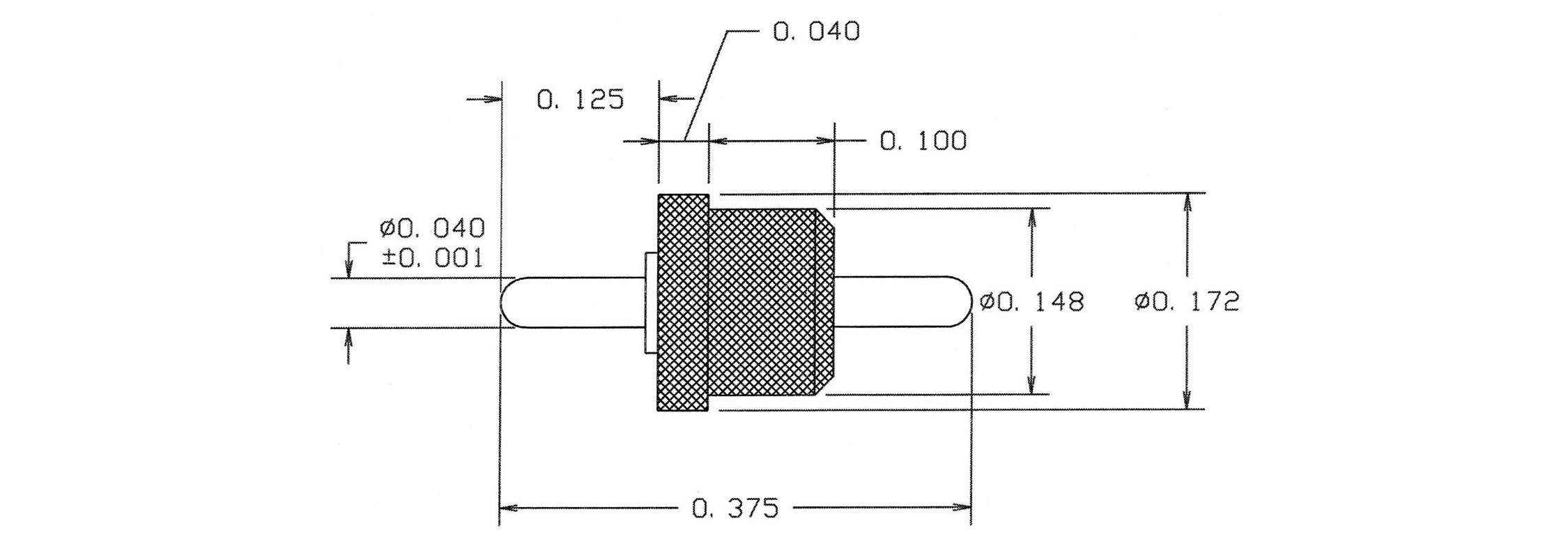

1160-05-08817
1160-05-08817
1160-05-08817
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1167-20-0313
1167-20-0313
1167-20-0313
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES
1167-67-0419
1167-67-0419
1167-67-0419
0.875" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES
1169-08-0515
1169-08-0515
1169-08-0515
0.499" - - 2-56 Nut 1/32 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Green NO
