Commercial
Insulated
Pin Terminals

Filter

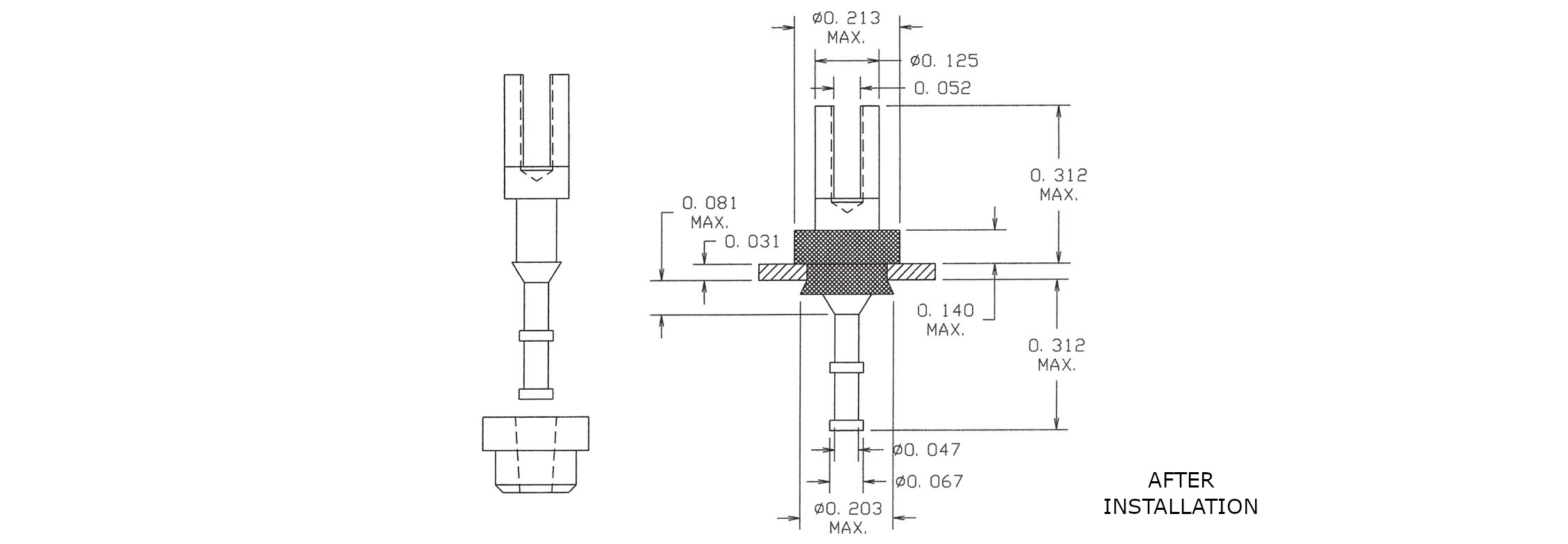

1175-751-0111
1175-751-0111
1175-751-0111
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Brown NO
1175-762-0317
1175-762-0317
1175-762-0317
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Gold - - PTFE Violet YES

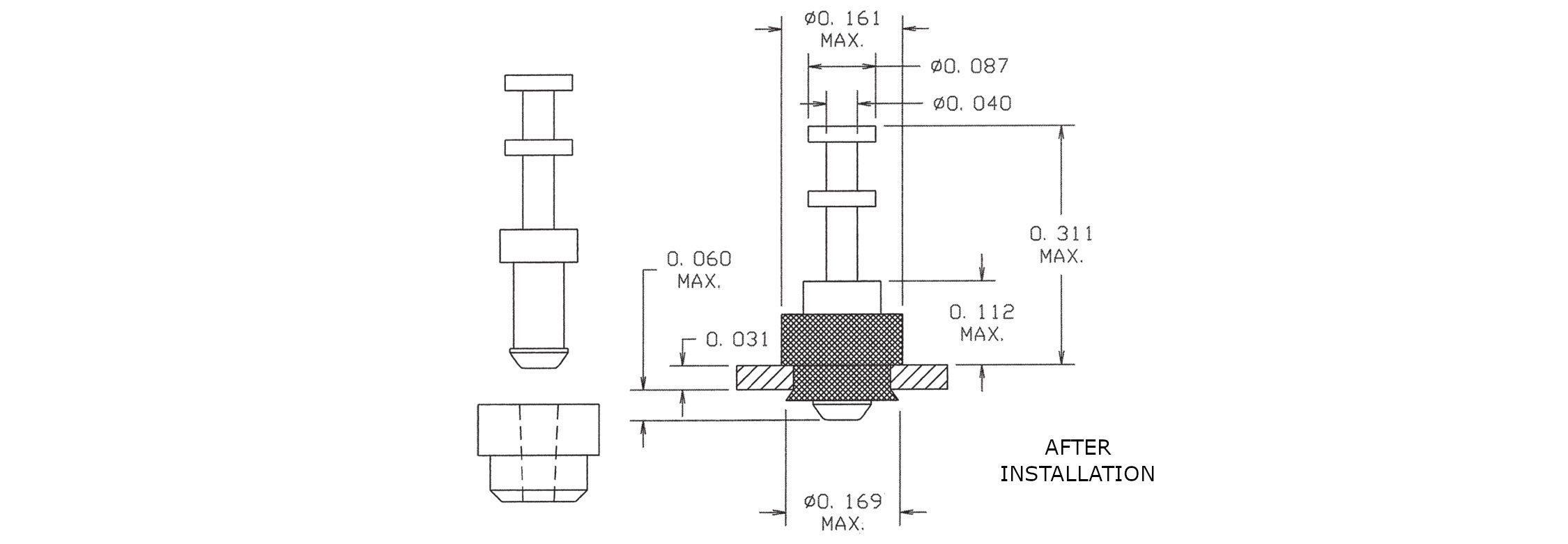

1175-821-04413
1175-821-04413
1175-821-04413
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO

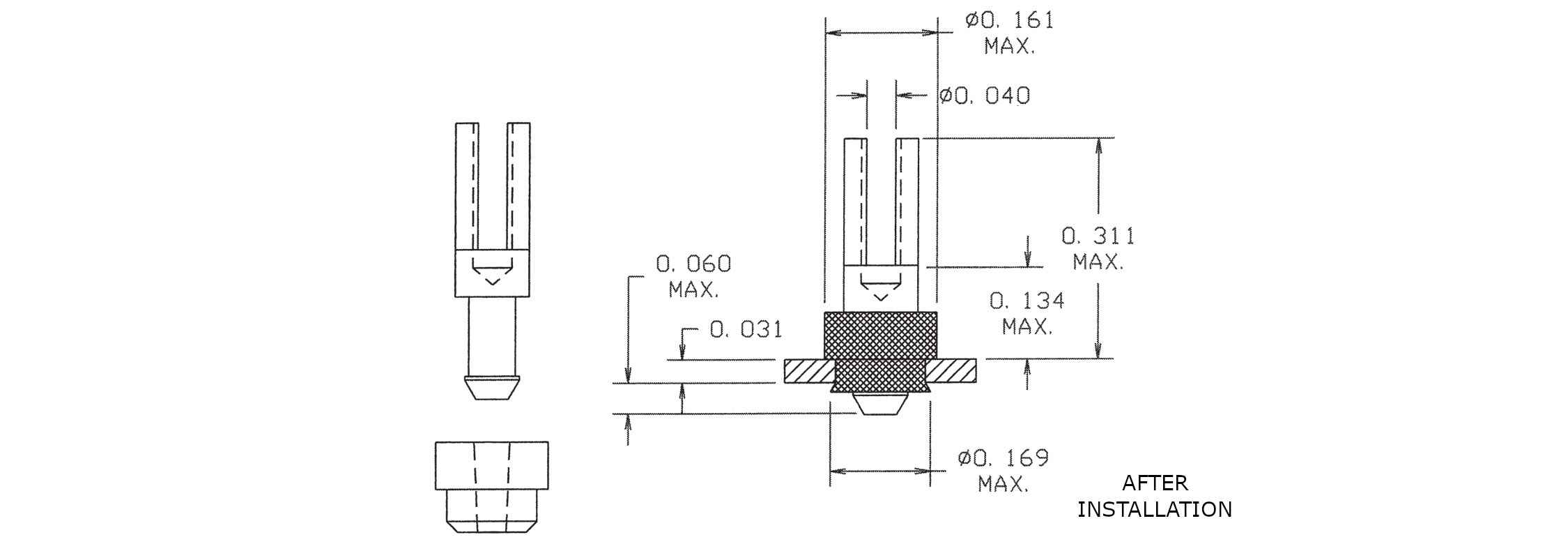

1175-841-0519
1175-841-0519
1175-841-0519
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE White NO
1175-872-0115
1175-872-0115
1175-872-0115
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Silver - - PTFE Green YES
1177-02-0411
1177-02-0411
1177-02-0411
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Electro-Tin - - PTFE Brown NO
1177-11-04417
1177-11-04417
1177-11-04417
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Violet YES
1177-31-08813
1177-31-08813
1177-31-08813
0.456" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1177-41-0119
1177-41-0119
1177-41-0119
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Silver - - PTFE White YES
1177-52-0415
1177-52-0415
1177-52-0415
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Electro-Tin - - PTFE Green YES

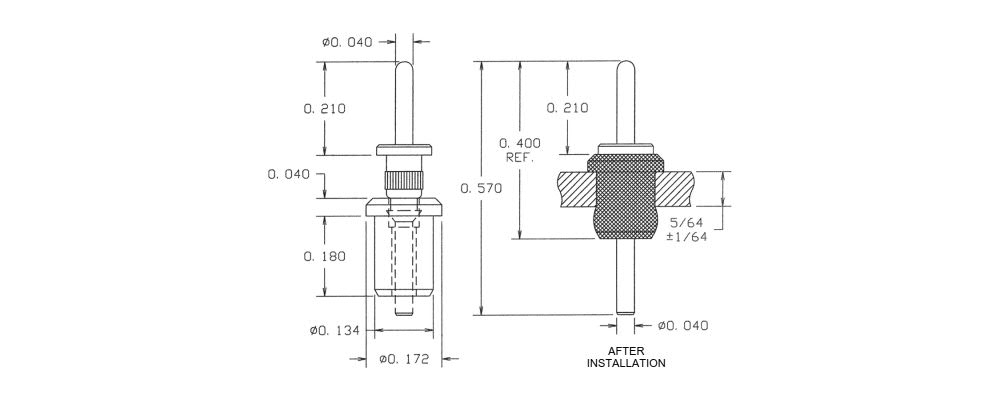

1177-56-0511
1177-56-0511
1177-56-0511
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Electro Solder - - PTFE Brown NO

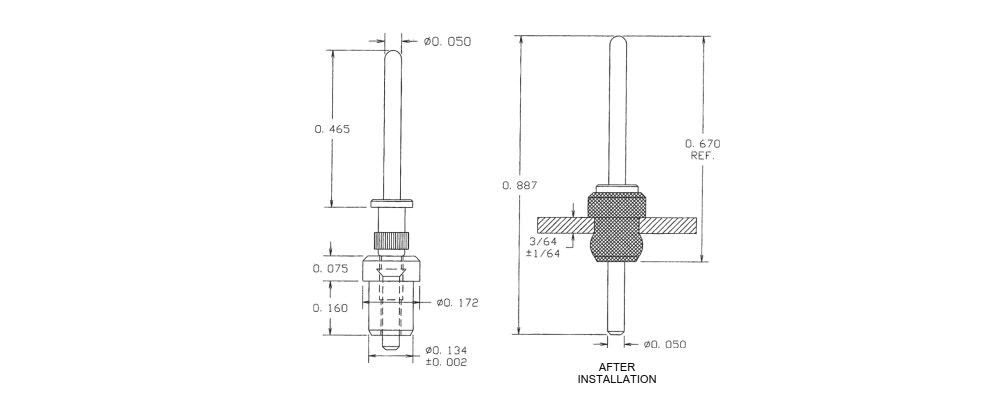

1177-60-08817
1177-60-08817
1177-60-08817
0.887" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1178R-03-0313
1178R-03-0313
1178R-03-0313
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Gold - - PTFE Orange NO
1178R-10-0419
1178R-10-0419
1178R-10-0419
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Electro-Tin - - PTFE White YES
1178R-14-0515
1178R-14-0515
1178R-14-0515
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Electro Solder - - PTFE Green NO
1102R-95-0111
1102R-95-0111
1102R-95-0111
0.812" - - Press Fit 13/64 0.297 Brass Silver - - PTFE Brown NO
1125-02-0317
1125-02-0317
1125-02-0317
0.578" - - 2-56 Nut 7/64 0.094 Brass Gold Electro-Tin Brass PTFE Violet YES
1125-06-04413
1125-06-04413
1125-06-04413
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin Electro-Tin Brass PTFE Orange NO
1125-10-0519
1125-10-0519
1125-10-0519
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE White NO
1125-15-0115
1125-15-0115
1125-15-0115
0.578" - - 4-40 Nut 7/64 0.120 Brass Silver Electro-Tin Brass PTFE Green YES
