Commercial
Insulated
Pin Terminals

Filter
1125-63-0314
1125-63-0314
1125-63-0314
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Gold ZINC Brass PTFE Yellow NO
1125-63-0112
1125-63-0112
1125-63-0112
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass PTFE Red NO
1127-63-0312
1127-63-0312
1127-63-0312
0.579" - - Swage Mount 3/32 0.082 Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES

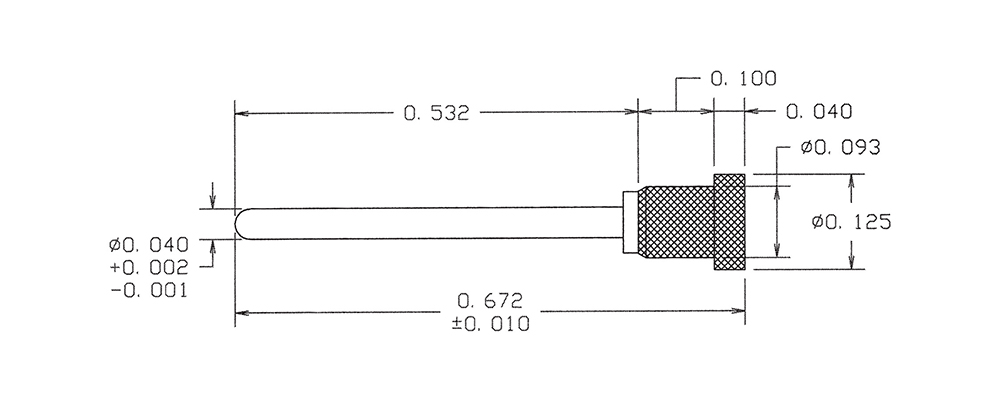

1100R-63-0514
1100R-63-0514
1100R-63-0514
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Yellow NO
1125-63-0519
1125-63-0519
1125-63-0519
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass PTFE White NO
1125-63-0415
1125-63-0415
1125-63-0415
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass PTFE Green YES
1125-63-0517
1125-63-0517
1125-63-0517
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass PTFE Violet NO
1110-63-0115
1110-63-0115
1110-63-0115
0.534" 0.040 Pin/Pin Press Fit 1/16 0.113 Brass Silver - - PTFE Green YES
1110-63-0114
1110-63-0114
1110-63-0114
0.534" 0.040 Pin/Pin Press Fit 1/16 0.113 Brass Silver - - PTFE Yellow NO
1102-63-0519
1102-63-0519
1102-63-0519
0.584" - - Press Fit 3/32 0.158 Brass Electro Solder - - PTFE White NO
1102-63-0515
1102-63-0515
1102-63-0515
0.584" - - Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Green NO
1102-63-08817
1102-63-08817
1102-63-08817
0.584" - - Press Fit 3/32 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1102-63-08816
1102-63-08816
1102-63-08816
0.584" - - Press Fit 3/32 0.158 Brass Bright Tin-Lead - - PTFE Blue NO
1110-63-0110
1110-63-0110
1110-63-0110
0.534" 0.040 Pin/Pin Press Fit 1/16 0.113 Brass Silver - - PTFE Black YES
1110-63-0111
1110-63-0111
1110-63-0111
0.534" 0.040 Pin/Pin Press Fit 1/16 0.113 Brass Silver - - PTFE Brown NO
1127-62-0417
1127-62-0417
1127-62-0417
0.548" - - Swage Mount 1/16 0.082 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1125-62-04417
1125-62-04417
1125-62-04417
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Violet YES
1123R-62-0511
1123R-62-0511
1123R-62-0511
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Brown NO
1127-62-0310
1127-62-0310
1127-62-0310
0.548" - - Swage Mount 1/16 0.082 Brass Gold ZINC Brass DIALLYL PHTHALATE Black YES
1123R-62-0519
1123R-62-0519
1123R-62-0519
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Electro Solder - - PTFE White NO
