Commercial
Insulated
Pin Terminals

Filter
1178R-14-0513
1178R-14-0513
1178R-14-0513
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Electro Solder - - PTFE Orange NO
1102R-93-08819
1102R-93-08819
1102R-93-08819
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE White NO
1125-02-0315
1125-02-0315
1125-02-0315
0.578" - - 2-56 Nut 7/64 0.094 Brass Gold Electro-Tin Brass PTFE Green YES
1125-06-04411
1125-06-04411
1125-06-04411
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin Electro-Tin Brass PTFE Brown NO

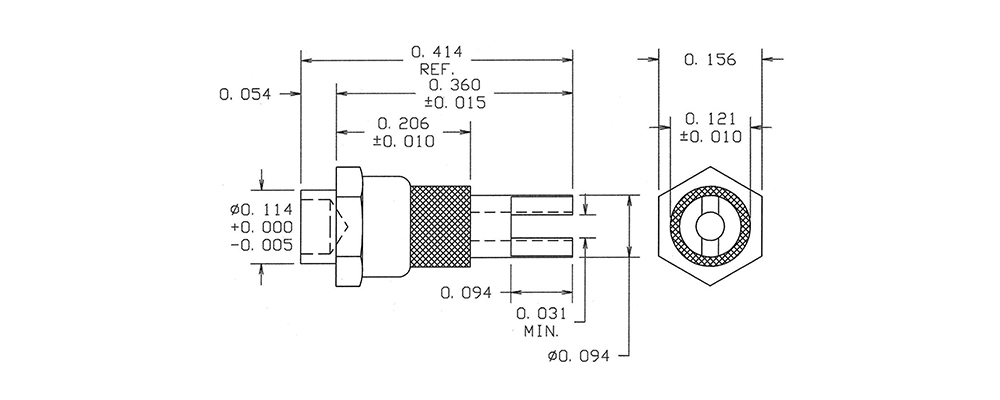

1125-10-0517
1125-10-0517
1125-10-0517
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Violet NO

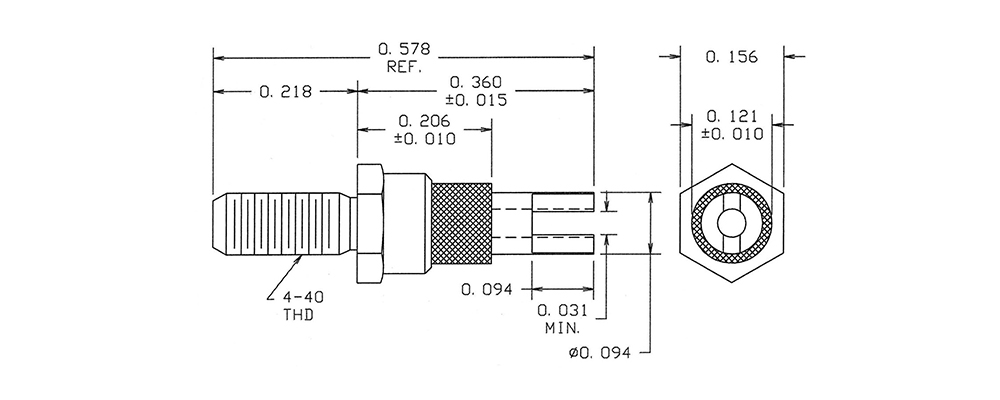

1125-15-0113
1125-15-0113
1125-15-0113
0.578" - - 4-40 Nut 7/64 0.120 Brass Silver Electro-Tin Brass PTFE Orange NO
1125-19-0319
1125-19-0319
1125-19-0319
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Gold Electro-Tin Brass PTFE White YES
1125-23-04415
1125-23-04415
1125-23-04415
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin Electro-Tin Brass PTFE Green YES
1125-27-08811
1125-27-08811
1125-27-08811
0.585" - - Swage Mount 1/32 0.116 ±0.001 Brass Bright Tin-Lead Electro-Tin Brass PTFE Brown NO
09-2128-1-0117
09-2128-1-0117
09-2128-1-0117
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1100-47-0413
1100-47-0413
1100-47-0413
0.350" 0.040 - Press Fit 1/16 0.166 Brass Electro-Tin - - PTFE Orange NO

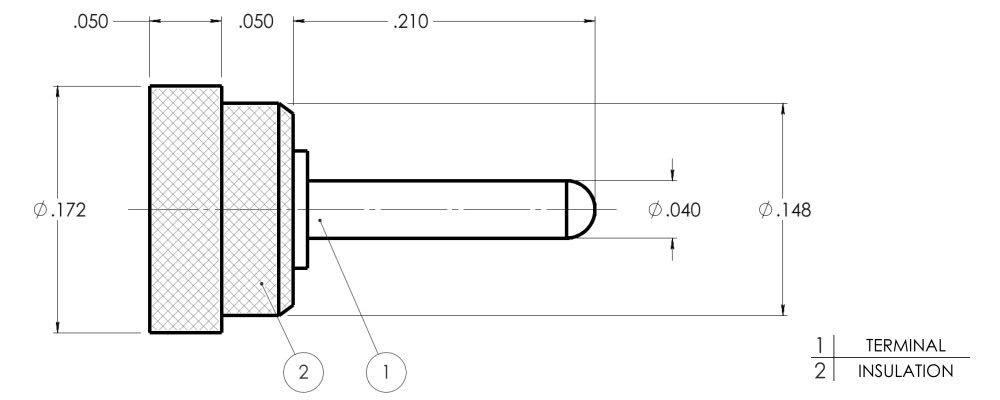

1100R-22-04419
1100R-22-04419
1100R-22-04419
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE White YES

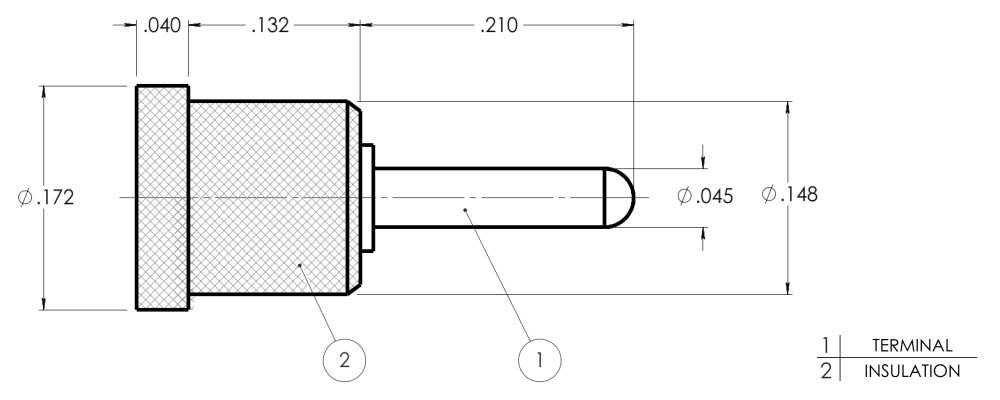

1100R-33-08815
1100R-33-08815
1100R-33-08815
0.382" 0.045 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1100R-53-0311
1100R-53-0311
1100R-53-0311
0.756" 0.040 - Press Fit 15/32 0.172 Brass Gold - - PTFE Brown NO
1100R-70-0417
1100R-70-0417
1100R-70-0417
0.750" 0.040 - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Violet YES
1102-43-0513
1102-43-0513
1102-43-0513
0.796" - - Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Orange NO
09-2078-1-0114
09-2078-1-0114
09-2078-1-0114
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Silver - - PTFE Yellow NO
1110-39-0110
1110-39-0110
1110-39-0110
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Silver - - PTFE Black YES
09-2094-1-0410
09-2094-1-0410
09-2094-1-0410
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Electro-Tin - - PTFE Black YES
1111-19-0316
1111-19-0316
1111-19-0316
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Blue YES
