Commercial
Insulated
Pin Terminals

Filter
1157-06-0413
1157-06-0413
1157-06-0413
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Electro-Tin - - PTFE Orange NO
1157R-04-04419
1157R-04-04419
1157R-04-04419
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE White YES

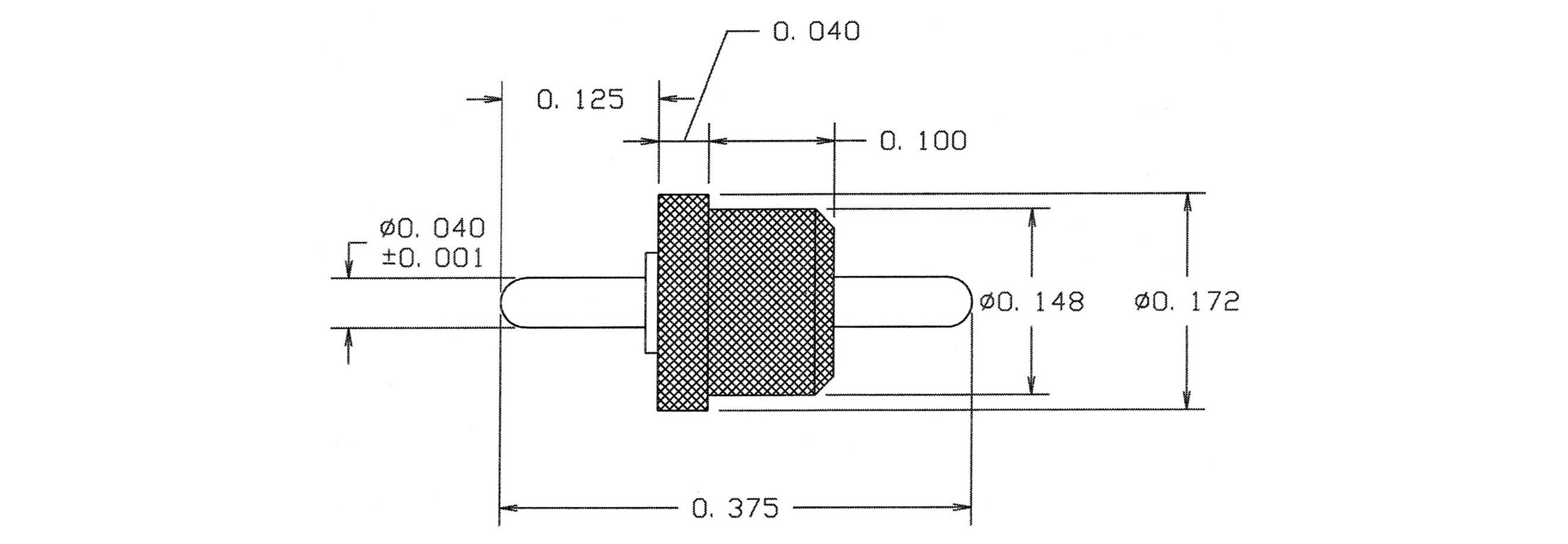

1160-05-08815
1160-05-08815
1160-05-08815
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1167-20-0311
1167-20-0311
1167-20-0311
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES
1167-67-0417
1167-67-0417
1167-67-0417
0.875" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1169-08-0513
1169-08-0513
1169-08-0513
0.499" - - 2-56 Nut 1/32 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Orange NO

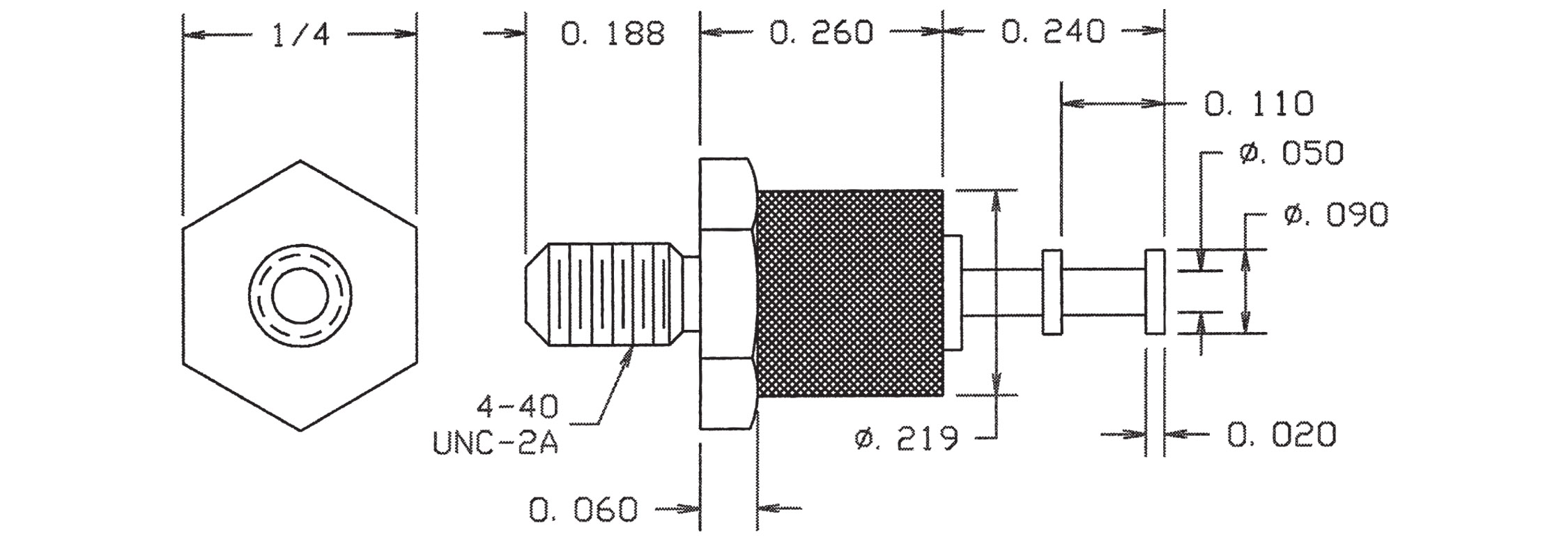

1169-36-08819
1169-36-08819
1169-36-08819
0.688" - - 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE White NO

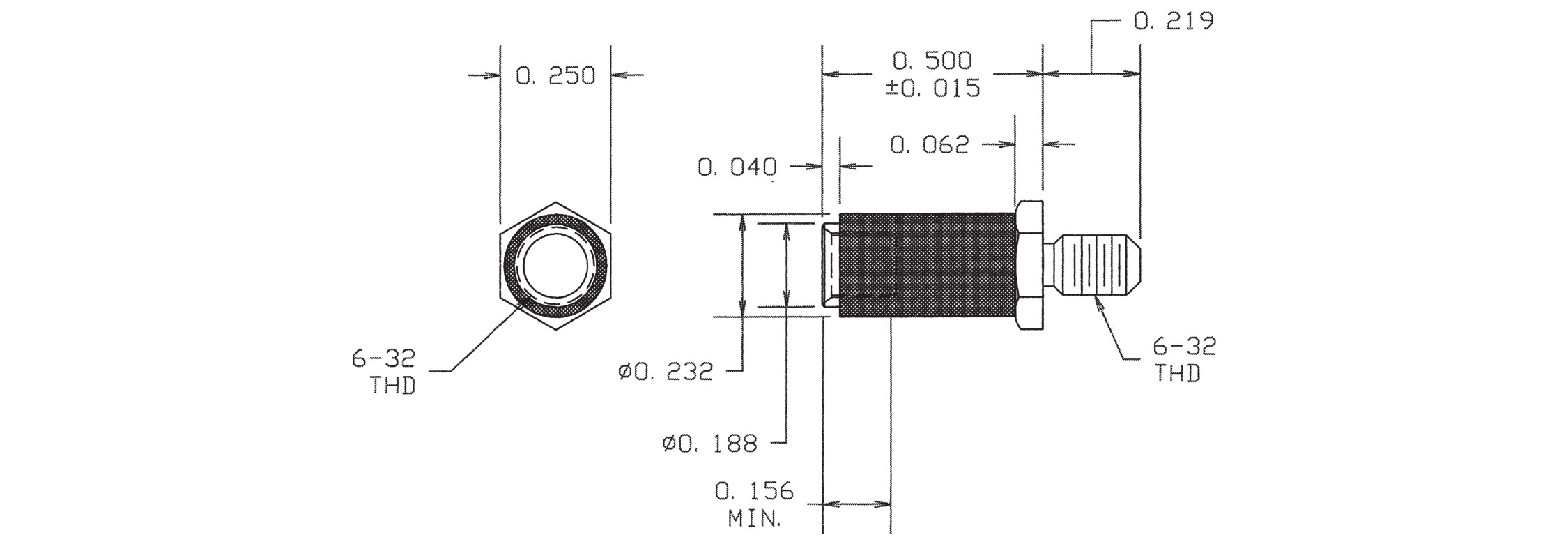

1170-02-07515
1170-02-07515
1170-02-07515
0.719" - - 6-32 Nut 3/32 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Green YES
1170-22-0311
1170-22-0311
1170-22-0311
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES
1175-012-0417
1175-012-0417
1175-012-0417
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Violet YES

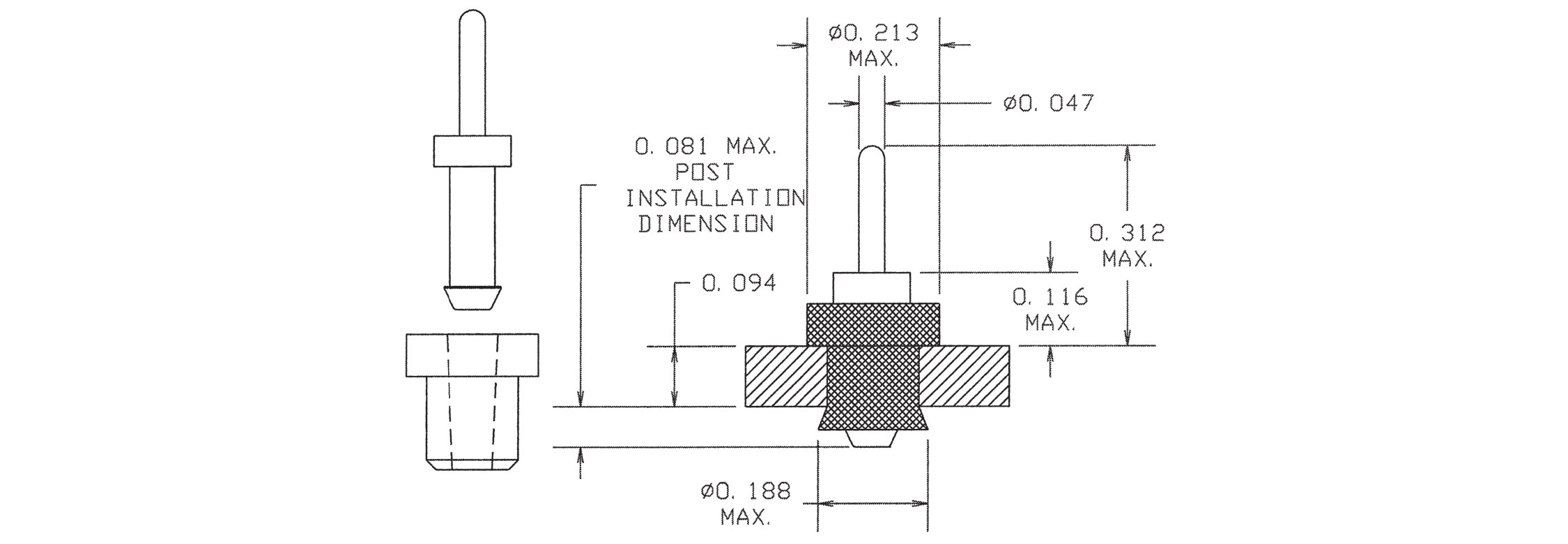

1175-023-0513
1175-023-0513
1175-023-0513
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Orange NO

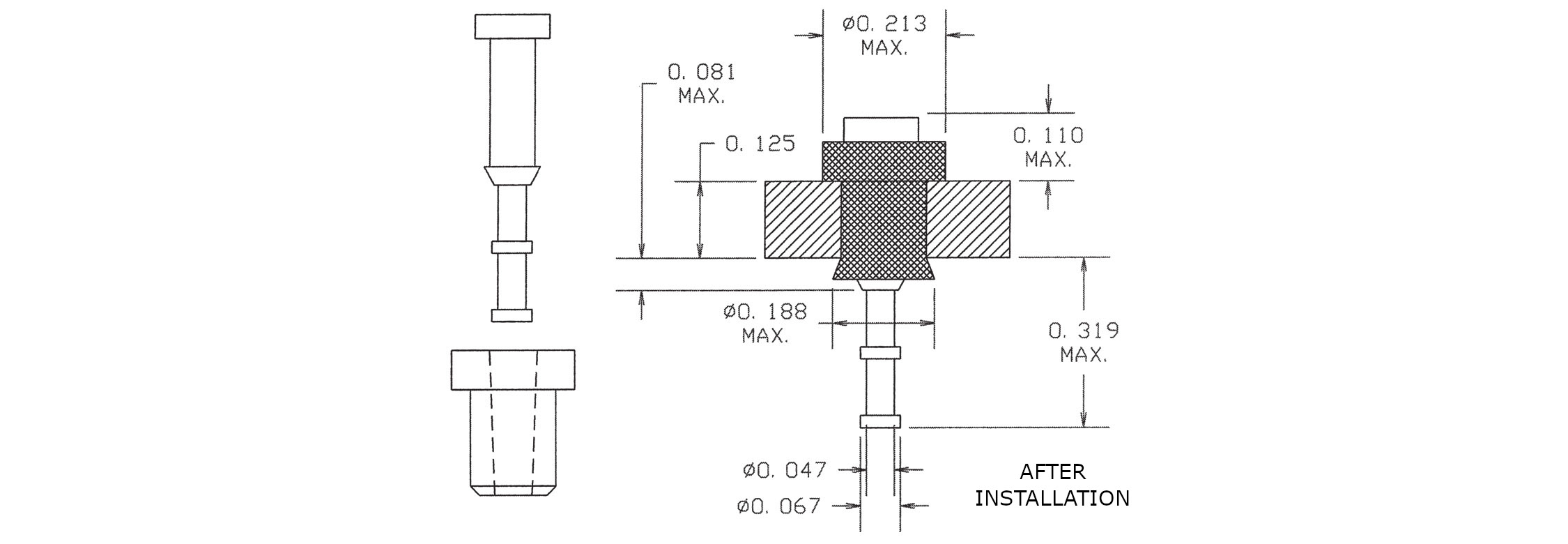

1175-304-08819
1175-304-08819
1175-304-08819
0.554" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE White NO
1175-372-0315
1175-372-0315
1175-372-0315
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Gold - - PTFE Green YES
1175-403-04411
1175-403-04411
1175-403-04411
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Brown NO
1175-413-0517
1175-413-0517
1175-413-0517
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Violet NO
1175-424-0113
1175-424-0113
1175-424-0113
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Silver - - PTFE Orange NO
1175-434-0319
1175-434-0319
1175-434-0319
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE White YES
1175-444-04415
1175-444-04415
1175-444-04415
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Green YES
1175-461-08811
1175-461-08811
1175-461-08811
0.361" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Brown NO
1175-473-0117
1175-473-0117
1175-473-0117
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Silver - - PTFE Violet YES
