Commercial
Insulated
Pin Terminals

Filter
1126-27-0413
1126-27-0413
1126-27-0413
0.484" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass PTFE Orange NO
1126-33-04419
1126-33-04419
1126-33-04419
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass PTFE White YES

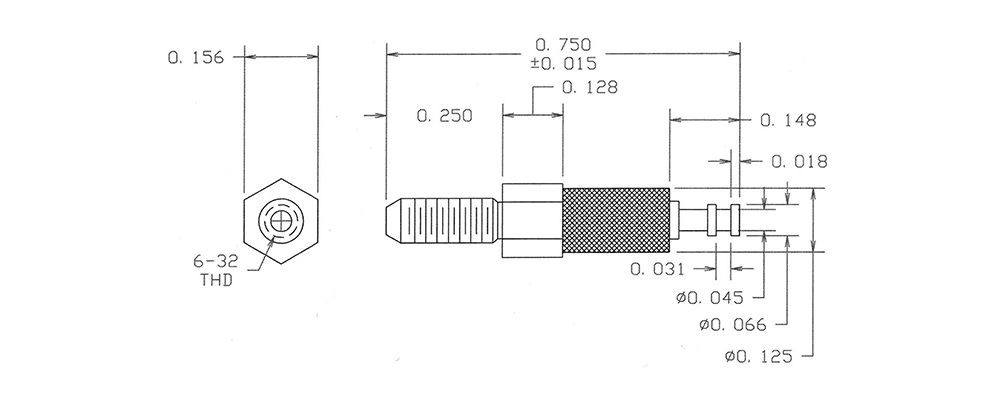

1126-37-08815
1126-37-08815
1126-37-08815
0.750" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Green NO
1126-42-0311
1126-42-0311
1126-42-0311
0.766" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE Brown NO
1126-46-0417
1126-46-0417
1126-46-0417
1.343" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Violet YES
1127-03-0513
1127-03-0513
1127-03-0513
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE Orange NO
1127-07-08819
1127-07-08819
1127-07-08819
0.938" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE White NO
1127-12-0315
1127-12-0315
1127-12-0315
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE Green YES
1127-16-04411
1127-16-04411
1127-16-04411
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-20-0517
1127-20-0517
1127-20-0517
0.907" - - Swage Mount 1/16 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Violet NO
1127-25-0113
1127-25-0113
1127-25-0113
0.938" - - Swage Mount 3/32 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Orange YES
1127-30-0319
1127-30-0319
1127-30-0319
0.813" - - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE White YES
1127-34-04415
1127-34-04415
1127-34-04415
0.688" - - Swage Mount 1/16 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Green YES

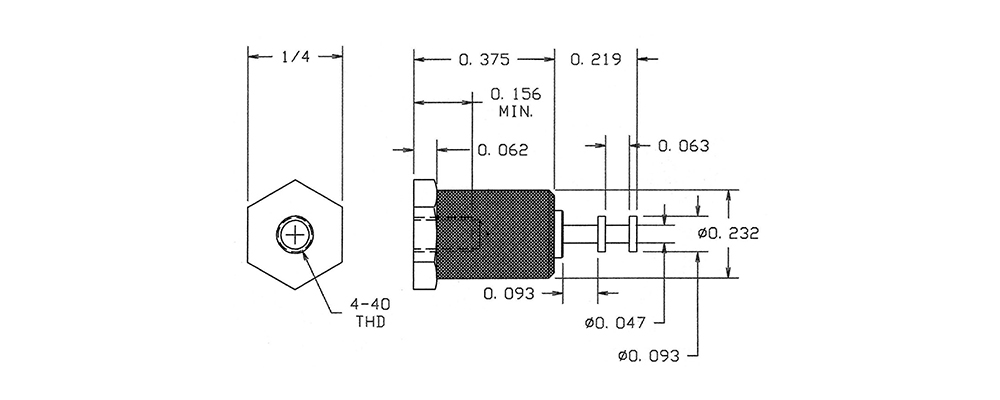

1127-38-08811
1127-38-08811
1127-38-08811
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Brown NO
1127-43-0117
1127-43-0117
1127-43-0117
0.969" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
1127-47-0413
1127-47-0413
1127-47-0413
0.844" - - Swage Mount 3/32 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-51-04419
1127-51-04419
1127-51-04419
0.844" - - Swage Mount 3/32 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES

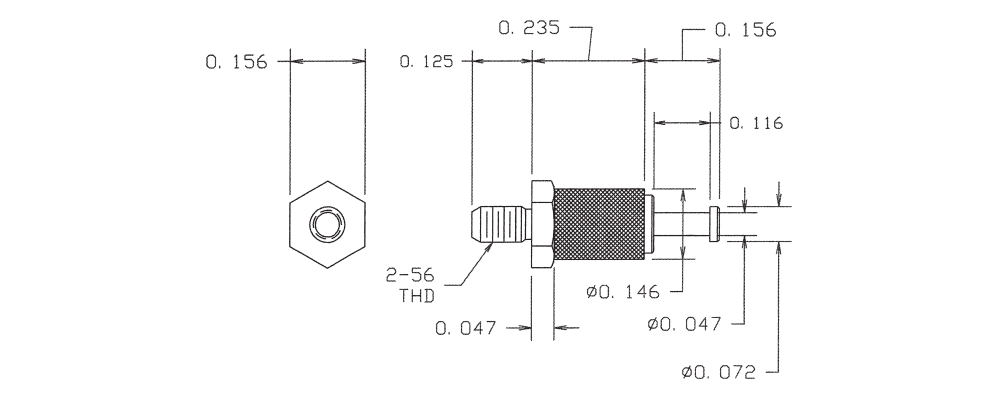

1127-56-08815
1127-56-08815
1127-56-08815
0.516" - - 2-56 Nut 1/32 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO
1127-61-0311
1127-61-0311
1127-61-0311
0.704" - - 2-56 Nut 1/8 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES
1127-65-0417
1127-65-0417
1127-65-0417
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES
