Commercial
Insulated
Pin Terminals

Filter
1121R-06-0113
1121R-06-0113
1121R-06-0113
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE Orange NO
1121R-50-0319
1121R-50-0319
1121R-50-0319
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1123-03-04415
1123-03-04415
1123-03-04415
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Green YES
1123-07-08811
1123-07-08811
1123-07-08811
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1123-72-0117
1123-72-0117
1123-72-0117
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Silver - - PTFE Violet YES
1123R-05-0413
1123R-05-0413
1123R-05-0413
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE Orange NO
1123R-62-04419
1123R-62-04419
1123R-62-04419
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Bright Tin - - PTFE White YES

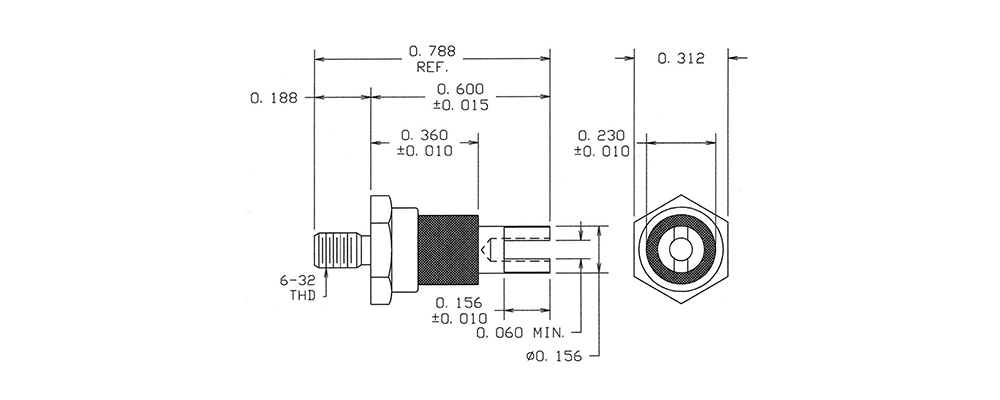

1125-34-08815
1125-34-08815
1125-34-08815
0.788" - - 6-32 Nut 1/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Green NO
1125-40-0311
1125-40-0311
1125-40-0311
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Gold Electro-Tin Brass PTFE Brown NO
1125-44-0417
1125-44-0417
1125-44-0417
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass PTFE Violet YES
1125-48-0513
1125-48-0513
1125-48-0513
0.388" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass PTFE Orange NO

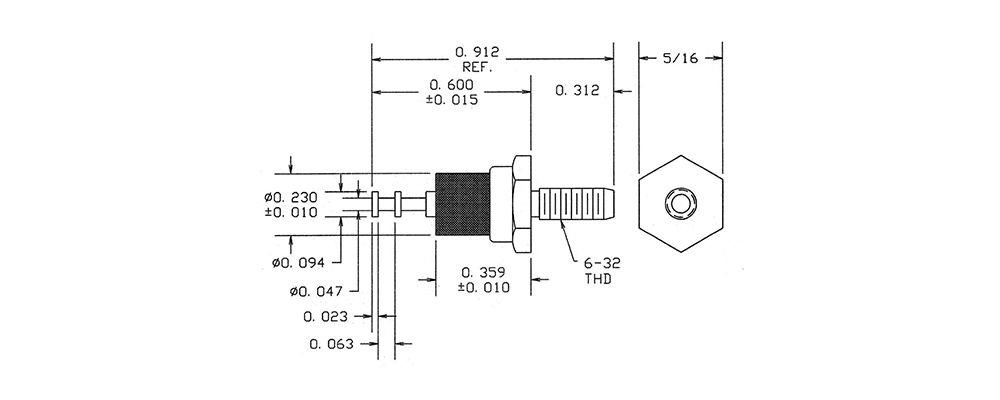

1125-52-08819
1125-52-08819
1125-52-08819
0.912" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE White NO
1125-57-0315
1125-57-0315
1125-57-0315
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Gold Electro-Tin Brass PTFE Green YES
1125-62-04411
1125-62-04411
1125-62-04411
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Brown NO

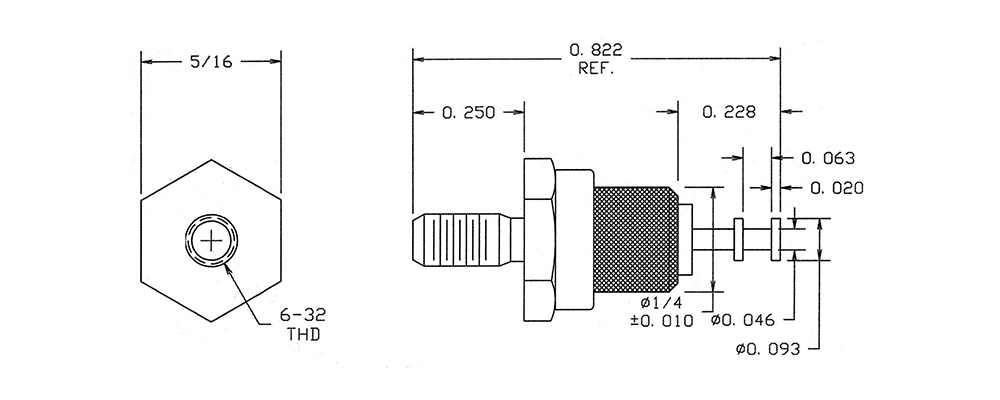

1125-73-0517
1125-73-0517
1125-73-0517
0.822" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE Violet NO
1125-78-0113
1125-78-0113
1125-78-0113
0.697" - - Swage Mount 3/32 0.194 Brass Silver ZINC Brass PTFE Orange NO
1125-83-0319
1125-83-0319
1125-83-0319
0.725" - - Swage Mount 3/32 0.191 Brass Gold Electro-Tin Brass PTFE White YES
1125-87-04415
1125-87-04415
1125-87-04415
0.461" 0.040 - 2-56 - 2-56 THREAD Brass Bright Tin ZINC Brass PTFE Green YES
1125-92-08811
1125-92-08811
1125-92-08811
0.550" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead Electro-Tin Brass PTFE Brown NO
1125-97-0117
1125-97-0117
1125-97-0117
0.672" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE Violet YES
