Commercial
Insulated
Pin Terminals

Filter
1100R-70-0415
1100R-70-0415
1100R-70-0415
0.750" 0.040 - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Green YES
1102-43-0511
1102-43-0511
1102-43-0511
0.796" - - Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Brown NO
09-2078-1-0112
09-2078-1-0112
09-2078-1-0112
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Silver - - PTFE Red NO

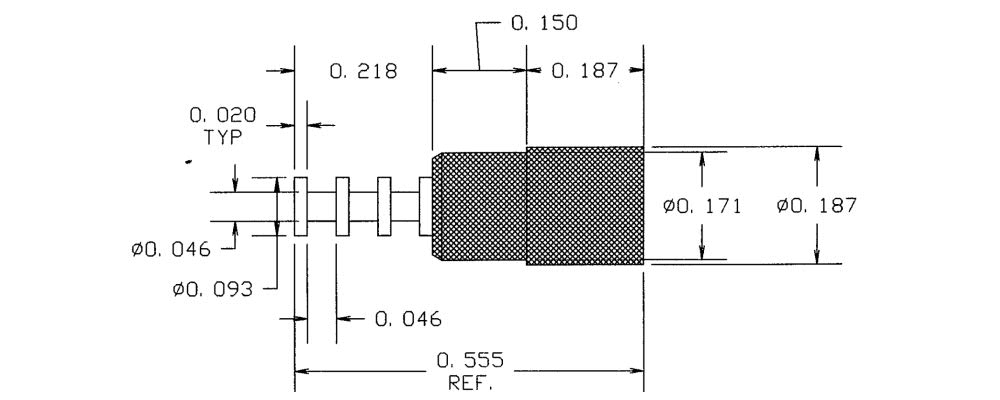

1104R-53-08818
1104R-53-08818
1104R-53-08818
0.555" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Gray NO
09-2094-1-0318
09-2094-1-0318
09-2094-1-0318
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Gold - - PTFE Gray NO
1111-19-0314
1111-19-0314
1111-19-0314
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Yellow NO
09-2101-1-04414
09-2101-1-04414
09-2101-1-04414
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Bright Tin - - PTFE Yellow NO
1112-05-04410
1112-05-04410
1112-05-04410
0.200" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Black YES

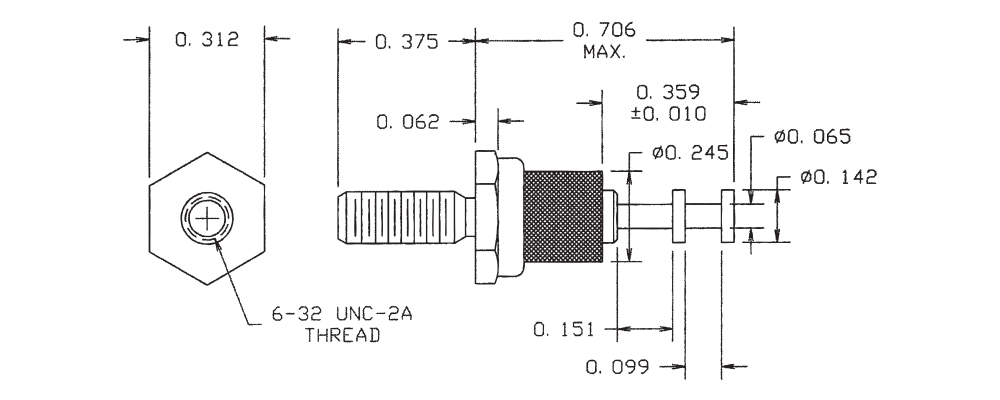

09-2111-1-08810
09-2111-1-08810
09-2111-1-08810
1.081" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead Nickel Brass PTFE Black NO
1112-20-0516
1112-20-0516
1112-20-0516
0.333" - - Press Fit 1/8 0.250 Brass Electro Solder - - PTFE Blue NO
09-2121-1-0116
09-2121-1-0116
09-2121-1-0116
0.275" - - Press Fit 5/64 0.136 Brass Silver - - PTFE Blue YES
1114-18-0112
1114-18-0112
1114-18-0112
0.250" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Red NO
1100-04-0412
1100-04-0412
1100-04-0412
0.250" 0.040 - Press Fit 3/64 0.086 Brass Electro-Tin - - PTFE Red NO
1114-24-0318
1114-24-0318
1114-24-0318
0.367" 0.085 - Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO
1100-08-04418
1100-08-04418
1100-08-04418
0.250" 0.040 - Press Fit 3/64 0.091 Brass Bright Tin - - PTFE Gray NO
1114-27-04414
1114-27-04414
1114-27-04414
0.367" 0.085 - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Yellow NO

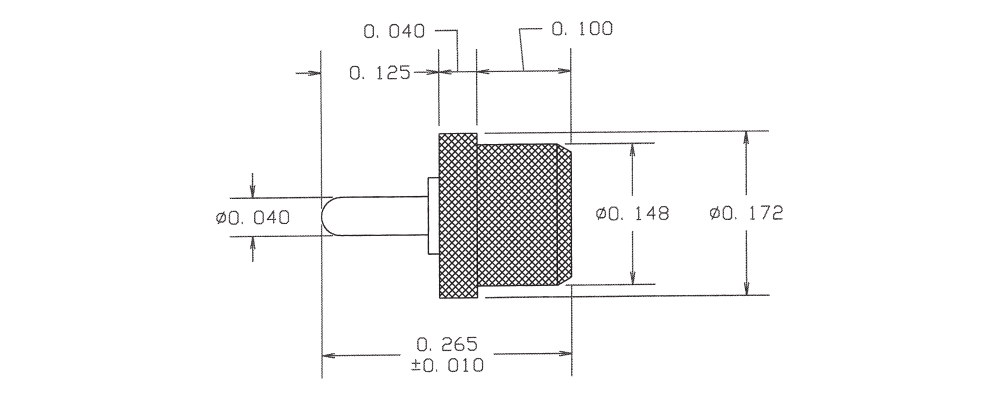

1100-13-08814
1100-13-08814
1100-13-08814
0.265" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1121-08-08810
1121-08-08810
1121-08-08810
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1100-18-0310
1100-18-0310
1100-18-0310
0.247" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Black YES
1124-10-0116
1124-10-0116
1124-10-0116
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Blue YES
