Commercial
Insulated
Pin Terminals

Filter
1114-08-04416
1114-08-04416
1114-08-04416
0.310" 0.040 - Press Fit 3/32 0.108 Brass Bright Tin - - PTFE Blue YES
1114-50-08812
1114-50-08812
1114-50-08812
0.270" 0.060 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO

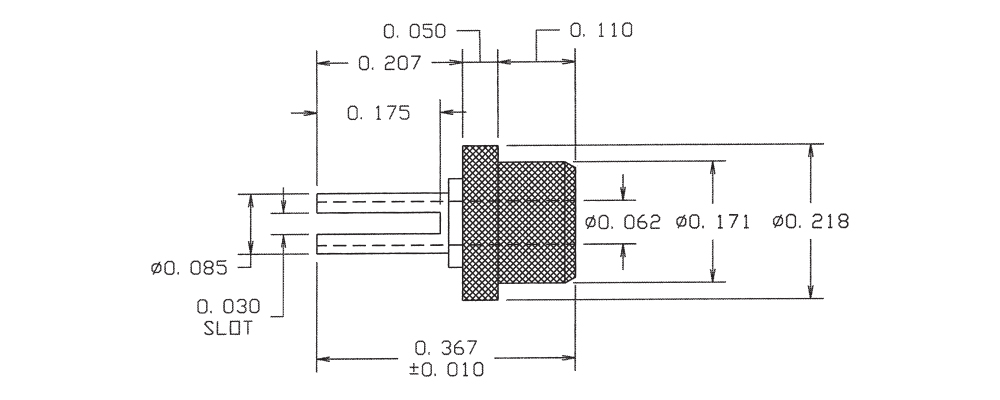

1114-75-0118
1114-75-0118
1114-75-0118
0.367" - - Press Fit 1/16 0.158 Brass Silver - - PTFE Gray NO

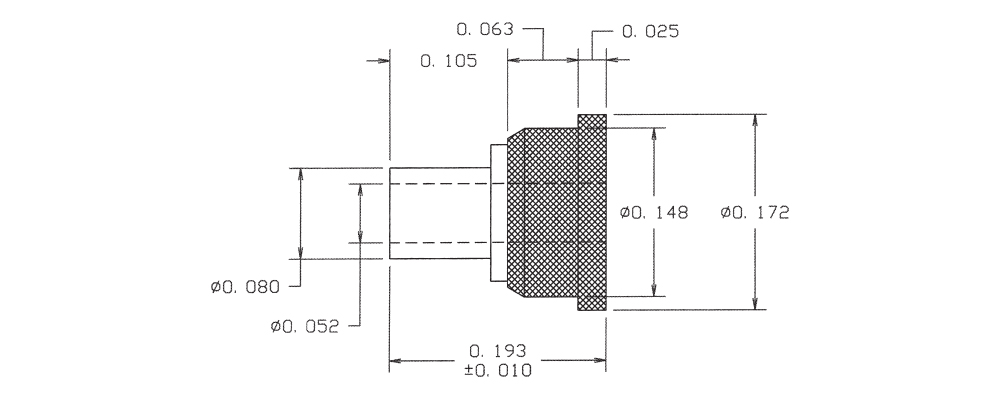

1114R-14-0414
1114R-14-0414
1114R-14-0414
0.193" 0.080 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Yellow NO
1114R-20-0510
1114R-20-0510
1114R-20-0510
0.310" 0.040 - Press Fit 1/64 0.136 Brass Electro Solder - - PTFE Black NO
1114R-80-08816
1114R-80-08816
1114R-80-08816
0.380" 0.055 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

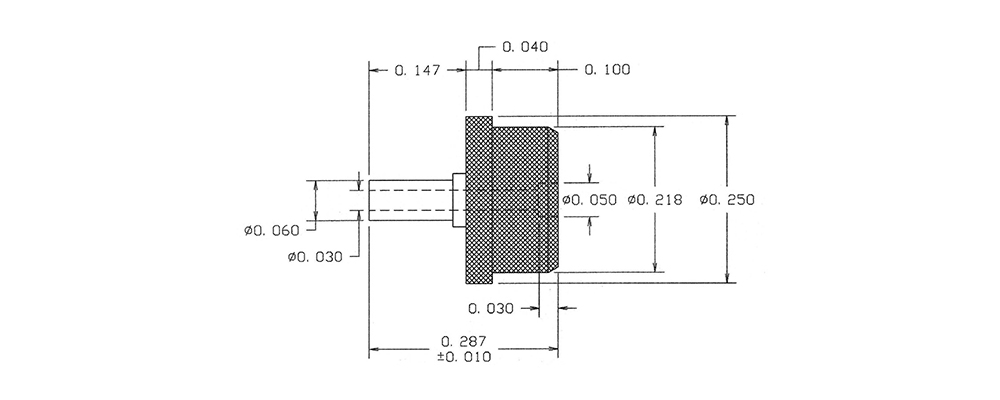

1115-07-0312
1115-07-0312
1115-07-0312
0.287" 0.060 - Press Fit 1/16 0.205 Brass Gold - - PTFE Red NO
1115-51-0418
1115-51-0418
1115-51-0418
0.453" - - Press Fit 1/16 0.187 Brass Electro-Tin - - PTFE Gray NO
1115R-02-0514
1115R-02-0514
1115R-02-0514
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Yellow NO

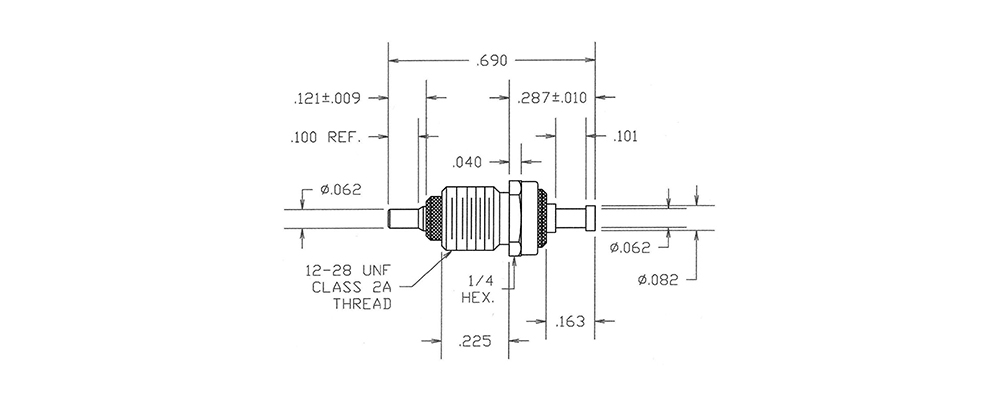

1117-01-0110
1117-01-0110
1117-01-0110
0.690" 0.062 ± 0.010 TURRET/PIN 12-28 Nut 3/32 0.221 Brass Silver Nickel Brass PTFE Black YES
1117-16-0316
1117-16-0316
1117-16-0316
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Gold Nickel Brass PTFE Blue YES
1117-50-04412
1117-50-04412
1117-50-04412
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Bright Tin Nickel Brass PTFE Red NO
1117-54-0518
1117-54-0518
1117-54-0518
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro Solder Nickel Brass PTFE Gray NO
1118-40-0114
1118-40-0114
1118-40-0114
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Silver - - PTFE Yellow NO

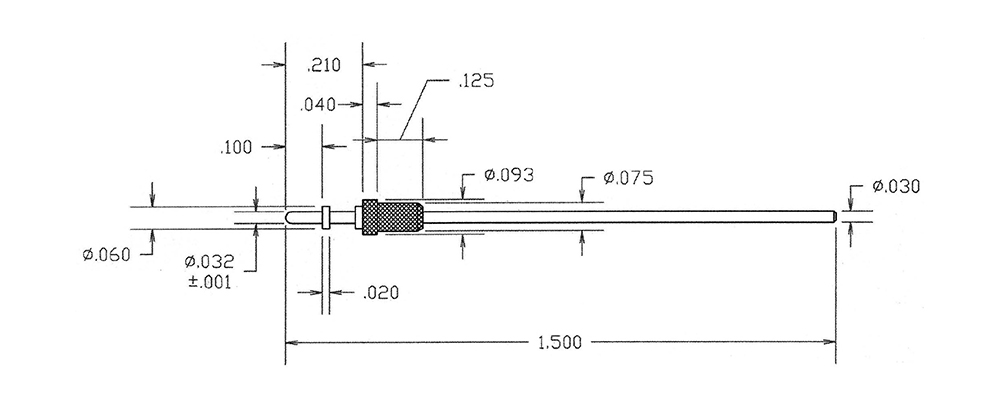

1119-25-0410
1119-25-0410
1119-25-0410
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Electro-Tin - - PTFE Black YES
1119R-20-04416
1119R-20-04416
1119R-20-04416
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1121-02-08812
1121-02-08812
1121-02-08812
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Red NO

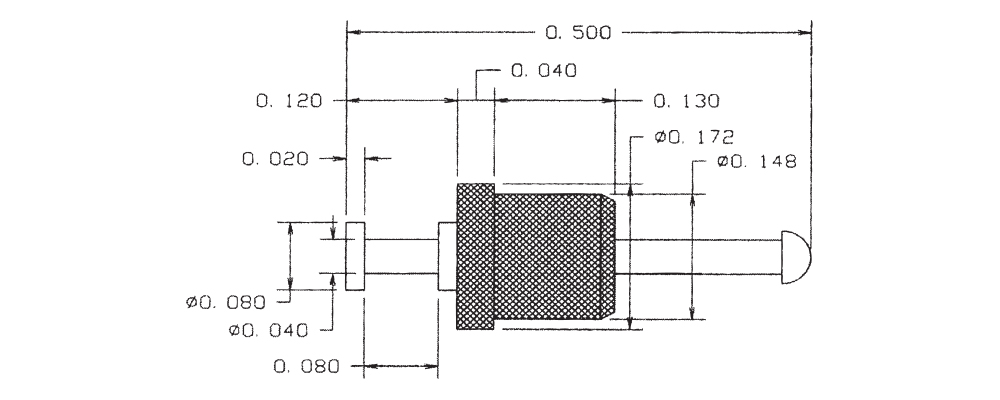

1121-07-0118
1121-07-0118
1121-07-0118
0.500" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Silver - - PTFE Gray NO

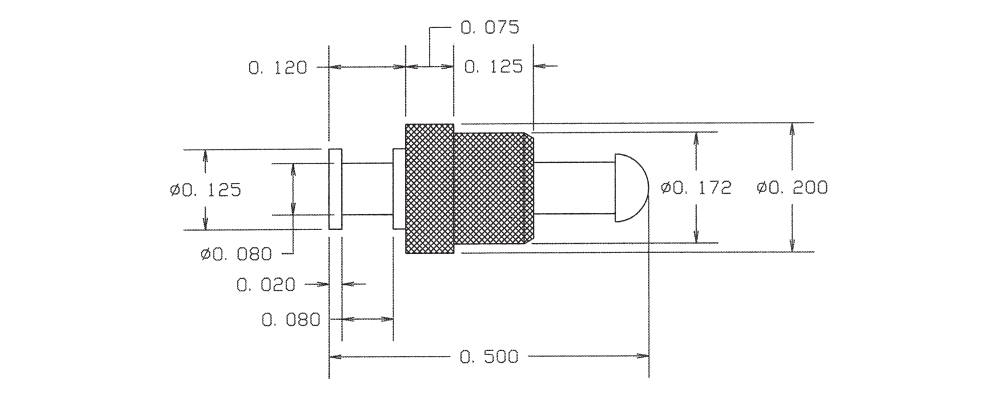

1121-12-0414
1121-12-0414
1121-12-0414
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Yellow NO
1121-16-0510
1121-16-0510
1121-16-0510
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Black NO
