Non-Insulated
PC Jacks

Filter

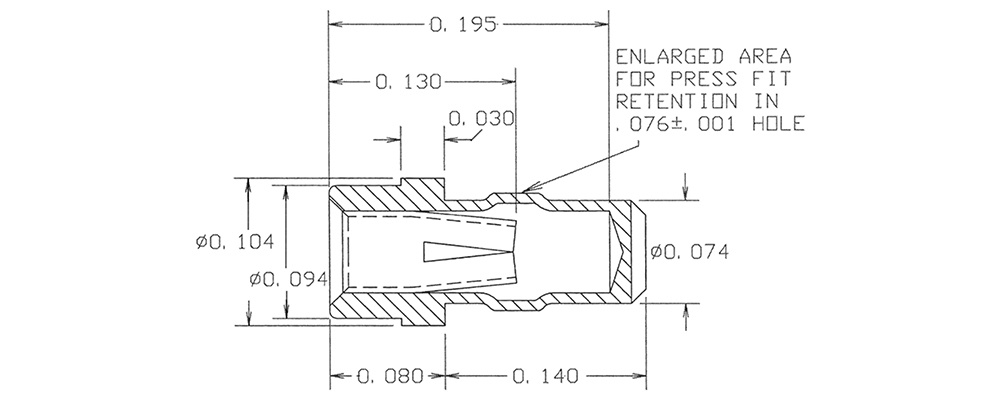

09-9606-1-035
09-9606-1-035
09-9606-1-035
0.032 - 0.046 0.195 " 0.220" - Press Fit/Solder - 1/16 - 1/8 0.076 Brass Gold Vertical

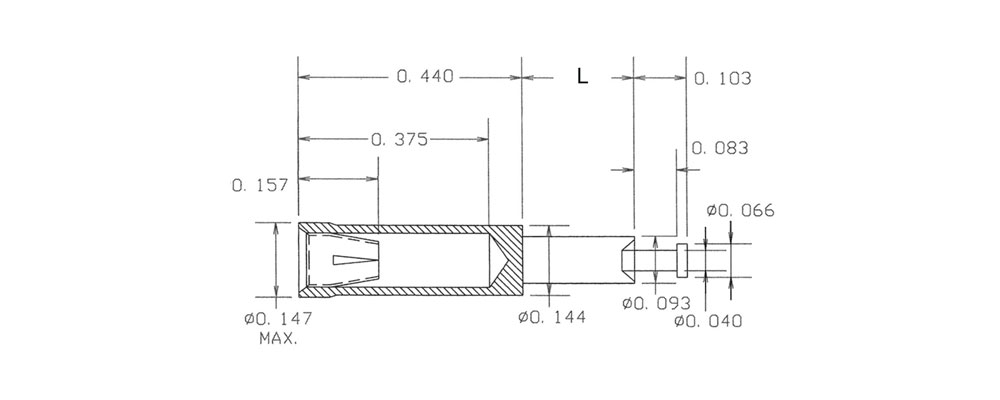

09-9642-6-088
09-9642-6-088
09-9642-6-088
0.065 - 0.082 0.375 " 0.762" Jack/Turret Swage Mount 0.219" 3/16 0.096 Brass Bright Tin-Lead Vertical

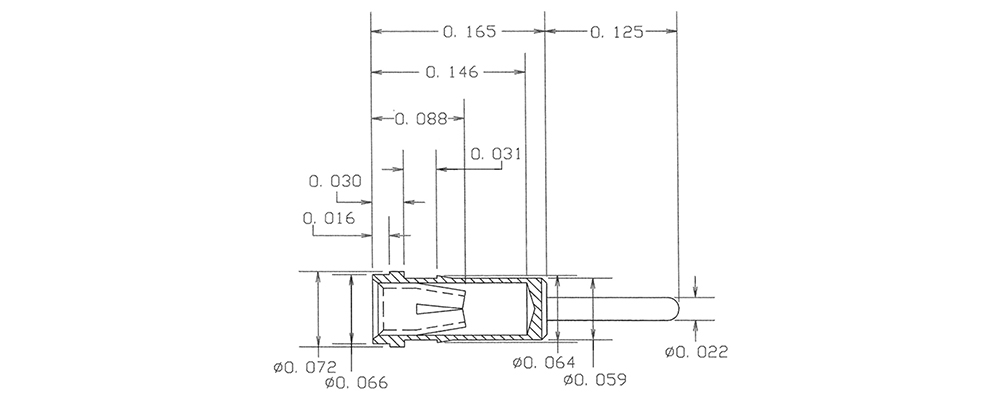

09-9685-1-06
09-9685-1-06
09-9685-1-06
0.025 - 0.037 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.061 Brass Electro-Tin Vertical

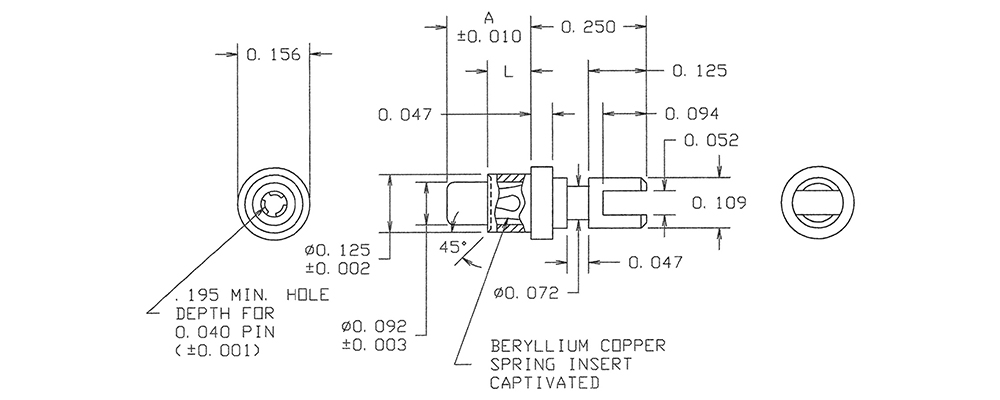

09-9003-3-04
09-9003-3-04
09-9003-3-04
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.125" 3/32 0.129 Brass Electro-Tin Vertical

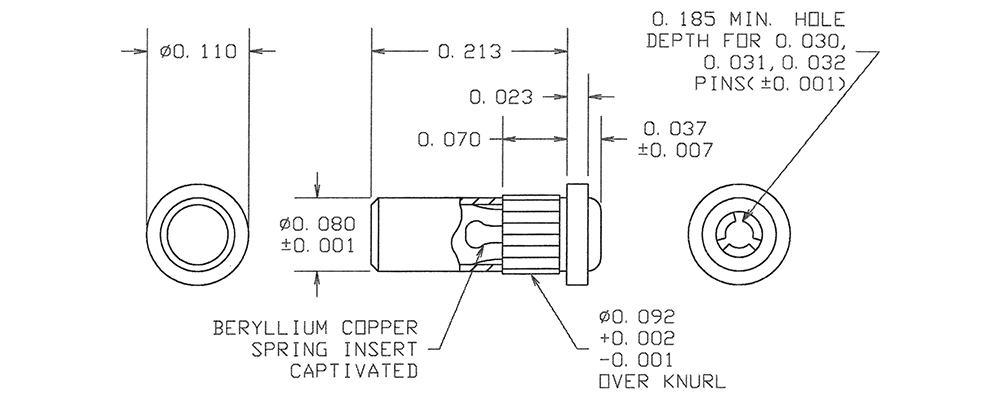

09-9031-1-03
09-9031-1-03
09-9031-1-03
0.030 - 0.032 0.185 " 0.250" - Press Fit/Solder - 1/16 - 3/16 0.089 Brass Gold Vertical

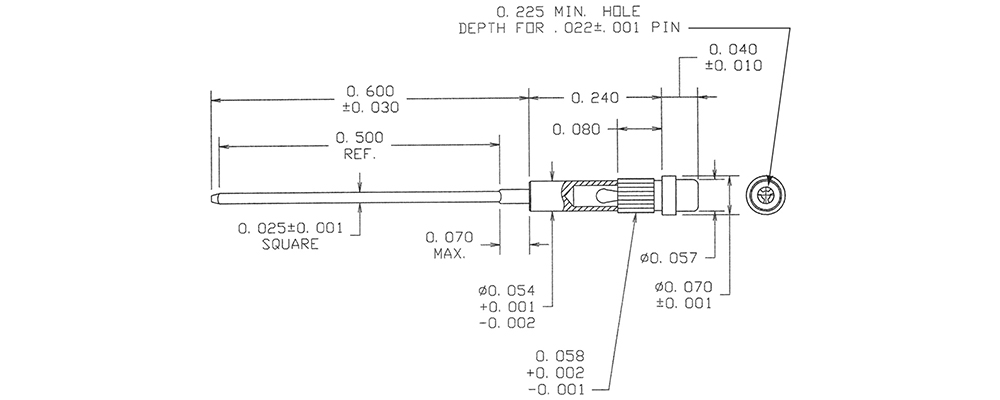

09-9066-1-063
09-9066-1-063
09-9066-1-063
0.022 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 5/32 0.055 Brass Bright Tin-Lead Vertical

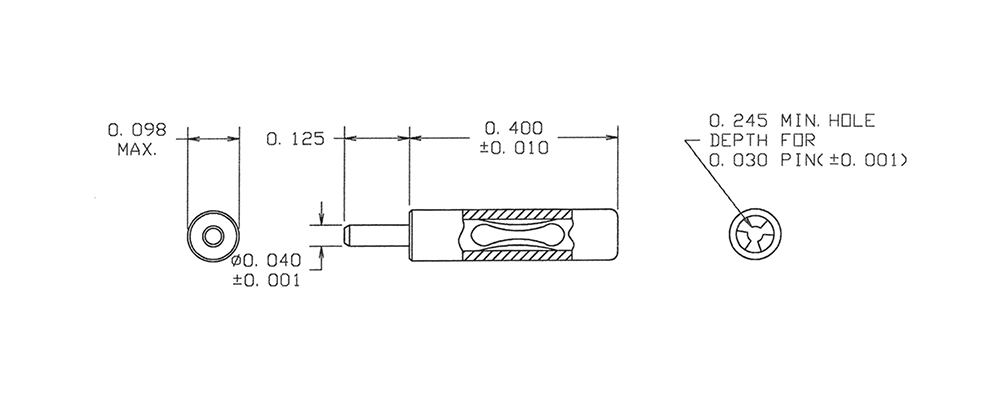

09-9249-1-088
09-9249-1-088
09-9249-1-088
0.030 0.245 " 0.525" Jack/Pin Solder - 1/32 - 1/16 0.043 Brass Bright Tin-Lead Vertical
09-9606-1-04
09-9606-1-04
09-9606-1-04
0.032 - 0.046 0.195 " 0.220" - Press Fit/Solder - 1/16 - 1/8 0.076 Brass Electro-Tin Vertical

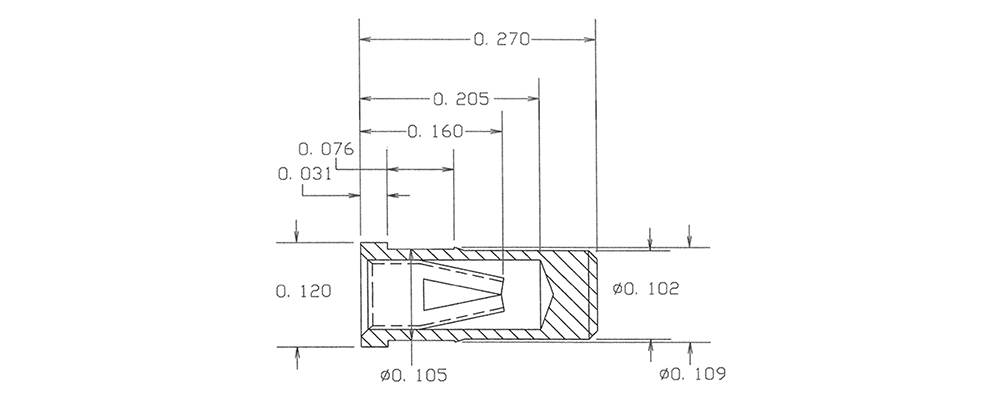

09-9644-1-03
09-9644-1-03
09-9644-1-03
0.040 - 0.060 0.205 " 0.270" - Press Fit/Solder - 3/32 - 3/16 0.106 Brass Gold Vertical
09-9685-1-063
09-9685-1-063
09-9685-1-063
0.025 - 0.037 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.061 Brass Bright Tin-Lead Vertical
09-9003-3-06
09-9003-3-06
09-9003-3-06
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.125" 3/32 0.129 Brass Electro-Tin Vertical
09-9031-1-035
09-9031-1-035
09-9031-1-035
0.030 - 0.032 0.185 " 0.250" - Press Fit/Solder - 1/16 - 3/16 0.089 Brass Gold Vertical
09-9066-1-088
09-9066-1-088
09-9066-1-088
0.022 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 5/32 0.055 Brass Bright Tin-Lead Vertical

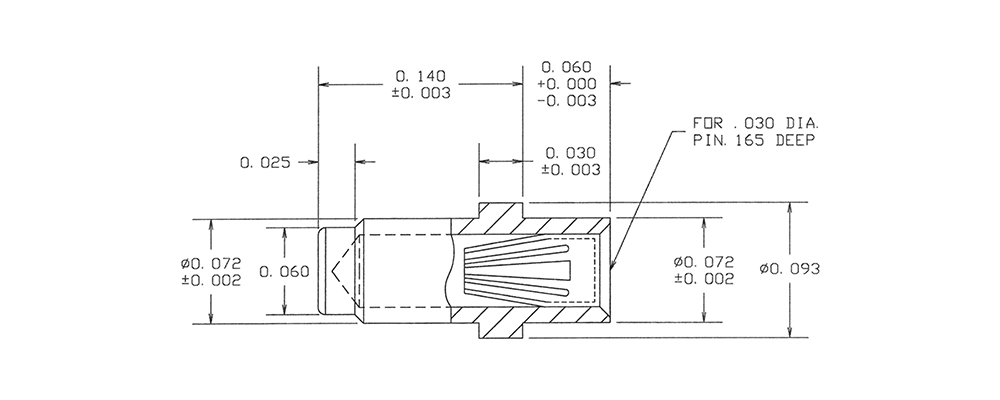

09-9256-1-03
09-9256-1-03
09-9256-1-03
0.030 0.165 " 0.200" - Solder - 1/32 - 1/16 0.076 Brass Gold Vertical
09-9606-1-06
09-9606-1-06
09-9606-1-06
0.032 - 0.046 0.195 " 0.220" - Press Fit/Solder - 1/16 - 1/8 0.076 Brass Electro-Tin Vertical
09-9644-1-035
09-9644-1-035
09-9644-1-035
0.040 - 0.060 0.205 " 0.270" - Press Fit/Solder - 3/32 - 3/16 0.106 Brass Gold Vertical
09-9685-1-088
09-9685-1-088
09-9685-1-088
0.025 - 0.037 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.061 Brass Bright Tin-Lead Vertical
09-9003-3-063
09-9003-3-063
09-9003-3-063
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.125" 3/32 0.129 Brass Bright Tin-Lead Vertical
09-9031-1-04
09-9031-1-04
09-9031-1-04
0.030 - 0.032 0.185 " 0.250" - Press Fit/Solder - 1/16 - 3/16 0.089 Brass Electro-Tin Vertical

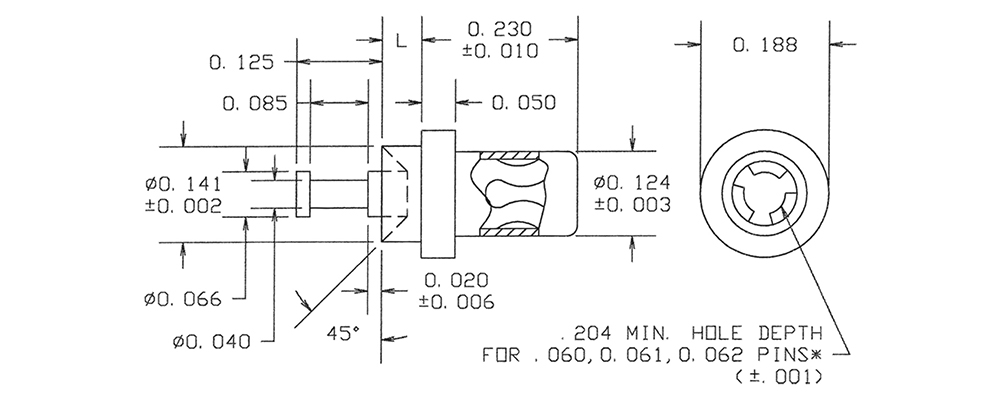

09-9067-1-03
09-9067-1-03
09-9067-1-03
0.060 - 0.062 0.204 " 0.413" Jack/Turret Swage Mount 0.058" 1/32 0.144 (+0.002/-0.001) Brass Gold Vertical
