Non-Insulated
PC Jacks

Filter
09-9277-1-04
09-9277-1-04
09-9277-1-04
0.080 0.350 " 0.870" Jack/Turret - - - - Brass Electro-Tin -
09-9013-1-035
09-9013-1-035
09-9013-1-035
0.060 - 0.062 0.200 " 0.213" - Solder - 1/32 - 1/8 0.102 Brass Gold Vertical
09-9056-1-04
09-9056-1-04
09-9056-1-04
0.040 0.185 " 0.530" - - - - - Brass Electro-Tin -
09-9159-1-04
09-9159-1-04
09-9159-1-04
0.060 - 0.062 0.190 " 0.213" - Solder - 1/32 - 1/8 0.102 Brass Electro-Tin Vertical
09-6027-1-03
09-6027-1-03
09-6027-1-03
0.015 - 0.025 0.140 " 0.293" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.058 Brass Gold Vertical
09-9697-1-06
09-9697-1-06
09-9697-1-06
0.015 - 0.025 0.150 " 0.356" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.059 Brass Electro-Tin Vertical
09-9660-1-035
09-9660-1-035
09-9660-1-035
0.015 - 0.025 0.147 " 0.296" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.059 Brass Gold Vertical
09-9697-1-03
09-9697-1-03
09-9697-1-03
0.015 - 0.025 0.150 " 0.356" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.059 Brass Gold Vertical
09-9734-1-06
09-9734-1-06
09-9734-1-06
0.032 - 0.046 0.250 " 0.288" - Solder - 1/32 - 3/32 0.125 Brass Electro-Tin Vertical
09-9670-4-063
09-9670-4-063
09-9670-4-063
0.015 - 0.025 0.187 " 0.281" - Swage Mount 0.146" 1/8 0.049 Brass Bright Tin-Lead Vertical
09-9670-4-035
09-9670-4-035
09-9670-4-035
0.015 - 0.025 0.187 " 0.281" - Swage Mount 0.146" 1/8 0.049 Brass Gold Vertical

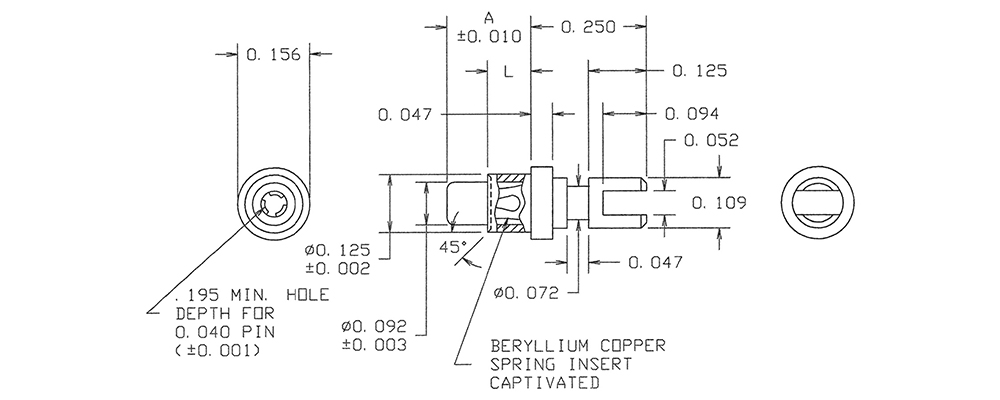

09-9003-3-088
09-9003-3-088
09-9003-3-088
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.125" 3/32 0.129 Brass Bright Tin-Lead Vertical
09-9076-1-03
09-9076-1-03
09-9076-1-03
0.040 0.185 " 0.855" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 5/32 0.089 Brass Gold Vertical
09-9620-1-03
09-9620-1-03
09-9620-1-03
0.032 - 0.046 0.200 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Gold Vertical

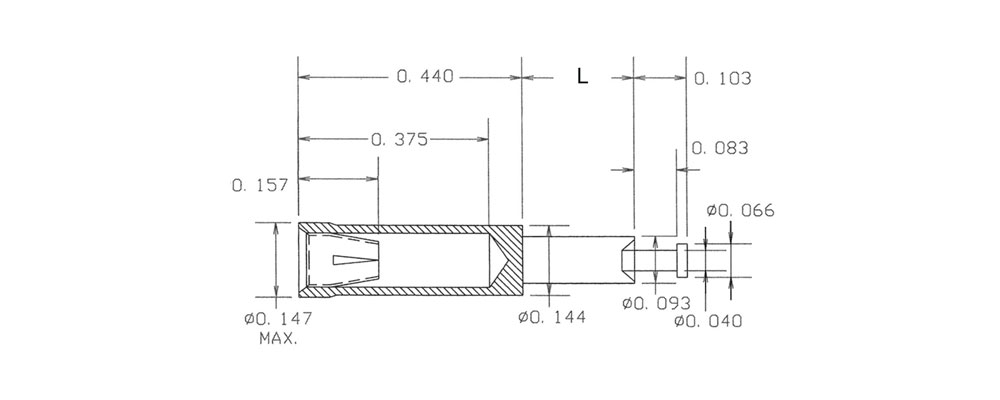

09-9642-3-088
09-9642-3-088
09-9642-3-088
0.065 - 0.082 0.375 " 0.668" Jack/Turret Swage Mount 0.125" 3/32 0.096 Brass Bright Tin-Lead Vertical
09-9035-1-03
09-9035-1-03
09-9035-1-03
0.040 0.175 " 0.292" - Swage Mount 0.062" 1/32 0.067 Brass Gold Vertical
09-9045-3-03
09-9045-3-03
09-9045-3-03
0.025 0.141 " 0.303" Jack/Turret Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Gold Vertical

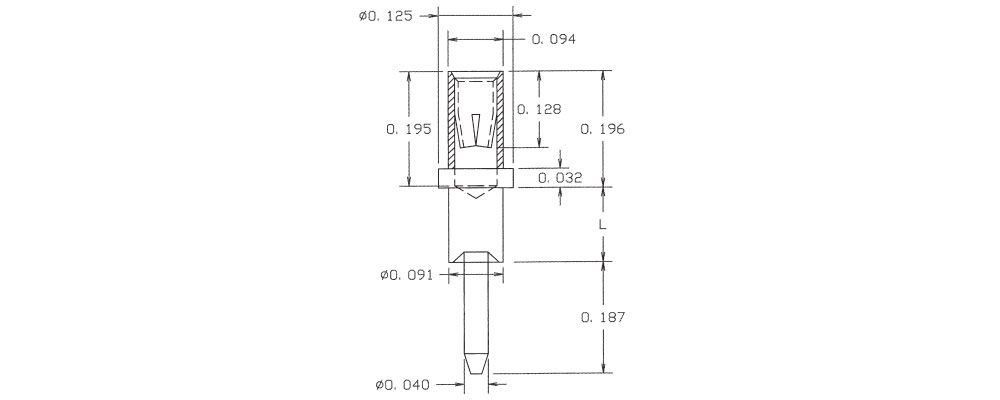

09-9605-2-035
09-9605-2-035
09-9605-2-035
0.032 - 0.046 0.195 " 0.477" Jack/Pin Swage Mount 0.094" 1/16 0.094 Brass Gold Vertical
09-9042-2-088
09-9042-2-088
09-9042-2-088
0.080 0.375 " 0.637" Jack/Turret Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
