Non-Insulated
PC Jacks

Filter

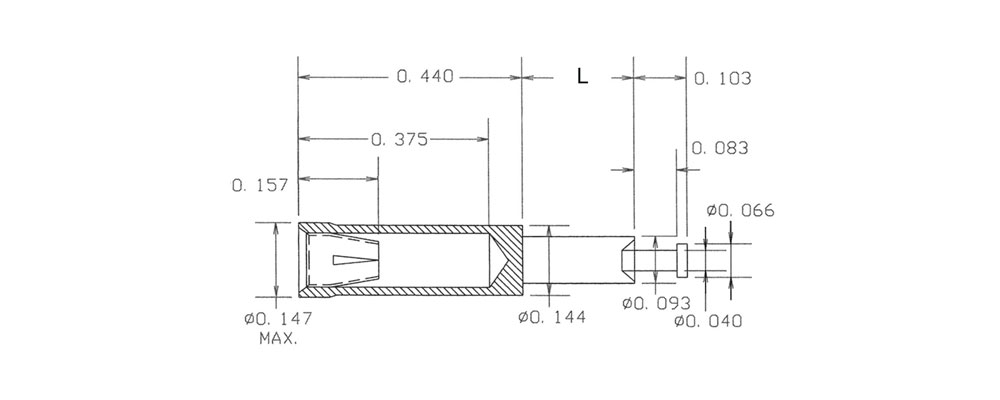

09-9642-6-04
09-9642-6-04
09-9642-6-04
0.065 - 0.082 0.375 " 0.762" Jack/Turret Swage Mount 0.219" 3/16 0.096 Brass Electro-Tin Vertical

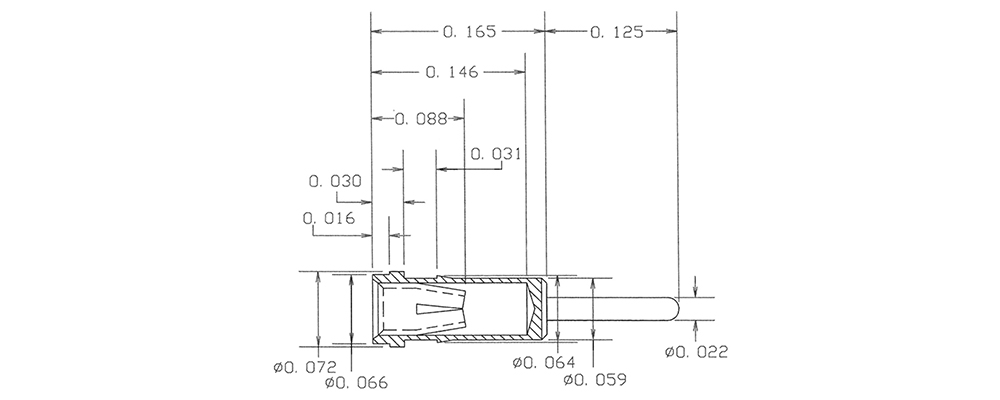

09-9685-1-03
09-9685-1-03
09-9685-1-03
0.025 - 0.037 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.061 Brass Gold Vertical
09-9003-2-088
09-9003-2-088
09-9003-2-088
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Bright Tin-Lead Vertical

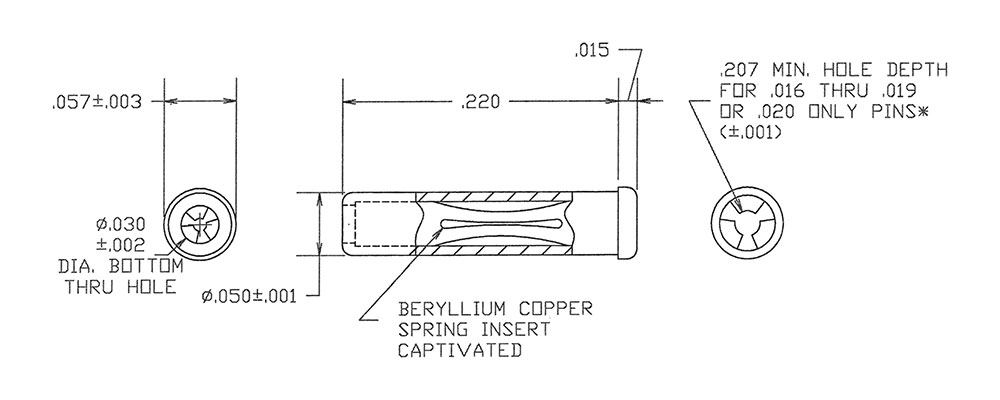

09-9026-2-06
09-9026-2-06
09-9026-2-06
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 5/32 0.052 Brass Electro-Tin Vertical

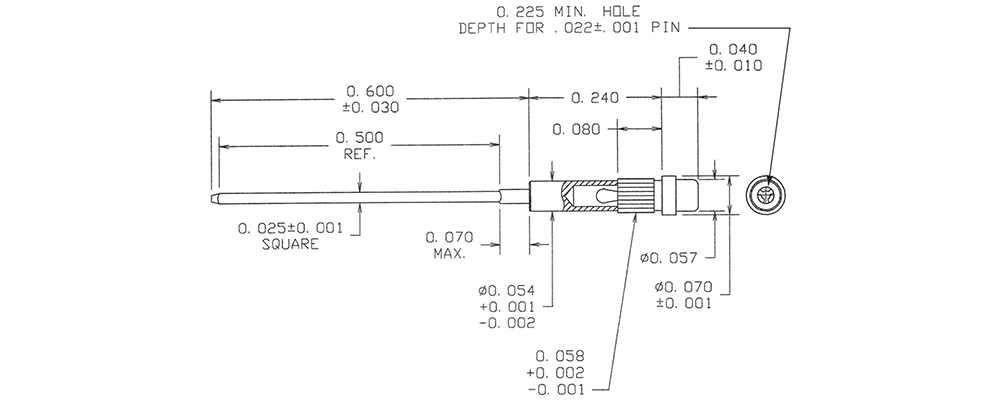

09-9066-1-035
09-9066-1-035
09-9066-1-035
0.022 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 5/32 0.055 Brass Gold Vertical

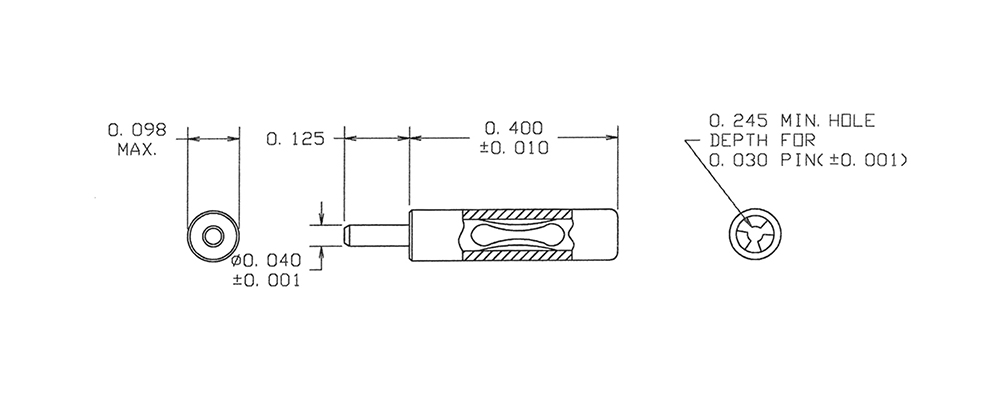

09-9249-1-04
09-9249-1-04
09-9249-1-04
0.030 0.245 " 0.525" Jack/Pin Solder - 1/32 - 1/16 0.043 Brass Electro-Tin Vertical

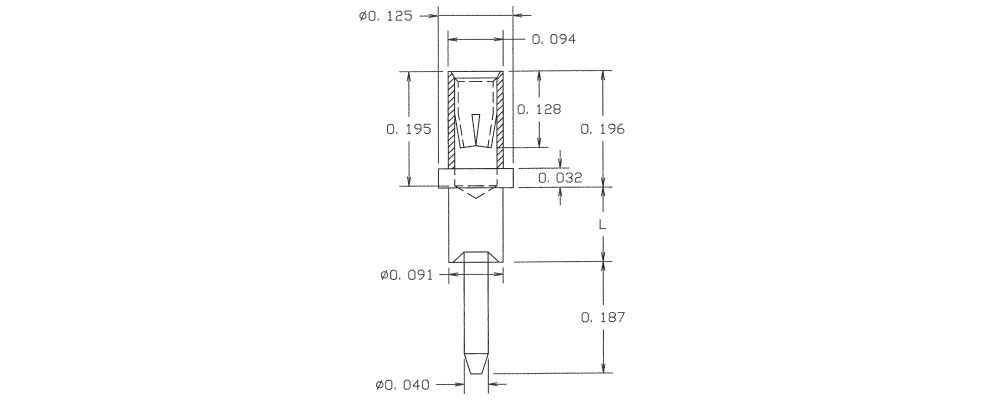

09-9605-6-088
09-9605-6-088
09-9605-6-088
0.032 - 0.046 0.195 " 0.602" Jack/Pin Swage Mount 0.219" 3/16 0.094 Brass Bright Tin-Lead Vertical
09-9642-6-06
09-9642-6-06
09-9642-6-06
0.065 - 0.082 0.375 " 0.762" Jack/Turret Swage Mount 0.219" 3/16 0.096 Brass Electro-Tin Vertical
09-9685-1-035
09-9685-1-035
09-9685-1-035
0.025 - 0.037 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.061 Brass Gold Vertical

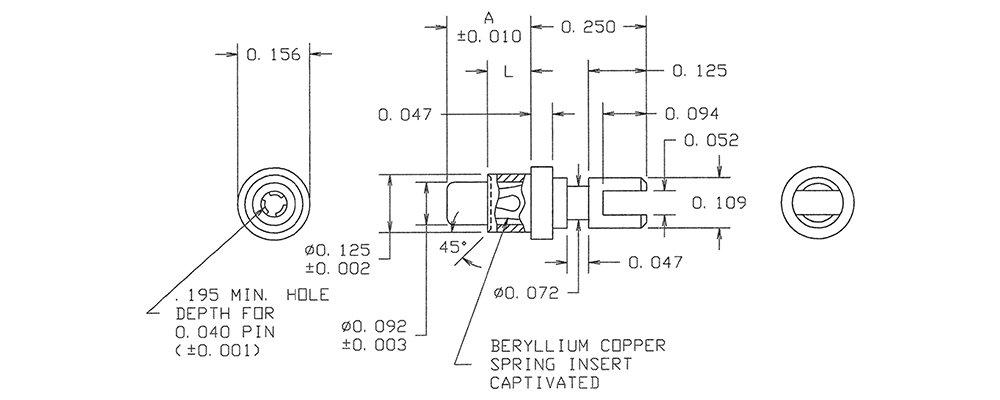

09-9003-3-03
09-9003-3-03
09-9003-3-03
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.125" 3/32 0.129 Brass Gold Vertical
09-9026-2-063
09-9026-2-063
09-9026-2-063
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 5/32 0.052 Brass Bright Tin-Lead Vertical
09-9066-1-04
09-9066-1-04
09-9066-1-04
0.022 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 5/32 0.055 Brass Electro-Tin Vertical
09-9249-1-06
09-9249-1-06
09-9249-1-06
0.030 0.245 " 0.525" Jack/Pin Solder - 1/32 - 1/16 0.043 Brass Electro-Tin Vertical

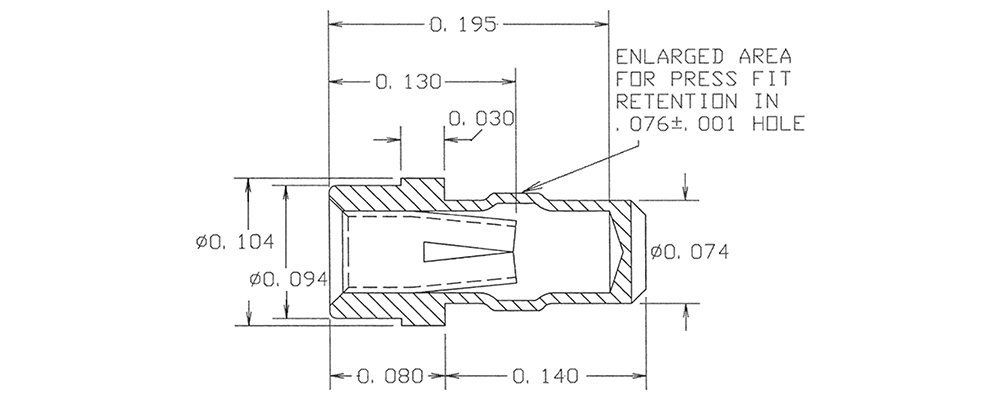

09-9606-1-03
09-9606-1-03
09-9606-1-03
0.032 - 0.046 0.195 " 0.220" - Press Fit/Solder - 1/16 - 1/8 0.076 Brass Gold Vertical
09-9642-6-063
09-9642-6-063
09-9642-6-063
0.065 - 0.082 0.375 " 0.762" Jack/Turret Swage Mount 0.219" 3/16 0.096 Brass Bright Tin-Lead Vertical
09-9685-1-04
09-9685-1-04
09-9685-1-04
0.025 - 0.037 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.061 Brass Electro-Tin Vertical
09-9003-3-035
09-9003-3-035
09-9003-3-035
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.125" 3/32 0.129 Brass Gold Vertical
09-9026-2-088
09-9026-2-088
09-9026-2-088
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 5/32 0.052 Brass Bright Tin-Lead Vertical
09-9066-1-06
09-9066-1-06
09-9066-1-06
0.022 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 5/32 0.055 Brass Electro-Tin Vertical
09-9249-1-063
09-9249-1-063
09-9249-1-063
0.030 0.245 " 0.525" Jack/Pin Solder - 1/32 - 1/16 0.043 Brass Bright Tin-Lead Vertical
