Insulated
PC Jacks

Filter

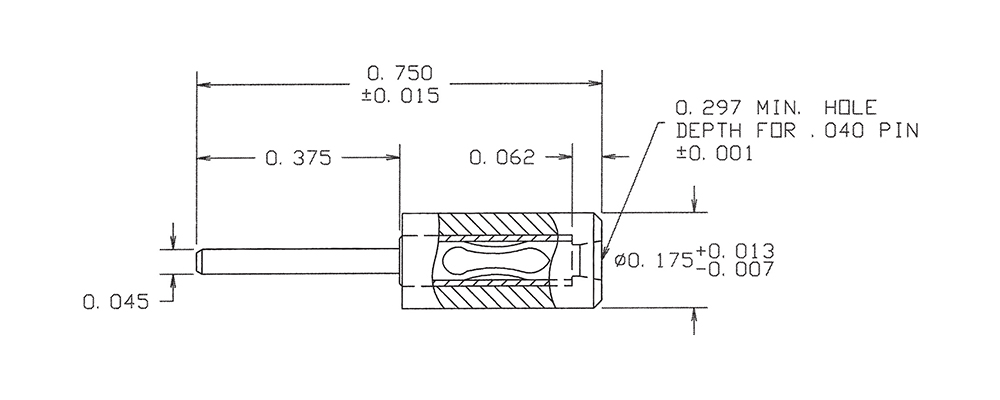

09-9158-1-0318
09-9158-1-0318
09-9158-1-0318
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE Gray -
09-9265-1-03519
09-9265-1-03519
09-9265-1-03519
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE White -
09-9265-1-03518
09-9265-1-03518
09-9265-1-03518
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Gray -
1138-27-0314
1138-27-0314
1138-27-0314
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Yellow -
1128-34-03513
1128-34-03513
1128-34-03513
0.032 0.200 " 0.425" Jack/Turret Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Orange -
1128-36-0316
1128-36-0316
1128-36-0316
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Blue -
1128-83-03514
1128-83-03514
1128-83-03514
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Yellow -
09-9294-1-08815
09-9294-1-08815
09-9294-1-08815
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green -
1128-83-0317
1128-83-0317
1128-83-0317
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Violet -
1128-38-0313
1128-38-0313
1128-38-0313
0.080 0.195 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Orange -
1128-15-03513
1128-15-03513
1128-15-03513
0.090 0.195 " 0.437" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Orange -
09-9092-1-06319
09-9092-1-06319
09-9092-1-06319
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE White -
1138-27-03511
1138-27-03511
1138-27-03511
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Brown -
09-9265-1-03514
09-9265-1-03514
09-9265-1-03514
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Yellow -
09-9063-1-0416
09-9063-1-0416
09-9063-1-0416
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Blue -
09-9063-1-0612
09-9063-1-0612
09-9063-1-0612
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Red -
1128-01-03512
1128-01-03512
1128-01-03512
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE Red -
1138-27-03516
1138-27-03516
1138-27-03516
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Blue -
1138-27-03517
1138-27-03517
1138-27-03517
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Violet -
1138-03-0319
1138-03-0319
1138-03-0319
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE White -
