Insulated
PC Jacks

Filter

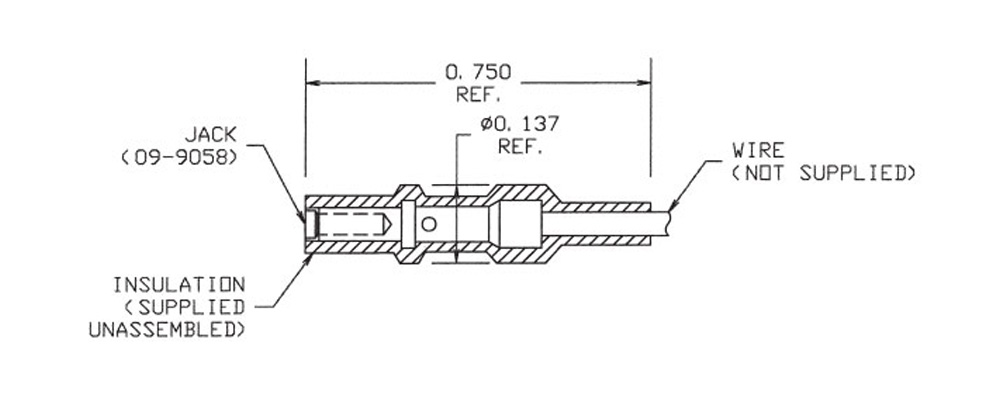

09-9059-1-03516
09-9059-1-03516
09-9059-1-03516
0.025 0.185 " 0.750" - - - - - Brass Gold Polyolefin Blue -

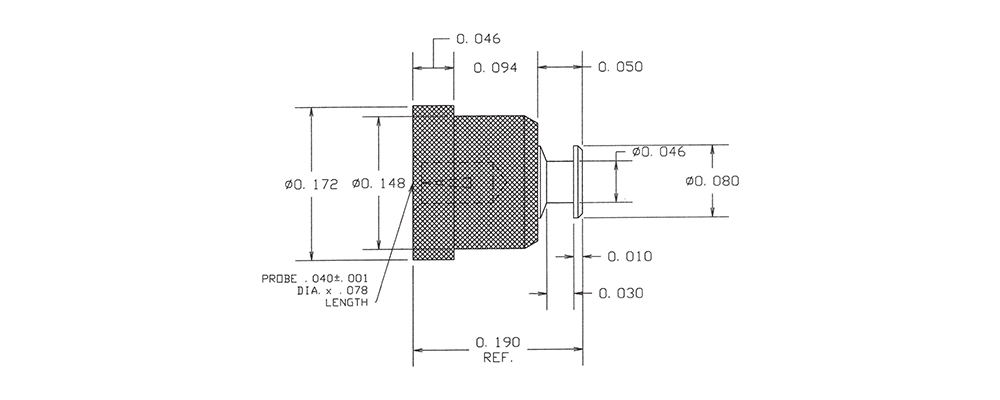

1128-06-0317
1128-06-0317
1128-06-0317
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Violet -

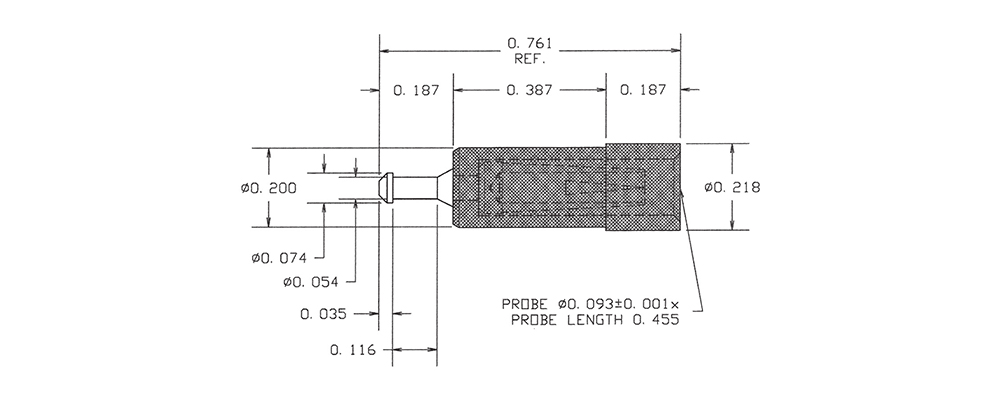

1128-20-03513
1128-20-03513
1128-20-03513
0.093 0.455 " 0.761" Jack/Turret Press Fit 0.187 1/32 - 21/64 Vertical - - PTFE Orange -

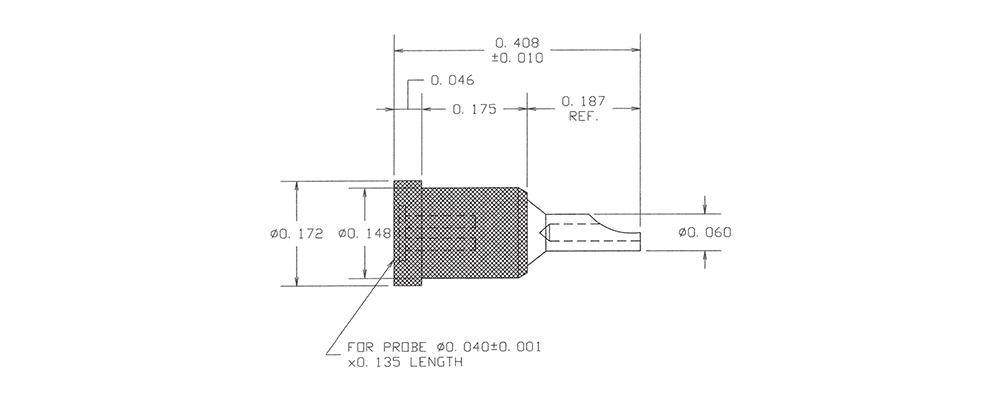

1128-39-0319
1128-39-0319
1128-39-0319
0.040 0.135 " 0.408" Jack/Solder Cup Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE White -

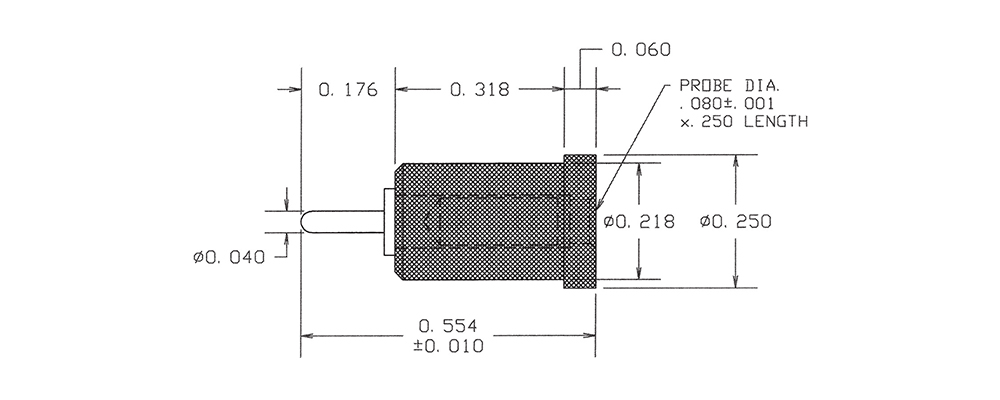

1128-66-04415
1128-66-04415
1128-66-04415
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Green -

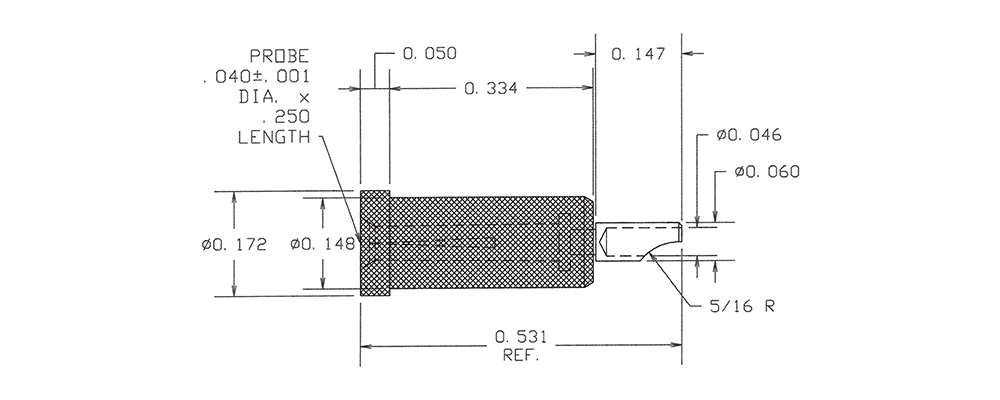

1138-28-0311
1138-28-0311
1138-28-0311
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Brown -

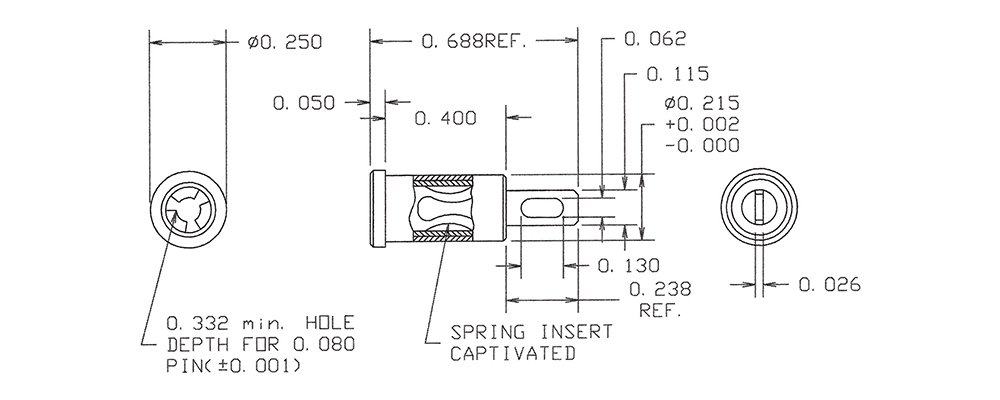

09-9060-1-0414
09-9060-1-0414
09-9060-1-0414
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Yellow -

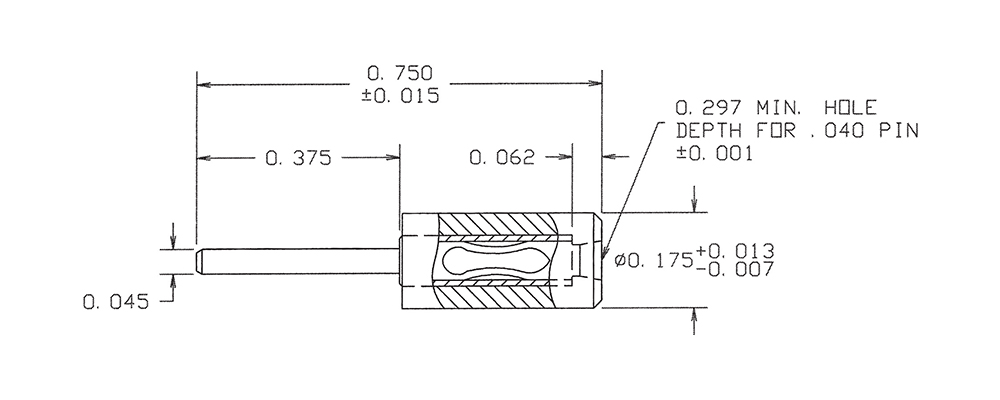

09-9158-1-0310
09-9158-1-0310
09-9158-1-0310
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE Black -

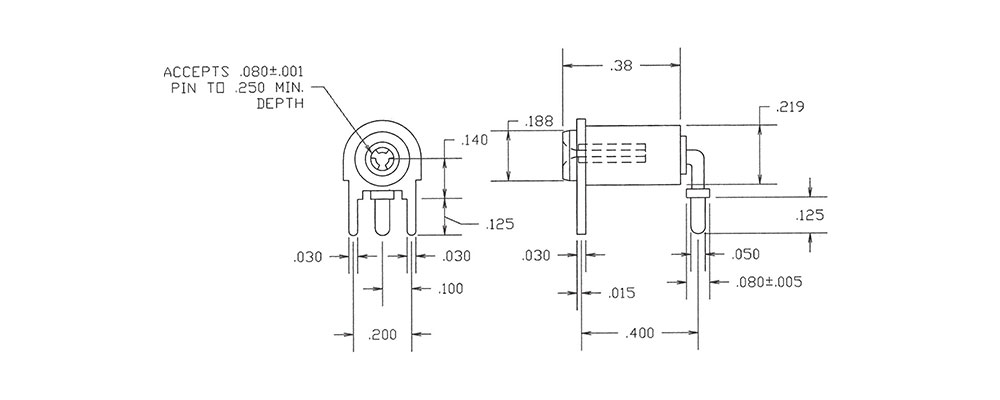

09-9203-1-03516
09-9203-1-03516
09-9203-1-03516
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Blue M39024/4-07

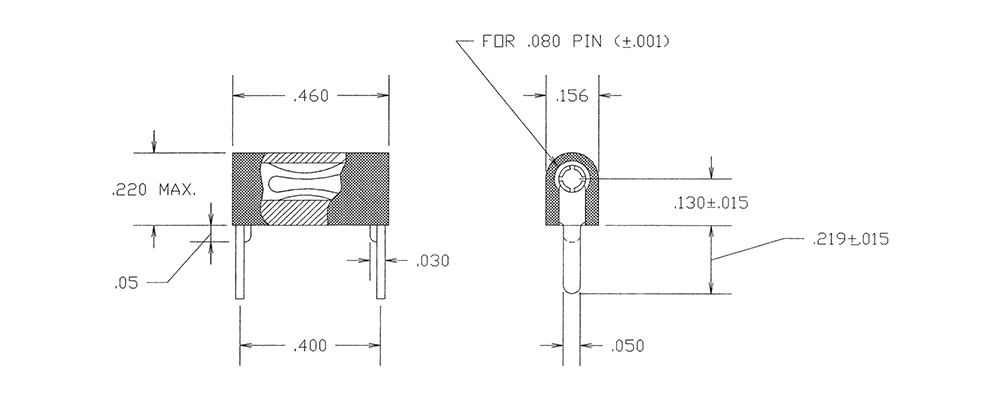

09-9301-1-03512
09-9301-1-03512
09-9301-1-03512
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Red -
09-9059-1-03519
09-9059-1-03519
09-9059-1-03519
0.025 0.185 " 0.750" - - - - - Brass Gold Polyolefin White -
1128-06-0318
1128-06-0318
1128-06-0318
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Gray -
1128-20-03514
1128-20-03514
1128-20-03514
0.093 0.455 " 0.761" Jack/Turret Press Fit 0.187 1/32 - 21/64 Vertical - - PTFE Yellow -
1128-39-03510
1128-39-03510
1128-39-03510
0.040 0.135 " 0.408" Jack/Solder Cup Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Black -
1128-66-04416
1128-66-04416
1128-66-04416
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Blue -
1138-28-0312
1138-28-0312
1138-28-0312
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Red -
09-9060-1-0415
09-9060-1-0415
09-9060-1-0415
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Green -
09-9158-1-0311
09-9158-1-0311
09-9158-1-0311
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE Brown -
09-9203-1-03517
09-9203-1-03517
09-9203-1-03517
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Violet M39024/4-10
09-9301-1-03513
09-9301-1-03513
09-9301-1-03513
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Orange -
