Insulated
PC Jacks

Filter

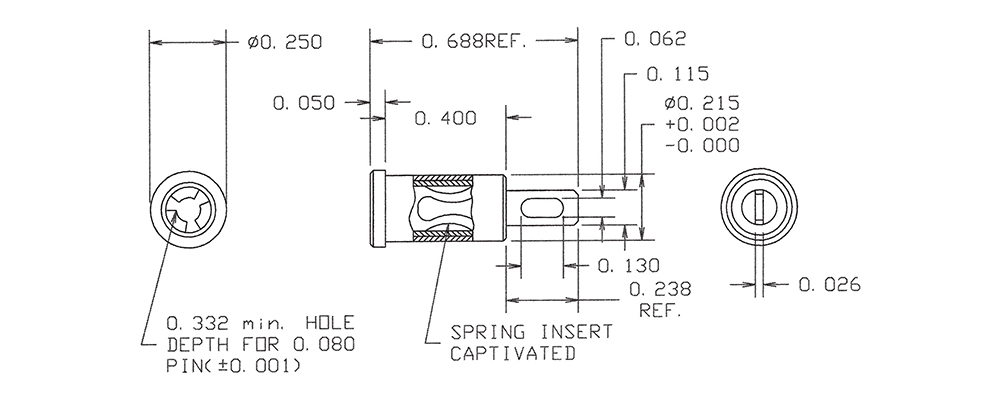

09-9060-1-08819
09-9060-1-08819
09-9060-1-08819
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE White -
1128-30-03510
1128-30-03510
1128-30-03510
0.080 0.195 " 0.437" Jack/Turret Press Fit 0.191 1/32 - 15/64 Vertical - - PTFE Black -
1128-01-0312
1128-01-0312
1128-01-0312
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE Red -
09-9060-1-03512
09-9060-1-03512
09-9060-1-03512
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Red -
09-9010-1-06310
09-9010-1-06310
09-9010-1-06310
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Bright Tin-Lead Polyolefin Black -
09-9010-1-06312
09-9010-1-06312
09-9010-1-06312
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Bright Tin-Lead Polyolefin Red -
09-9055-1-0619
09-9055-1-0619
09-9055-1-0619
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Electro-Tin Polyolefin White -
09-9055-1-06310
09-9055-1-06310
09-9055-1-06310
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Black -
09-9055-1-06319
09-9055-1-06319
09-9055-1-06319
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin White -
09-9055-1-08810
09-9055-1-08810
09-9055-1-08810
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Black -
09-9055-1-08812
09-9055-1-08812
09-9055-1-08812
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Red -
09-9011-1-03514
09-9011-1-03514
09-9011-1-03514
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Yellow M39024/12-19
09-9055-1-08815
09-9055-1-08815
09-9055-1-08815
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin Green -
09-9055-1-08819
09-9055-1-08819
09-9055-1-08819
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Bright Tin-Lead Polyolefin White -
09-9057-1-0314
09-9057-1-0314
09-9057-1-0314
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin Yellow -
09-9057-1-0319
09-9057-1-0319
09-9057-1-0319
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin White -
09-9057-1-03510
09-9057-1-03510
09-9057-1-03510
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin Black -
09-9057-1-03515
09-9057-1-03515
09-9057-1-03515
0.040 0.185 " 0.750" - - - - - Brass Gold Polyolefin Green -
09-9057-1-0415
09-9057-1-0415
09-9057-1-0415
0.040 0.185 " 0.750" - - - - - Brass Electro-Tin Polyolefin Green -
1138-03-0319
1138-03-0319
1138-03-0319
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE White -
