Insulated
PC Jacks

Filter
09-9059-1-03514
09-9059-1-03514
09-9059-1-03514
0.025 0.185 " 0.750" - - - - - Brass Gold Polyolefin Yellow -
1128-06-0315
1128-06-0315
1128-06-0315
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Green -

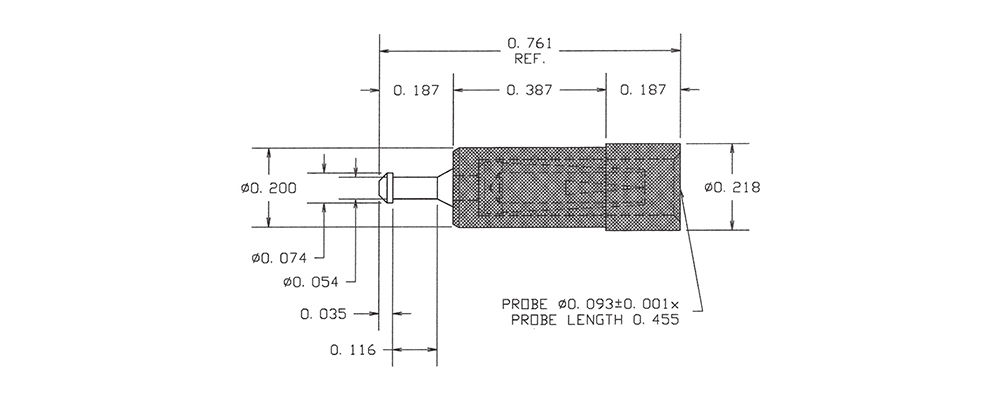

1128-20-03511
1128-20-03511
1128-20-03511
0.093 0.455 " 0.761" Jack/Turret Press Fit 0.187 1/32 - 21/64 Vertical - - PTFE Brown -
1128-39-0317
1128-39-0317
1128-39-0317
0.040 0.135 " 0.408" Jack/Solder Cup Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Violet -

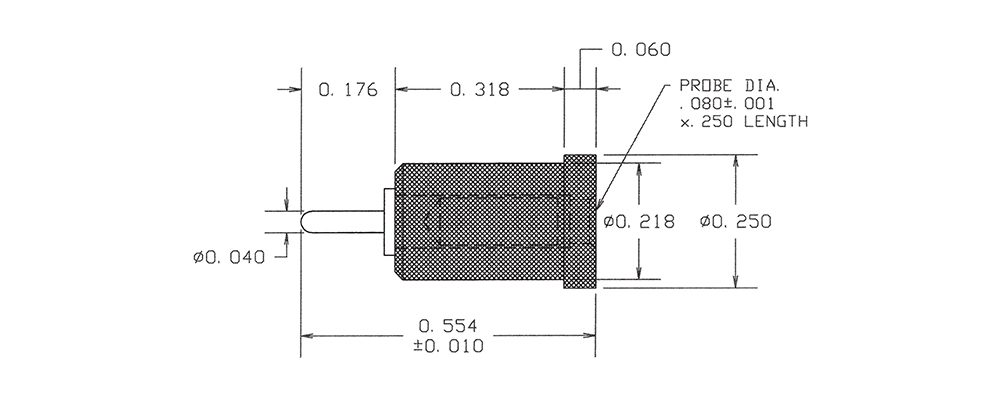

1128-66-04413
1128-66-04413
1128-66-04413
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Orange -

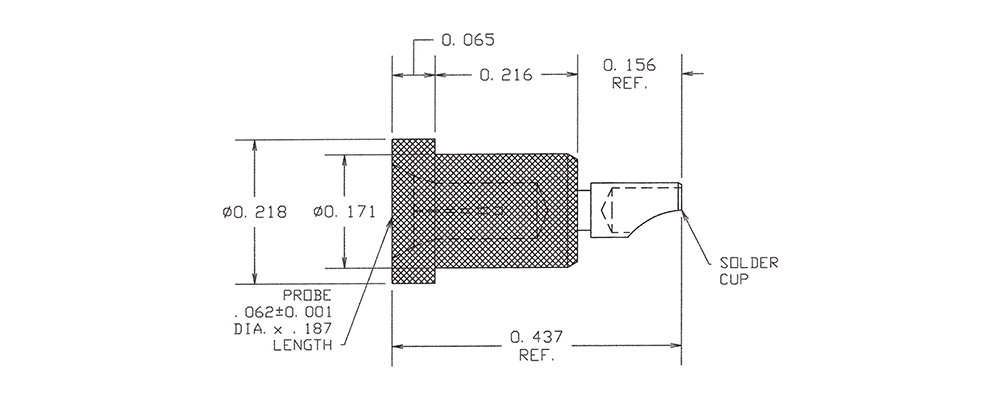

1138-27-03519
1138-27-03519
1138-27-03519
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE White -

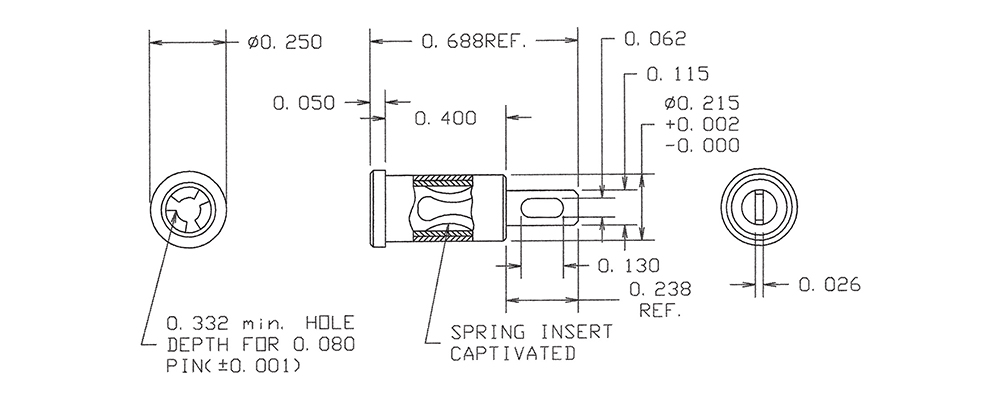

09-9060-1-0412
09-9060-1-0412
09-9060-1-0412
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Red -

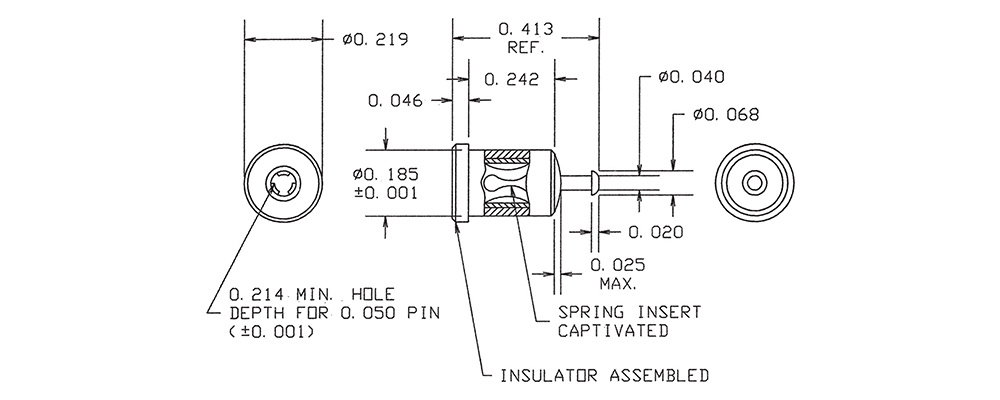

09-9092-1-08818
09-9092-1-08818
09-9092-1-08818
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Gray -

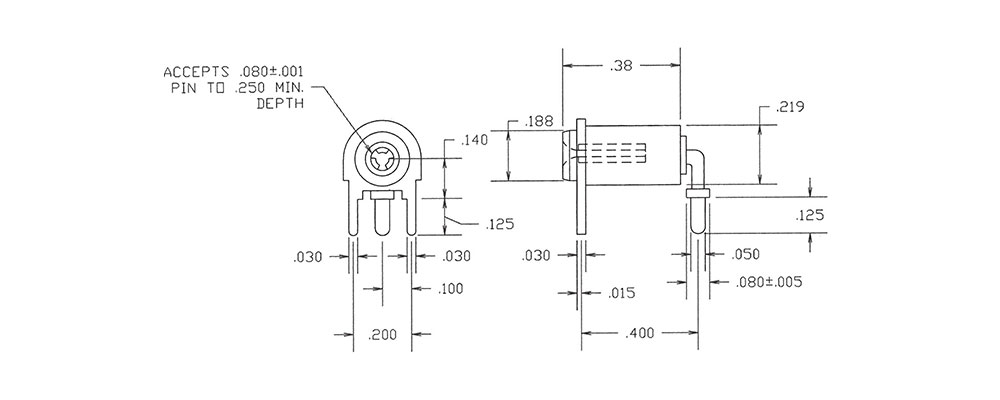

09-9203-1-03514
09-9203-1-03514
09-9203-1-03514
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Yellow M39024/4-08

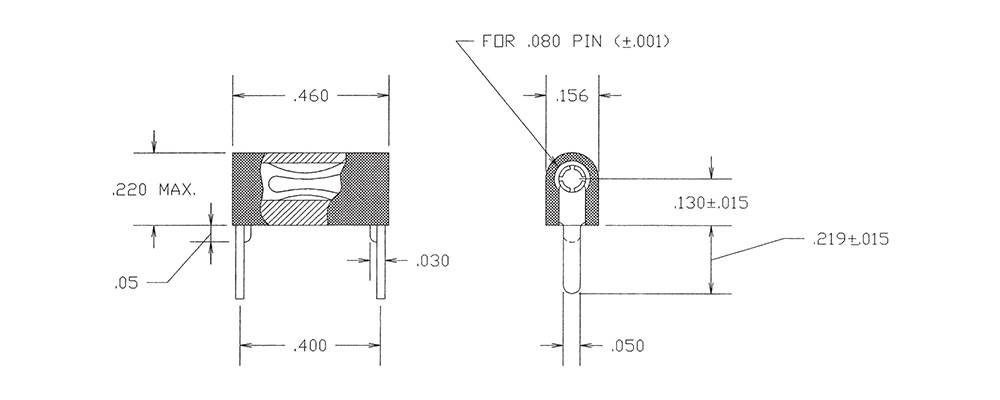

09-9301-1-03510
09-9301-1-03510
09-9301-1-03510
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Black -
09-9059-1-03515
09-9059-1-03515
09-9059-1-03515
0.025 0.185 " 0.750" - - - - - Brass Gold Polyolefin Green -

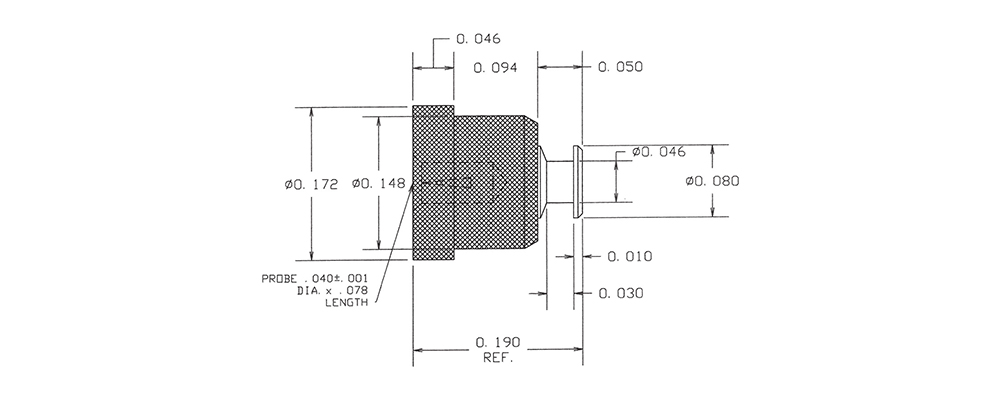

1128-06-0316
1128-06-0316
1128-06-0316
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Blue -
1128-20-03512
1128-20-03512
1128-20-03512
0.093 0.455 " 0.761" Jack/Turret Press Fit 0.187 1/32 - 21/64 Vertical - - PTFE Red -

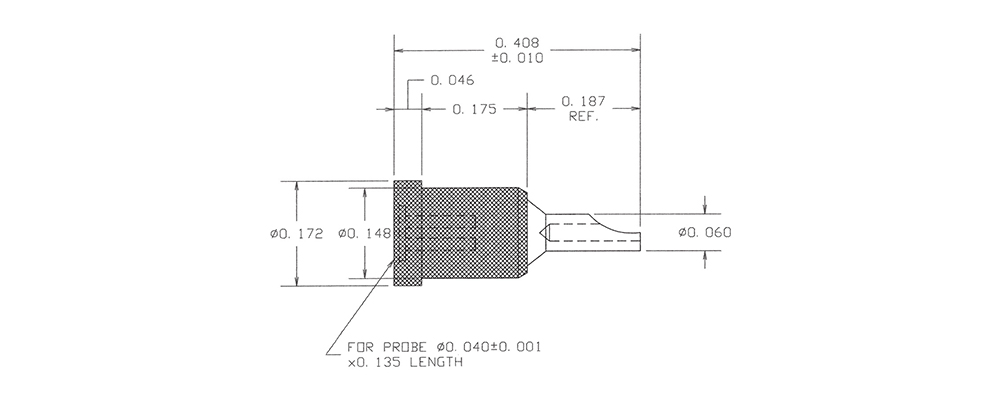

1128-39-0318
1128-39-0318
1128-39-0318
0.040 0.135 " 0.408" Jack/Solder Cup Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Gray -
1128-66-04414
1128-66-04414
1128-66-04414
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Yellow -

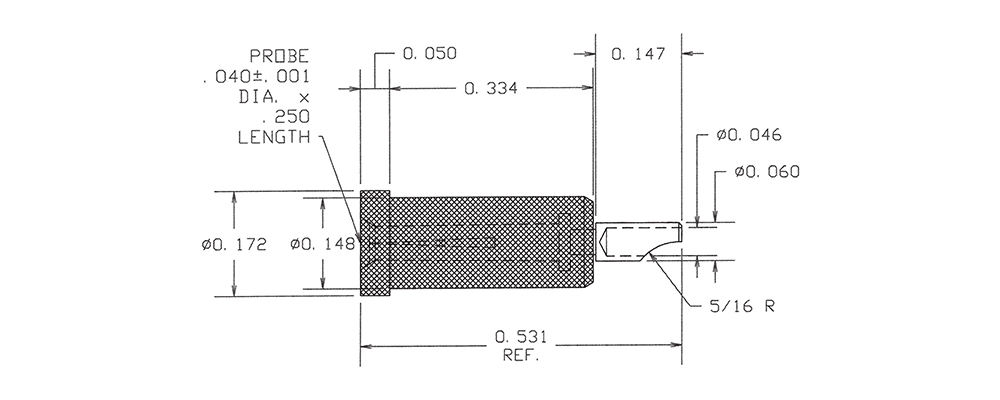

1138-28-0310
1138-28-0310
1138-28-0310
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Black -
09-9060-1-0413
09-9060-1-0413
09-9060-1-0413
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Orange -
09-9092-1-08819
09-9092-1-08819
09-9092-1-08819
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE White -
09-9203-1-03515
09-9203-1-03515
09-9203-1-03515
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Green M39024/4-05
09-9301-1-03511
09-9301-1-03511
09-9301-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Brown -

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
