Insulated
PC Jacks

Filter

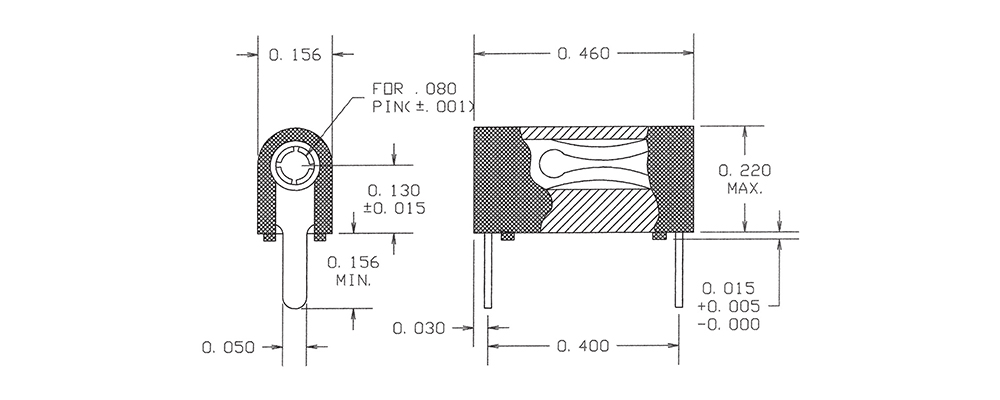

09-9306-1-03515
09-9306-1-03515
09-9306-1-03515
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Green M39024/11-55

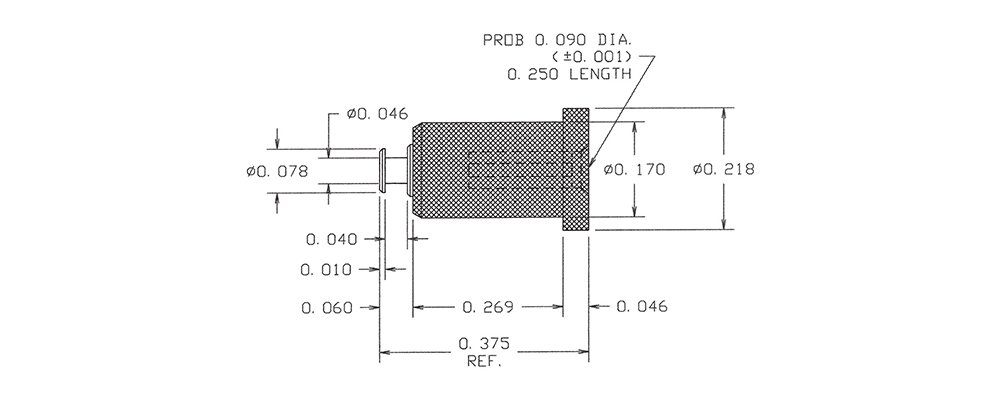

1128-09-0311
1128-09-0311
1128-09-0311
0.090 0.250 " 0.375" Jack/Turret Press Fit 0.157 1/32 - 15/64 Vertical - - PTFE Brown -

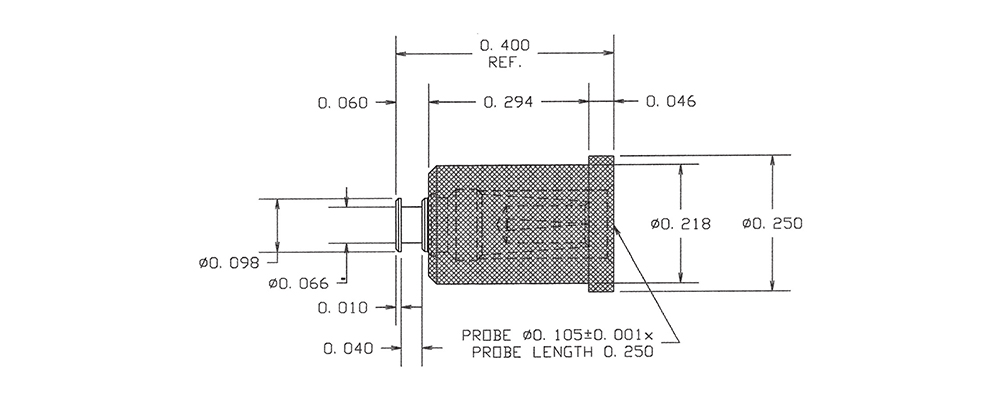

1128-29-0317
1128-29-0317
1128-29-0317
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Violet -

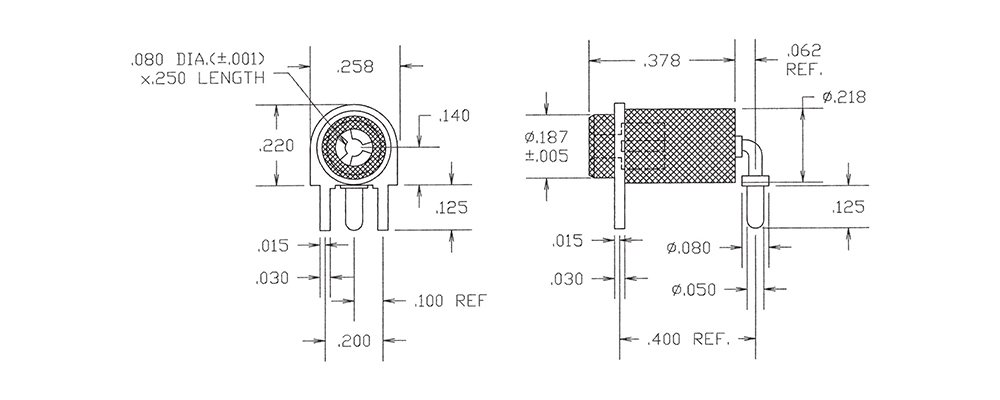

1128-52-0313
1128-52-0313
1128-52-0313
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Orange -

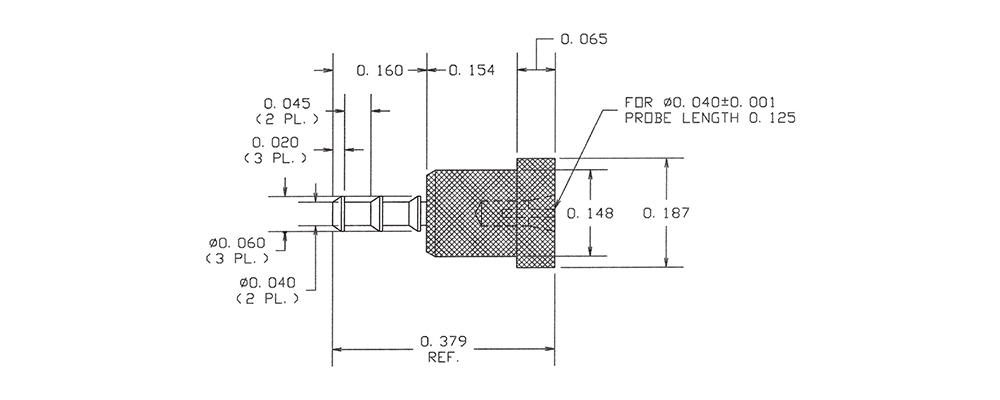

1128-83-030119
1128-83-030119
1128-83-030119
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE White -

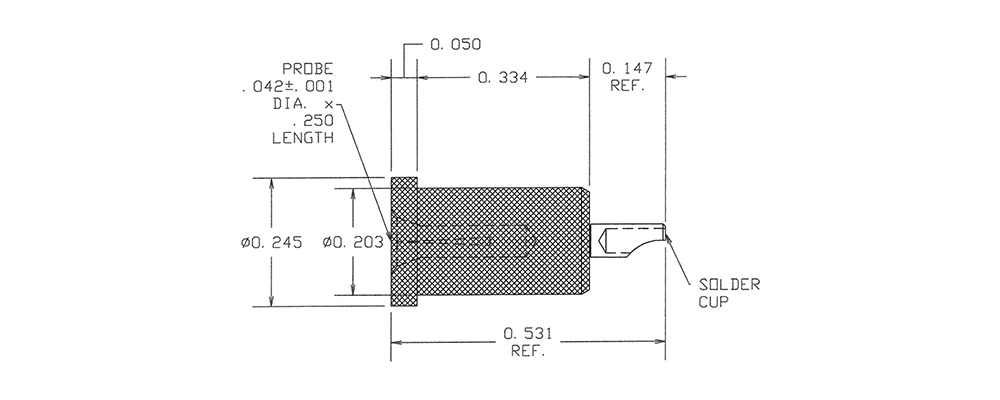

1138-30-03515
1138-30-03515
1138-30-03515
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Green -
09-9063-1-0614
09-9063-1-0614
09-9063-1-0614
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Yellow -

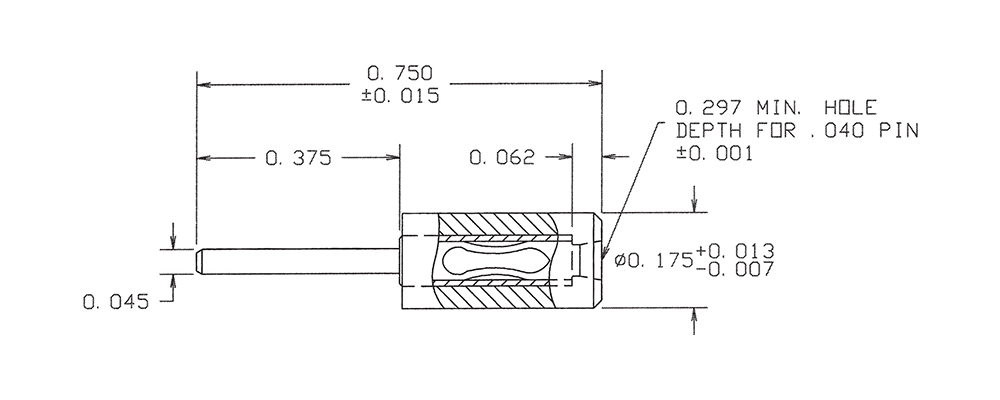

09-9158-1-08814
09-9158-1-08814
09-9158-1-08814
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Yellow -

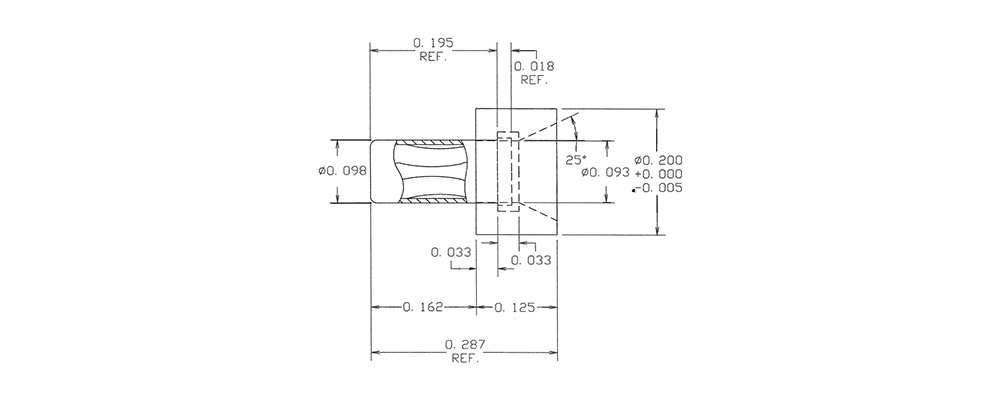

09-9216-1-0310
09-9216-1-0310
09-9216-1-0310
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Gold PTFE Black -

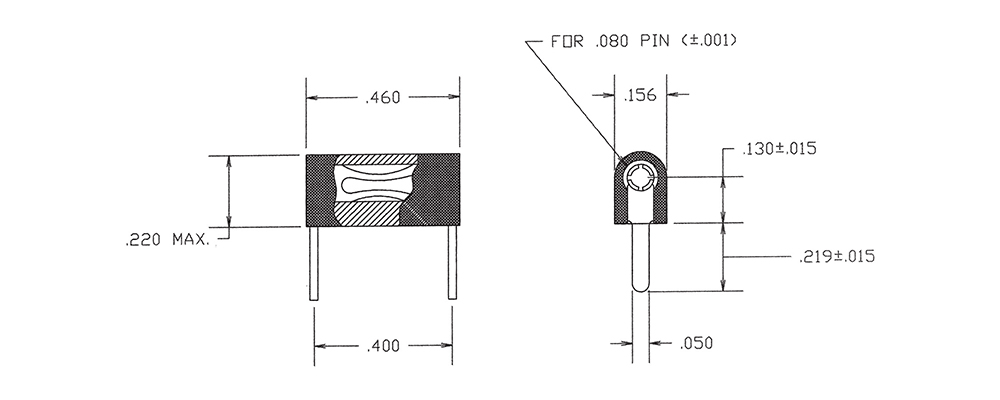

09-9305-1-0316
09-9305-1-0316
09-9305-1-0316
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Blue -
09-9306-1-03516
09-9306-1-03516
09-9306-1-03516
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Blue M39024/11-57
1128-09-0312
1128-09-0312
1128-09-0312
0.090 0.250 " 0.375" Jack/Turret Press Fit 0.157 1/32 - 15/64 Vertical - - PTFE Red -
1128-29-0318
1128-29-0318
1128-29-0318
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Gray -
1128-52-0314
1128-52-0314
1128-52-0314
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Yellow -
1128-83-0310
1128-83-0310
1128-83-0310
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Black -
1138-30-03516
1138-30-03516
1138-30-03516
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Blue -
09-9063-1-0615
09-9063-1-0615
09-9063-1-0615
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Green -
09-9158-1-08815
09-9158-1-08815
09-9158-1-08815
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Green -
09-9216-1-0311
09-9216-1-0311
09-9216-1-0311
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Gold PTFE Brown -

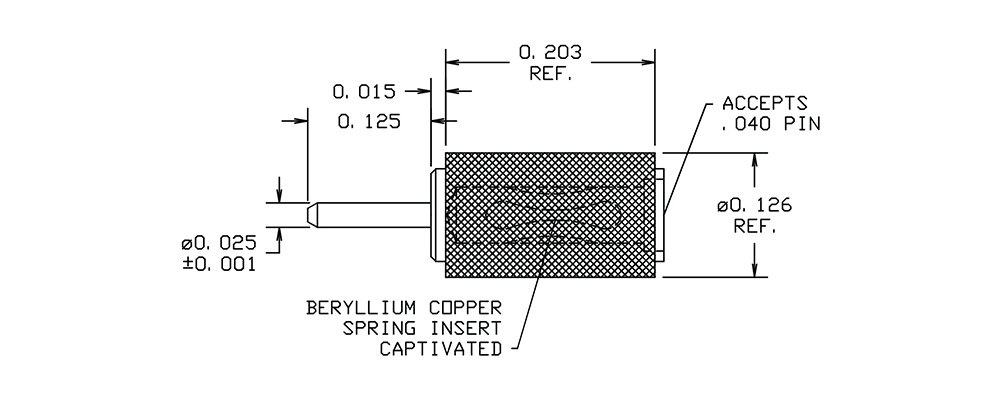

09-9010-1-0310
09-9010-1-0310
09-9010-1-0310
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Gold Polyolefin Black -
