Insulated
PC Jacks

Filter

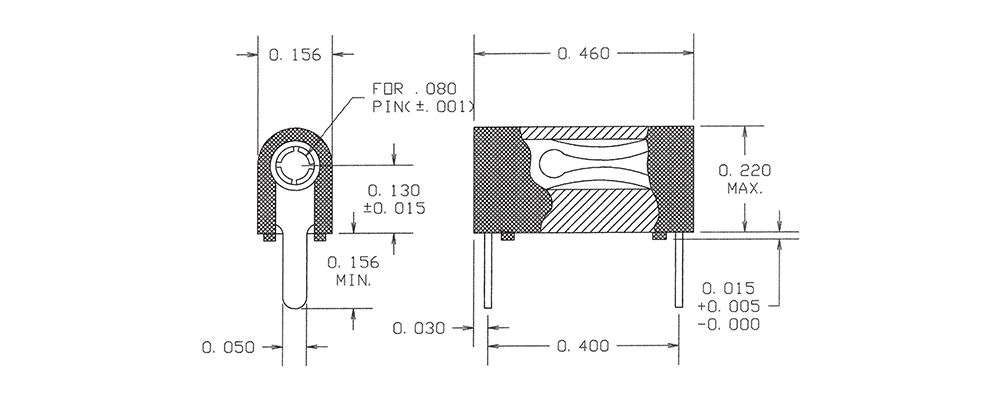

09-9306-1-03519
09-9306-1-03519
09-9306-1-03519
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon White M39024/11-51

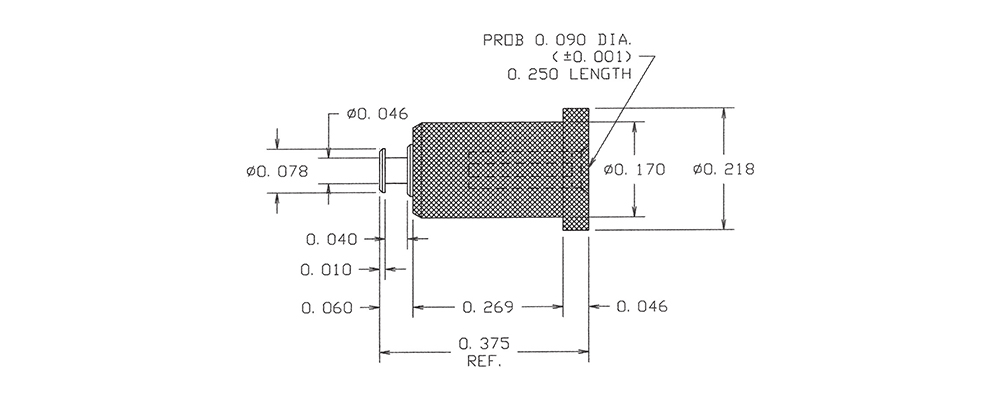

1128-09-0315
1128-09-0315
1128-09-0315
0.090 0.250 " 0.375" Jack/Turret Press Fit 0.157 1/32 - 15/64 Vertical - - PTFE Green -

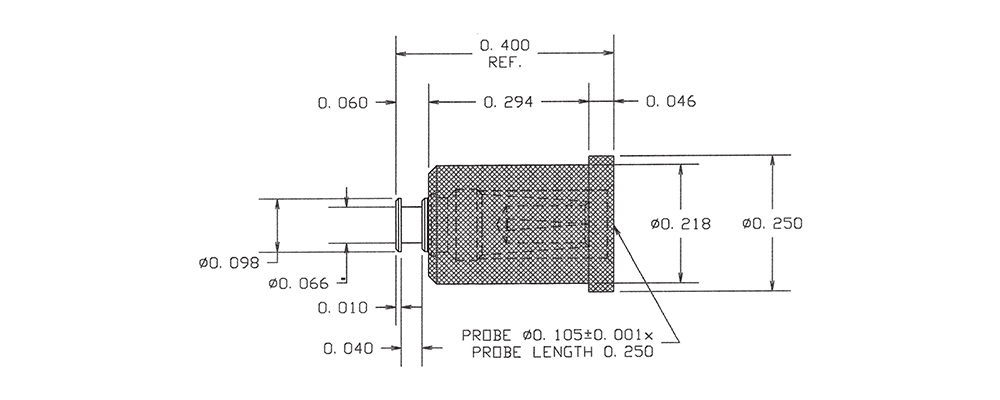

1128-29-03511
1128-29-03511
1128-29-03511
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Brown -

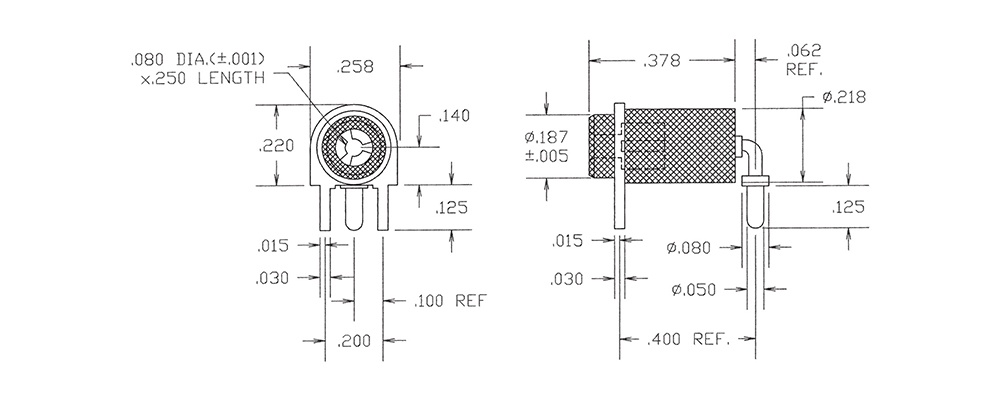

1128-52-0317
1128-52-0317
1128-52-0317
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Violet -

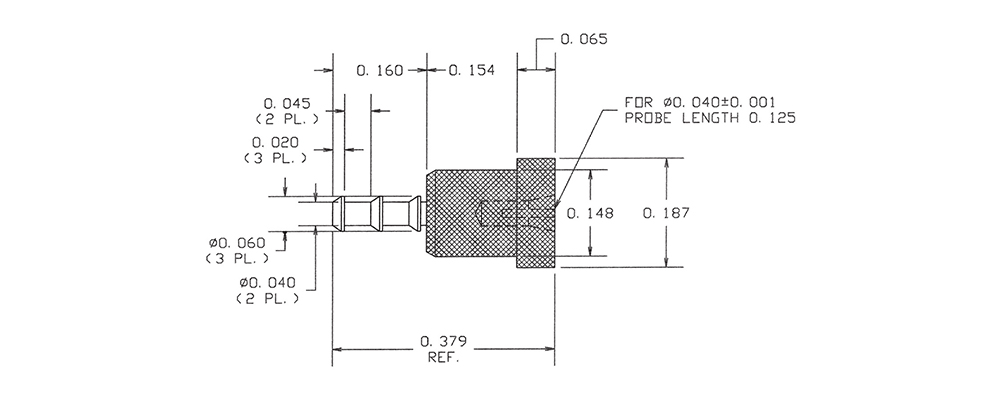

1128-83-0313
1128-83-0313
1128-83-0313
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Orange -

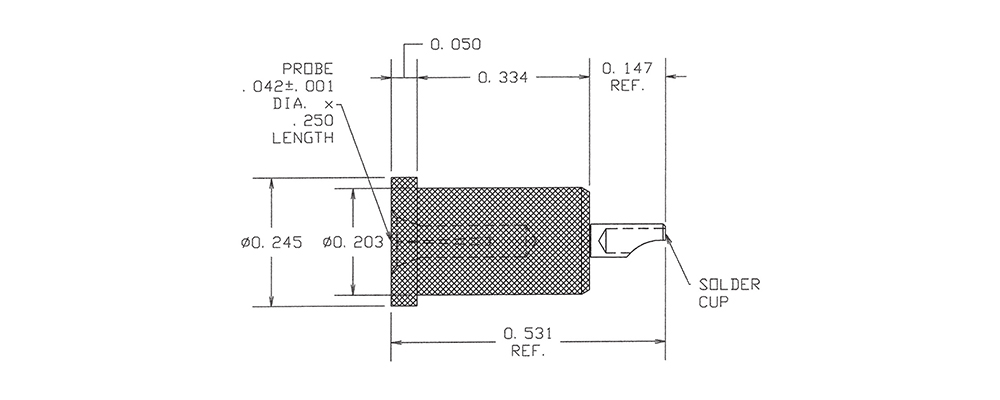

1138-30-03519
1138-30-03519
1138-30-03519
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE White -
09-9063-1-06310
09-9063-1-06310
09-9063-1-06310
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Bright Tin-Lead Polyolefin Black -
09-9158-1-08818
09-9158-1-08818
09-9158-1-08818
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Gray -

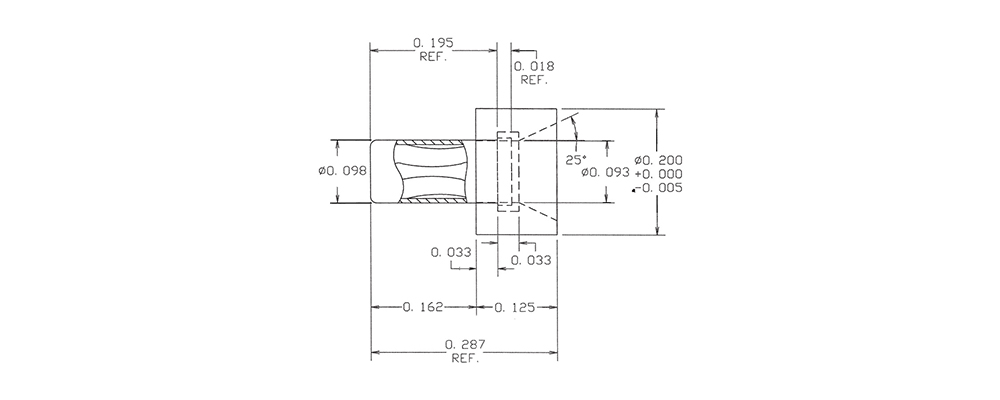

09-9216-1-0314
09-9216-1-0314
09-9216-1-0314
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Gold PTFE Yellow -
09-9305-1-0317
09-9305-1-0317
09-9305-1-0317
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Violet -
09-9306-1-04410
09-9306-1-04410
09-9306-1-04410
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Black -
1128-09-0316
1128-09-0316
1128-09-0316
0.090 0.250 " 0.375" Jack/Turret Press Fit 0.157 1/32 - 15/64 Vertical - - PTFE Blue -
1128-29-03512
1128-29-03512
1128-29-03512
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Red -
1128-52-0318
1128-52-0318
1128-52-0318
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Gray -
1128-83-0314
1128-83-0314
1128-83-0314
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Yellow -

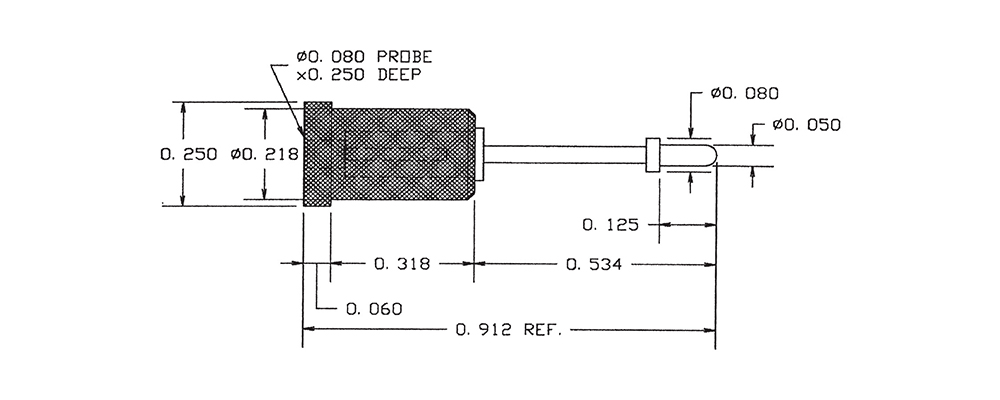

1138-32-0310
1138-32-0310
1138-32-0310
0.080 0.250 " 0.912" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Black -
09-9063-1-06312
09-9063-1-06312
09-9063-1-06312
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Bright Tin-Lead Polyolefin Red -
09-9158-1-08819
09-9158-1-08819
09-9158-1-08819
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE White -
09-9216-1-0315
09-9216-1-0315
09-9216-1-0315
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Gold PTFE Green -
09-9305-1-0318
09-9305-1-0318
09-9305-1-0318
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Gray -
