Insulated
PC Jacks

Filter

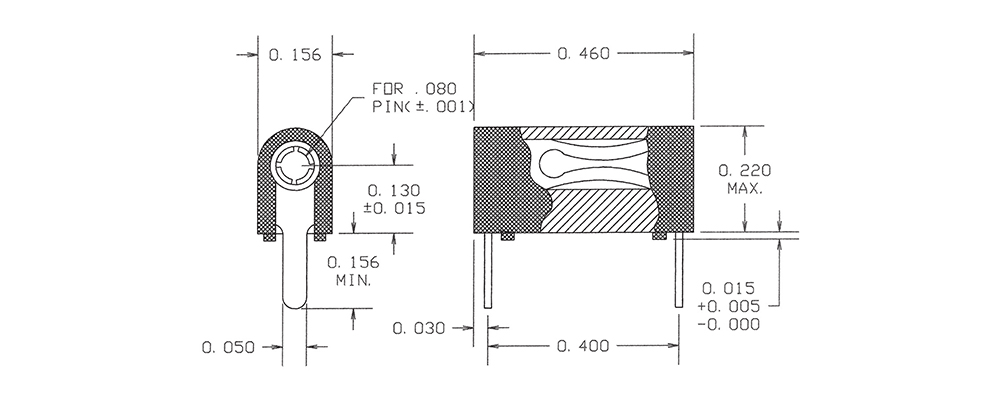

09-9306-1-0319
09-9306-1-0319
09-9306-1-0319
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon White -

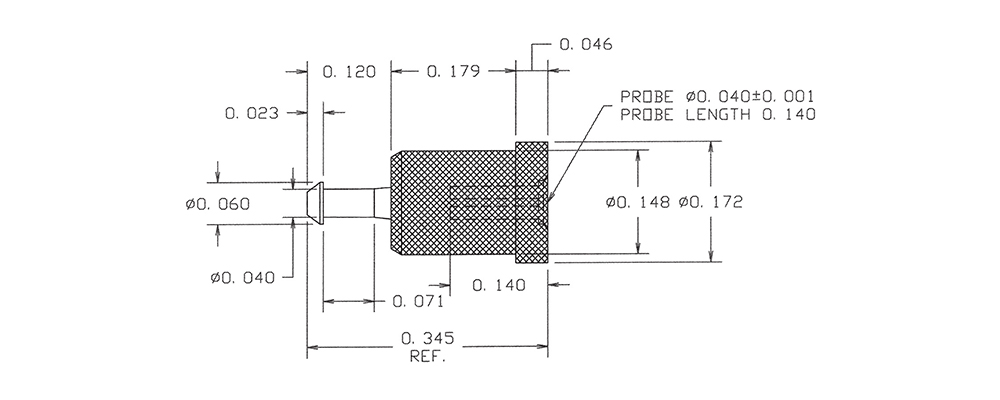

1128-08-03515
1128-08-03515
1128-08-03515
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Green -

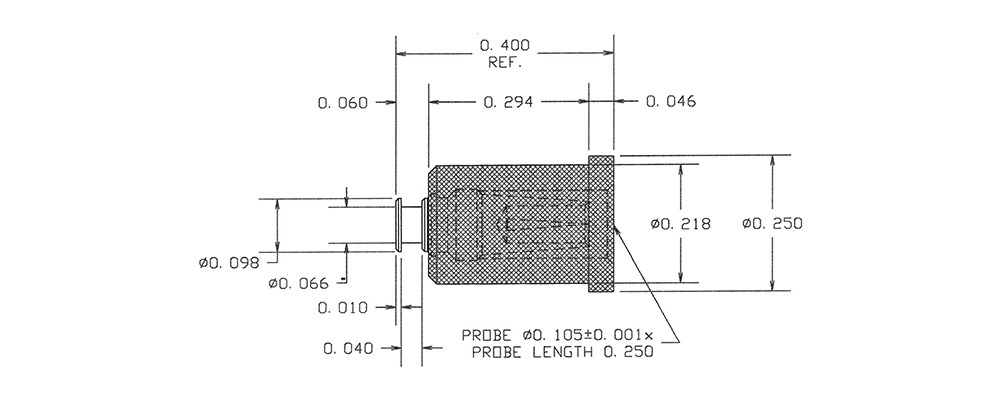

1128-29-0311
1128-29-0311
1128-29-0311
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Brown -

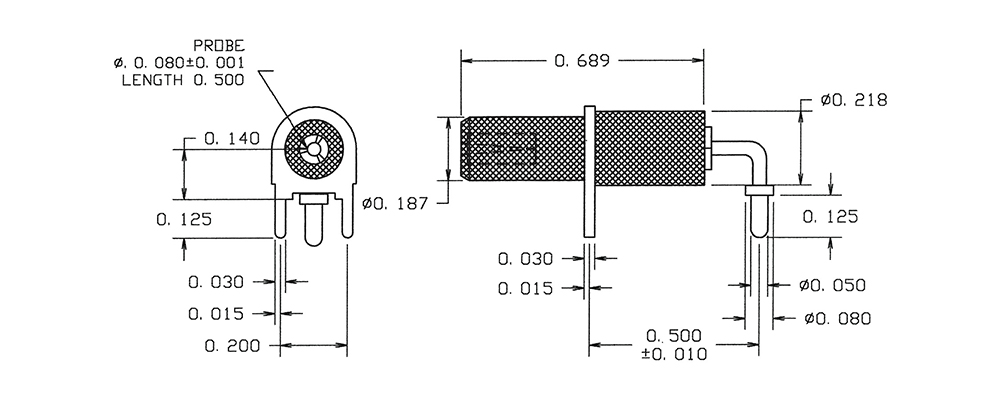

1128-51-03517
1128-51-03517
1128-51-03517
0.080 0.500 " 0.898" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Violet -

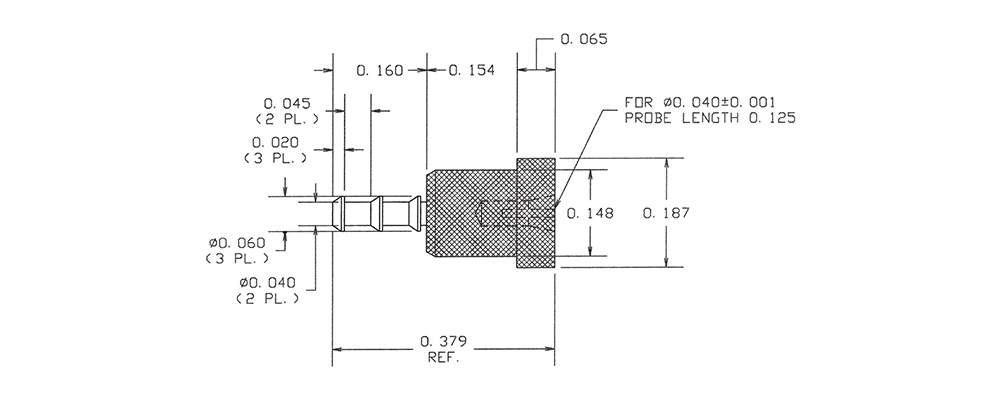

1128-83-030113
1128-83-030113
1128-83-030113
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Orange -

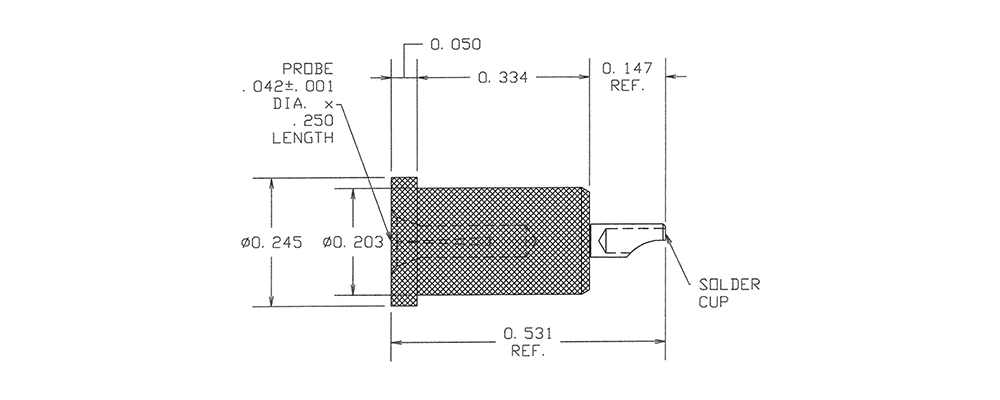

1138-30-0319
1138-30-0319
1138-30-0319
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE White -
09-9063-1-0414
09-9063-1-0414
09-9063-1-0414
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Yellow -
09-9158-1-06318
09-9158-1-06318
09-9158-1-06318
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Gray -

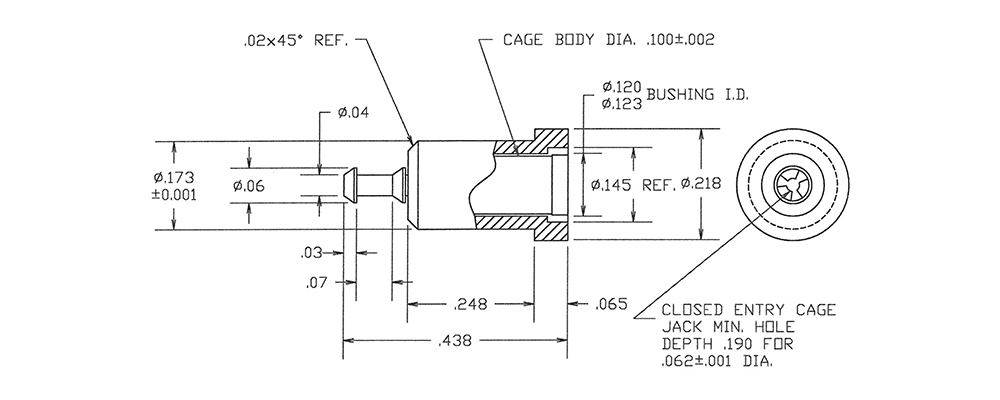

09-9211-1-03214
09-9211-1-03214
09-9211-1-03214
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE Yellow -
09-9305-1-0310
09-9305-1-0310
09-9305-1-0310
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Black -
09-9306-1-03510
09-9306-1-03510
09-9306-1-03510
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Black M39024/11-53
1128-08-03516
1128-08-03516
1128-08-03516
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Blue -
1128-29-0312
1128-29-0312
1128-29-0312
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Red -
1128-51-03518
1128-51-03518
1128-51-03518
0.080 0.500 " 0.898" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Gray -
1128-83-030114
1128-83-030114
1128-83-030114
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Yellow -
1138-30-03510
1138-30-03510
1138-30-03510
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Black -
09-9063-1-0415
09-9063-1-0415
09-9063-1-0415
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Green -
09-9158-1-06319
09-9158-1-06319
09-9158-1-06319
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE White -
09-9211-1-03215
09-9211-1-03215
09-9211-1-03215
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE Green -
09-9305-1-0311
09-9305-1-0311
09-9305-1-0311
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Brown -
