Insulated
PC Jacks

Filter

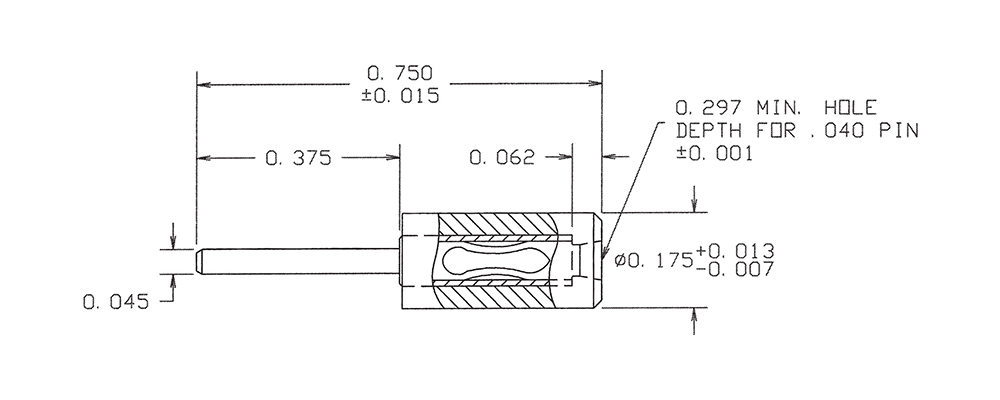

09-9158-1-0317
09-9158-1-0317
09-9158-1-0317
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE Violet -
09-9092-1-0410
09-9092-1-0410
09-9092-1-0410
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -
09-9060-1-0411
09-9060-1-0411
09-9060-1-0411
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Brown -
09-9265-1-0410
09-9265-1-0410
09-9265-1-0410
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -
09-9060-1-03519
09-9060-1-03519
09-9060-1-03519
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE White -
09-9060-1-03518
09-9060-1-03518
09-9060-1-03518
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Gray -
09-9265-1-0414
09-9265-1-0414
09-9265-1-0414
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Yellow -
09-9265-1-0415
09-9265-1-0415
09-9265-1-0415
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Green -
09-9265-1-0416
09-9265-1-0416
09-9265-1-0416
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Blue -
09-9265-1-0417
09-9265-1-0417
09-9265-1-0417
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Violet -
09-9265-1-0610
09-9265-1-0610
09-9265-1-0610
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -
09-9265-1-0611
09-9265-1-0611
09-9265-1-0611
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Brown -
09-9265-1-0613
09-9265-1-0613
09-9265-1-0613
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Orange -
09-9265-1-0614
09-9265-1-0614
09-9265-1-0614
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Yellow -
1128-56-03513
1128-56-03513
1128-56-03513
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Orange -
09-9265-1-0616
09-9265-1-0616
09-9265-1-0616
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Blue -
09-9265-1-0619
09-9265-1-0619
09-9265-1-0619
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE White -
09-9265-1-06313
09-9265-1-06313
09-9265-1-06313
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Orange -
09-9265-1-06314
09-9265-1-06314
09-9265-1-06314
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Yellow -
1138-03-0319
1138-03-0319
1138-03-0319
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE White -
