Insulated
PC Jacks

Filter
09-9306-1-03511
09-9306-1-03511
09-9306-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Brown M39024/11-54

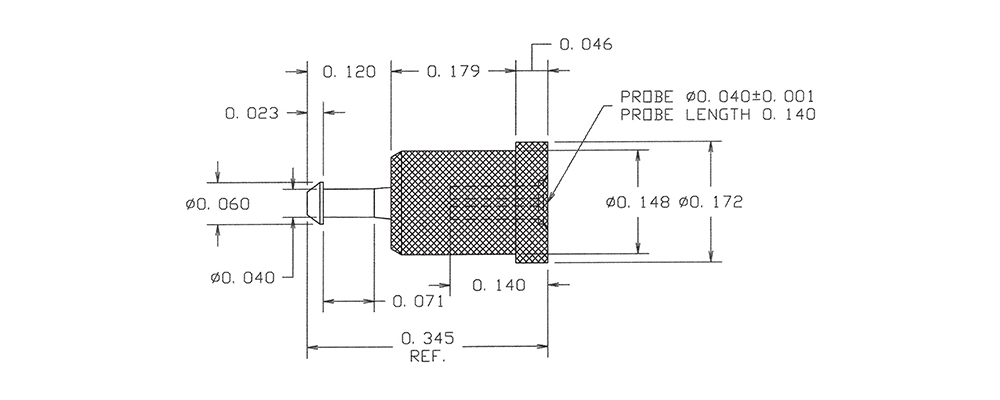

1128-08-03517
1128-08-03517
1128-08-03517
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Violet -

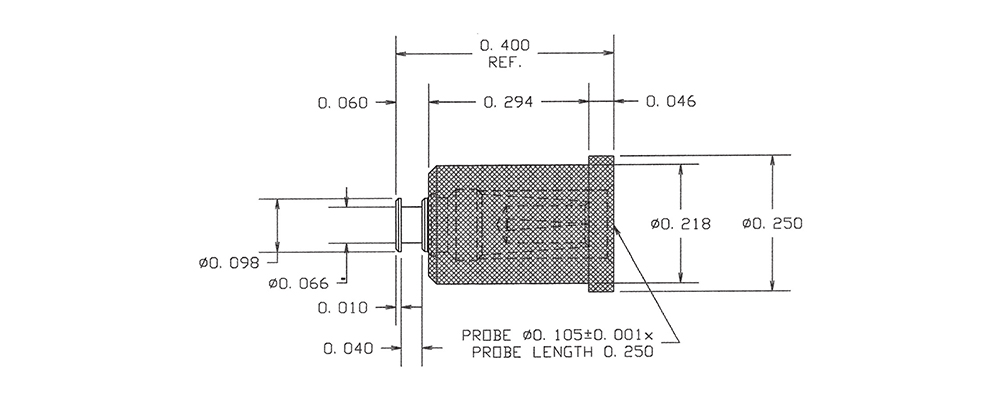

1128-29-0313
1128-29-0313
1128-29-0313
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Orange -

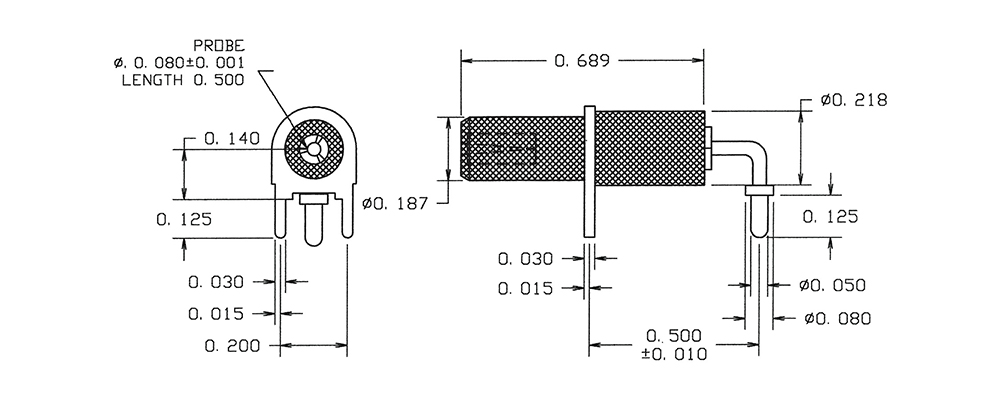

1128-51-03519
1128-51-03519
1128-51-03519
0.080 0.500 " 0.898" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE White -

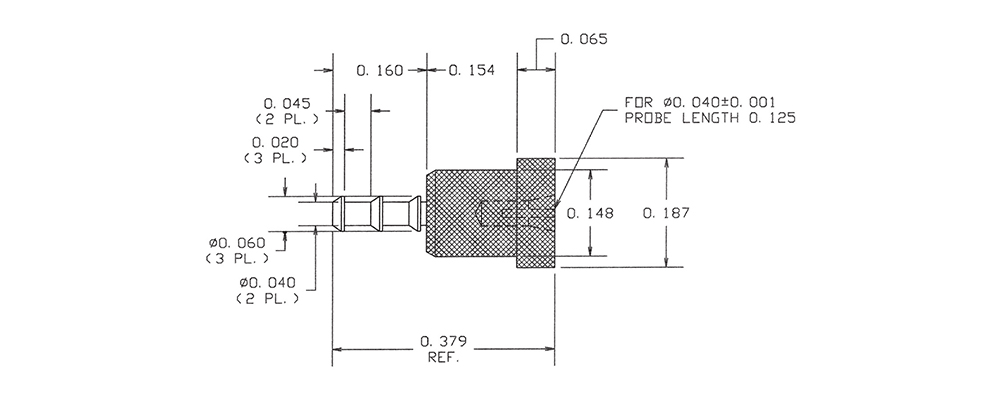

1128-83-030115
1128-83-030115
1128-83-030115
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Green -

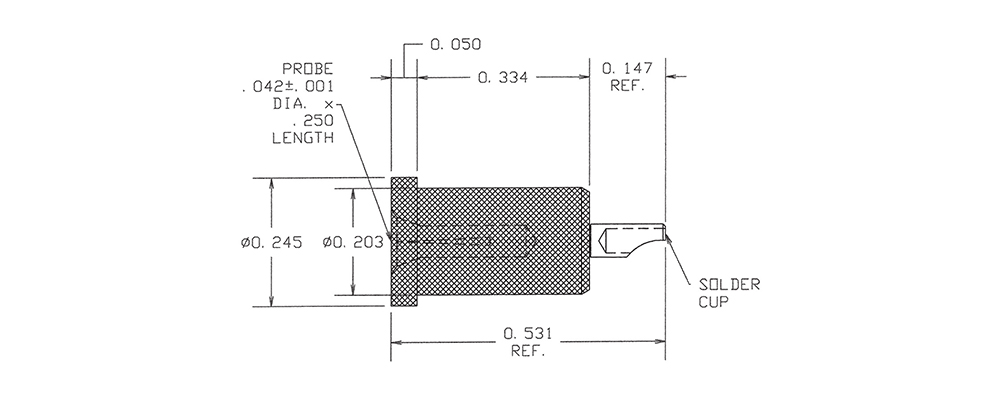

1138-30-03511
1138-30-03511
1138-30-03511
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Brown -
09-9063-1-0416
09-9063-1-0416
09-9063-1-0416
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Blue -
09-9158-1-08810
09-9158-1-08810
09-9158-1-08810
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Black -

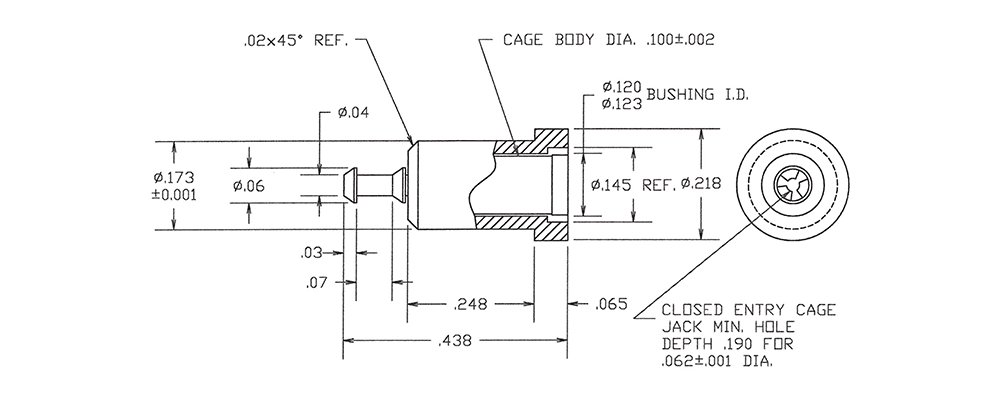

09-9211-1-03216
09-9211-1-03216
09-9211-1-03216
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE Blue -
09-9305-1-0312
09-9305-1-0312
09-9305-1-0312
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Red -
09-9306-1-03512
09-9306-1-03512
09-9306-1-03512
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Red M39024/11-52
1128-08-03518
1128-08-03518
1128-08-03518
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Gray -
1128-29-0314
1128-29-0314
1128-29-0314
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Yellow -

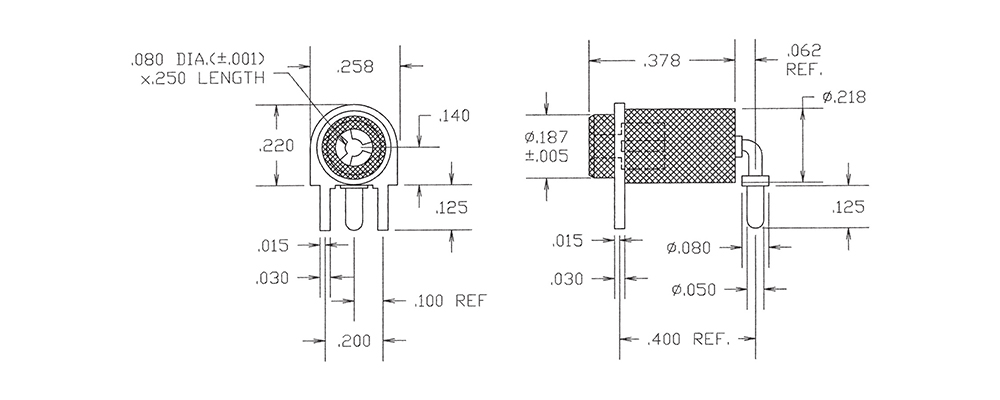

1128-52-0310
1128-52-0310
1128-52-0310
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Black -
1128-83-030116
1128-83-030116
1128-83-030116
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Blue -
1138-30-03512
1138-30-03512
1138-30-03512
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Red -
09-9063-1-0419
09-9063-1-0419
09-9063-1-0419
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin White -
09-9158-1-08811
09-9158-1-08811
09-9158-1-08811
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Brown -
09-9211-1-03217
09-9211-1-03217
09-9211-1-03217
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE Violet -
09-9305-1-0313
09-9305-1-0313
09-9305-1-0313
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Orange -
