Insulated
PC Jacks

Filter

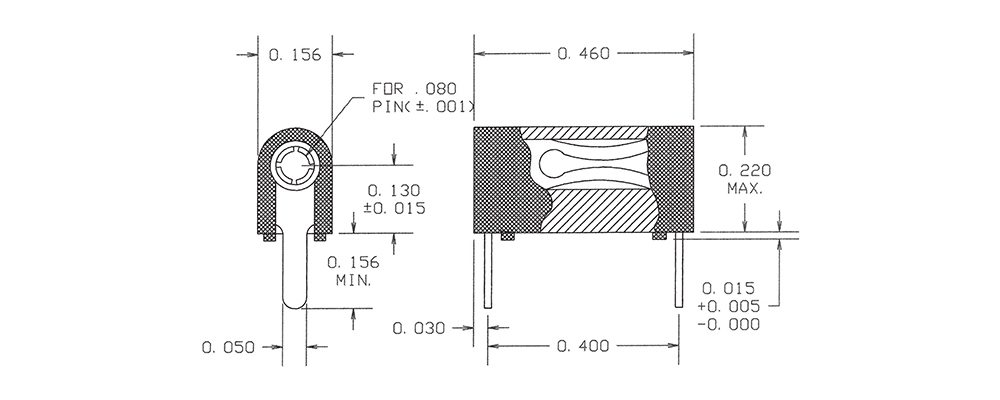

09-9306-1-04413
09-9306-1-04413
09-9306-1-04413
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Orange -

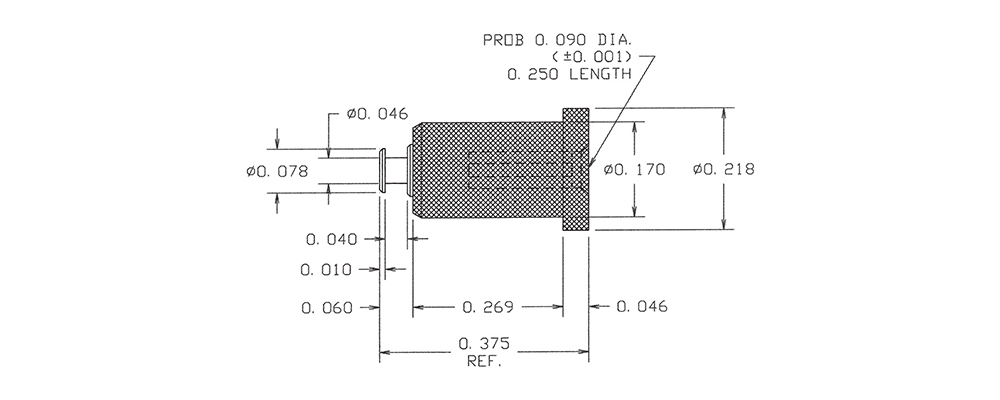

1128-09-0319
1128-09-0319
1128-09-0319
0.090 0.250 " 0.375" Jack/Turret Press Fit 0.157 1/32 - 15/64 Vertical - - PTFE White -

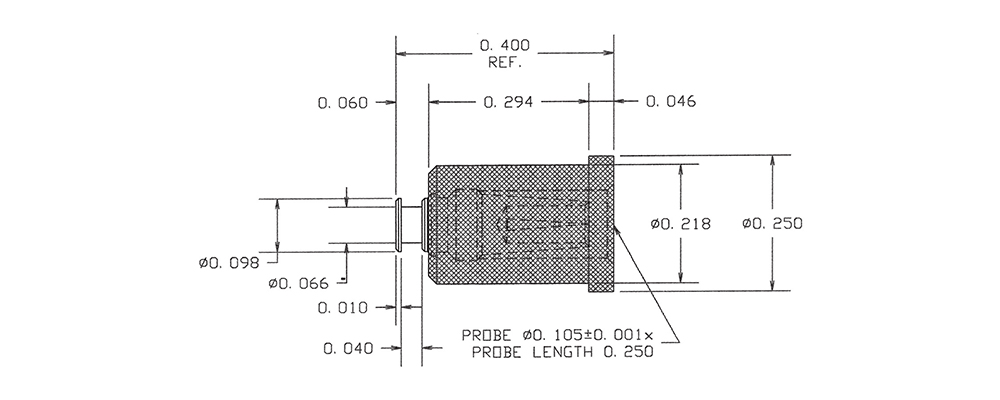

1128-29-03515
1128-29-03515
1128-29-03515
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Green -

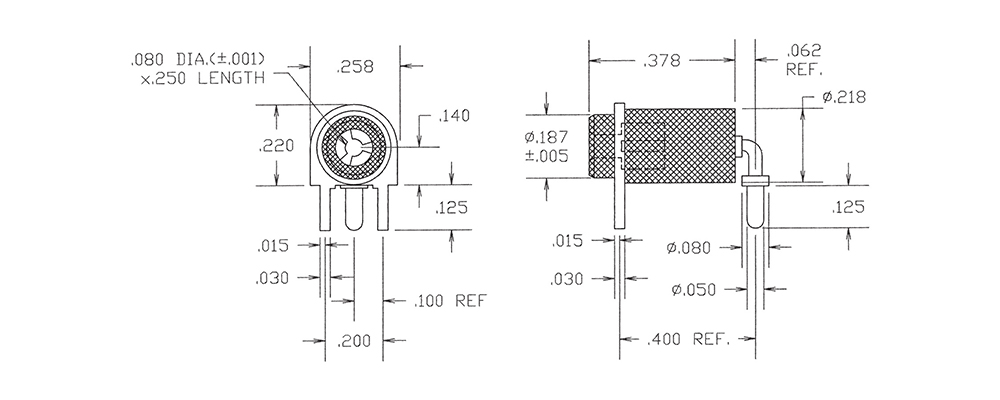

1128-52-03511
1128-52-03511
1128-52-03511
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Brown -

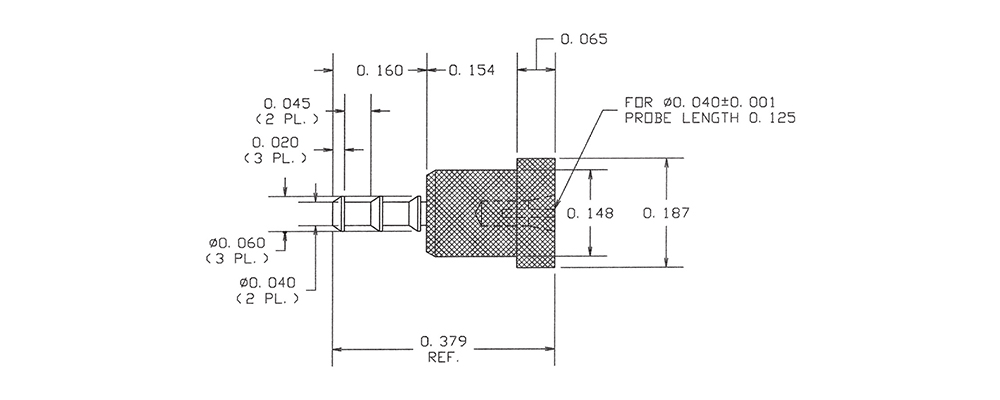

1128-83-0317
1128-83-0317
1128-83-0317
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Violet -

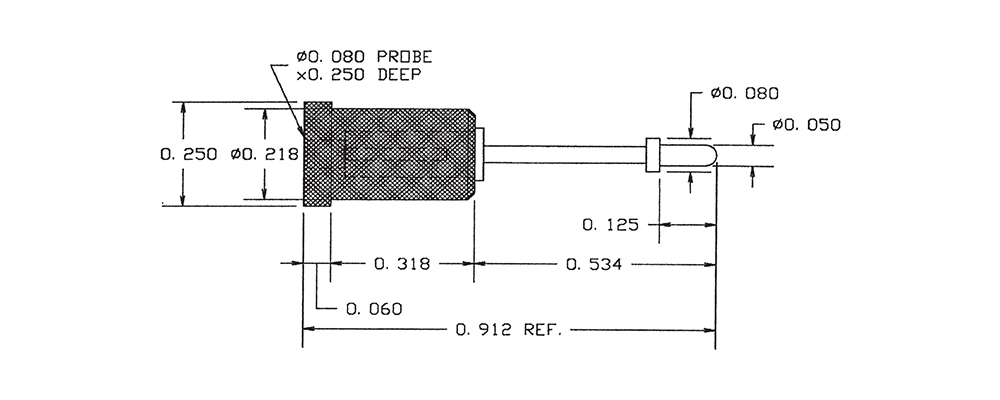

1138-32-0313
1138-32-0313
1138-32-0313
0.080 0.250 " 0.912" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Orange -
09-9063-1-06316
09-9063-1-06316
09-9063-1-06316
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Bright Tin-Lead Polyolefin Blue -
09-9175-1-0312
09-9175-1-0312
09-9175-1-0312
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Red -
09-9216-1-0318
09-9216-1-0318
09-9216-1-0318
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Gold PTFE Gray -
09-9305-1-03511
09-9305-1-03511
09-9305-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Brown -
09-9306-1-04414
09-9306-1-04414
09-9306-1-04414
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Yellow -
1128-09-03510
1128-09-03510
1128-09-03510
0.090 0.250 " 0.375" Jack/Turret Press Fit 0.157 1/32 - 15/64 Vertical - - PTFE Black -
1128-29-03516
1128-29-03516
1128-29-03516
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Blue -
1128-52-03512
1128-52-03512
1128-52-03512
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Red -
1128-83-0318
1128-83-0318
1128-83-0318
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Gray -
1138-32-0314
1138-32-0314
1138-32-0314
0.080 0.250 " 0.912" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Yellow -
09-9063-1-06319
09-9063-1-06319
09-9063-1-06319
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Bright Tin-Lead Polyolefin White -
09-9175-1-0313
09-9175-1-0313
09-9175-1-0313
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Orange -
09-9216-1-0319
09-9216-1-0319
09-9216-1-0319
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Gold PTFE White -
09-9305-1-03512
09-9305-1-03512
09-9305-1-03512
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Red -
