Insulated
PC Jacks

Filter

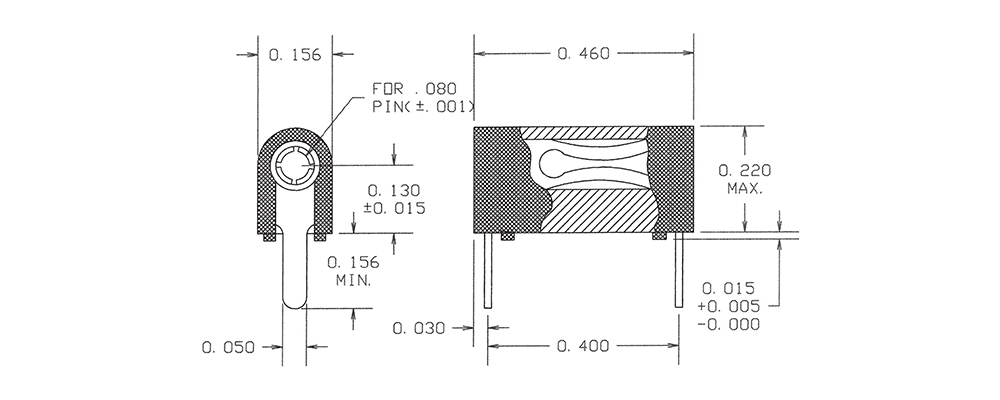

09-9306-1-03513
09-9306-1-03513
09-9306-1-03513
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Orange M39024/11-56

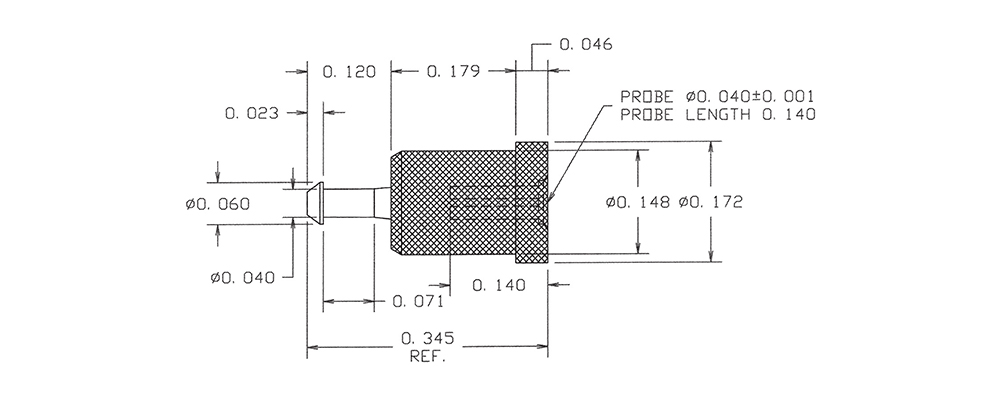

1128-08-03519
1128-08-03519
1128-08-03519
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE White -

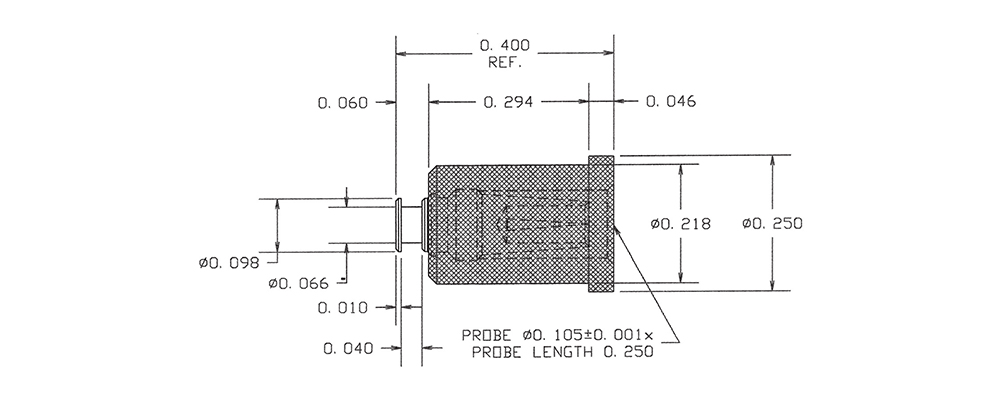

1128-29-0315
1128-29-0315
1128-29-0315
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Green -

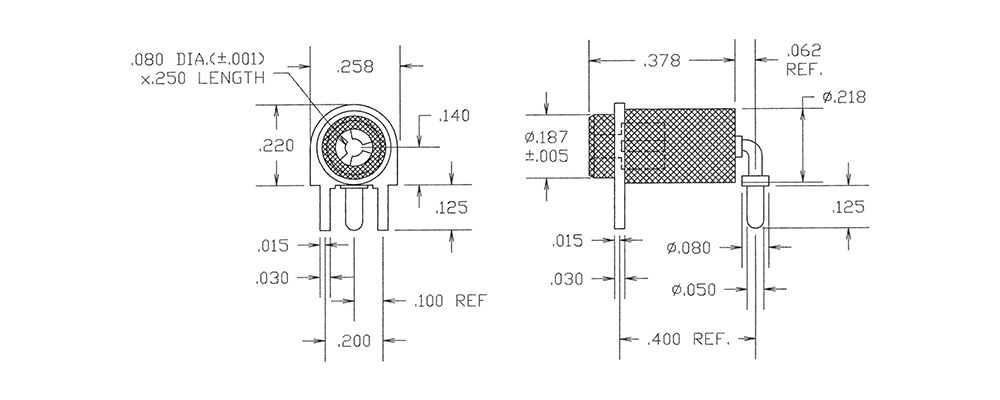

1128-52-0311
1128-52-0311
1128-52-0311
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Brown -

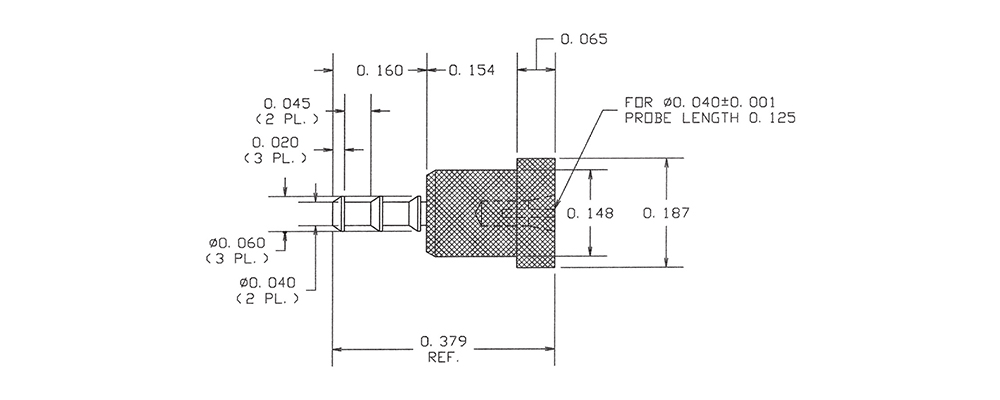

1128-83-030117
1128-83-030117
1128-83-030117
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Violet -

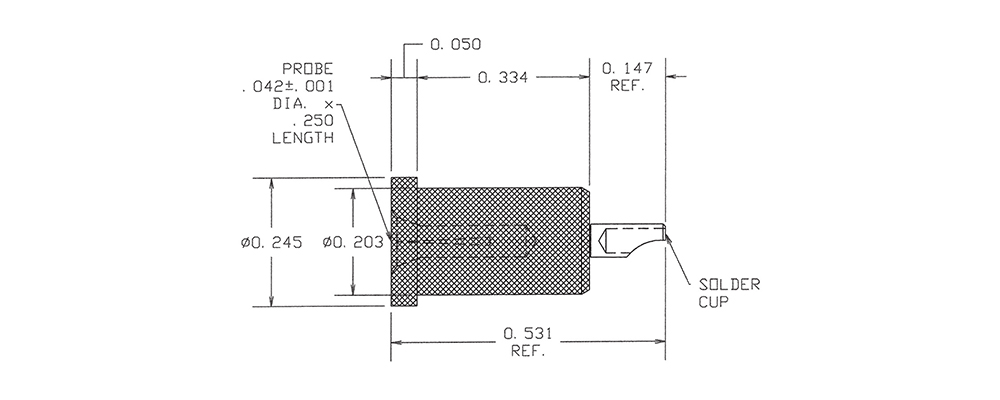

1138-30-03513
1138-30-03513
1138-30-03513
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Orange -
09-9063-1-0610
09-9063-1-0610
09-9063-1-0610
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Black -
09-9158-1-08812
09-9158-1-08812
09-9158-1-08812
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Red -

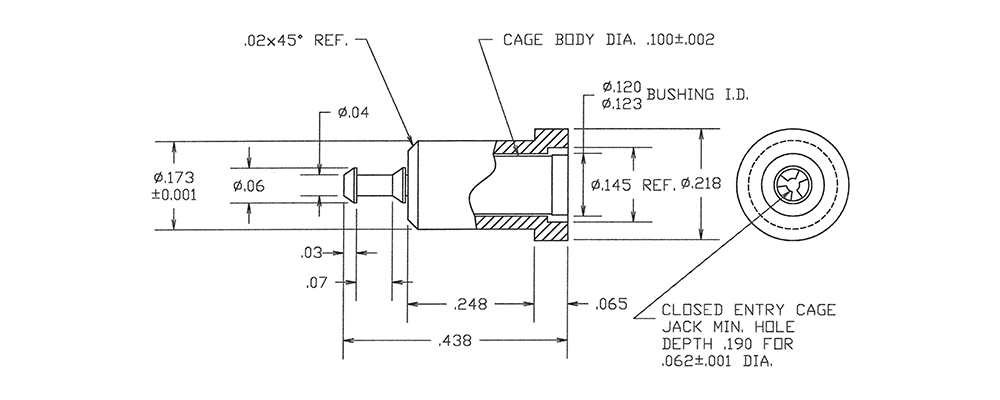

09-9211-1-03218
09-9211-1-03218
09-9211-1-03218
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE Gray -
09-9305-1-0314
09-9305-1-0314
09-9305-1-0314
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Yellow -
09-9306-1-03514
09-9306-1-03514
09-9306-1-03514
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Yellow M39024/11-58

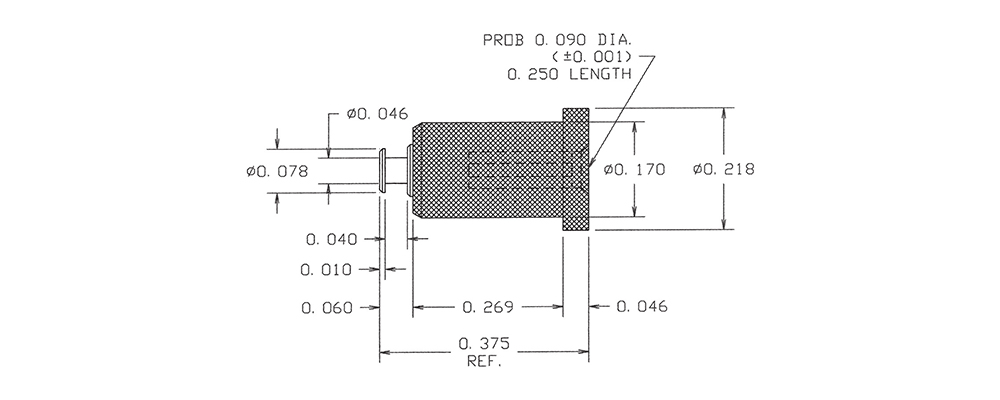

1128-09-0310
1128-09-0310
1128-09-0310
0.090 0.250 " 0.375" Jack/Turret Press Fit 0.157 1/32 - 15/64 Vertical - - PTFE Black -
1128-29-0316
1128-29-0316
1128-29-0316
0.105 0.250 " 0.400" Jack/Turret Press Fit 0.205 1/32 - 1/4 Vertical - - PTFE Blue -
1128-52-0312
1128-52-0312
1128-52-0312
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Red -
1128-83-030118
1128-83-030118
1128-83-030118
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Gray -
1138-30-03514
1138-30-03514
1138-30-03514
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Yellow -
09-9063-1-0612
09-9063-1-0612
09-9063-1-0612
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Red -
09-9158-1-08813
09-9158-1-08813
09-9158-1-08813
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Orange -
09-9211-1-03219
09-9211-1-03219
09-9211-1-03219
0.062 0.190 " 0.438" Jack/Turret Press Fit 0.159  1/32 - 3/16 Vertical Brass Gold PTFE White -
09-9305-1-0315
09-9305-1-0315
09-9305-1-0315
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Green -
