Military
Non-Insulated
Terminals

Filter
15R-211-6-05
15R-211-6-05
15R-211-6-05
0.734" - Swage Mount 0.234" 3/16 0.266 Phosphor Bronze Electro Solder M55155/30XB19 AA59196/30XB19
15-209-8-05
15-209-8-05
15-209-8-05
0.514" - Swage Mount 0.296" 1/4 0.094 Brass Electro Solder M55155/30XH20 AA59126/30XH20
15-211-8-05
15-211-8-05
15-211-8-05
0.796" - Swage Mount 0.296" 1/4 0.266 Brass Electro Solder M55155/30XH22 AA59226/30XH22
15-209-1-05
15-209-1-05
15-209-1-05
0.296" - Swage Mount 0.078" 1/32 0.094 Brass Electro Solder M55155/30XH03 AA59126/30XH03
15-270-1-05
15-270-1-05
15-270-1-05
0.437" - Swage Mount 0.078" 1/32 0.116 Brass Electro Solder M55155/30XH04 AA59126/30XH04
15-209-1-095
15-209-1-095
15-209-1-095
0.296" - Swage Mount 0.078" 1/32 0.094 Brass Hot Solder Dip M55155/30XI03 AA59126/30XI03
15-209-2-095
15-209-2-095
15-209-2-095
0.327" - Swage Mount 0.109" 1/16 0.094 Brass Hot Solder Dip M55155/30XI06 AA59126/30XI06
15-209-3-095
15-209-3-095
15-209-3-095
0.358" - Swage Mount 0.140" 3/32 0.094 Brass Hot Solder Dip M55155/30XI10 AA59126/30XI10
15-209-4-095
15-209-4-095
15-209-4-095
0.389" - Swage Mount 0.171" 1/8 0.094 Brass Hot Solder Dip M55155/30XI14 AA59126/30XI14
15-211-8-088
15-211-8-088
15-211-8-088
0.796" - Swage Mount 0.296" 1/4 0.266 Brass Bright Tin-Lead M55155/30XJ22 AA59226/30XJ22
15-209-4-088
15-209-4-088
15-209-4-088
0.389" - Swage Mount 0.171" 1/8 0.094 Brass Bright Tin-Lead M55155/30XJ14 AA59126/30XJ14
15-209-3-088
15-209-3-088
15-209-3-088
0.358" - Swage Mount 0.140" 3/32 0.094 Brass Bright Tin-Lead M55155/30XJ10 AA59126/30XJ10
15-270-2-088
15-270-2-088
15-270-2-088
0.468" - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin-Lead M55155/30XJ07 AA59126/30XJ07
15-270-3-088
15-270-3-088
15-270-3-088
0.499" - Swage Mount 0.140" 3/32 0.116 Brass Bright Tin-Lead M55155/30XJ11 AA59126/30XJ11
15-270-8-095
15-270-8-095
15-270-8-095
0.657" - Swage Mount 0.298" 1/4 0.116 Brass Hot Solder Dip M55155/30XI21 AA59126/30XI21
15-270-6-095
15-270-6-095
15-270-6-095
0.593" - Swage Mount 0.234" 3/16 0.116 Brass Hot Solder Dip M55155/30XI18 AA59126/30XI18
15-209-8-095
15-209-8-095
15-209-8-095
0.514" - Swage Mount 0.296" 1/4 0.094 Brass Hot Solder Dip M55155/30XI20 AA59126/30XI20
15-209-6-095
15-209-6-095
15-209-6-095
0.452" - Swage Mount 0.234" 3/16 0.094 Brass Hot Solder Dip M55155/30XI17 AA59126/30XI17

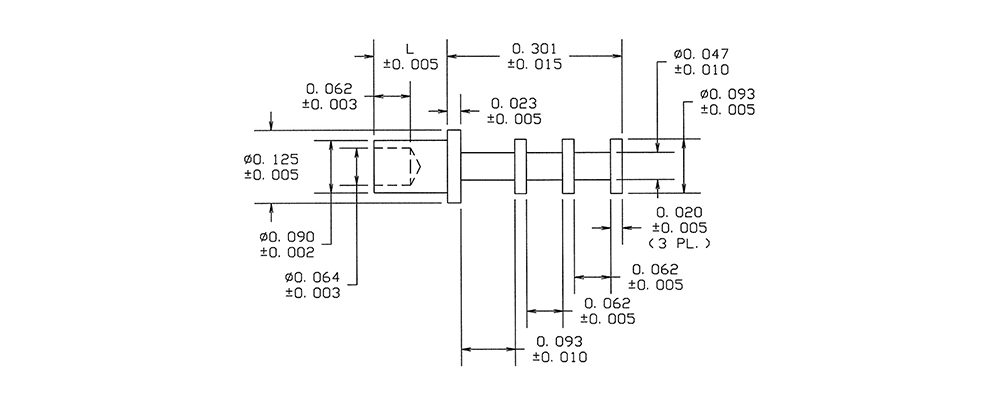

15-601-2-095
15-601-2-095
15-601-2-095
0.394" - Swage Mount 0.093" 1/16 0.094 Brass Hot Solder Dip M55155/31XI03 AA59126/31XI03
15R-602-1-095
15R-602-1-095
15R-602-1-095
0.562" - Swage Mount 0.078" 1/32 0.116 Phosphor Bronze Hot Solder Dip M55155/31XC02 AA59126/31XC02
