Military
Insulated
Terminals

Filter
1169-38M-08810
1169-38M-08810
1169-38M-08810
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Black M55155/090J05 AA59126/090J05

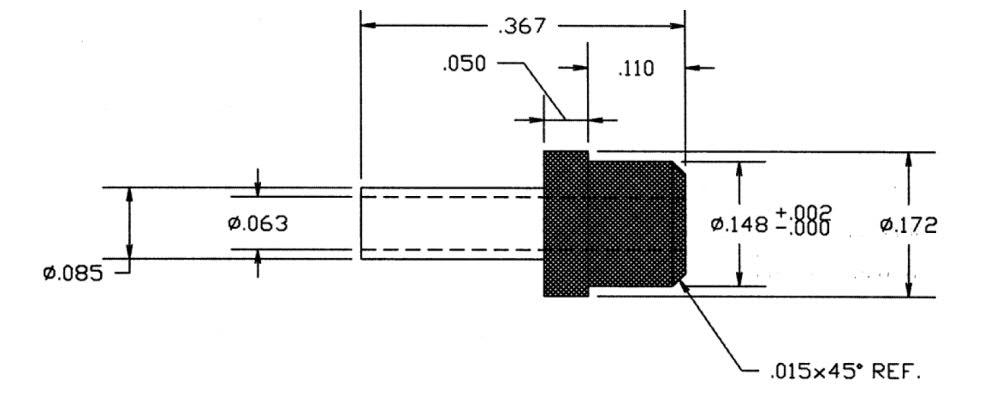

1114-23M-09518
1114-23M-09518
1114-23M-09518
0.367" - Press Fit 1/16 0.136 PTFE Gray M55155/058I03 AA59126/058I03
1169-38M-08812Z
1169-38M-08812Z
1169-38M-08812Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Red M55155/092D05 AA59126/092D05
1100-28M-08817Z
1100-28M-08817Z
1100-28M-08817Z
0.350" - Press Fit 1/16 0.136 PTFE Violet M55155/087D01 AA59126/087D01
1110-05M-09515Z
1110-05M-09515Z
1110-05M-09515Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Green M55155/035C04 AA59126/035C04
1125-42M-0513Z
1125-42M-0513Z
1125-42M-0513Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Orange M55155/103B01 AA59126/103B01
1127-01M-09516Z
1127-01M-09516Z
1127-01M-09516Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/196C01 AA59126/196C01
1127-06M-0514Z
1127-06M-0514Z
1127-06M-0514Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Yellow M55155/204B03 AA59126/204B03
1133-01M-09517Z
1133-01M-09517Z
1133-01M-09517Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Violet M55155/047C01 AA59126/047C01
1169-38M-08811
1169-38M-08811
1169-38M-08811
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Brown M55155/091J05 AA59126/091J05
1114-23M-09518Z
1114-23M-09518Z
1114-23M-09518Z
0.367" - Press Fit 1/16 0.136 PTFE Gray M55155/058C03 AA59126/058C03
1169-38M-08813Z
1169-38M-08813Z
1169-38M-08813Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Orange M55155/093D05 AA59126/093D05
1100-28M-08818
1100-28M-08818
1100-28M-08818
0.350" - Press Fit 1/16 0.136 PTFE Gray M55155/088J01 AA59126/088J01
1110-05M-09516
1110-05M-09516
1110-05M-09516
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036I04 AA59126/036I04
1125-42M-0514
1125-42M-0514
1125-42M-0514
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Yellow M55155/104H01 AA59126/104H01
1127-01M-09517
1127-01M-09517
1127-01M-09517
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/197I01 AA59126/197I01
1127-06M-0515
1127-06M-0515
1127-06M-0515
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Green M55155/205H03 AA59126/205H03
1133-01M-09518
1133-01M-09518
1133-01M-09518
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Gray M55155/048I01 AA59126/048I01
1169-38M-08812
1169-38M-08812
1169-38M-08812
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Red M55155/092J05 AA59126/092J05
1114-23M-09519
1114-23M-09519
1114-23M-09519
0.367" - Press Fit 1/16 0.136 PTFE White M55155/059I03 AA59126/059I03
