Military
Insulated
Terminals

Filter
1127-06M-0513
1127-06M-0513
1127-06M-0513
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Orange M55155/203H03 AA59126/203H03

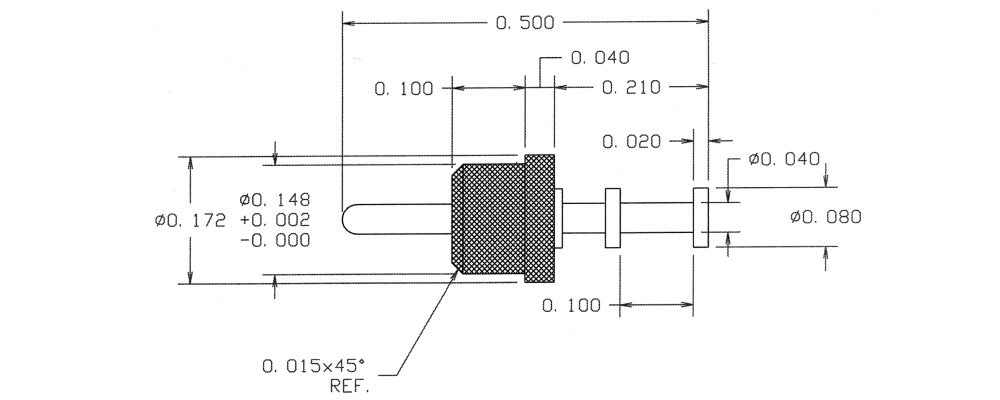

1133-01M-09516
1133-01M-09516
1133-01M-09516
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Blue M55155/046I01 AA59126/046I01
1169-38M-0518
1169-38M-0518
1169-38M-0518
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Gray M55155/098H05 AA59126/098H05

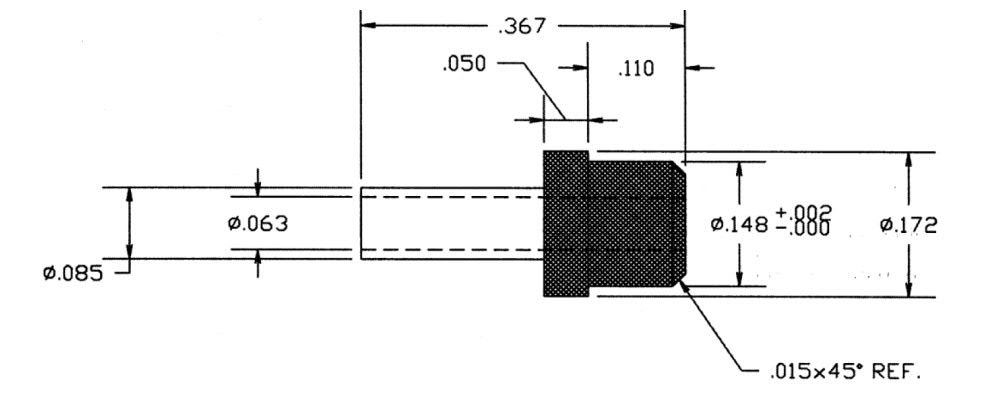

1114-23M-09517
1114-23M-09517
1114-23M-09517
0.367" - Press Fit 1/16 0.136 PTFE Violet M55155/057I03 AA59126/057I03
1169-38M-08810Z
1169-38M-08810Z
1169-38M-08810Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Black M55155/090D05 AA59126/090D05
1100-28M-08816Z
1100-28M-08816Z
1100-28M-08816Z
0.350" - Press Fit 1/16 0.136 PTFE Blue M55155/086D01 AA59126/086D01
1110-05M-09514Z
1110-05M-09514Z
1110-05M-09514Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Yellow M55155/034C04 AA59126/034C04
1125-42M-0512Z
1125-42M-0512Z
1125-42M-0512Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Red M55155/102B01 AA59126/102B01
1127-01M-09515Z
1127-01M-09515Z
1127-01M-09515Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Green M55155/195C01 AA59126/195C01
1127-06M-0513Z
1127-06M-0513Z
1127-06M-0513Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Orange M55155/203B03 AA59126/203B03
1133-01M-09516Z
1133-01M-09516Z
1133-01M-09516Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Blue M55155/046C01 AA59126/046C01
1169-38M-0519
1169-38M-0519
1169-38M-0519
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE White M55155/099H05 AA59126/099H05
1114-23M-09517Z
1114-23M-09517Z
1114-23M-09517Z
0.367" - Press Fit 1/16 0.136 PTFE Violet M55155/057C03 AA59126/057C03
1169-38M-08811Z
1169-38M-08811Z
1169-38M-08811Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Brown M55155/091D05 AA59126/091D05
1100-28M-08817
1100-28M-08817
1100-28M-08817
0.350" - Press Fit 1/16 0.136 PTFE Violet M55155/087J01 AA59126/087J01
1110-05M-09515
1110-05M-09515
1110-05M-09515
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Green M55155/035I04 AA59126/035I04
1125-42M-0513
1125-42M-0513
1125-42M-0513
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Orange M55155/103H01 AA59126/103H01
1127-01M-09516
1127-01M-09516
1127-01M-09516
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/196I01 AA59126/196I01
1127-06M-0514
1127-06M-0514
1127-06M-0514
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Yellow M55155/204H03 AA59126/204H03
1133-01M-09517
1133-01M-09517
1133-01M-09517
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Violet M55155/047I01 AA59126/047I01
