Military
Insulated
Terminals

Filter
1110-40M-08815Z
1110-40M-08815Z
1110-40M-08815Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Green M55155/035D03 AA59126/035D03
1102-03M-09510Z
1102-03M-09510Z
1102-03M-09510Z
0.350" - Press Fit 1/16 0.086 PTFE Black M55155/070C03 AA59126/070C03
1102-14M-08819Z
1102-14M-08819Z
1102-14M-08819Z
0.359" - Press Fit 1/16 0.136 PTFE White M55155/079D01 AA59126/079D01
1127-06M-08817Z
1127-06M-08817Z
1127-06M-08817Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Violet M55155/207D03 AA59126/207D03
1102-03M-0513Z
1102-03M-0513Z
1102-03M-0513Z
0.350" - Press Fit 1/16 0.086 PTFE Orange M55155/073B03 AA59126/073B03
1102-14M-08818Z
1102-14M-08818Z
1102-14M-08818Z
0.359" - Press Fit 1/16 0.136 PTFE Gray M55155/078D01 AA59126/078D01
1133-01M-0515Z
1133-01M-0515Z
1133-01M-0515Z

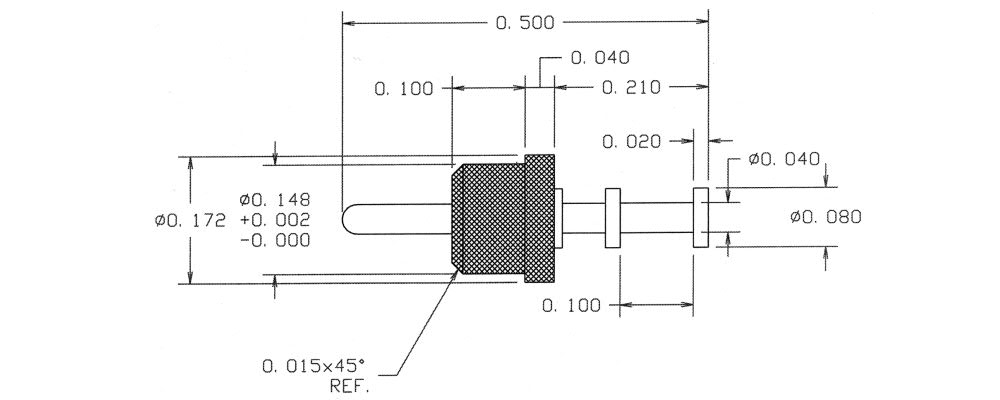

0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Green M55155/045B01 AA59126/045B01
1127-05M-0510Z
1127-05M-0510Z
1127-05M-0510Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/200B02 AA59126/200B02
1102-14M-0518Z
1102-14M-0518Z
1102-14M-0518Z
0.359" - Press Fit 1/16 0.136 PTFE Gray M55155/078B01 AA59126/078B01
1127-04M-0516Z
1127-04M-0516Z
1127-04M-0516Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/206B01 AA59126/206B01
1127-04M-0514Z
1127-04M-0514Z
1127-04M-0514Z
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Yellow M55155/204B01 AA59126/204B01
1133-02M-09511Z
1133-02M-09511Z
1133-02M-09511Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Brown M55155/041C02 AA59126/041C02
1127-07M-08811Z
1127-07M-08811Z
1127-07M-08811Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Brown M55155/201D04 AA59126/201D04
1127-05M-08810Z
1127-05M-08810Z
1127-05M-08810Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/200D02 AA59126/200D02
1110-16M-09511Z
1110-16M-09511Z
1110-16M-09511Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Brown M55155/031C01 AA59126/031C01
1127-07M-08813Z
1127-07M-08813Z
1127-07M-08813Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Orange M55155/203D04 AA59126/203D04
1127-06M-08811Z
1127-06M-08811Z
1127-06M-08811Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Brown M55155/201D03 AA59126/201D03
1133-02M-0511Z
1133-02M-0511Z
1133-02M-0511Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Brown M55155/041B02 AA59126/041B02
1127-07M-09515Z
1127-07M-09515Z
1127-07M-09515Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Green M55155/205C04 AA59126/205C04
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
