Military
Insulated
Terminals

Filter
1169-38M-08814Z
1169-38M-08814Z
1169-38M-08814Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Yellow M55155/094D05 AA59126/094D05
1100-28M-08818Z
1100-28M-08818Z
1100-28M-08818Z
0.350" - Press Fit 1/16 0.136 PTFE Gray M55155/088D01 AA59126/088D01
1110-05M-09516Z
1110-05M-09516Z
1110-05M-09516Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Blue M55155/036C04 AA59126/036C04
1125-42M-0514Z
1125-42M-0514Z
1125-42M-0514Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Yellow M55155/104B01 AA59126/104B01
1127-01M-09517Z
1127-01M-09517Z
1127-01M-09517Z
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Violet M55155/197C01 AA59126/197C01
1127-06M-0515Z
1127-06M-0515Z
1127-06M-0515Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Green M55155/205B03 AA59126/205B03

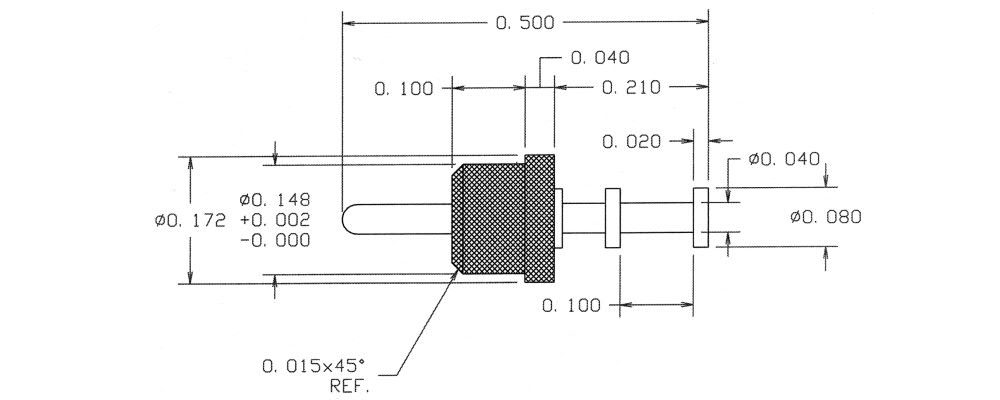

1133-01M-09518Z
1133-01M-09518Z
1133-01M-09518Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE Gray M55155/048C01 AA59126/048C01
1169-38M-08813
1169-38M-08813
1169-38M-08813
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Orange M55155/093J05 AA59126/093J05

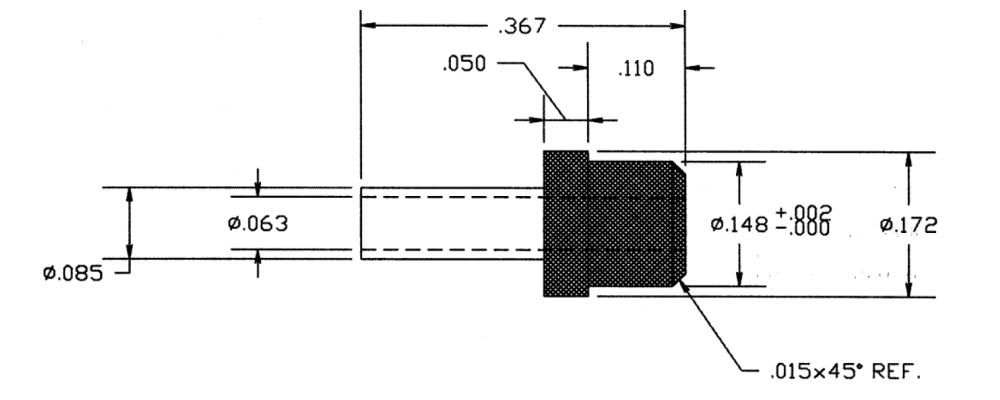

1114-23M-09519Z
1114-23M-09519Z
1114-23M-09519Z
0.367" - Press Fit 1/16 0.136 PTFE White M55155/059C03 AA59126/059C03
1169-38M-08815Z
1169-38M-08815Z
1169-38M-08815Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Green M55155/095D05 AA59126/095D05
1100-28M-08819
1100-28M-08819
1100-28M-08819
0.350" - Press Fit 1/16 0.136 PTFE White M55155/089J01 AA59126/089J01
1110-05M-09517
1110-05M-09517
1110-05M-09517
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Violet M55155/037I04 AA59126/037I04
1125-42M-0515
1125-42M-0515
1125-42M-0515
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Green M55155/105H01 AA59126/105H01
1127-01M-09518
1127-01M-09518
1127-01M-09518
0.593" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Gray M55155/198I01 AA59126/198I01
1127-06M-0516
1127-06M-0516
1127-06M-0516
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Blue M55155/206H03 AA59126/206H03
1133-01M-09519
1133-01M-09519
1133-01M-09519
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.136 PTFE White M55155/049I01 AA59126/049I01
1169-38M-08814
1169-38M-08814
1169-38M-08814
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Yellow M55155/094J05 AA59126/094J05
1114R-09M-0510
1114R-09M-0510
1114R-09M-0510
0.193" - Press Fit 1/32 0.113 PTFE Black M55155/060H01 AA59126/060H01
1169-38M-08816Z
1169-38M-08816Z
1169-38M-08816Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Blue M55155/096D05 AA59126/096D05
1100-28M-08819Z
1100-28M-08819Z
1100-28M-08819Z
0.350" - Press Fit 1/16 0.136 PTFE White M55155/089D01 AA59126/089D01
