Military
Insulated
Terminals

Filter

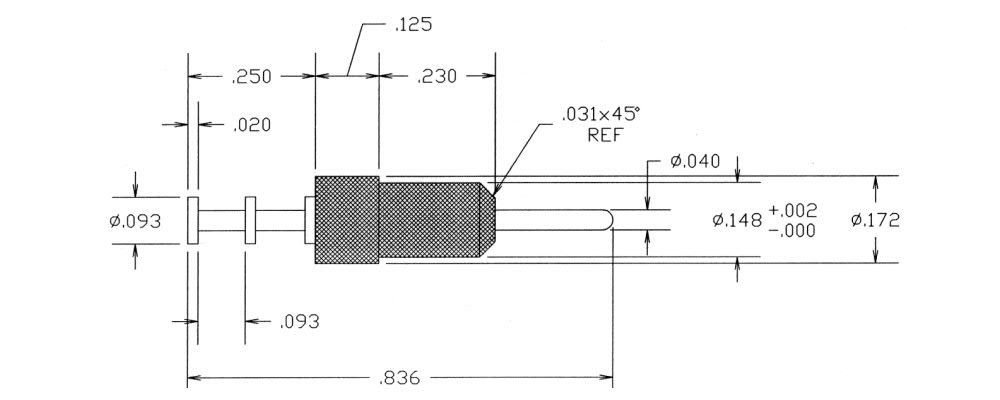

1133-02M-0511Z
1133-02M-0511Z
1133-02M-0511Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Brown M55155/041B02 AA59126/041B02
1169-38M-08819
1169-38M-08819
1169-38M-08819
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE White M55155/099J05 AA59126/099J05
1114R-09M-0512Z
1114R-09M-0512Z
1114R-09M-0512Z
0.193" - Press Fit 1/32 0.113 PTFE Red M55155/062B01 AA59126/062B01
1169-38M-09511Z
1169-38M-09511Z
1169-38M-09511Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Brown M55155/091C05 AA59126/091C05

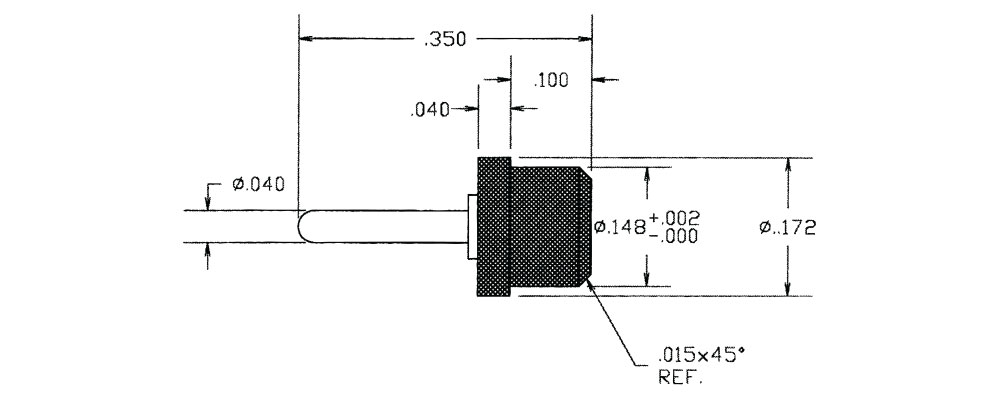

1100-28M-09512
1100-28M-09512
1100-28M-09512
0.350" - Press Fit 1/16 0.136 PTFE Red M55155/082I01 AA59126/082I01

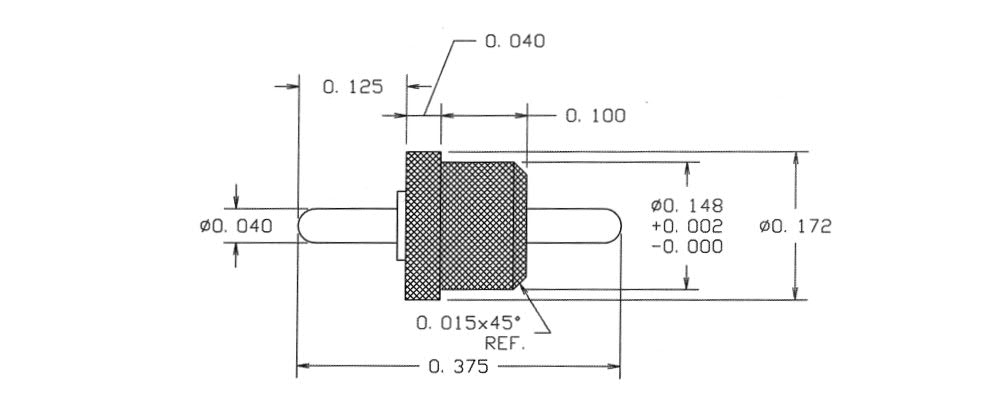

1110-16M-0510
1110-16M-0510
1110-16M-0510
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Black M55155/030H01 AA59126/030H01

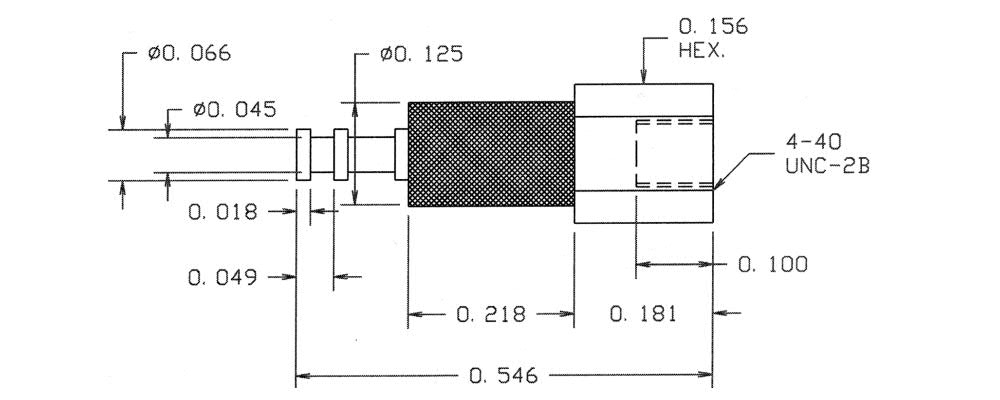

1125-42M-0518
1125-42M-0518
1125-42M-0518
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Gray M55155/108H01 AA59126/108H01

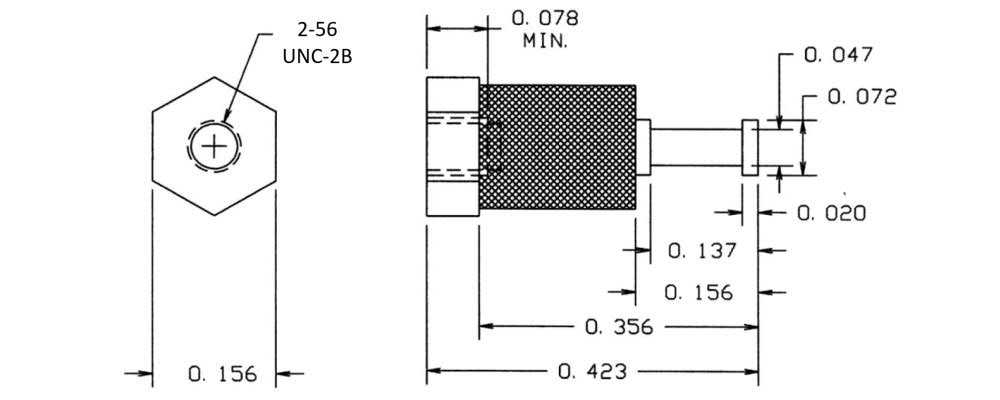

1127-02M-0511
1127-02M-0511
1127-02M-0511
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Brown M55155/191H02 AA59126/191H02

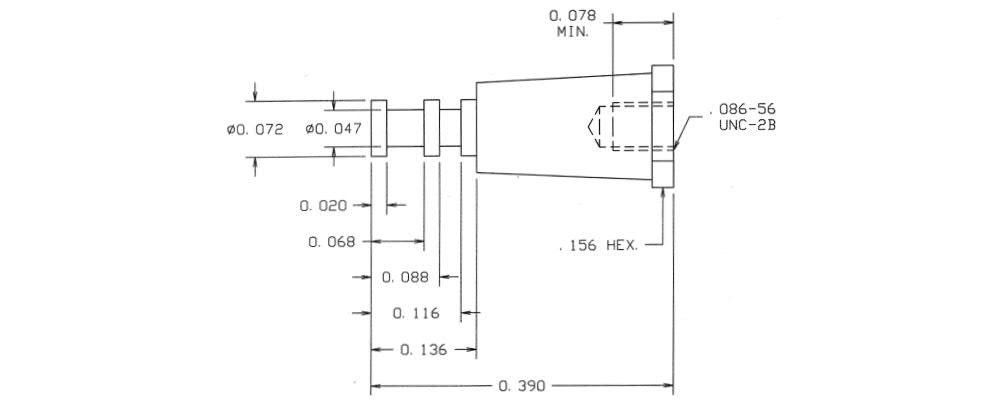

1127-06M-0519
1127-06M-0519
1127-06M-0519
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE White M55155/209H03 AA59126/209H03
1133-02M-0512
1133-02M-0512
1133-02M-0512
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Red M55155/042H02 AA59126/042H02
1169-38M-09510
1169-38M-09510
1169-38M-09510
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Black M55155/090I05 AA59126/090I05

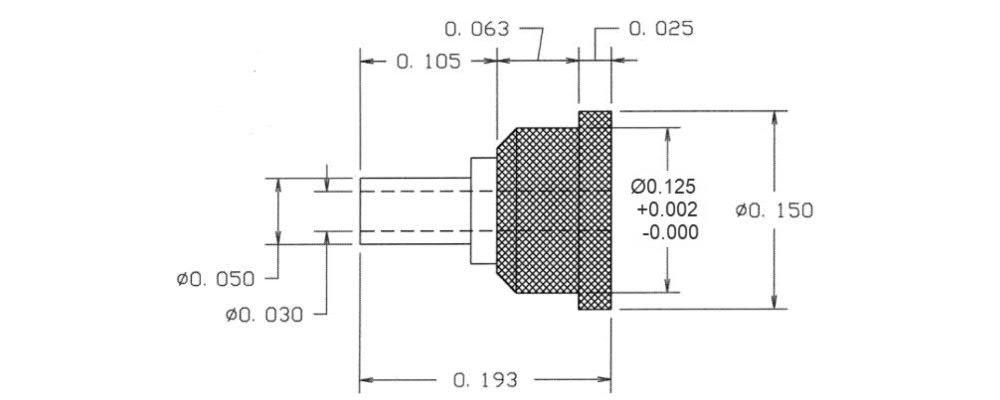

1114R-09M-0513
1114R-09M-0513
1114R-09M-0513
0.193" - Press Fit 1/32 0.113 PTFE Orange M55155/063H01 AA59126/063H01

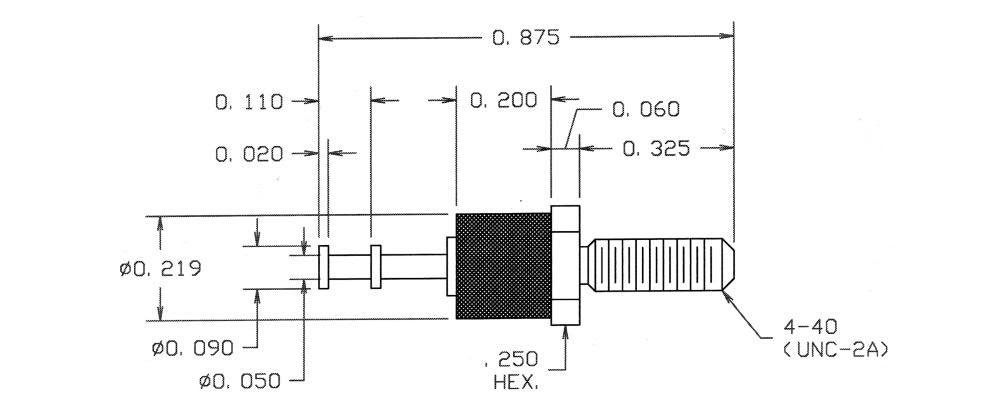

1169-38M-09512Z
1169-38M-09512Z
1169-38M-09512Z
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Red M55155/092C05 AA59126/092C05
1100-28M-09512Z
1100-28M-09512Z
1100-28M-09512Z
0.350" - Press Fit 1/16 0.136 PTFE Red M55155/082C01 AA59126/082C01
1110-16M-0510Z
1110-16M-0510Z
1110-16M-0510Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Black M55155/030B01 AA59126/030B01
1125-42M-0518Z
1125-42M-0518Z
1125-42M-0518Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Gray M55155/108B01 AA59126/108B01
1127-02M-0511Z
1127-02M-0511Z
1127-02M-0511Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Brown M55155/191B02 AA59126/191B02
1127-06M-0519Z
1127-06M-0519Z
1127-06M-0519Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE White M55155/209B03 AA59126/209B03
1133-02M-0512Z
1133-02M-0512Z
1133-02M-0512Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Red M55155/042B02 AA59126/042B02
1169-38M-09511
1169-38M-09511
1169-38M-09511
0.875" - 4-40 Nut Up to 3/16 0.120 DIALLYL PHTHALATE Brown M55155/091I05 AA59126/091I05

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
