Commercial
Non-Insulated
Terminals

Filter
09-8059-1-03
09-8059-1-03
09-8059-1-03
0.551" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

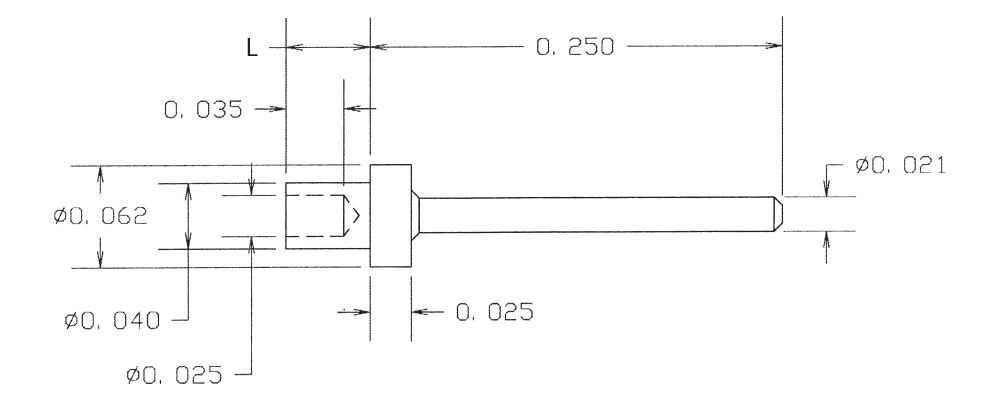

09-8096-2-05
09-8096-2-05
09-8096-2-05
0.332" 0.021 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO

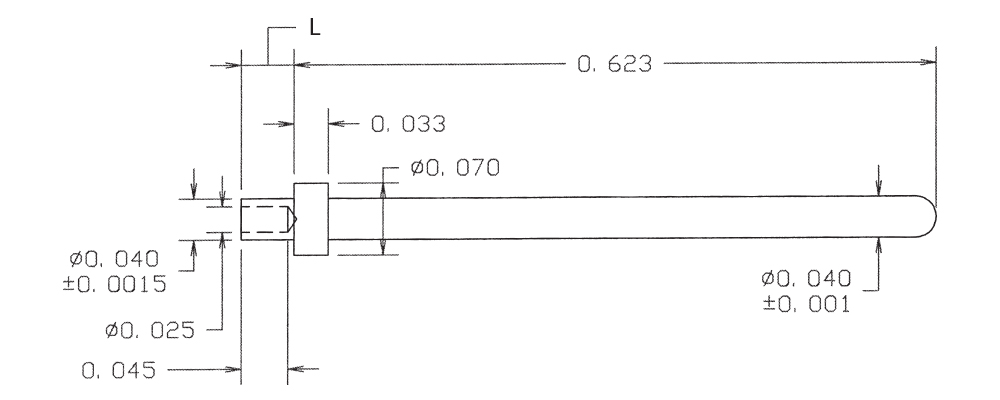

09-8154-2-035
09-8154-2-035
09-8154-2-035
0.714" 0.040 - Swage Mount 0.091" 1/16 0.043 Brass Gold YES

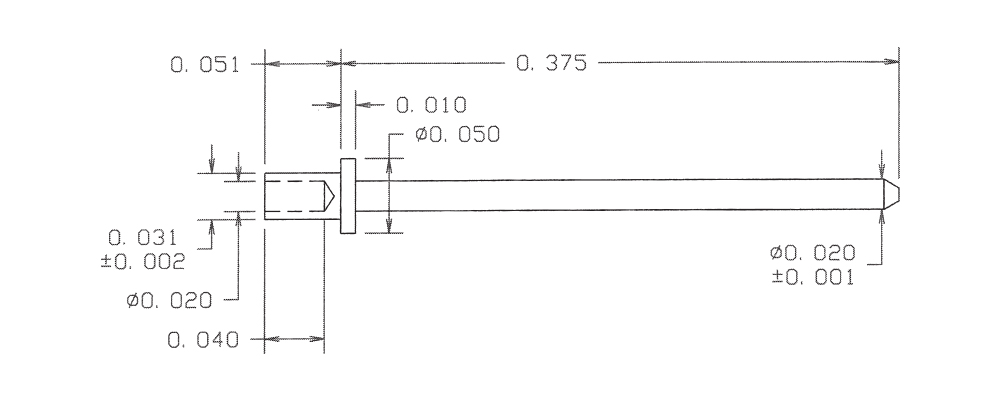

09-8182-1-088
09-8182-1-088
09-8182-1-088
0.426" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin-Lead NO

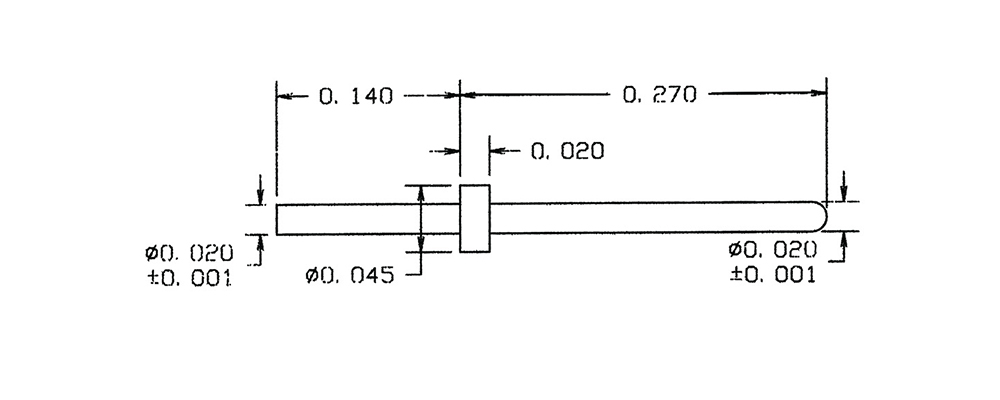

09-8348-3-05
09-8348-3-05
09-8348-3-05
0.410" 0.020 - Solder 0.140" 1/64 TO 1/8 0.0225 Brass Electro Solder NO

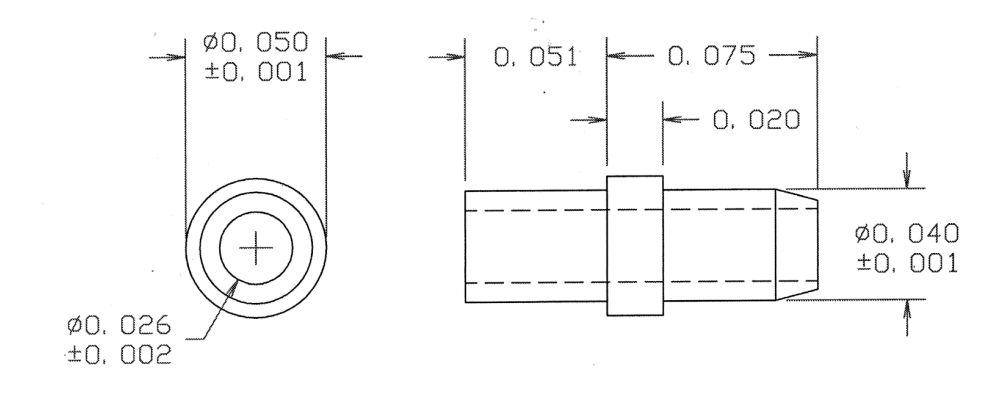

09-8588-1-044
09-8588-1-044
09-8588-1-044
0.126" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

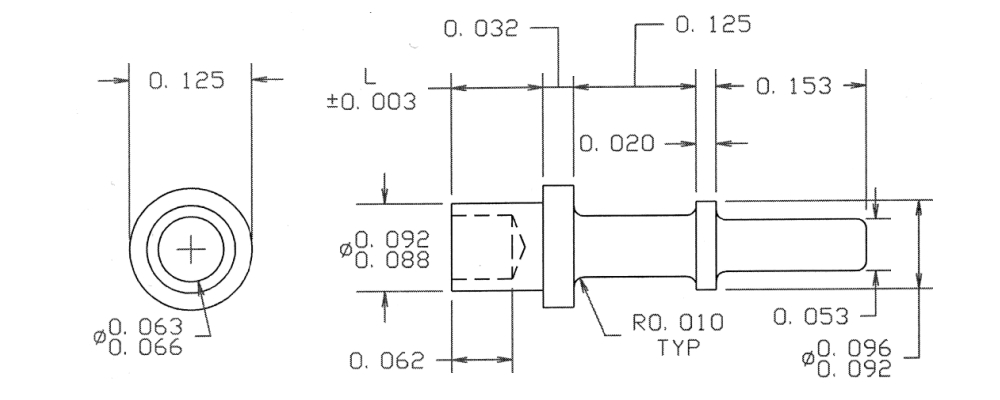

09-8705-4-03
09-8705-4-03
09-8705-4-03
0.502" - - Swage Mount 0.172" 1/8 0.094 LEADED Red Brass Gold YES

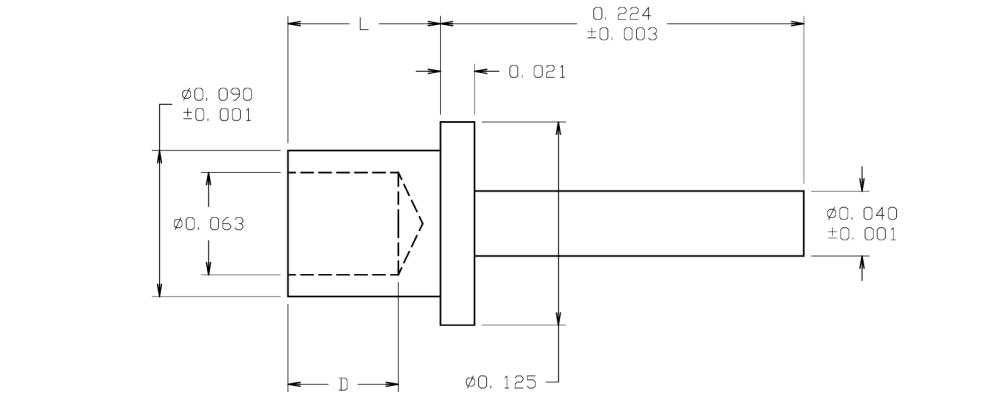

09-8816-2A-088
09-8816-2A-088
09-8816-2A-088
0.324" 0.040 - Swage Mount 0.100" 1/16 0.094 Brass Bright Tin-Lead NO

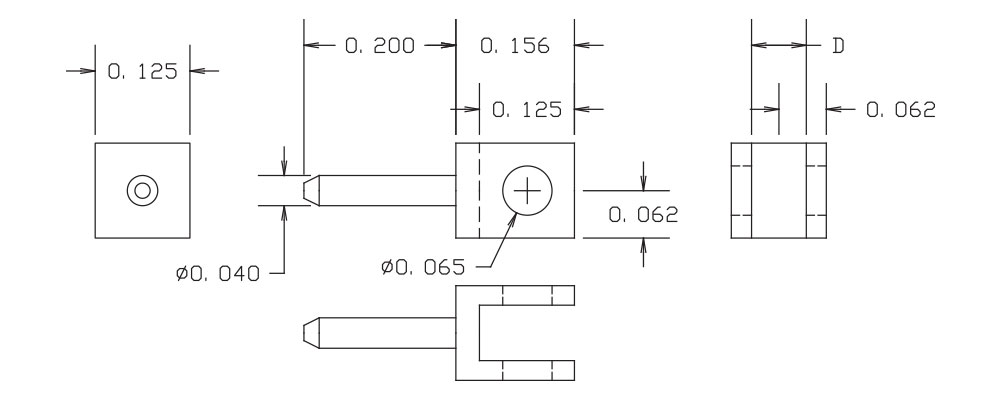

09-9502-1-05
09-9502-1-05
09-9502-1-05
0.356" 0.040 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Electro Solder NO

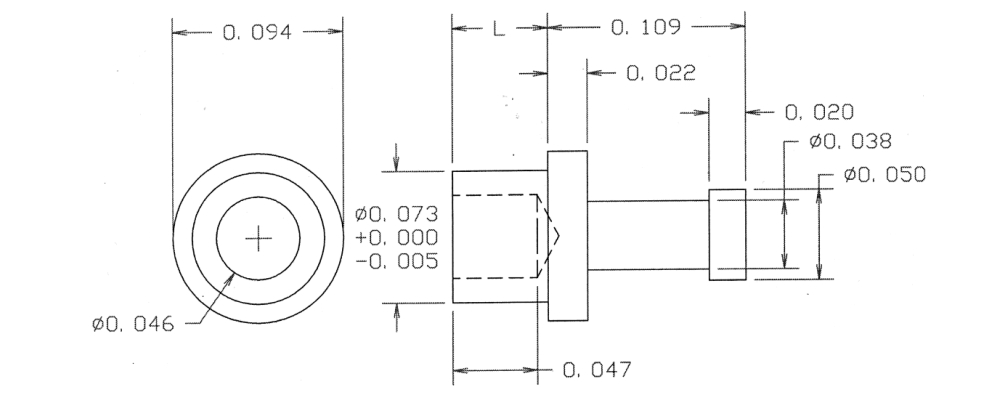

10-105-3-05
10-105-3-05
10-105-3-05
0.224" - - Swage Mount 0.115" 3/32 0.076 Brass Electro Solder NO

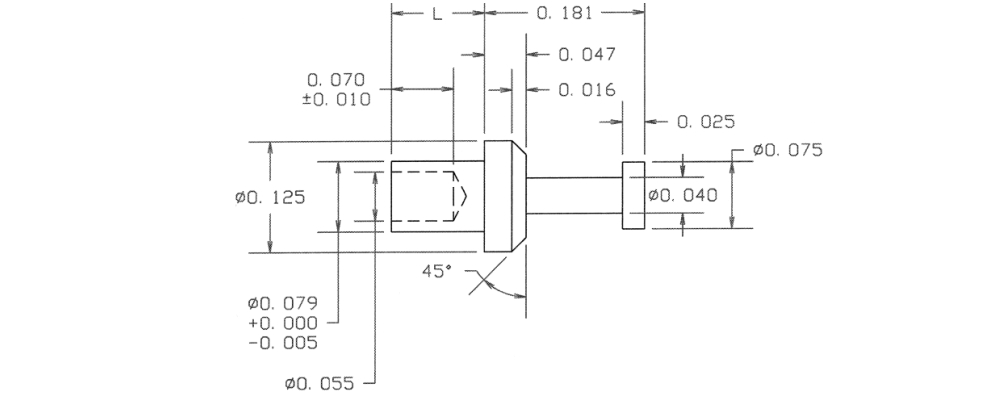

10-112-4-05
10-112-4-05
10-112-4-05
0.346" - - Swage Mount 0.165" 1/8 0.082 Brass Electro Solder NO

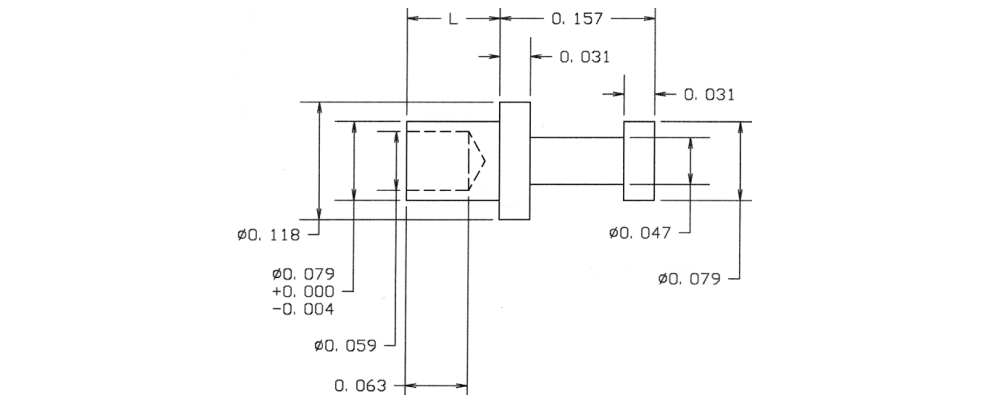

10-134-3-095
10-134-3-095
10-134-3-095
0.282" - - Swage Mount 0.125" 3/32 0.081 Brass Hot Solder Dip NO

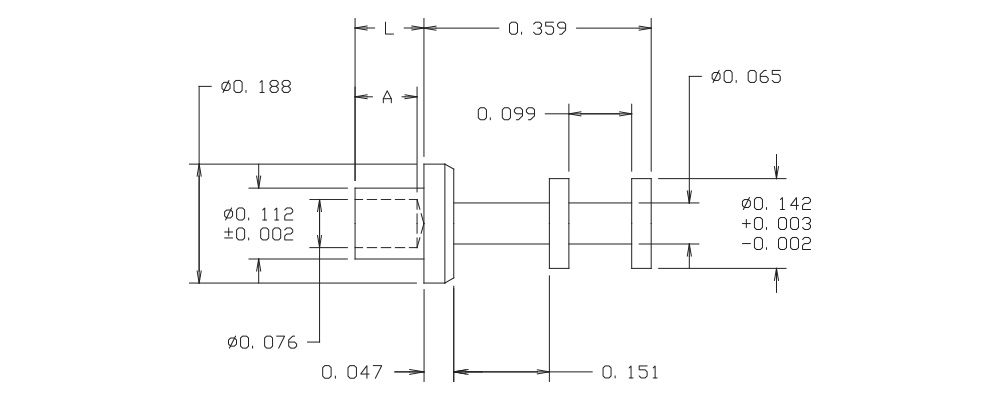

10-204-6-05
10-204-6-05
10-204-6-05
0.593" - - Swage Mount 0.234" 3/16 0.116 Brass Electro Solder NO

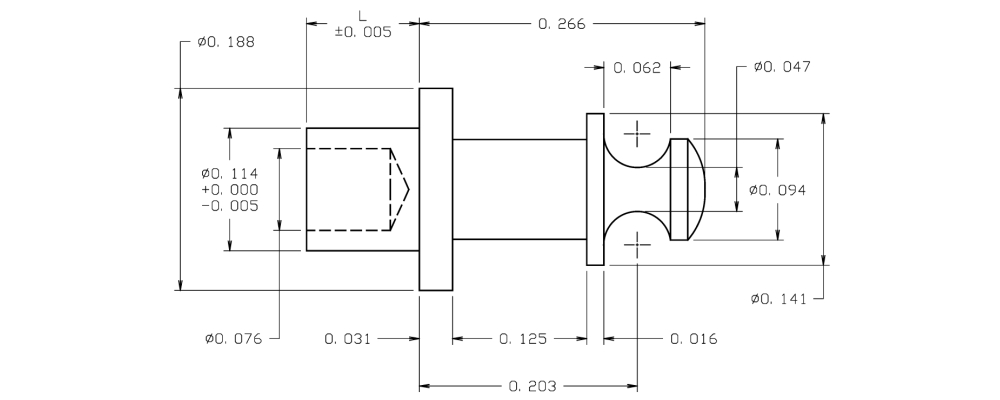

10-212-4-035
10-212-4-035
10-212-4-035
0.431" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES

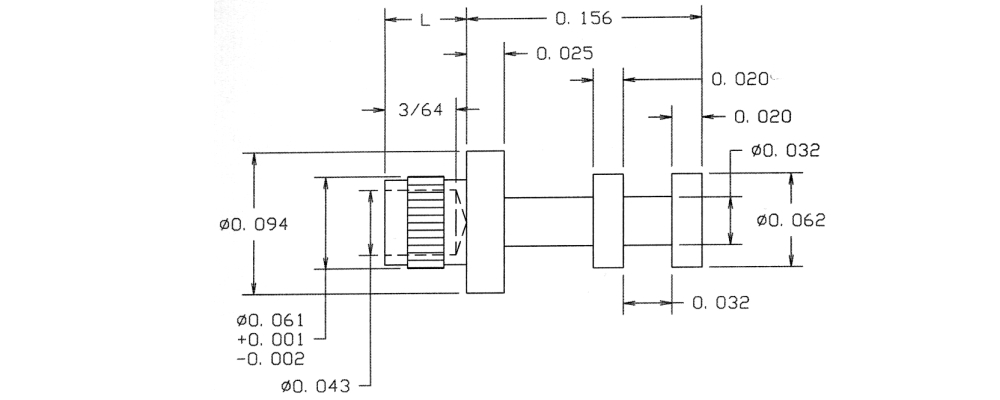

10-220-11-088
10-220-11-088
10-220-11-088
0.193" - - Swage Mount 0.037" 1/64 0.064 Brass Bright Tin-Lead NO

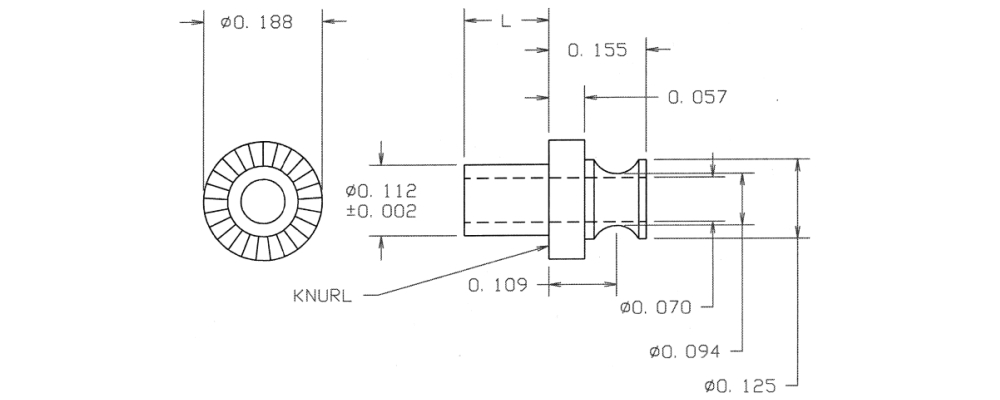

10-231-2-035
10-231-2-035
10-231-2-035
0.260" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES

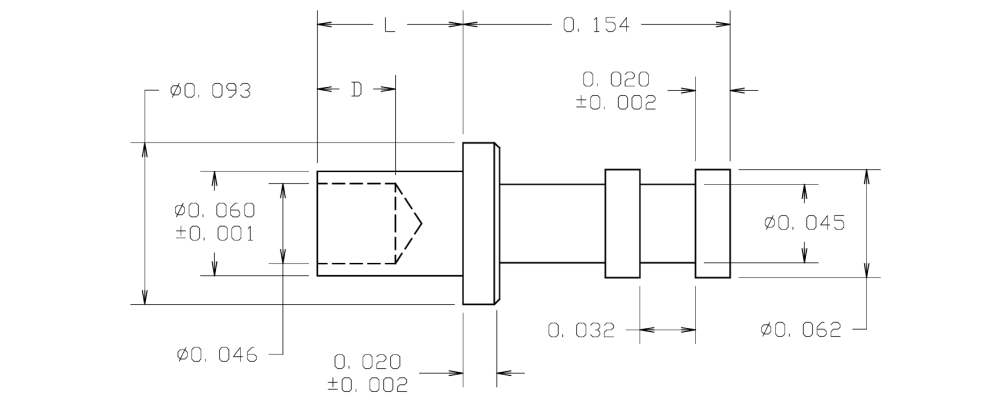

10-254-2A-035
10-254-2A-035
10-254-2A-035
0.254" - - Swage Mount 0.098" 1/16 0.063 Brass Gold YES

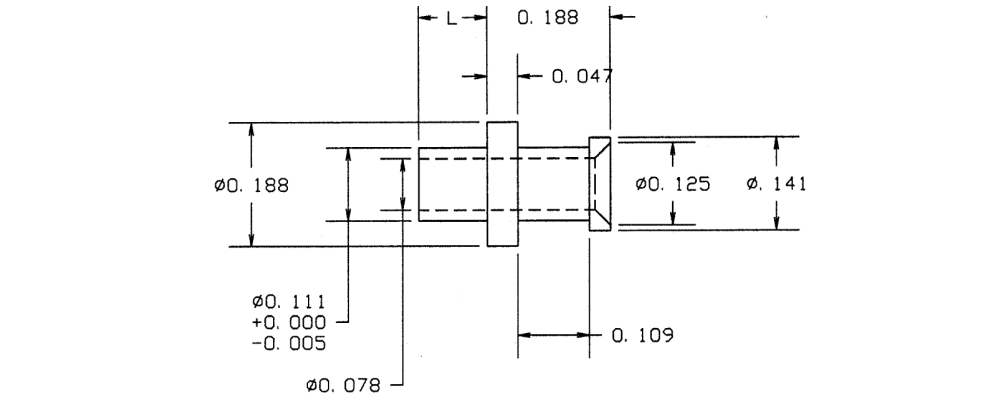

10-306-2-04
10-306-2-04
10-306-2-04
0.293" - - Swage Mount 0.105" 1/16 0.113 Brass Electro-Tin YES

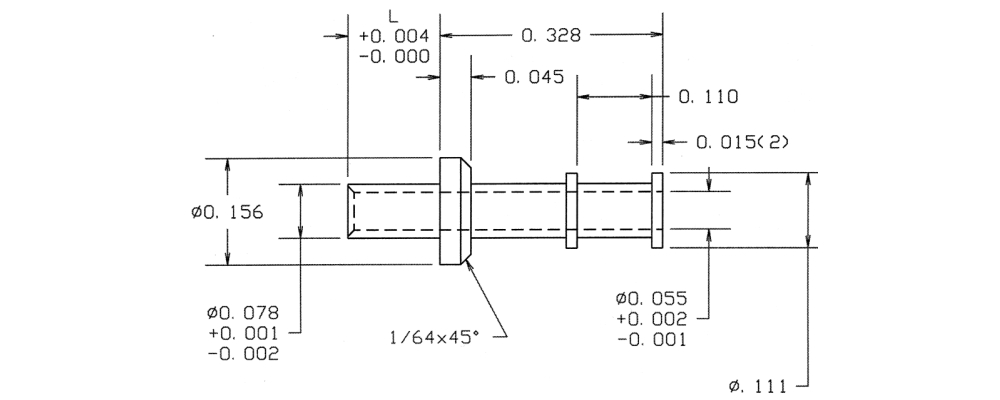

10-313-3-01
10-313-3-01
10-313-3-01
0.463" - - Swage Mount 0.135" 3/32 0.081 Brass Silver YES

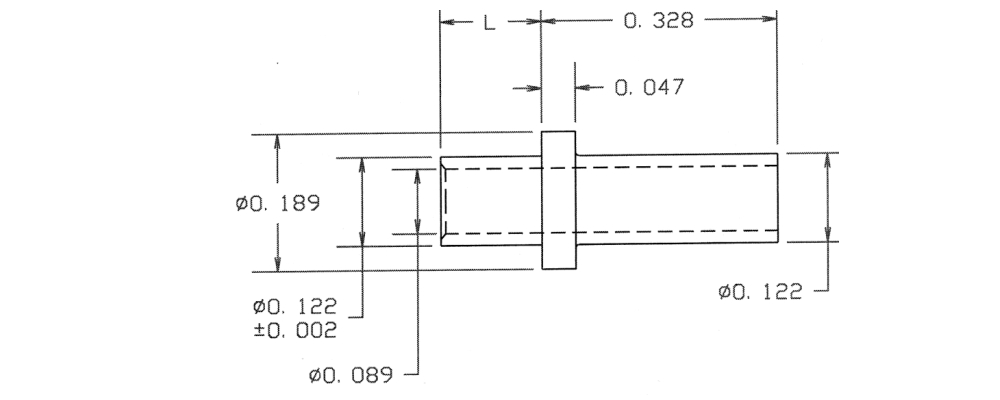

10-329-2-044
10-329-2-044
10-329-2-044
0.437" - - Swage Mount 0.109" 1/16 0.125 Brass Bright Tin YES
