Commercial
Non-Insulated
Terminals

Filter
09-8190-2-04
09-8190-2-04
09-8190-2-04
0.613" 0.030 - Swage Mount 0.083" 1/16 0.067 Brass Electro-Tin YES
09-0210-8-04
09-0210-8-04
09-0210-8-04
0.400" - - 2-56 - - 2-56 THREAD Brass Electro-Tin YES
10-489-2-01
10-489-2-01
10-489-2-01
0.250" - - Swage Mount 0.094" 1/16 0.067 Brass Silver YES
09-7165-2-04
09-7165-2-04
09-7165-2-04
0.594" 0.063 - RIVET MOUNT 0.098" 1/16 0.067 Brass Electro-Tin YES
09-9503-2-035
09-9503-2-035
09-9503-2-035
0.356" 0.062 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Gold YES
09-9502-1-035
09-9502-1-035
09-9502-1-035
0.356" 0.040 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Gold YES
09-0175-11-05
09-0175-11-05
09-0175-11-05
0.193" - - Swage Mount 0.037" 1/64 0.063 Brass Electro Solder NO
10-961-1-035
10-961-1-035
10-961-1-035
0.166" - - Swage Mount 0.062" 1/32 0.0635 Brass Gold YES
10-932-3-01
10-932-3-01
10-932-3-01
0.281" - - Swage Mount 0.125" 3/32 0.0635 Brass Silver YES
10-824-1-01
10-824-1-01
10-824-1-01
0.602" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.062" 1/32 0.147 Brass Silver YES
10-816-2-03
10-816-2-03
10-816-2-03
0.305" - - Swage Mount 0.105" 1/16 0.1495 Brass Gold YES
10-815-1-03
10-815-1-03
10-815-1-03
0.275" - - Swage Mount 0.075" 1/32 0.1495 Brass Gold YES
09-8725-1-088
09-8725-1-088
09-8725-1-088
1.000" 0.063 - - - - - Beryllium Copper Bright Tin-Lead NO
09-6005-1-01
09-6005-1-01
09-6005-1-01
0.670" 0.025 SQ. TURRET/SQUARE-WRAP PC PIN Press Fit/Solder 0.080" 1/16 0.055 Brass Silver YES

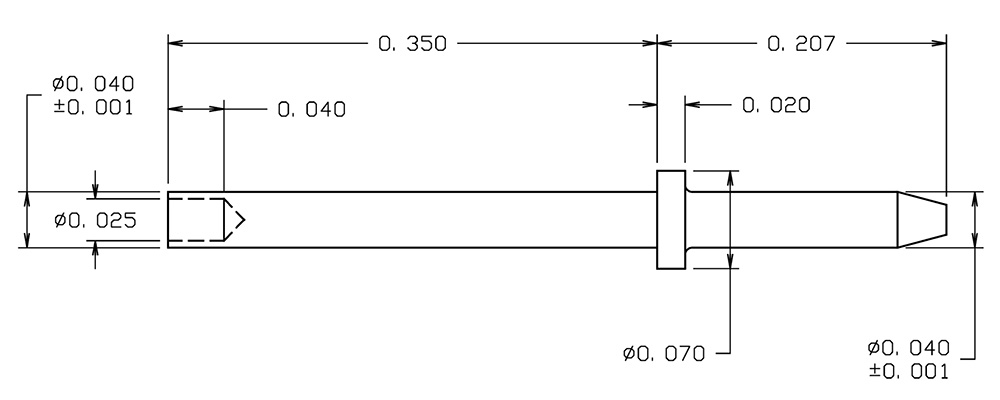

09-8022-10-044
09-8022-10-044
09-8022-10-044
0.538" 0.040 - Swage Mount 0.350" 10/32 0.043 Brass Bright Tin YES
10-217-3-05
10-217-3-05
10-217-3-05
0.479" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO
10-238-2-04
10-238-2-04
10-238-2-04
0.530" - - Swage Mount 0.109" 1/16 0.116 Brass Electro-Tin YES
10-311-3-01
10-311-3-01
10-311-3-01
0.453" - - Swage Mount 0.141" 3/32 0.116 Brass Silver YES
10-311-8-035
10-311-8-035
10-311-8-035
0.609" - - Swage Mount 0.297" 1/4 0.116 Brass Gold YES
10-823-2-05
10-823-2-05
10-823-2-05
0.564" 0.037 (TAPER) DOUBLE TURRET/TAPER PIN Swage Mount 0.087" 1/16 0.120 Brass Electro Solder NO
