Commercial
Non-Insulated
Terminals

Filter
10-519-4-044
10-519-4-044
10-519-4-044
1.092" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.266 Brass Bright Tin YES
10-530-6-044
10-530-6-044
10-530-6-044
0.694" - TURRET/DOUBLE TURRET Swage Mount 0.230" 3/16 0.159 Brass Bright Tin YES
10-549-5-044
10-549-5-044
10-549-5-044
0.874" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.206 Brass Bright Tin YES
10-601-1-044
10-601-1-044
10-601-1-044
0.363" - - Swage Mount 0.062" 1/32 0.094 Brass Bright Tin YES
10-615-2-01
10-615-2-01
10-615-2-01
0.445" - - Swage Mount 0.105" 1/16 0.090 Brass Silver YES

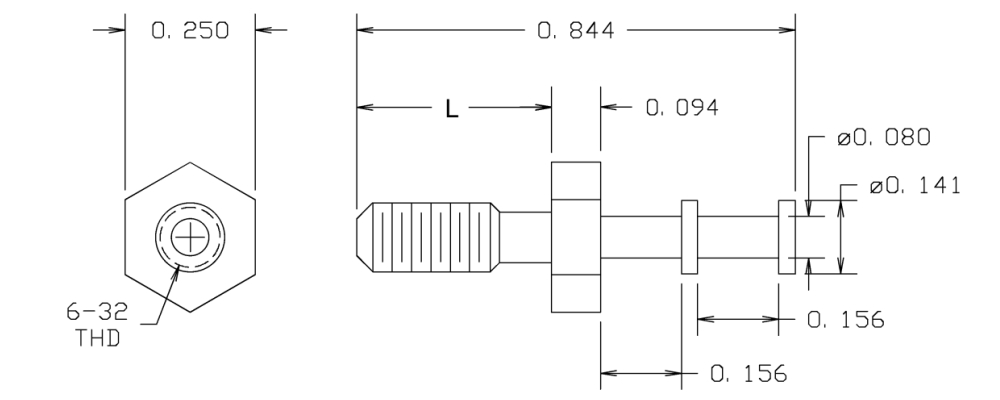

10-717-12-03
10-717-12-03
10-717-12-03
0.844" - - 6-32 - - 6-32 THREAD Brass Gold YES
10-8016-3-01
10-8016-3-01
10-8016-3-01
0.643" 0.080 - Swage Mount 0.113" 3/32 0.094 Brass Silver YES
10-803-4-04
10-803-4-04
10-803-4-04
0.520" 0.040 TURRET/PIN Swage Mount 0.145" 1/8 0.076 Brass Electro-Tin YES
10-809-3-03
10-809-3-03
10-809-3-03
0.258" - - Swage Mount 0.141" 3/32 0.116 Brass Gold YES
10-816-3-05
10-816-3-05
10-816-3-05
0.335" - - Swage Mount 0.135" 3/32 0.1495 Brass Electro Solder NO
10-826-4-03
10-826-4-03
10-826-4-03
0.493" - - Swage Mount 0.165" 1/8 0.081 Brass Gold YES
10-837-2-01
10-837-2-01
10-837-2-01
0.438" 0.050 Pin/Pin Swage Mount 0.094" 1/16 0.111 Brass Silver YES
10-850-11-044
10-850-11-044
10-850-11-044
0.271" 0.040 - Swage Mount 0.047" 1/64 0.094 Brass Bright Tin YES
10-873-3-088
10-873-3-088
10-873-3-088
0.285" 0.090 - Swage Mount 0.135" 3/32 0.094 Brass Bright Tin-Lead NO
10-895-10-05
10-895-10-05
10-895-10-05
0.400" 0.062 - - - - - Brass Electro Solder NO

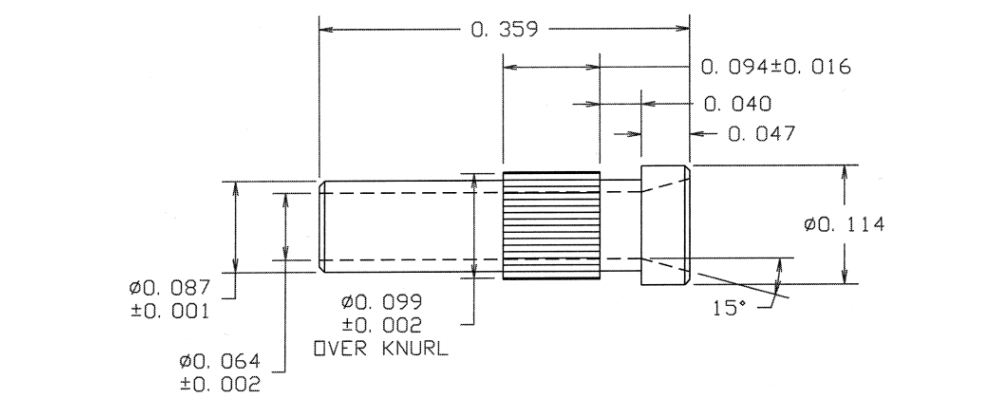

10-909-1-044
10-909-1-044
10-909-1-044
0.359" - - Press Fit/Solder 0.134" 1/8 0.096 Brass Bright Tin YES
10-922-4-044
10-922-4-044
10-922-4-044
0.396" 0.045 - Swage Mount 0.156" 1/8 0.064 Brass Bright Tin YES

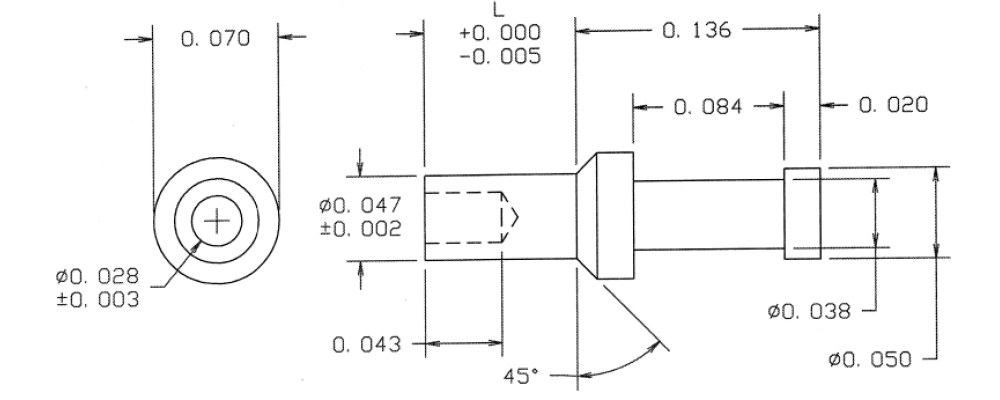

10-939-2-088
10-939-2-088
10-939-2-088
0.221" - - Swage Mount 0.085" 1/16 0.052 Brass Bright Tin-Lead NO
14-347-4-03
14-347-4-03
14-347-4-03
0.632" - - Swage Mount 0.172" 1/8 0.116 LEADED Red Brass Gold YES

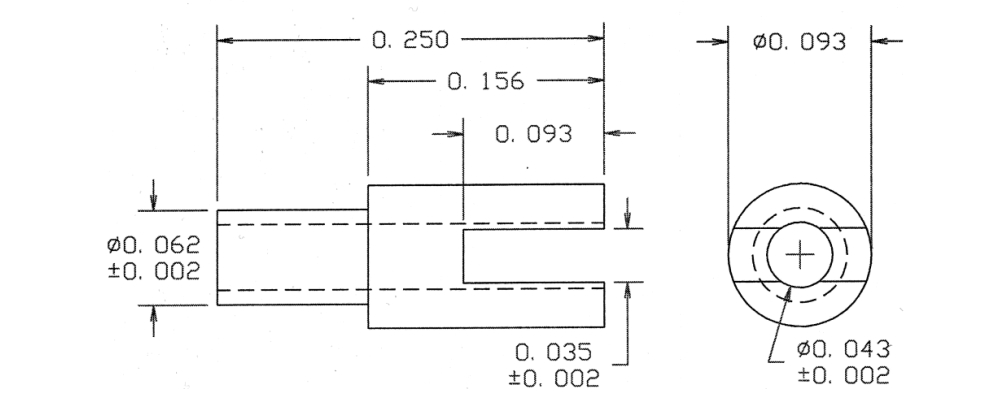

09-0036-2-035
09-0036-2-035
09-0036-2-035
0.250" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES
