Commercial
Non-Insulated
Terminals

Part No	Length	Pin Diameter	Feed Thru Combination	Mounting	Shank Length	Board Thickness	Hole Size	Terminal Material	Terminal Finish	RoHS

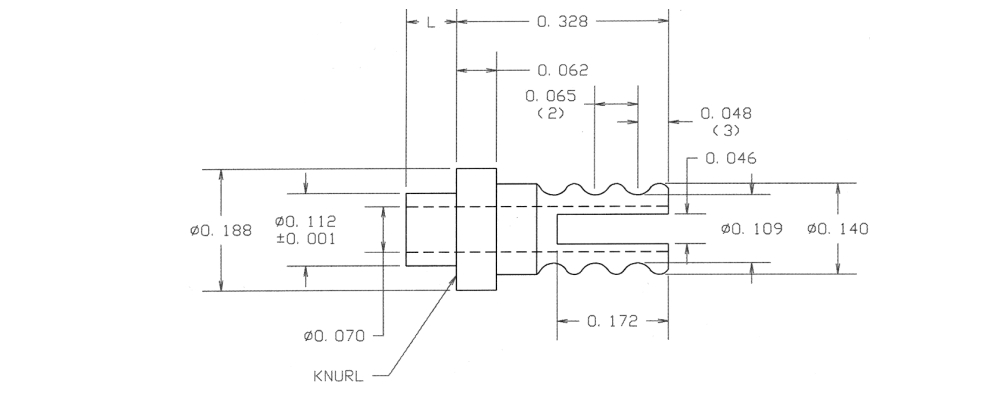

10-410-4-05	0.493"	-	-	Swage Mount	0.165"	1/8	0.116	Brass	Electro Solder	NO

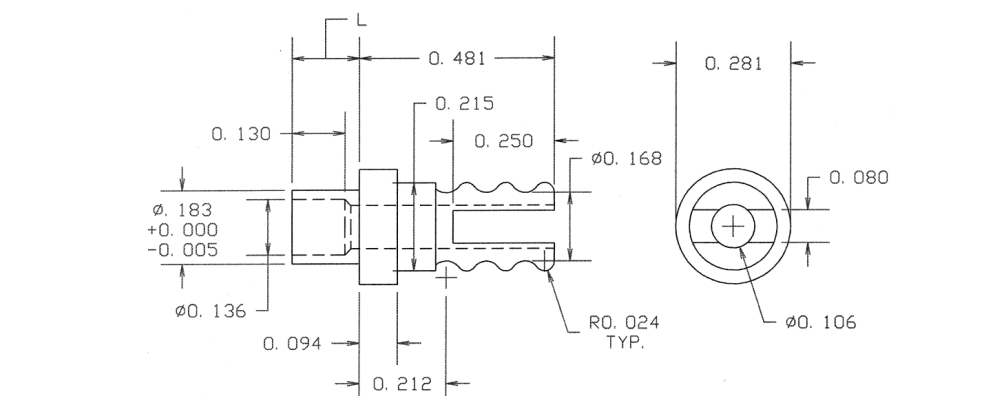

10-439-4-035	0.646"	-	-	Swage Mount	0.165"	1/8	0.1875	Brass	Gold	YES
10-457-8-088	0.437"	-	-	Swage Mount	0.281"	1/4	0.076	Brass	Bright Tin-Lead	NO

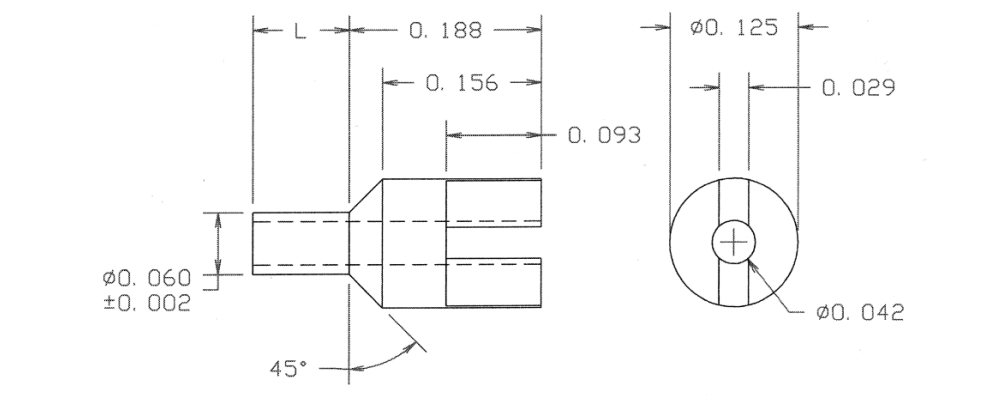

10-903-3-04	0.313"	-	-	Swage Mount	0.125"	3/32	0.063	Brass	Electro-Tin	YES

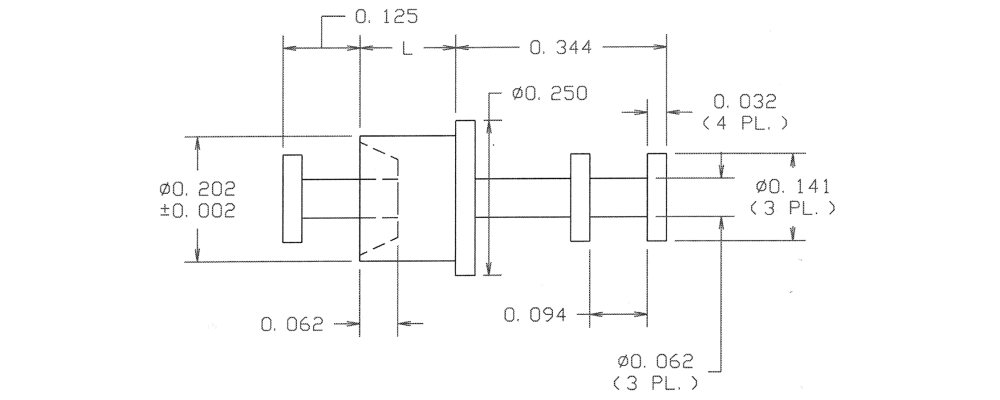

09-0033-2-035	0.594"	-	TURRET/DOUBLE TURRET	Swage Mount	0.125"	3/32	0.206	Brass	Gold	YES

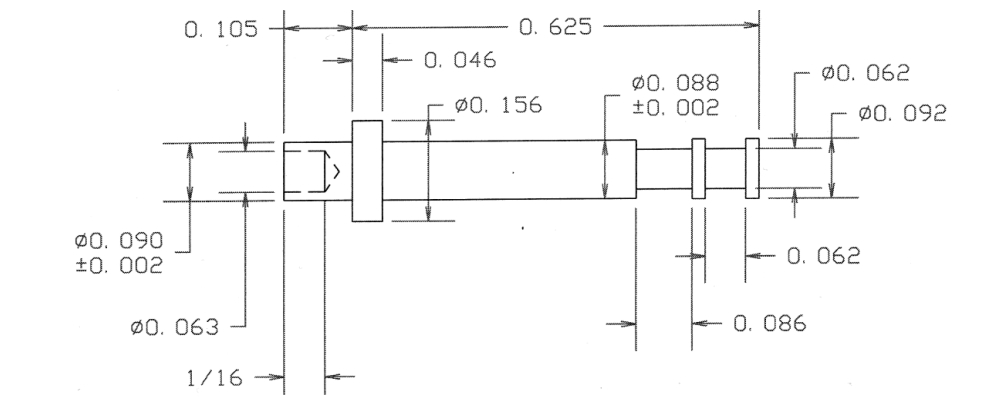

09-0084-2-04	0.730"	-	-	Swage Mount	0.105"	1/16	0.094	Brass	Electro-Tin	YES

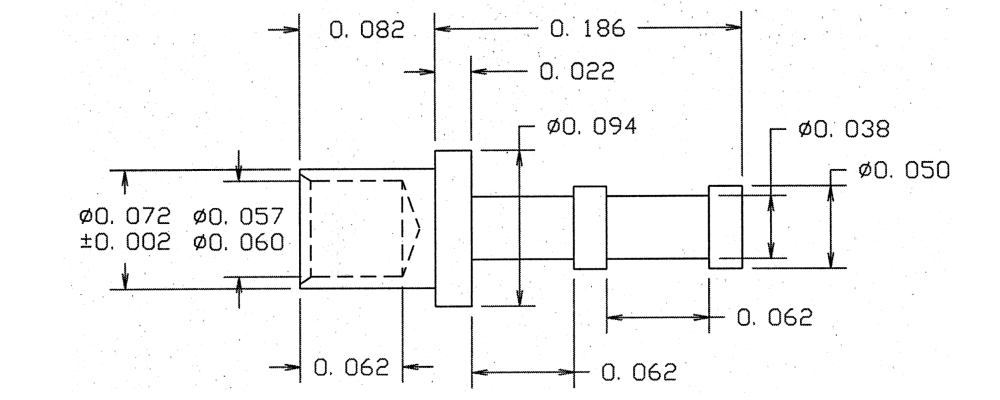

09-0167-2-04	0.268"	-	-	Swage Mount	0.082"	1/16	0.076	Brass	Electro-Tin	YES

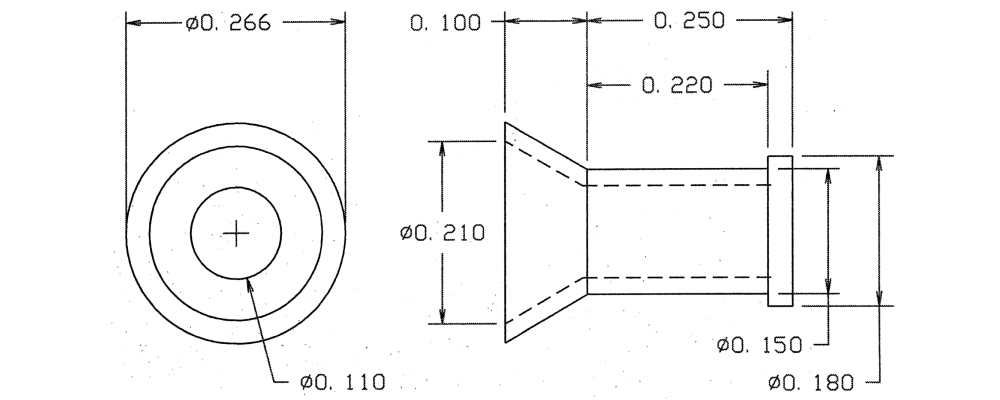

09-0206-1-088	0.350"	-	-	Solder	-	-	-	Brass	Bright Tin-Lead	NO

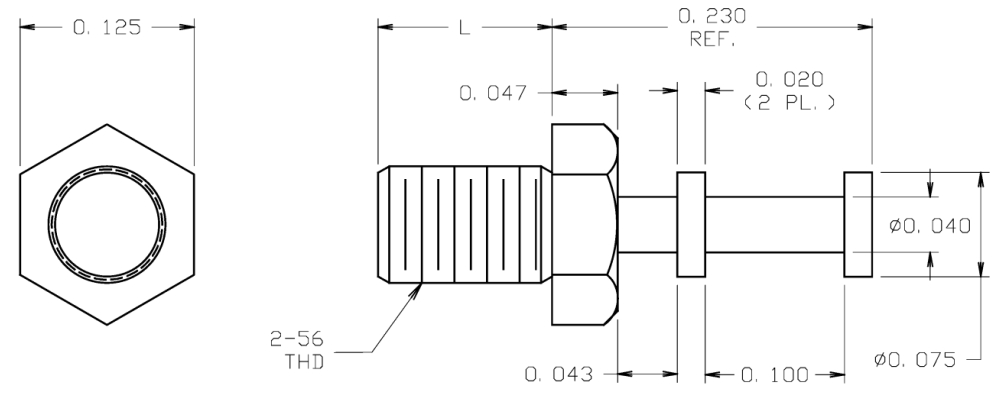

09-0241-2-044	0.355"	-	-	2-56	-	-	2-56 THREAD	Brass	Bright Tin	YES

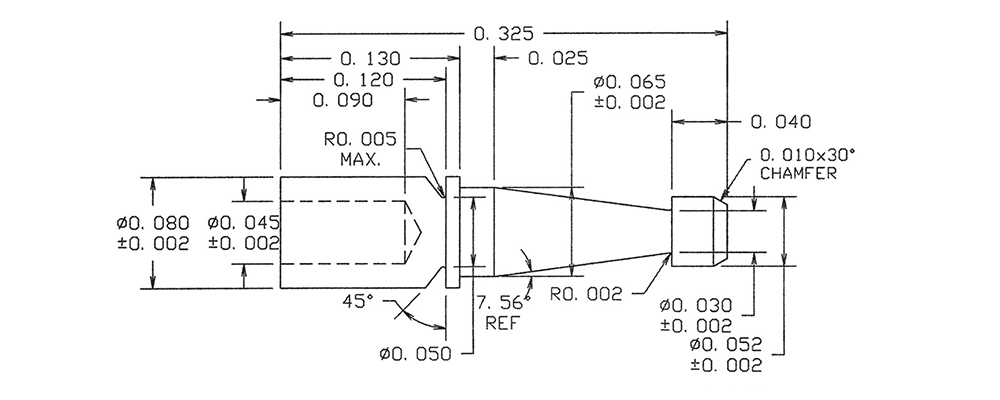

09-0287-2-044	0.325"	0.052	-	-	-	-	-	Brass	Bright Tin	YES

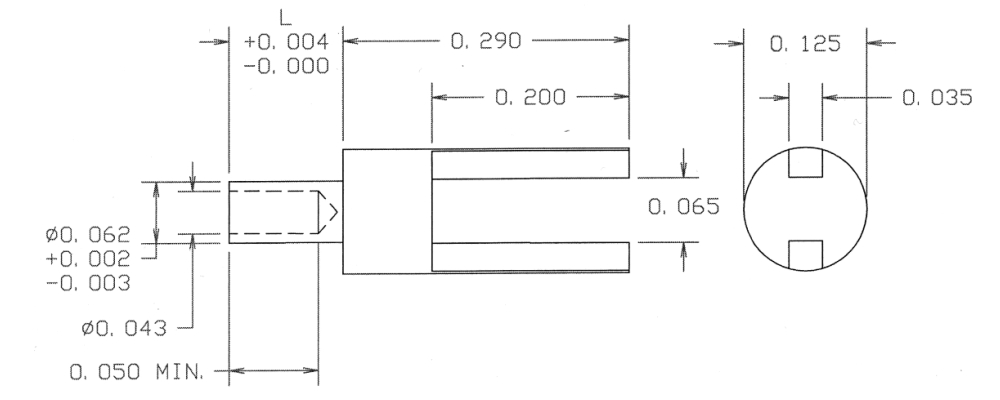

09-0353-2-088	0.375"	-	-	Swage Mount	0.085"	1/16	0.067	Brass	Bright Tin-Lead	NO

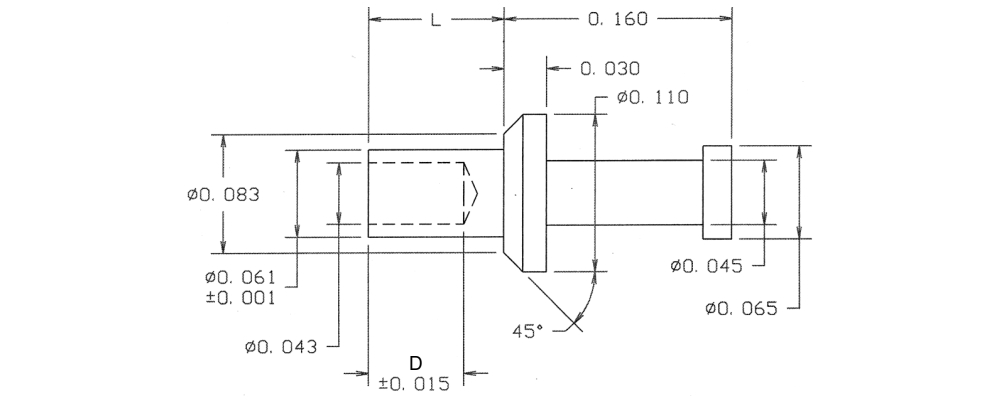

09-7012-3-035	0.285"	-	-	Swage Mount	0.125"	3/32	0.067	Brass	Gold	YES

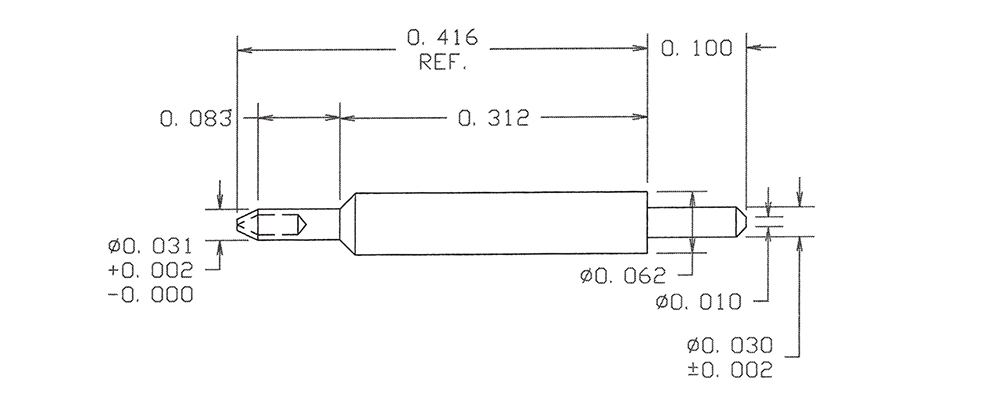

09-7117-2-088	0.516"	0.030	-	RIVET MOUNT	0.083"	1/16	0.035	Brass	Bright Tin-Lead	NO

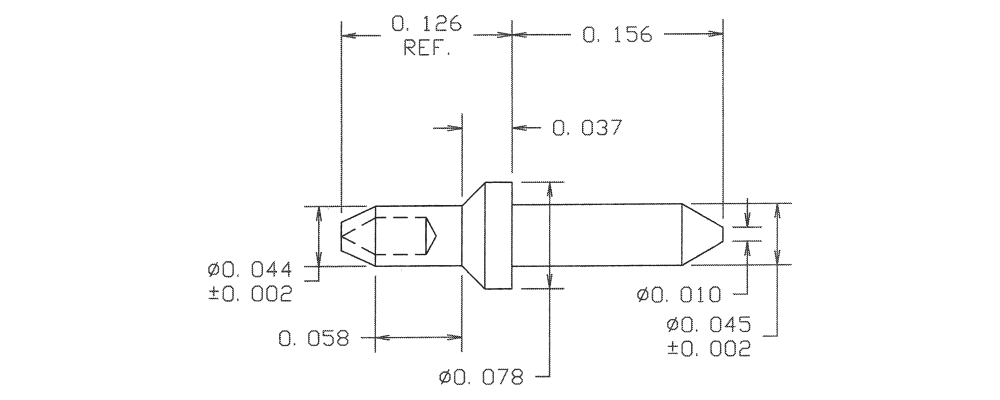

09-7149-1-04	0.282"	0.045	-	RIVET MOUNT	0.058"	1/32	0.048	Brass	Electro-Tin	YES

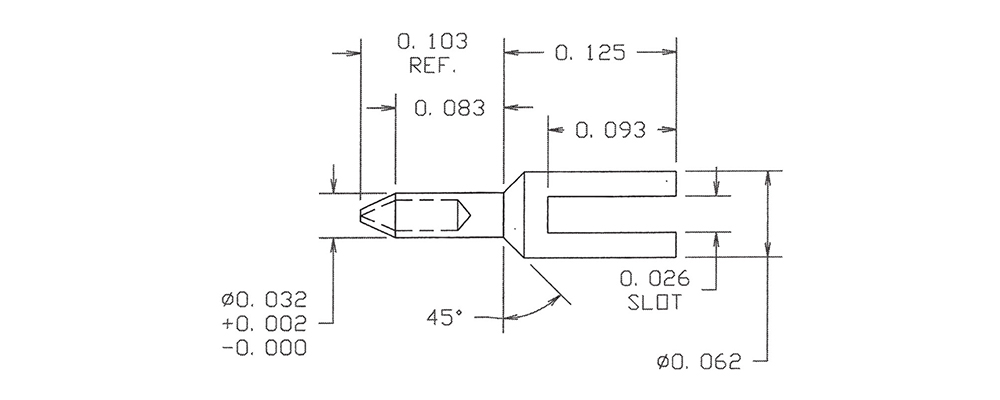

09-7181-2-01	0.228"	-	-	RIVET MOUNT	0.083"	1/16	0.036	Brass	Silver	YES
09-8022-10-044	0.538"	0.040	-	Swage Mount	0.350"	10/32	0.043	Brass	Bright Tin	YES
09-8059-1-01	0.551"	0.0405	-	Swage Mount	0.051"	1/32	0.043	Brass	Silver	YES

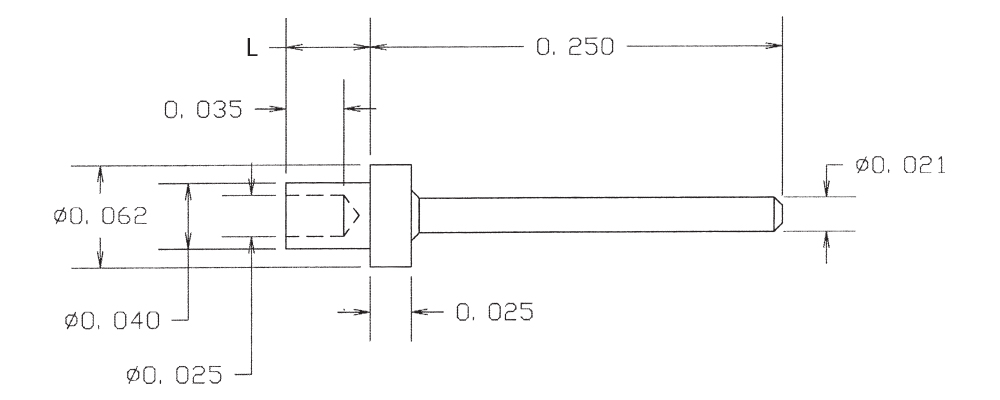

09-8096-2-044	0.332"	0.021	-	Swage Mount	0.082"	1/16	0.043	Brass	Bright Tin	YES
09-8154-2-03	0.714"	0.040	-	Swage Mount	0.091"	1/16	0.043	Brass	Gold	YES
09-8182-1-05	0.426"	0.020	-	Swage Mount	0.051"	1/32	0.035	Brass	Electro Solder	NO
