Commercial
Non-Insulated
Terminals

Filter
10-414-11-044
10-414-11-044
10-414-11-044
0.191" - - Swage Mount 0.035" 1/64 0.052 Brass Bright Tin YES

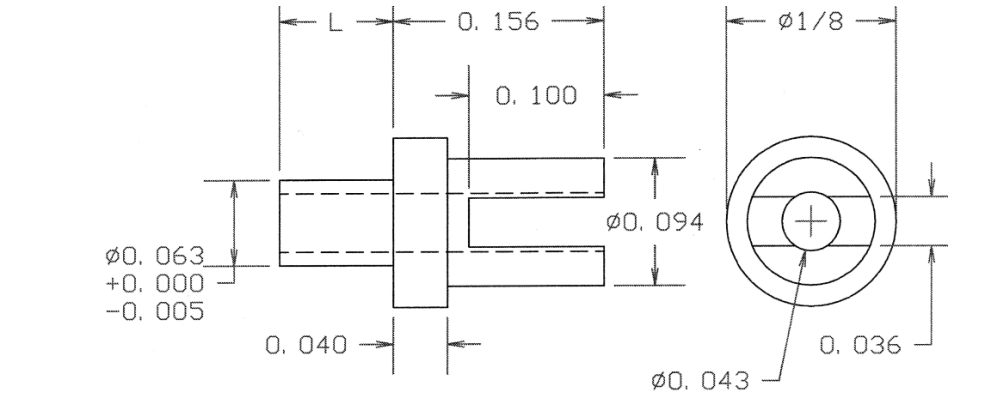

10-449-1-03
10-449-1-03
10-449-1-03
0.209" - - Swage Mount 0.053" 1/32 0.064 Brass Gold YES
10-471-2-05
10-471-2-05
10-471-2-05
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Electro Solder NO
10-948-4-035
10-948-4-035
10-948-4-035
0.329" - - Swage Mount 0.156" 1/8 0.0635 Brass Gold YES
09-0050-2-03
09-0050-2-03
09-0050-2-03
0.421" - - Swage Mount 0.109" 1/16 0.140 Brass Gold YES

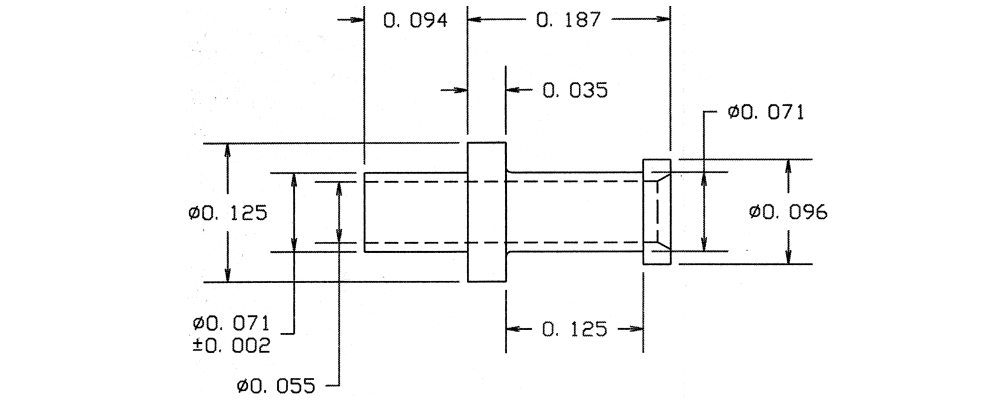

09-0114-2-01
09-0114-2-01
09-0114-2-01
0.281" - - Swage Mount 0.094" 1/16 0.076 Brass Silver YES
09-0175-3-035
09-0175-3-035
09-0175-3-035
0.273" - - Swage Mount 0.118" 3/32 0.063 Brass Gold YES
09-0216-3-035
09-0216-3-035
09-0216-3-035
0.514" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES

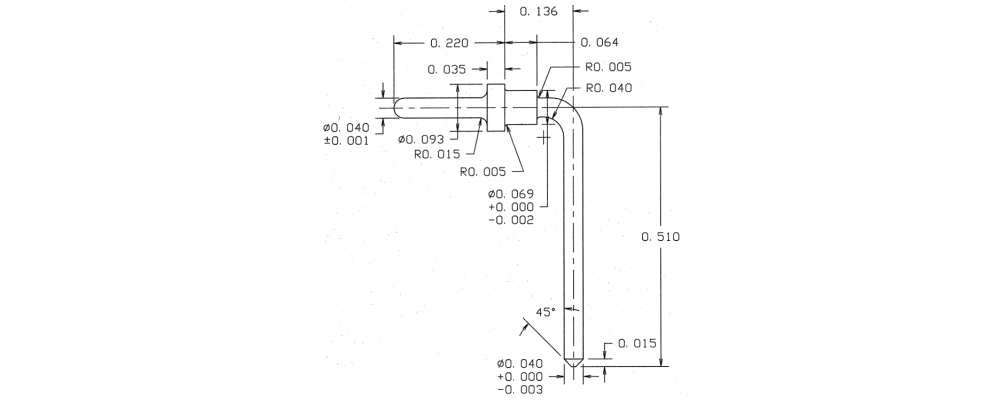

09-0259-1-088
09-0259-1-088
09-0259-1-088
0.557" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Bright Tin-Lead NO

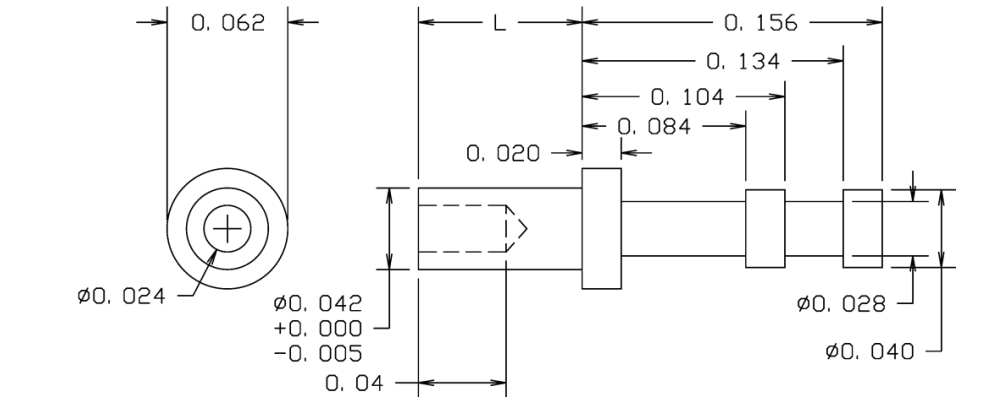

09-0310-1-044
09-0310-1-044
09-0310-1-044
0.210" - - Swage Mount 0.054" 1/32 0.043 Brass Bright Tin YES
09-0375-2-01
09-0375-2-01
09-0375-2-01
0.242" 0.062 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Silver YES
09-7017-2-044
09-7017-2-044
09-7017-2-044
0.255" - - Swage Mount 0.095" 1/16 0.055 LEADED Red Brass Bright Tin YES
09-7130-1-05
09-7130-1-05
09-7130-1-05
0.982" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Electro Solder NO
09-7158-2-035
09-7158-2-035
09-7158-2-035
0.238" 0.025 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Gold YES

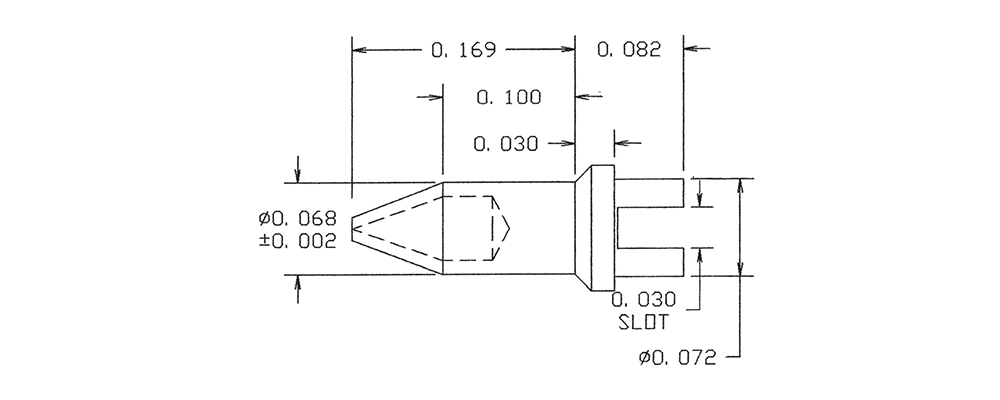

09-7191-2-088
09-7191-2-088
09-7191-2-088
0.251" - - RIVET MOUNT 0.100" 1/16 0.073 Brass Bright Tin-Lead NO
09-8041-1-04
09-8041-1-04
09-8041-1-04
0.222" 0.032 TURRET/PC PIN Swage Mount 0.054" 1/32 0.067 Brass Electro-Tin YES

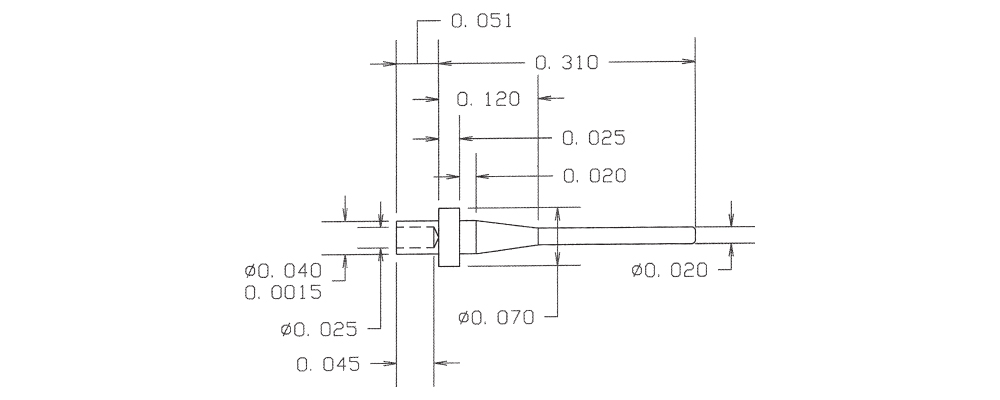

09-8068-1-088
09-8068-1-088
09-8068-1-088
0.361" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO

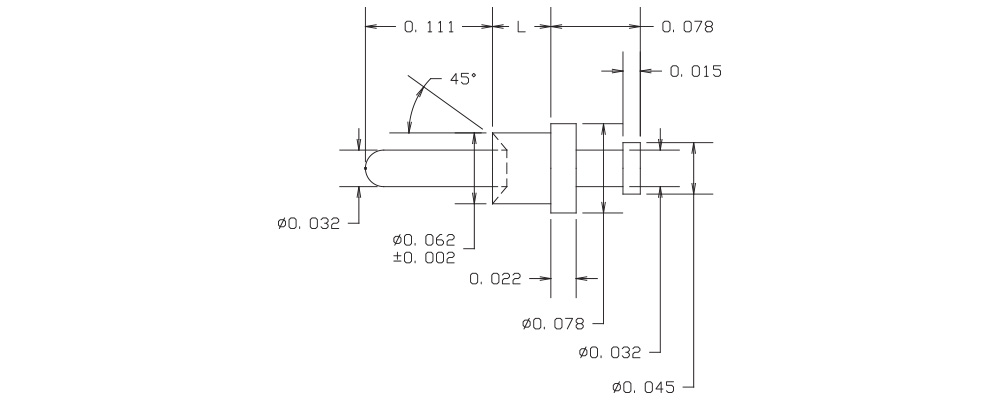

09-8131-2-04
09-8131-2-04
09-8131-2-04
0.271" 0.032 TURRET/PIN Swage Mount 0.082" 1/16 0.067 Brass Electro-Tin YES

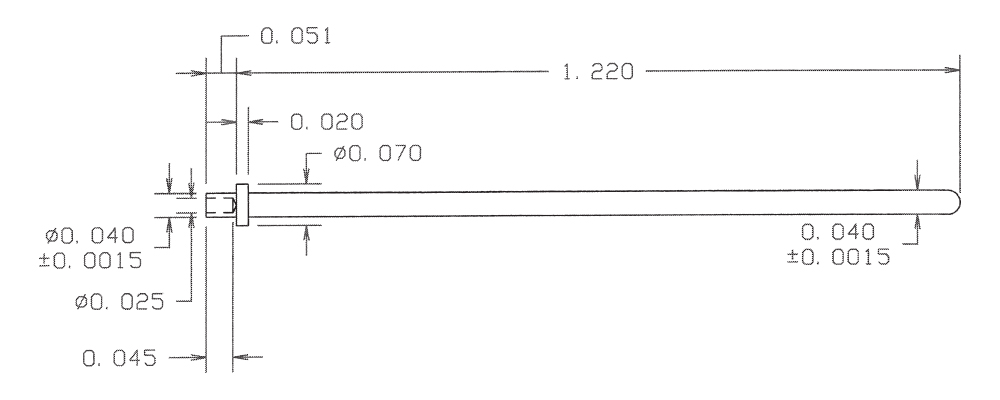

09-8163-1-01
09-8163-1-01
09-8163-1-01
1.271" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
09-8193-2A-044
09-8193-2A-044
09-8193-2A-044
0.377" 0.040 - Swage Mount 0.097" 1/16 0.043 Brass Bright Tin YES
