Commercial
Non-Insulated
Terminals

Filter
09-0050-2-01
09-0050-2-01
09-0050-2-01
0.421" - - Swage Mount 0.109" 1/16 0.140 Brass Silver YES
09-0112-3-088
09-0112-3-088
09-0112-3-088
0.479" - TURRET/THREAD Swage Mount 0.125" 3/32 0.154 Brass Bright Tin-Lead NO

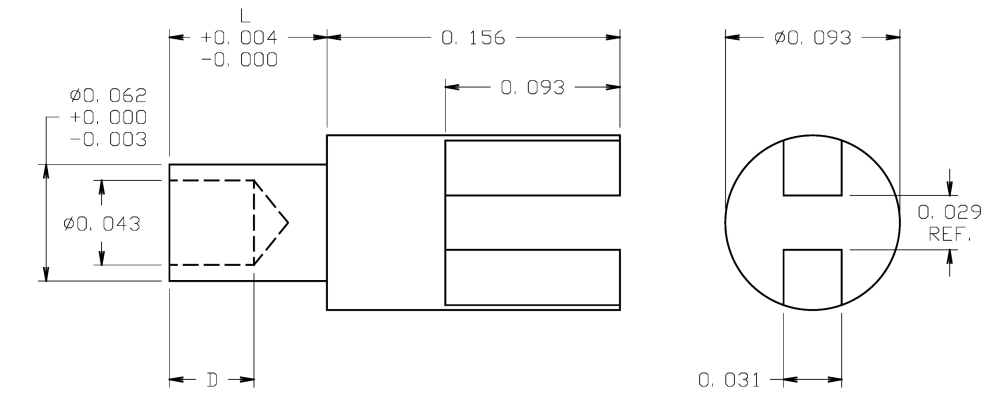

09-0175-3-03
09-0175-3-03
09-0175-3-03
0.273" - - Swage Mount 0.118" 3/32 0.063 Brass Gold YES
09-0216-3-03
09-0216-3-03
09-0216-3-03
0.514" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES
09-0259-1-05
09-0259-1-05
09-0259-1-05
0.557" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Electro Solder NO
09-0310-1-04
09-0310-1-04
09-0310-1-04
0.210" - - Swage Mount 0.054" 1/32 0.043 Brass Electro-Tin YES
09-0374-1-088
09-0374-1-088
09-0374-1-088
0.334" 0.025 TURRET/PIN Press Fit/Solder 0.080" 1/16 0.055 Brass Bright Tin-Lead NO
09-7017-2-04
09-7017-2-04
09-7017-2-04
0.255" - - Swage Mount 0.095" 1/16 0.055 LEADED Red Brass Electro-Tin YES

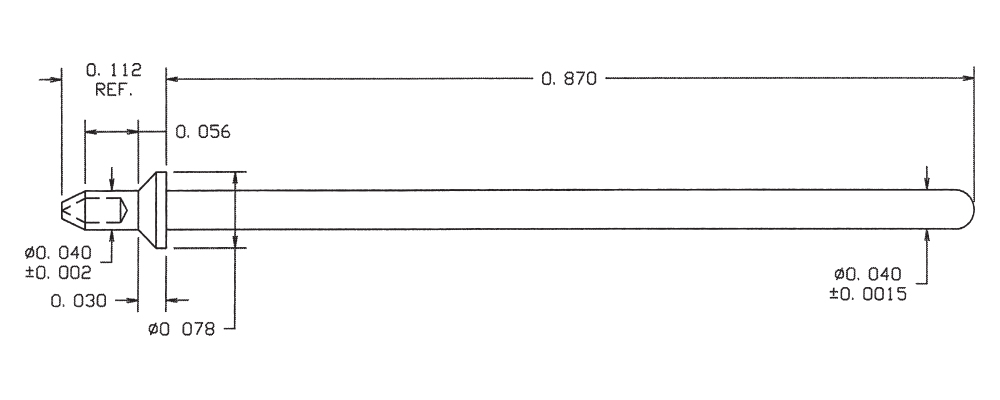

09-7130-1-044
09-7130-1-044
09-7130-1-044
0.982" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Bright Tin YES
09-7158-2-03
09-7158-2-03
09-7158-2-03
0.238" 0.025 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Gold YES
09-7191-2-05
09-7191-2-05
09-7191-2-05
0.251" - - RIVET MOUNT 0.100" 1/16 0.073 Brass Electro Solder NO
09-8041-1-035
09-8041-1-035
09-8041-1-035
0.222" 0.032 TURRET/PC PIN Swage Mount 0.054" 1/32 0.067 Brass Gold YES
09-8068-1-05
09-8068-1-05
09-8068-1-05
0.361" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO

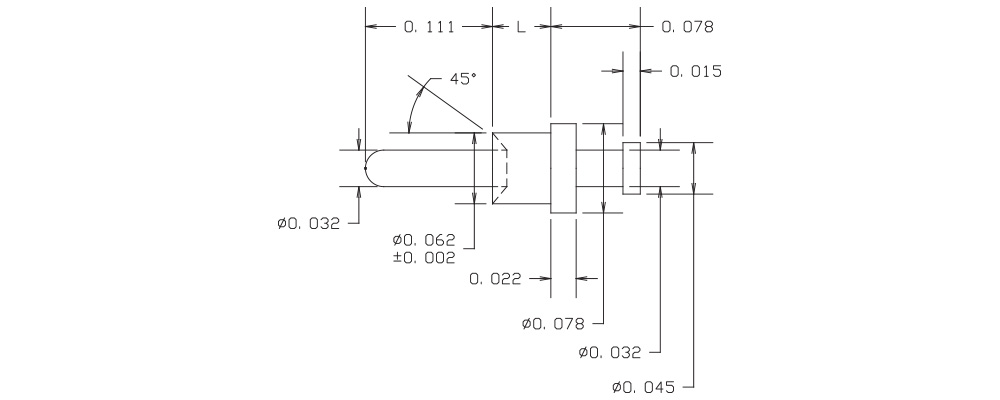

09-8131-2-035
09-8131-2-035
09-8131-2-035
0.271" 0.032 TURRET/PIN Swage Mount 0.082" 1/16 0.067 Brass Gold YES
09-8162-2-088
09-8162-2-088
09-8162-2-088
1.172" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin-Lead NO
09-8193-2A-04
09-8193-2A-04
09-8193-2A-04
0.377" 0.040 - Swage Mount 0.097" 1/16 0.043 Brass Electro-Tin YES
09-8422-2-095
09-8422-2-095
09-8422-2-095
0.245" - - Swage Mount 0.094" 1/16 0.067 Brass Hot Solder Dip NO
09-8637-1-044
09-8637-1-044
09-8637-1-044
0.170" 0.020 - Solder - - 0.022 Beryllium Copper Bright Tin YES
09-8754-3-088
09-8754-3-088
09-8754-3-088
0.296" 0.025 - Solder 0.110" 1/64 TO 3/32 0.028 Brass Bright Tin-Lead NO
09-8840-6-01
09-8840-6-01
09-8840-6-01
1.250" 0.1085 - Swage Mount 0.250" 3/16 0.116 Brass Silver YES
