Commercial
Non-Insulated
Terminals

Filter
09-8070-1-01
09-8070-1-01
09-8070-1-01
0.735" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
09-8131-2-044
09-8131-2-044
09-8131-2-044
0.271" 0.032 TURRET/PIN Swage Mount 0.082" 1/16 0.067 Brass Bright Tin YES
09-8163-1-03
09-8163-1-03
09-8163-1-03
1.271" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
09-8193-2A-05
09-8193-2A-05
09-8193-2A-05
0.377" 0.040 - Swage Mount 0.097" 1/16 0.043 Brass Electro Solder NO
09-8422-3-03
09-8422-3-03
09-8422-3-03
0.276" - - Swage Mount 0.125" 3/32 0.067 Brass Gold YES
09-8637-1-088
09-8637-1-088
09-8637-1-088
0.170" 0.020 - Solder - - 0.022 Beryllium Copper Bright Tin-Lead NO
09-8761-2-03
09-8761-2-03
09-8761-2-03
0.829" 0.060 - Swage Mount 0.094" 1/16 0.0635 Brass Gold YES
09-8840-6-035
09-8840-6-035
09-8840-6-035
1.250" 0.1085 - Swage Mount 0.250" 3/16 0.116 Brass Gold YES

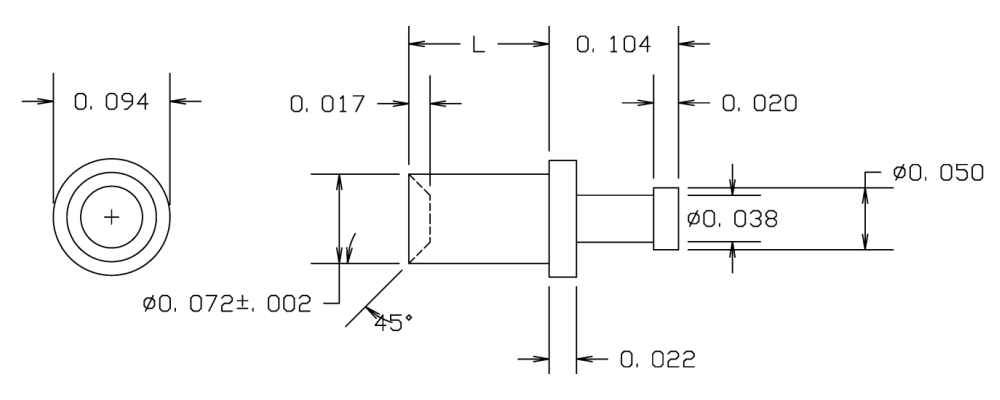

10-101-6-095
10-101-6-095
10-101-6-095
0.311" - - Swage Mount 0.207" 3/16 0.076 Brass Hot Solder Dip NO

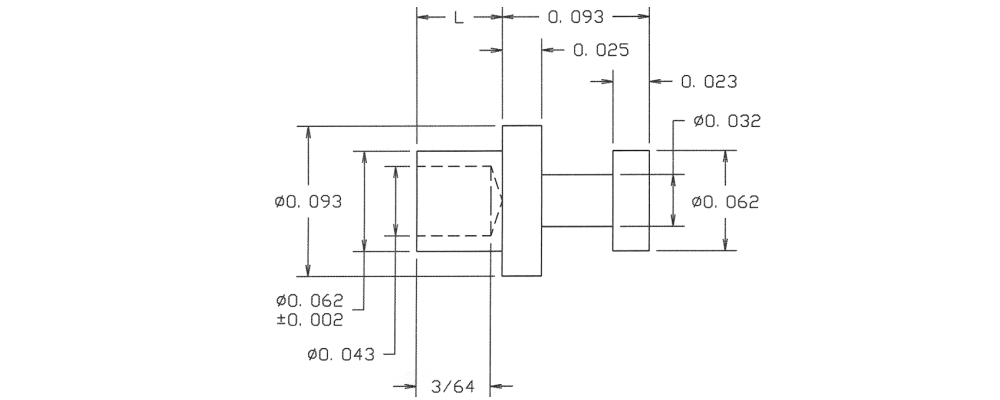

10-108-11-04
10-108-11-04
10-108-11-04
0.130" - - Swage Mount 0.037" 1/64 0.067 Brass Electro-Tin YES
10-117-2-095
10-117-2-095
10-117-2-095
0.178" - - Swage Mount 0.084" 1/16 0.067 Brass Hot Solder Dip NO
10-137-4-03
10-137-4-03
10-137-4-03
0.331" - - Swage Mount 0.172" 1/8 0.094 Brass Gold YES
10-207-1-05
10-207-1-05
10-207-1-05
0.309" - - Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO
10-215-2-05
10-215-2-05
10-215-2-05
0.238" - - Swage Mount 0.084" 1/16 0.063 Brass Electro Solder NO
10-225-11-095
10-225-11-095
10-225-11-095
0.191" - - Swage Mount 0.037" 1/64 0.067 Brass Hot Solder Dip NO
10-238-3-04
10-238-3-04
10-238-3-04
0.562" - - Swage Mount 0.141" 3/32 0.116 Brass Electro-Tin YES
10-266-3-044
10-266-3-044
10-266-3-044
0.271" - - Swage Mount 0.115" 3/32 0.206 Brass Bright Tin YES
10-309-3-035
10-309-3-035
10-309-3-035
0.452" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-317-3-088
10-317-3-088
10-317-3-088
0.447" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO
10-335-2-04
10-335-2-04
10-335-2-04
0.311" - - Swage Mount 0.093" 1/16 0.081 Brass Electro-Tin YES
