Commercial
Non-Insulated
Terminals

Filter

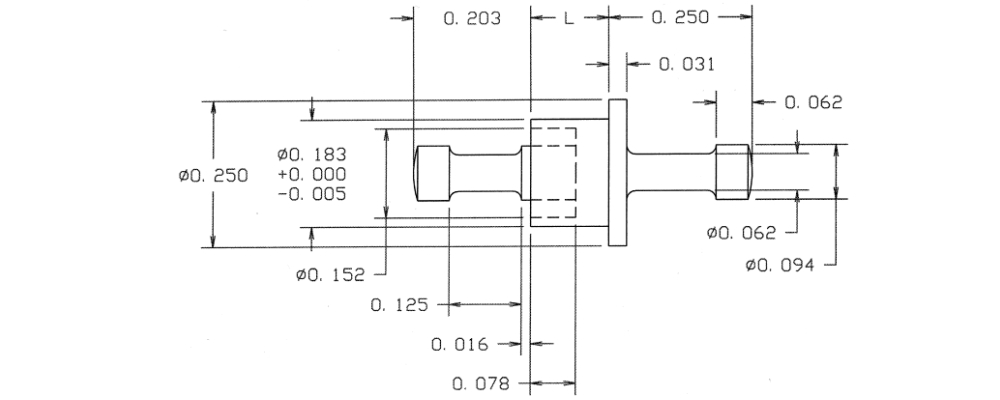

10-521-4-03
10-521-4-03
10-521-4-03
0.618" 0.094 Pin/Pin Swage Mount 0.165" 1/8 0.185 Brass Gold YES
10-541-2-03
10-541-2-03
10-541-2-03
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-554-4-03
10-554-4-03
10-554-4-03
0.487" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.094 Brass Gold YES
10-603-1-03
10-603-1-03
10-603-1-03
0.496" - - Swage Mount 0.075" 1/32 0.116 Brass Gold YES

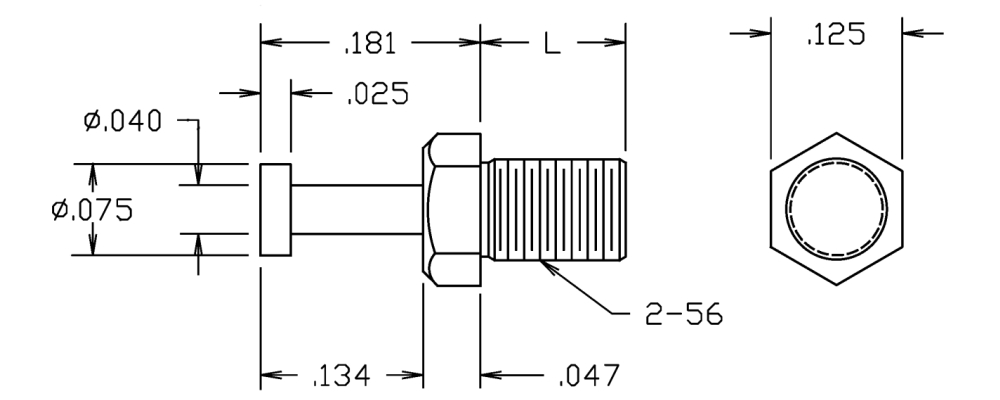

10-703-4-05
10-703-4-05
10-703-4-05
0.306" - - 2-56 - - 2-56 THREAD Brass Electro Solder NO
10-8009-2-035
10-8009-2-035
10-8009-2-035
0.297" 0.062 - Swage Mount 0.084" 1/16 0.067 Brass Gold YES
10-802-1-095
10-802-1-095
10-802-1-095
0.272" 0.032 TURRET/PIN Swage Mount 0.054" 1/32 0.067 Brass Hot Solder Dip NO
10-805-6-044
10-805-6-044
10-805-6-044
0.524" - - Swage Mount 0.234" 3/16 0.094 Brass Bright Tin YES
10-811-3-035
10-811-3-035
10-811-3-035
0.453" - - Swage Mount 0.141" 3/32 0.1495 Brass Gold YES
10-820-3-044
10-820-3-044
10-820-3-044
0.308" 0.040 - Swage Mount 0.135" 3/32 0.094 Brass Bright Tin YES
10-831-3-044
10-831-3-044
10-831-3-044
0.313" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Bright Tin YES
10-839-2-03
10-839-2-03
10-839-2-03
0.813" 0.050 Pin/Pin Swage Mount 0.094" 1/16 0.111 Brass Gold YES

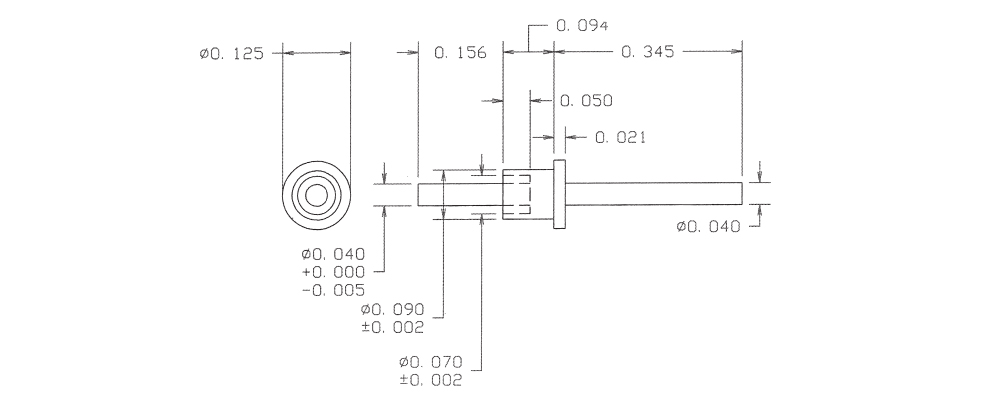

10-859-2-05
10-859-2-05
10-859-2-05
0.595" 0.040 Pin/Pin Swage Mount 0.094" 1/16 0.094 Brass Electro Solder NO
10-877-3-04
10-877-3-04
10-877-3-04
0.455" 0.032 - Swage Mount 0.113" 3/32 0.055 Brass Electro-Tin YES

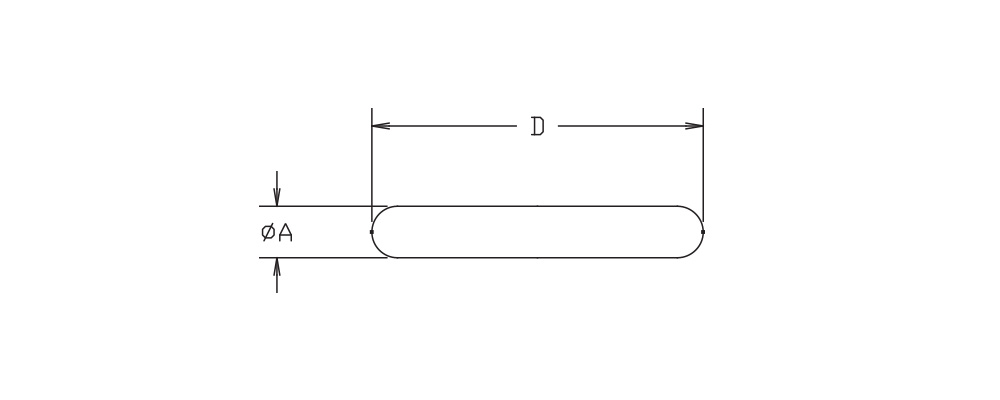

10-895-9-035
10-895-9-035
10-895-9-035
0.900" 0.040 - - - - - Brass Gold YES

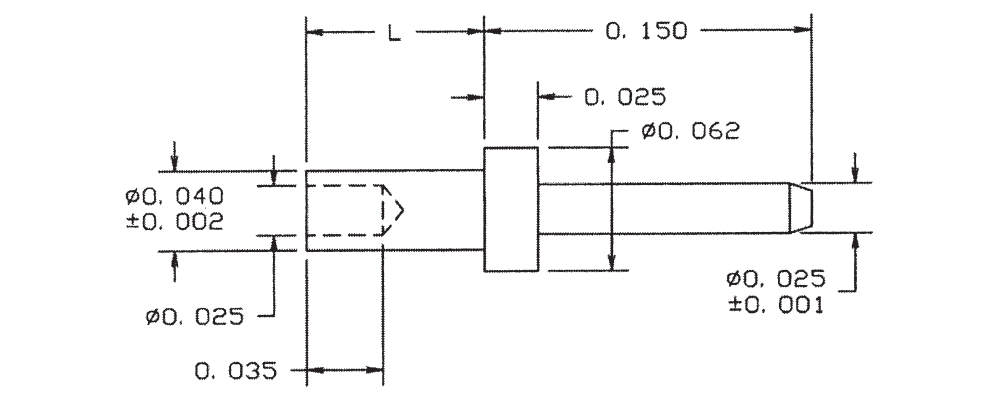

10-915-3-03
10-915-3-03
10-915-3-03
0.263" 0.025 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES

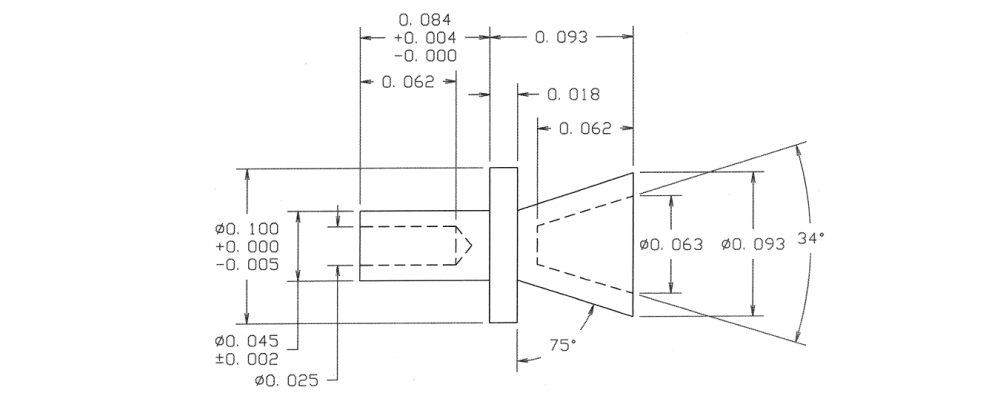

10-929-2-05
10-929-2-05
10-929-2-05
0.177" - - Swage Mount 0.084" 1/16 0.052 Brass Electro Solder NO
10-972-2-05
10-972-2-05
10-972-2-05
0.852" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
14-351-3-035
14-351-3-035
14-351-3-035
0.460" - - Swage Mount 0.135" 3/32 0.196 LEADED Red Brass Gold YES
09-0280-2-035
09-0280-2-035
09-0280-2-035
0.250" - - Swage Mount 0.094" 1/16 0.063 Brass Gold YES
