Commercial
Non-Insulated
Terminals

Filter
10-466-4-04
10-466-4-04
10-466-4-04
0.403" - TURRET/THREAD Swage Mount 0.145" 1/8 0.076 Brass Electro-Tin YES
10-492-4-03
10-492-4-03
10-492-4-03
0.446" - Slotted/Slotted Swage Mount 0.165" 1/8 0.120 Brass Gold YES
10-506-3-035
10-506-3-035
10-506-3-035
0.406" - Turret/Turret Swage Mount 0.125" 3/32 0.120 Brass Gold YES
10-512-3-035
10-512-3-035
10-512-3-035
0.506" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.129 Brass Gold YES
10-521-4-035
10-521-4-035
10-521-4-035
0.618" 0.094 Pin/Pin Swage Mount 0.165" 1/8 0.185 Brass Gold YES
10-541-2-035
10-541-2-035
10-541-2-035
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Brass Gold YES

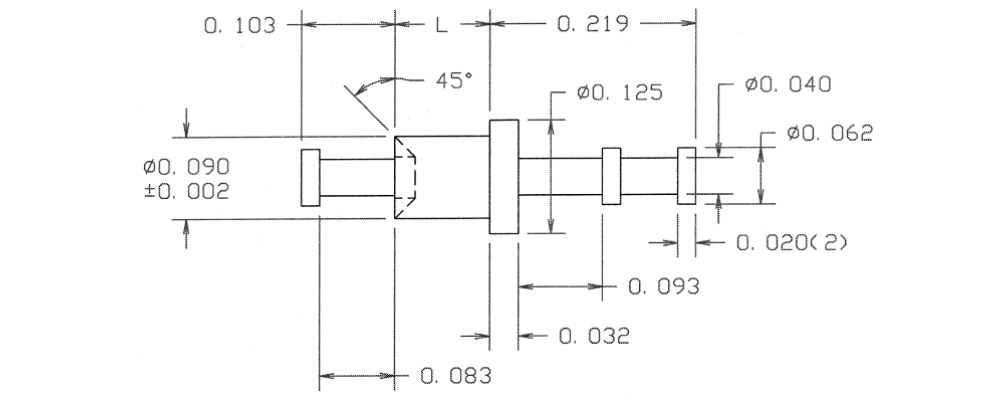

10-554-4-035
10-554-4-035
10-554-4-035
0.487" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.094 Brass Gold YES
10-603-1-035
10-603-1-035
10-603-1-035
0.496" - - Swage Mount 0.075" 1/32 0.116 Brass Gold YES
10-703-4-088
10-703-4-088
10-703-4-088
0.306" - - 2-56 - - 2-56 THREAD Brass Bright Tin-Lead NO
10-8009-2-04
10-8009-2-04
10-8009-2-04
0.297" 0.062 - Swage Mount 0.084" 1/16 0.067 Brass Electro-Tin YES

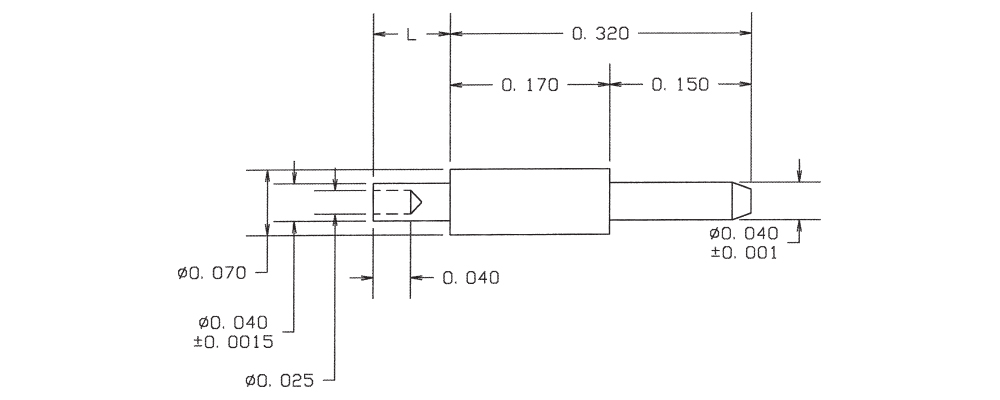

10-8021-1-01
10-8021-1-01
10-8021-1-01
0.371" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
10-805-6-05
10-805-6-05
10-805-6-05
0.524" - - Swage Mount 0.234" 3/16 0.094 Brass Electro Solder NO
10-811-3-04
10-811-3-04
10-811-3-04
0.453" - - Swage Mount 0.141" 3/32 0.1495 Brass Electro-Tin YES

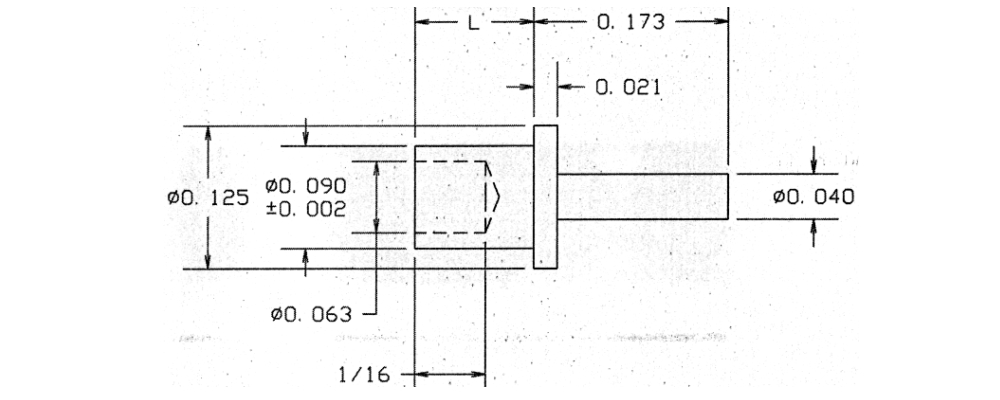

10-820-3-05
10-820-3-05
10-820-3-05
0.308" 0.040 - Swage Mount 0.135" 3/32 0.094 Brass Electro Solder NO
10-831-3-05
10-831-3-05
10-831-3-05
0.313" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Electro Solder NO
10-839-2-035
10-839-2-035
10-839-2-035
0.813" 0.050 Pin/Pin Swage Mount 0.094" 1/16 0.111 Brass Gold YES

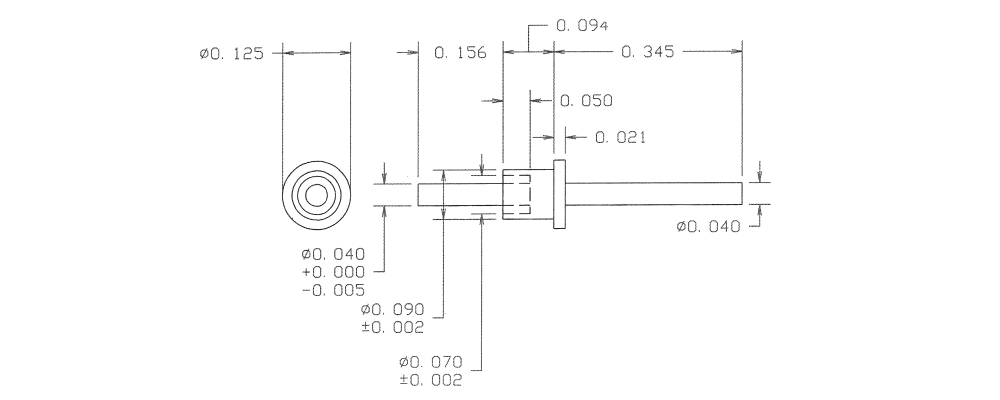

10-859-2-088
10-859-2-088
10-859-2-088
0.595" 0.040 Pin/Pin Swage Mount 0.094" 1/16 0.094 Brass Bright Tin-Lead NO
10-877-3-044
10-877-3-044
10-877-3-044
0.455" 0.032 - Swage Mount 0.113" 3/32 0.055 Brass Bright Tin YES
10-895-9-04
10-895-9-04
10-895-9-04
0.900" 0.040 - - - - - Brass Electro-Tin YES

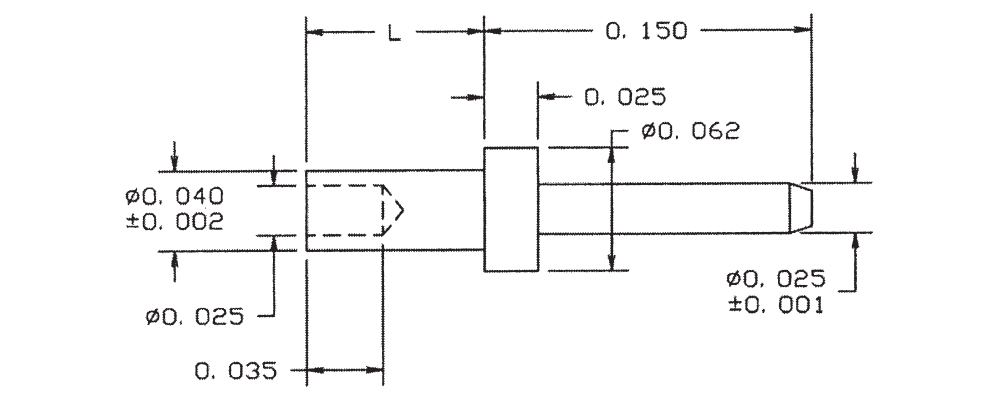

10-915-3-035
10-915-3-035
10-915-3-035
0.263" 0.025 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES
