Commercial
Non-Insulated
Terminals

Filter
09-0049-2-035
09-0049-2-035
09-0049-2-035
0.296" - - Press Fit/Solder 0.078" 1/16 0.073 Brass Gold YES
09-0112-3-03
09-0112-3-03
09-0112-3-03
0.479" - TURRET/THREAD Swage Mount 0.125" 3/32 0.154 Brass Gold YES

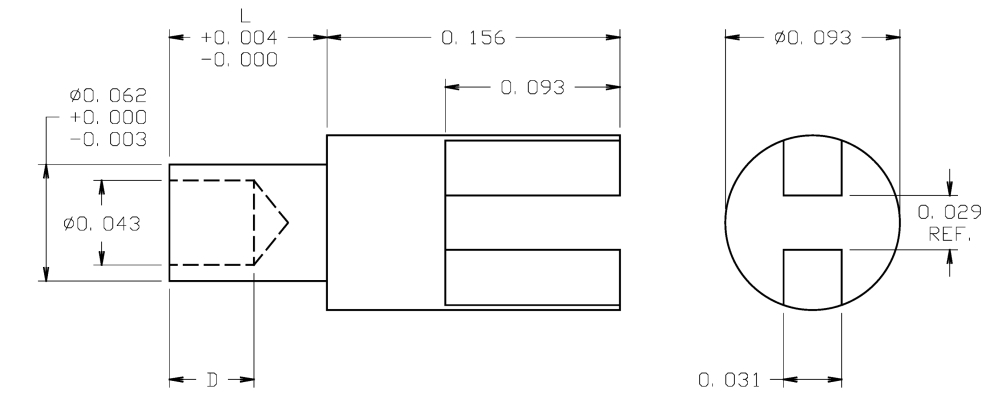

09-0175-2-044
09-0175-2-044
09-0175-2-044
0.240" - - Swage Mount 0.084" 1/16 0.063 Brass Bright Tin YES
09-0215-2-044
09-0215-2-044
09-0215-2-044
0.400" 0.030 Pin/Pin Solder 0.090" 1/16 0.136 Brass Bright Tin YES
09-0259-1-01
09-0259-1-01
09-0259-1-01
0.557" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Silver YES
09-0304-1-05
09-0304-1-05
09-0304-1-05
0.154" - - Swage Mount 0.060" 1/32 0.055 Brass Electro Solder NO
09-0374-1-03
09-0374-1-03
09-0374-1-03
0.334" 0.025 TURRET/PIN Press Fit/Solder 0.080" 1/16 0.055 Brass Gold YES

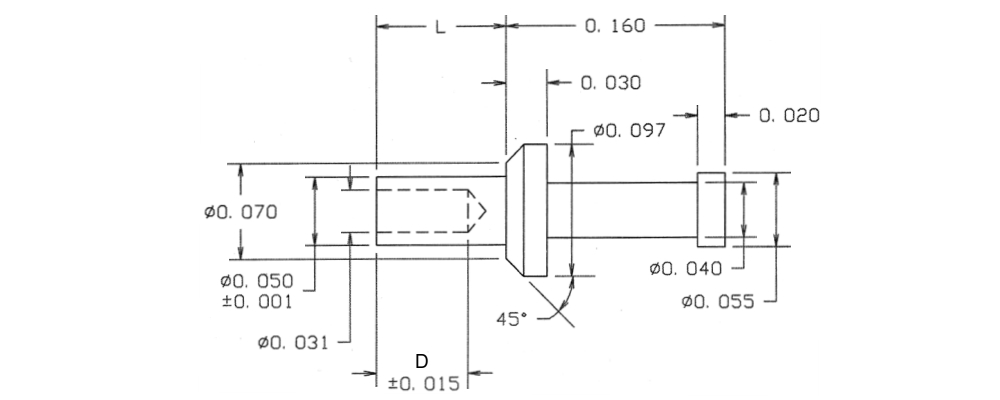

09-7017-1-088
09-7017-1-088
09-7017-1-088
0.222" - - Swage Mount 0.062" 1/32 0.055 LEADED Red Brass Bright Tin-Lead NO
09-7129-1-088
09-7129-1-088
09-7129-1-088
0.862" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Bright Tin-Lead NO
09-7158-1A-04
09-7158-1A-04
09-7158-1A-04
0.191" 0.025 - RIVET MOUNT 0.048" 1/64 0.0625 Brass Electro-Tin YES

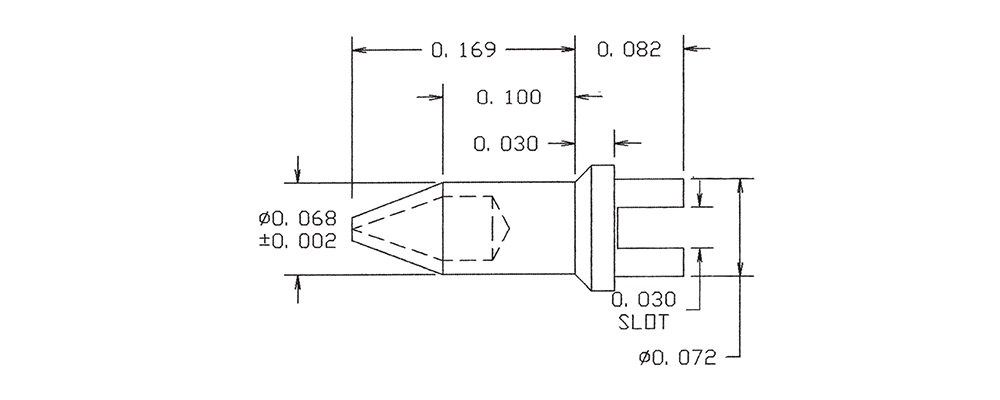

09-7191-2-01
09-7191-2-01
09-7191-2-01
0.251" - - RIVET MOUNT 0.100" 1/16 0.073 Brass Silver YES
09-8040-2-044
09-8040-2-044
09-8040-2-044
0.614" 0.020 - Solder 0.063" 1/32 0.022 Brass Bright Tin YES
09-8068-1-01
09-8068-1-01
09-8068-1-01
0.361" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
09-8131-1-044
09-8131-1-044
09-8131-1-044
0.240" 0.032 TURRET/PIN Swage Mount 0.051" 1/32 0.067 Brass Bright Tin YES
09-8162-2-03
09-8162-2-03
09-8162-2-03
1.172" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Gold YES
09-8193-2-05
09-8193-2-05
09-8193-2-05
0.392" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
09-8422-2-035
09-8422-2-035
09-8422-2-035
0.245" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES

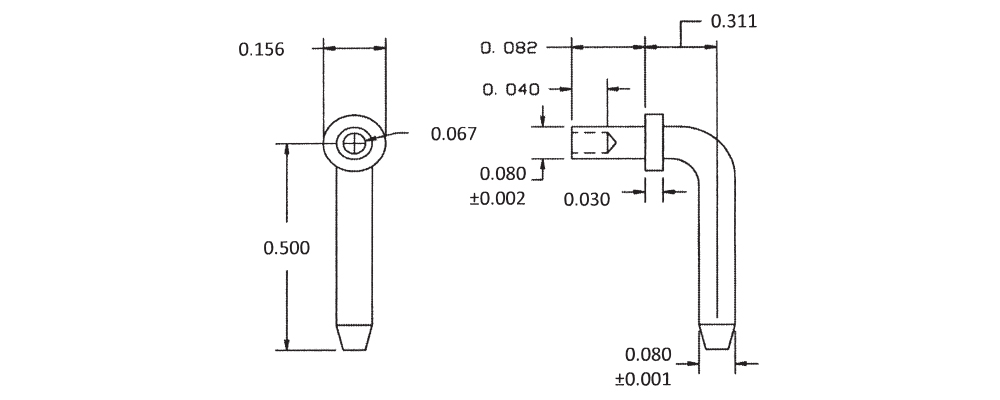

09-8633-2-088
09-8633-2-088
09-8633-2-088
0.578" 0.080 - Swage Mount 0.082" 1/16 0.086 Brass Bright Tin-Lead NO
09-8754-3-03
09-8754-3-03
09-8754-3-03
0.296" 0.025 - Solder 0.110" 1/64 TO 3/32 0.028 Brass Gold YES
09-8839-1-035
09-8839-1-035
09-8839-1-035
0.166" 0.025 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
