Commercial
Non-Insulated
Terminals

Filter
09-0258-1-095
09-0258-1-095
09-0258-1-095
0.346" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Hot Solder Dip NO
09-0304-1-044
09-0304-1-044
09-0304-1-044
0.154" - - Swage Mount 0.060" 1/32 0.055 Brass Bright Tin YES
09-0374-1-01
09-0374-1-01
09-0374-1-01
0.334" 0.025 TURRET/PIN Press Fit/Solder 0.080" 1/16 0.055 Brass Silver YES
09-7017-1-05
09-7017-1-05
09-7017-1-05
0.222" - - Swage Mount 0.062" 1/32 0.055 LEADED Red Brass Electro Solder NO
09-7129-1-05
09-7129-1-05
09-7129-1-05
0.862" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Electro Solder NO
09-7158-1A-035
09-7158-1A-035
09-7158-1A-035
0.191" 0.025 - RIVET MOUNT 0.048" 1/64 0.0625 Brass Gold YES
09-7190-2-088
09-7190-2-088
09-7190-2-088
0.288" - - RIVET MOUNT 0.092" 1/16 0.0625 Brass Bright Tin-Lead NO

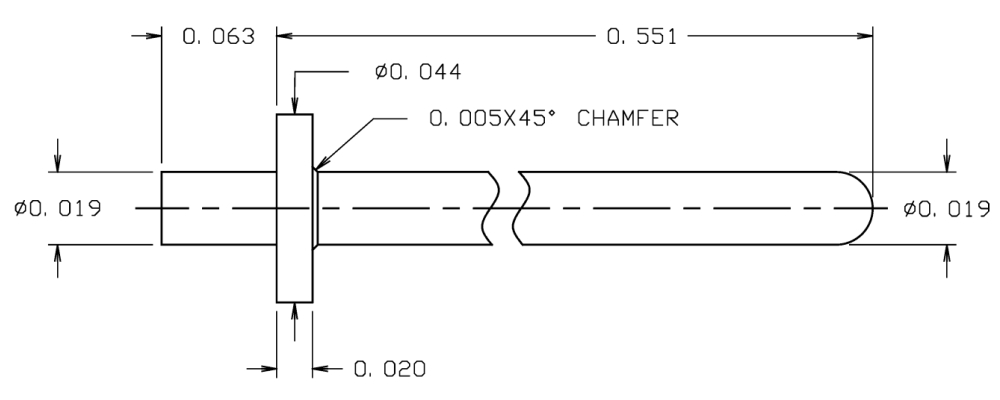

09-8040-2-04
09-8040-2-04
09-8040-2-04
0.614" 0.020 - Solder 0.063" 1/32 0.022 Brass Electro-Tin YES

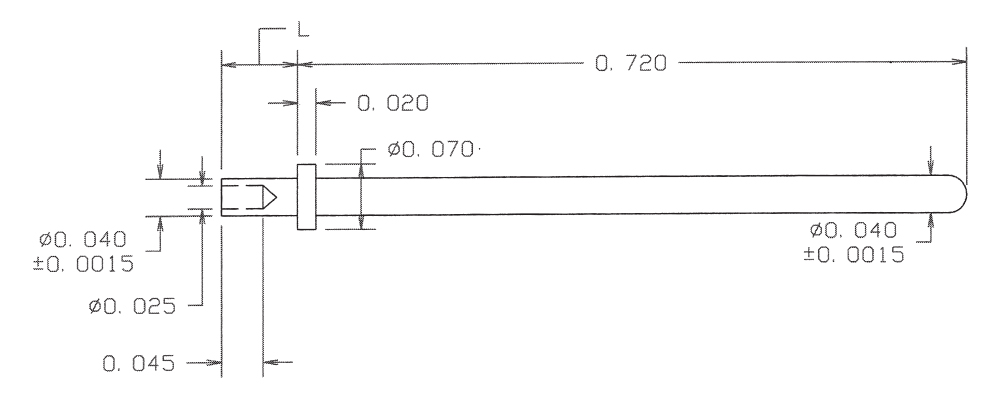

09-8067-2-088
09-8067-2-088
09-8067-2-088
0.802" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO
09-8131-1-04
09-8131-1-04
09-8131-1-04
0.240" 0.032 TURRET/PIN Swage Mount 0.051" 1/32 0.067 Brass Electro-Tin YES
09-8162-2-01
09-8162-2-01
09-8162-2-01
1.172" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Silver YES

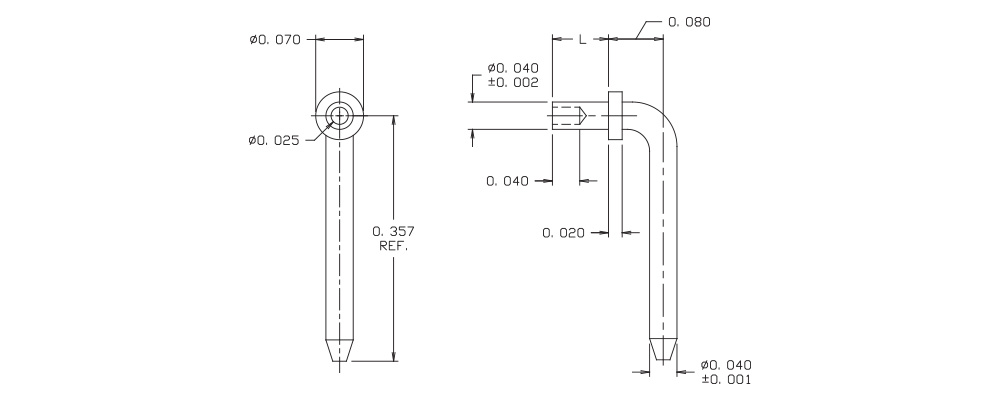

09-8193-2-044
09-8193-2-044
09-8193-2-044
0.392" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES
09-8422-2-03
09-8422-2-03
09-8422-2-03
0.245" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES
09-8633-2-05
09-8633-2-05
09-8633-2-05
0.578" 0.080 - Swage Mount 0.082" 1/16 0.086 Brass Electro Solder NO

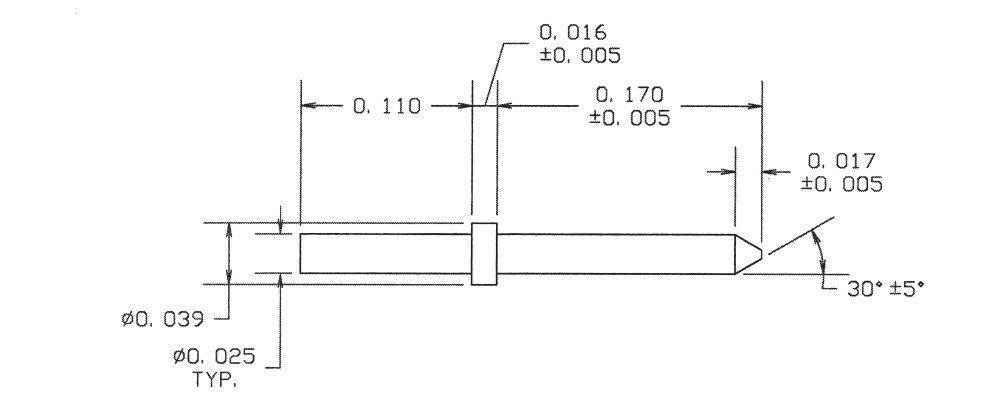

09-8754-3-01
09-8754-3-01
09-8754-3-01
0.296" 0.025 - Solder 0.110" 1/64 TO 3/32 0.028 Brass Silver YES
09-8839-1-03
09-8839-1-03
09-8839-1-03
0.166" 0.025 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

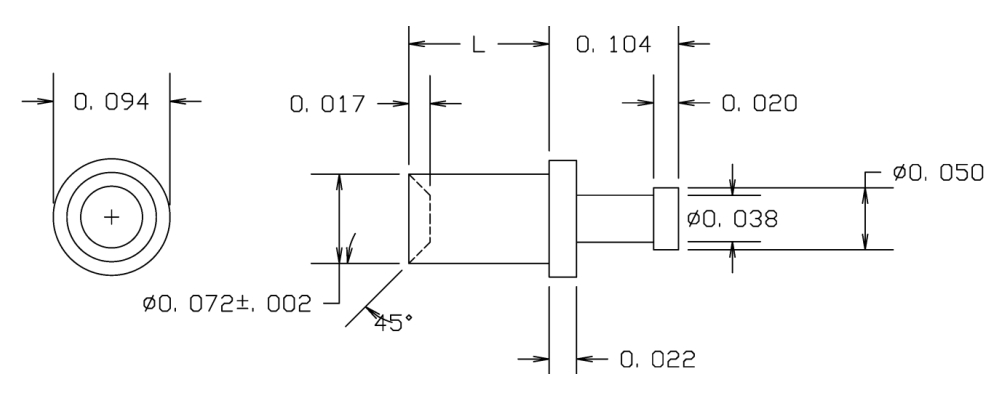

10-101-4-095
10-101-4-095
10-101-4-095
0.249" - - Swage Mount 0.145" 1/8 0.076 Brass Hot Solder Dip NO
10-108-1-04
10-108-1-04
10-108-1-04
0.147" - - Swage Mount 0.054" 1/32 0.067 Brass Electro-Tin YES
10-117-11-095
10-117-11-095
10-117-11-095
0.131" - - Swage Mount 0.037" 1/64 0.067 Brass Hot Solder Dip NO

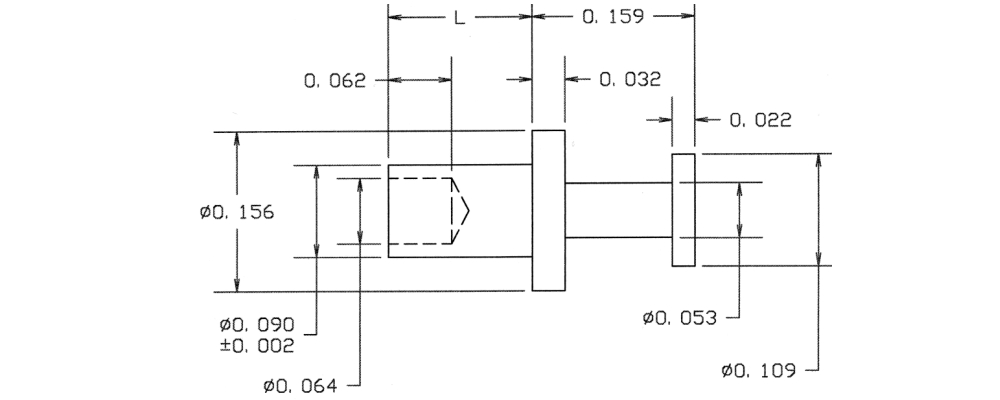

10-137-3-03
10-137-3-03
10-137-3-03
0.300" - - Swage Mount 0.141" 3/32 0.094 Brass Gold YES
