Commercial
Non-Insulated
Terminals

Filter
10-414-1-088
10-414-1-088
10-414-1-088
0.207" - - Swage Mount 0.051" 1/32 0.052 Brass Bright Tin-Lead NO
10-448-4-04
10-448-4-04
10-448-4-04
0.459" - - Swage Mount 0.147" 1/8 0.063 Brass Electro-Tin YES
10-471-2-01
10-471-2-01
10-471-2-01
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Silver YES
10-948-3-044
10-948-3-044
10-948-3-044
0.298" - - Swage Mount 0.125" 3/32 0.0635 Brass Bright Tin YES
09-0049-2-04
09-0049-2-04
09-0049-2-04
0.296" - - Press Fit/Solder 0.078" 1/16 0.073 Brass Electro-Tin YES

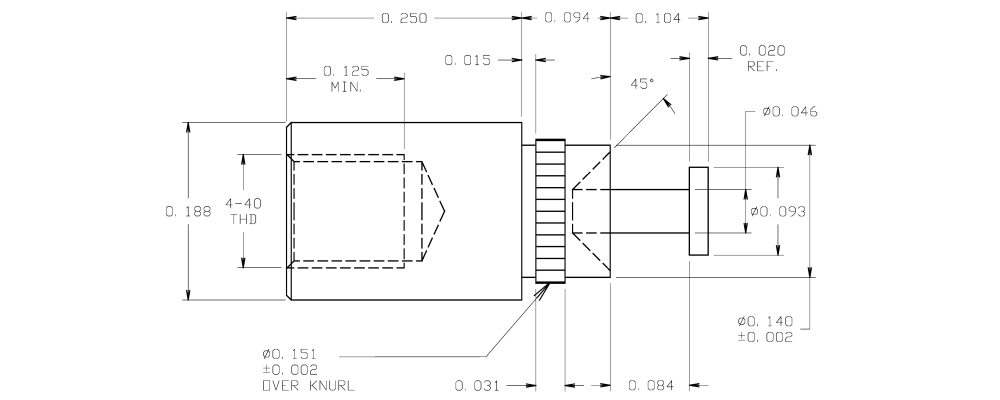

09-0112-3-035
09-0112-3-035
09-0112-3-035
0.479" - TURRET/THREAD Swage Mount 0.125" 3/32 0.154 Brass Gold YES
09-0175-2-05
09-0175-2-05
09-0175-2-05
0.240" - - Swage Mount 0.084" 1/16 0.063 Brass Electro Solder NO
09-0215-2-05
09-0215-2-05
09-0215-2-05
0.400" 0.030 Pin/Pin Solder 0.090" 1/16 0.136 Brass Electro Solder NO
09-0259-1-03
09-0259-1-03
09-0259-1-03
0.557" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Gold YES
09-0304-1-088
09-0304-1-088
09-0304-1-088
0.154" - - Swage Mount 0.060" 1/32 0.055 Brass Bright Tin-Lead NO

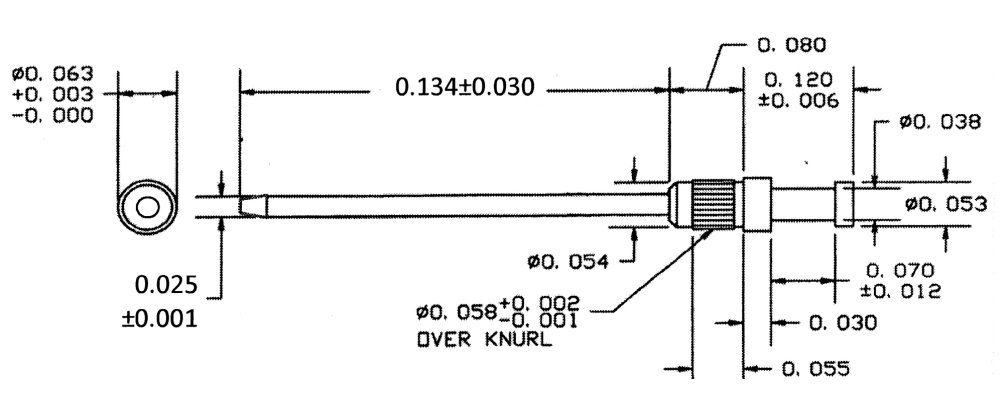

09-0374-1-035
09-0374-1-035
09-0374-1-035
0.334" 0.025 TURRET/PIN Press Fit/Solder 0.080" 1/16 0.055 Brass Gold YES
09-7017-1-095
09-7017-1-095
09-7017-1-095
0.222" - - Swage Mount 0.062" 1/32 0.055 LEADED Red Brass Hot Solder Dip NO
09-7130-1-01
09-7130-1-01
09-7130-1-01
0.982" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Silver YES

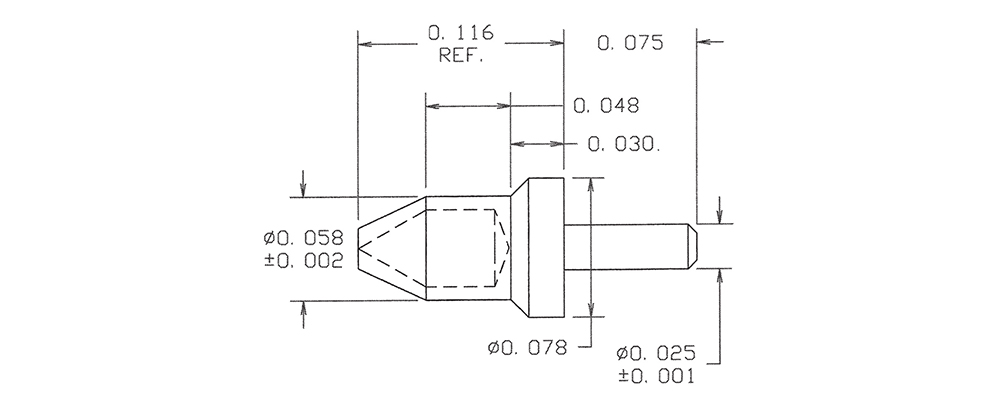

09-7158-1A-044
09-7158-1A-044
09-7158-1A-044
0.191" 0.025 - RIVET MOUNT 0.048" 1/64 0.0625 Brass Bright Tin YES

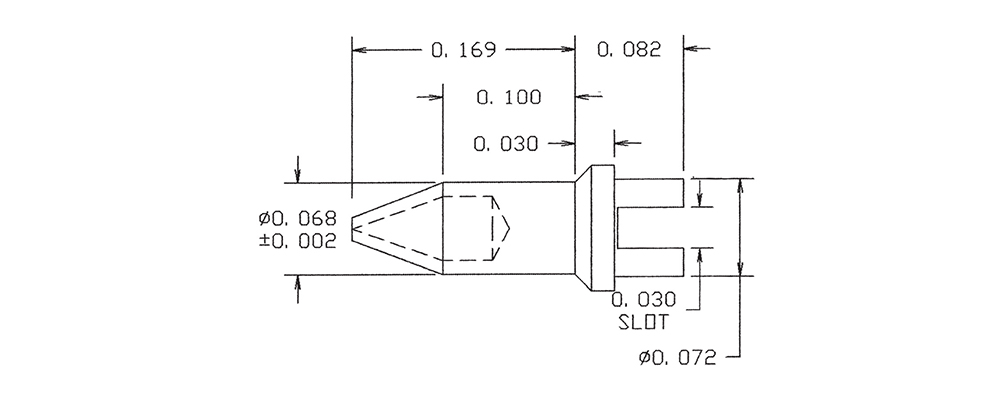

09-7191-2-03
09-7191-2-03
09-7191-2-03
0.251" - - RIVET MOUNT 0.100" 1/16 0.073 Brass Gold YES
09-8040-2-05
09-8040-2-05
09-8040-2-05
0.614" 0.020 - Solder 0.063" 1/32 0.022 Brass Electro Solder NO

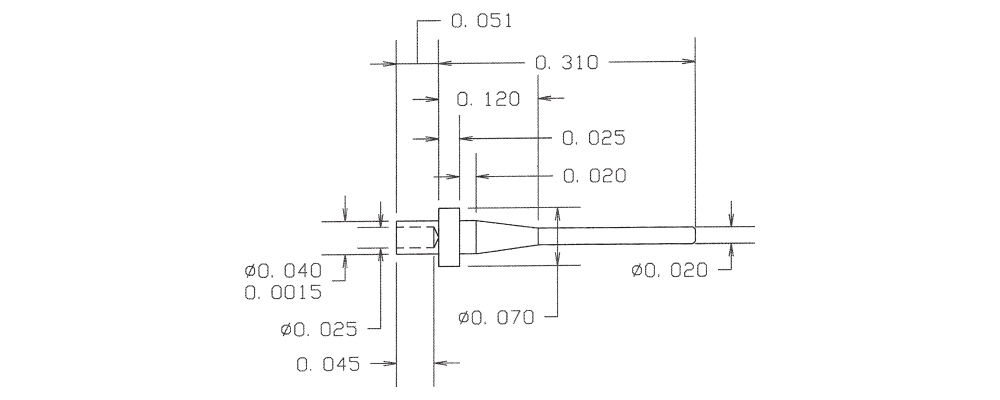

09-8068-1-03
09-8068-1-03
09-8068-1-03
0.361" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

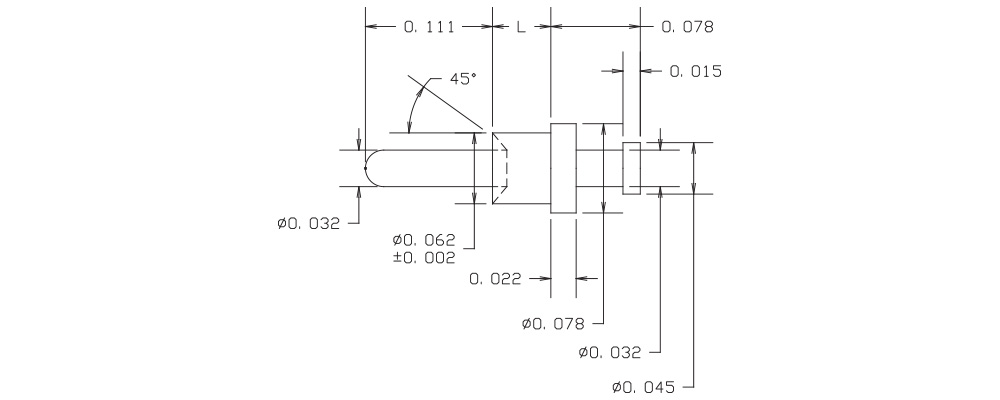

09-8131-1-05
09-8131-1-05
09-8131-1-05
0.240" 0.032 TURRET/PIN Swage Mount 0.051" 1/32 0.067 Brass Electro Solder NO

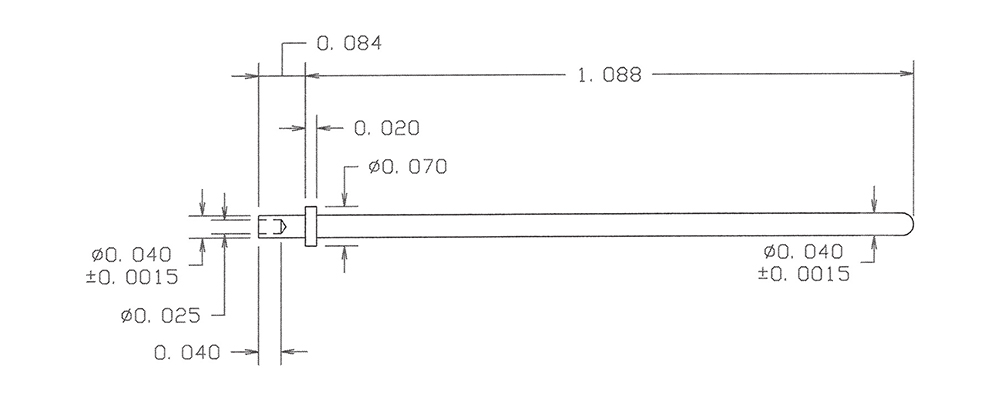

09-8162-2-035
09-8162-2-035
09-8162-2-035
1.172" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Gold YES
09-8193-2-088
09-8193-2-088
09-8193-2-088
0.392" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO
